Model # ZV36TSF1SS Official GE range hood
Here are the diagrams and repair parts for Official GE ZV36TSF1SS range hood, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts forZV36TSF1SS Range Hood
- #31

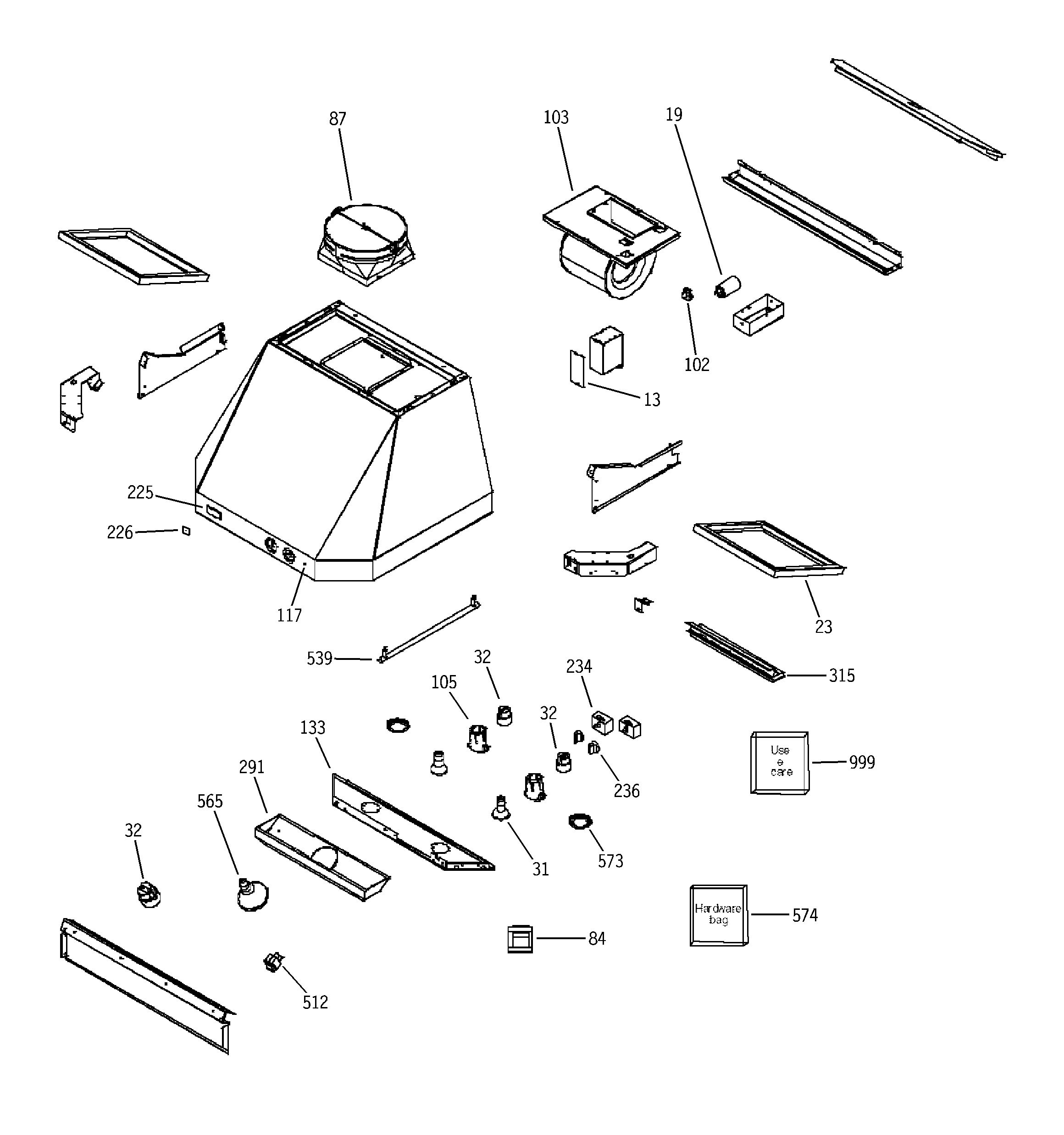

Range hood diagram
Range hood halogen light bulb, 120-volt, 50-wattPart #WB08X10028
Replaced by #WB08X34831
?Manufacturer substitutionThis part replaces WB08X10028. Substitute parts can look different from the original.$33.70 |15% OFF Phone Price : $39.70In Stock - #234
Range hood diagram
Range hood rotary switchPart #WB24X10110
$87.11 |6% OFF Phone Price : $93.11In Stock - #19
Range hood diagram
Range hood blower motor capacitorPart #WB27X10669
$92.11 |6% OFF Phone Price : $98.11In Stock - #236
Range hood diagram
G.e. range hood control knob (chrome)Part #WB03X10261
$108.73 |10% OFF Phone Price : $120.73In Stock - #565
Range hood diagram
120v 175w inPart #WB08X10029
Replaced by #WB25X25901
?Manufacturer substitutionThis part replaces WB08X10029. Substitute parts can look different from the original.$93.72 |6% OFF Phone Price : $99.72In Stock - #13
Range hood diagram
Junction boxPart #WB02X10872
$29.31 |17% OFF Phone Price : $35.31In Stock - #105
Range hood diagram
Lampholder sPart #WB08X10032
Replaced by #WB08X10038
?Manufacturer substitutionThis part replaces WB08X10032. Substitute parts can look different from the original.$60.52 |9% OFF Phone Price : $66.52In Stock - #512
Range hood diagram
Range hood warming light switchPart #WB24X10111
Replaced by #WB24X33725
?Manufacturer substitutionThis part replaces WB24X10111. Substitute parts can look different from the original.$105.16 |10% OFF Phone Price : $117.16In Stock - #117
Range hood diagram
Range hood indicator lightPart #WB08X10033
$32.29 |16% OFF Phone Price : $38.29In Stock - #315
Range hood diagram
Range hood drip trayPart #WB02X10875
$184.63 |6% OFF Phone Price : $196.63In Stock
