Kenmore
Charcoal Grill

Model # 2582337770 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582337770 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Hose 10111-8
#55

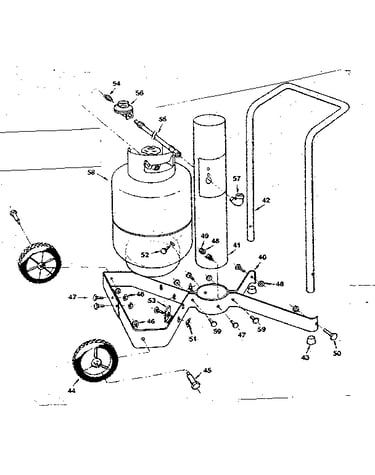

Cart and lp fittings diagram

Hose

Part #10111-8

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541110
#28

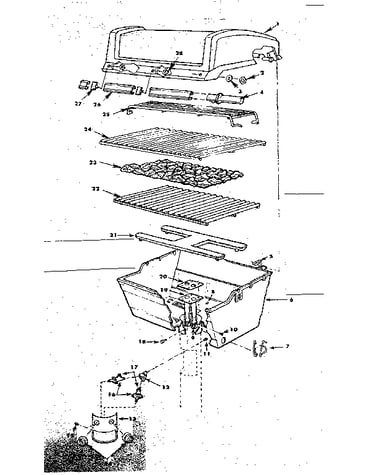

Grill and burner section diagram

Hex nut

Part #STD541110

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522505
#11

Grill and burner section diagram

Cap screw

Part #STD522505

The manufacturer no longer makes this part, and there's no substitute part

Cup Holder 10578-4
#7

Grill and burner section diagram

Cup holder

Part #10578-4

The manufacturer no longer makes this part, and there's no substitute part

Air Shutter 10787-6
#9

Grill and burner section diagram

Air shutter

Part #10787-6

The manufacturer no longer makes this part, and there's no substitute part

T-bolt Y-12427
#27

Grill and burner section diagram

T-bolt

Part #Y-12427

The manufacturer no longer makes this part, and there's no substitute part

Burner 10397-11
#21

Grill and burner section diagram

Burner

Part #10397-11

The manufacturer no longer makes this part, and there's no substitute part

Fact Tag 10083-216

#NI

All parts diagram

Fact tag

Part #10083-216

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522507
#47

Cart and lp fittings diagram

Cap screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Skewer 10626-5
#107

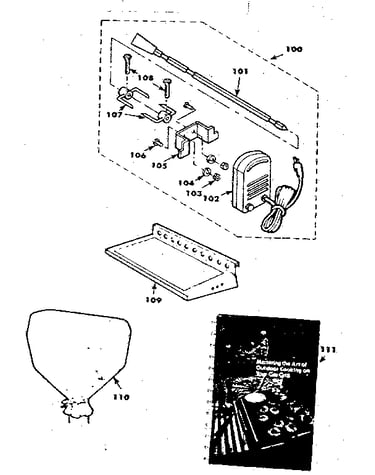

Optional accessories diagram

Skewer

Part #10626-5

The manufacturer no longer makes this part, and there's no substitute part
