Model # KSB540ER0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid KSB540ER0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

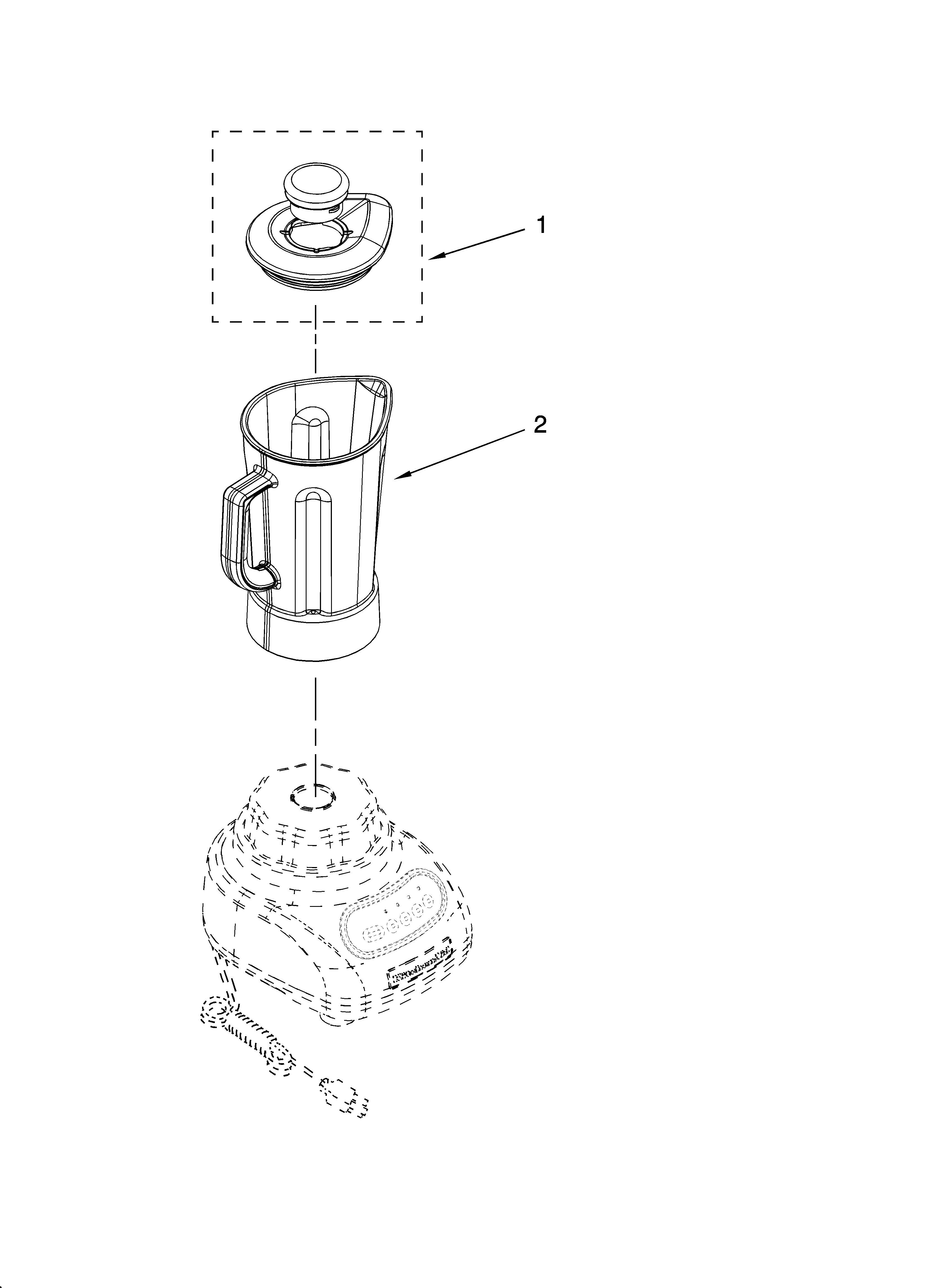

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Power Cord 9708928
#8

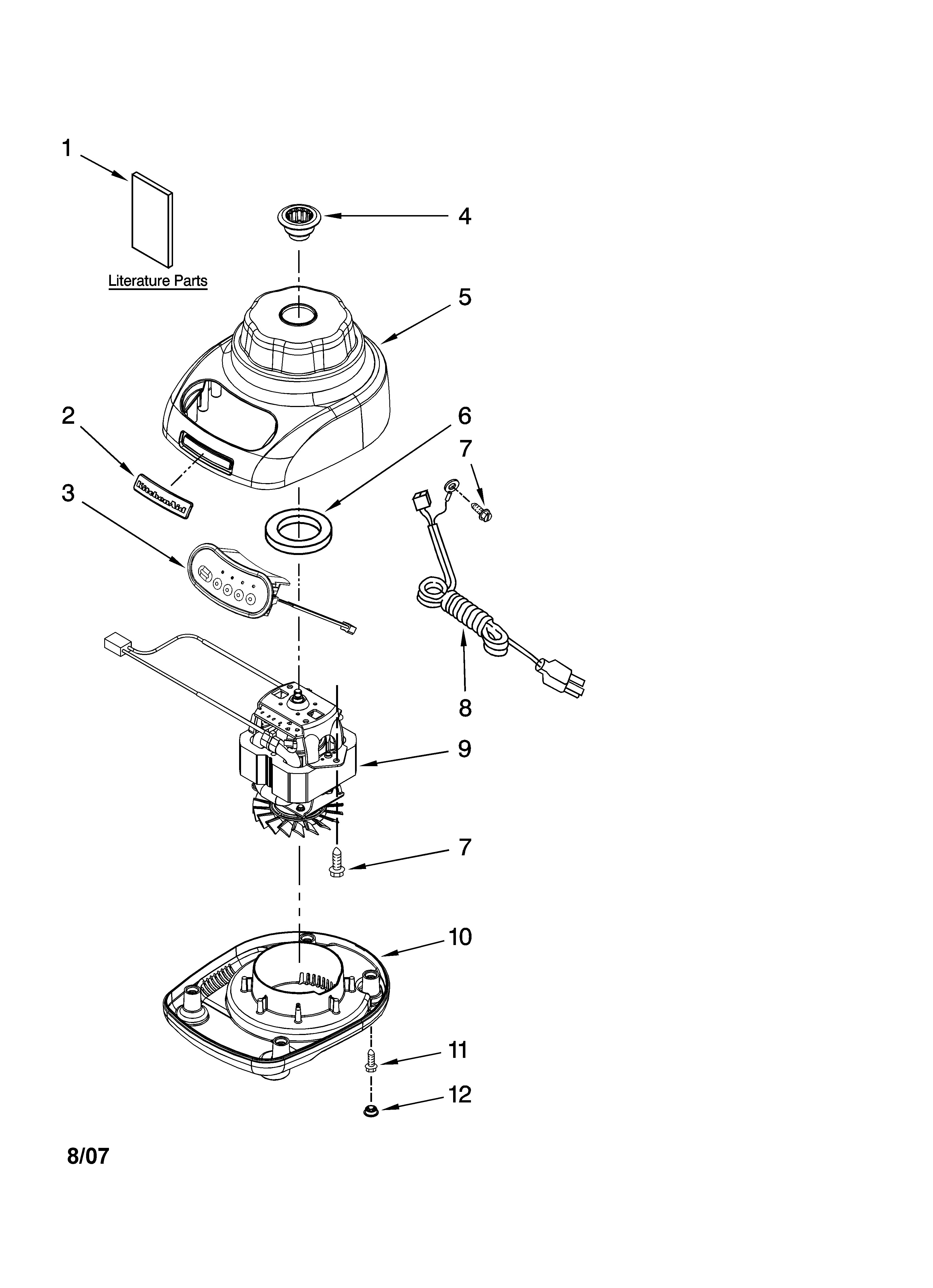

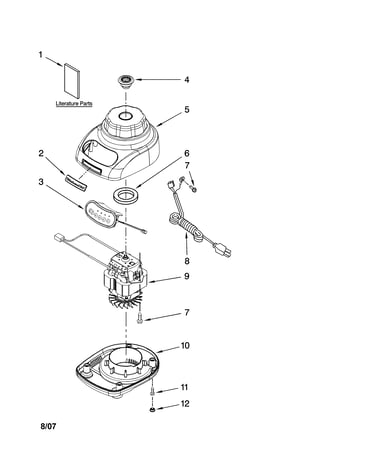

Unit parts diagram

Power cord

Part #9708928

$35.56
In Stock
Power Cord 9708917
#8A

Unit parts diagram

Power cord

Part #9708917

$28.24
In Stock
Base 9708890
#10

Unit parts diagram

Base

Part #9708890

Replaced by #WP9708890

?
Manufacturer substitution
This part replaces 9708890. Substitute parts can look different from the original.
$34.24
In Stock
Nameplate 9708916
#2

Unit parts diagram

Nameplate

Part #9708916

Replaced by #W10161493

?
Manufacturer substitution
This part replaces 9708916. Substitute parts can look different from the original.
$26.99 |
18% OFF Phone Price : $32.99
In Stock
Blender Screw W10001200
#11

Unit parts diagram

Blender screw

Part #W10001200

Replaced by #W11164114

?
Manufacturer substitution
This part replaces W10001200. Substitute parts can look different from the original.
This item is not returnable
$3.83
In Stock
Coupling 9708914
#4

Unit parts diagram

Coupling

Part #9708914

Replaced by #WPW10279256

?
Manufacturer substitution
This part replaces 9708914. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Screw W10068250
#7

Unit parts diagram

Screw

Part #W10068250

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces W10068250. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Foot 9708927
#12

Unit parts diagram

Foot

Part #9708927

Replaced by #WPW10524701

?
Manufacturer substitution
This part replaces 9708927. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Seal 9709366
#6

Unit parts diagram

Seal

Part #9709366

Replaced by #WP9709366

?
Manufacturer substitution
This part replaces 9709366. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Housing 9709226
#5B

Unit parts diagram

Housing

Part #9709226

Replaced by #WP9709226

?
Manufacturer substitution
This part replaces 9709226. Substitute parts can look different from the original.
$53.64
In Stock
