Model # 62860 Official Craftsman electric motor

Here are the diagrams and repair parts for Official Craftsman 62860 electric motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Table Saw Power Cord 64886
#14

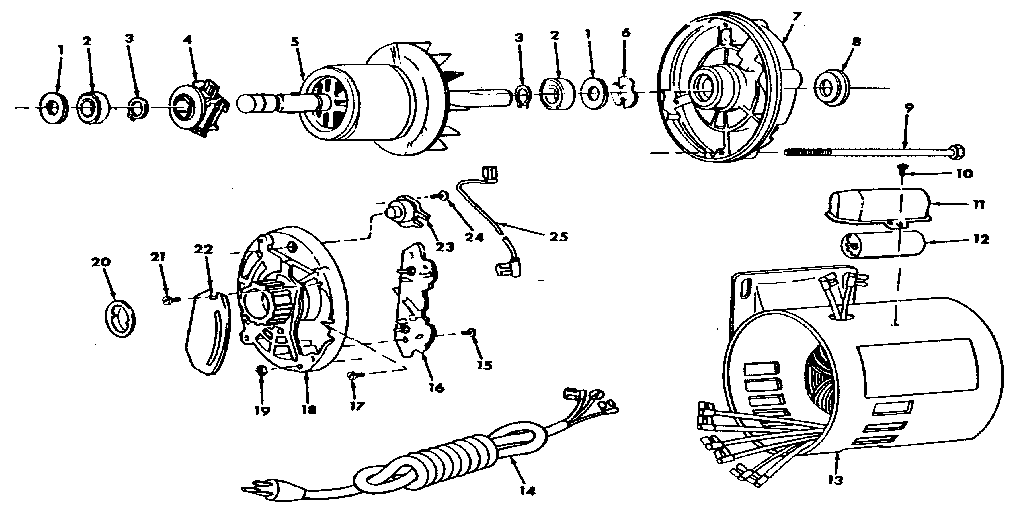

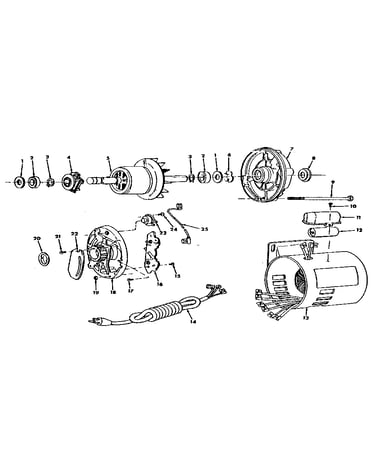

Motor 62860 diagram

Table saw power cord

Part #64886

The manufacturer no longer makes this part, and there's no substitute part

Screw 64142
#10

Motor 62860 diagram

Screw

Part #64142

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 37163
#6

Motor 62860 diagram

Spring washer

Part #37163

The manufacturer no longer makes this part, and there's no substitute part

Washer 37160
#1

Motor 62860 diagram

Washer

Part #37160

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 64964
#16

Motor 62860 diagram

Switch assembly

Part #64964

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 64860
#12

Motor 62860 diagram

Capacitor

Part #64860

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 37158
#3

Motor 62860 diagram

Retain ring

Part #37158

The manufacturer no longer makes this part, and there's no substitute part

Lead Assembly 80029
#25

Motor 62860 diagram

Lead assembly

Part #80029

The manufacturer no longer makes this part, and there's no substitute part

Screw 448011
#15

Motor 62860 diagram

Screw

Part #448011

The manufacturer no longer makes this part, and there's no substitute part

Protector 80027
#23

Motor 62860 diagram

Protector

Part #80027

The manufacturer no longer makes this part, and there's no substitute part
