Model # 315114232 Official Craftsman trim saw

Here are the diagrams and repair parts for Official Craftsman 315114232 trim saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

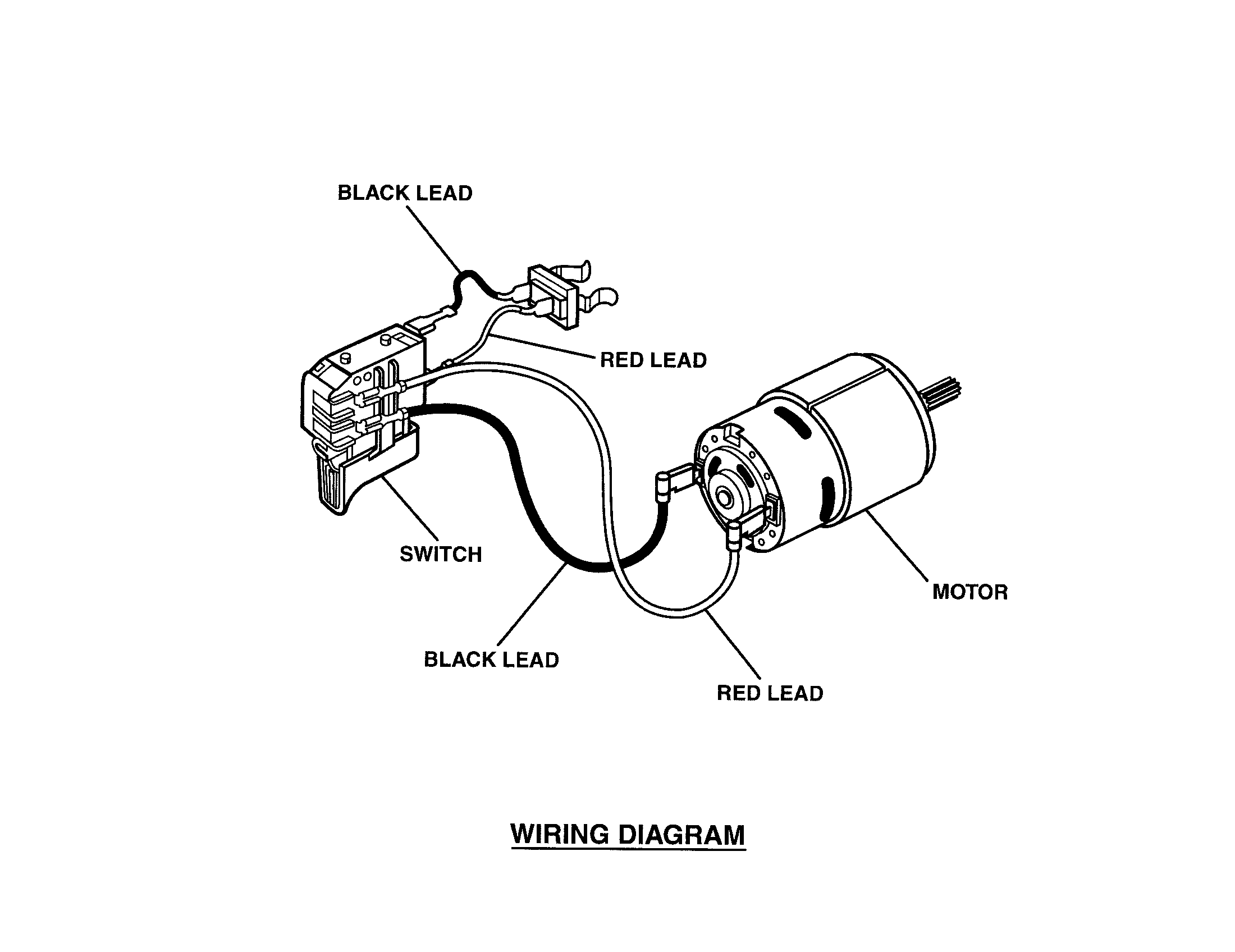

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
End Cap 5923101
#1

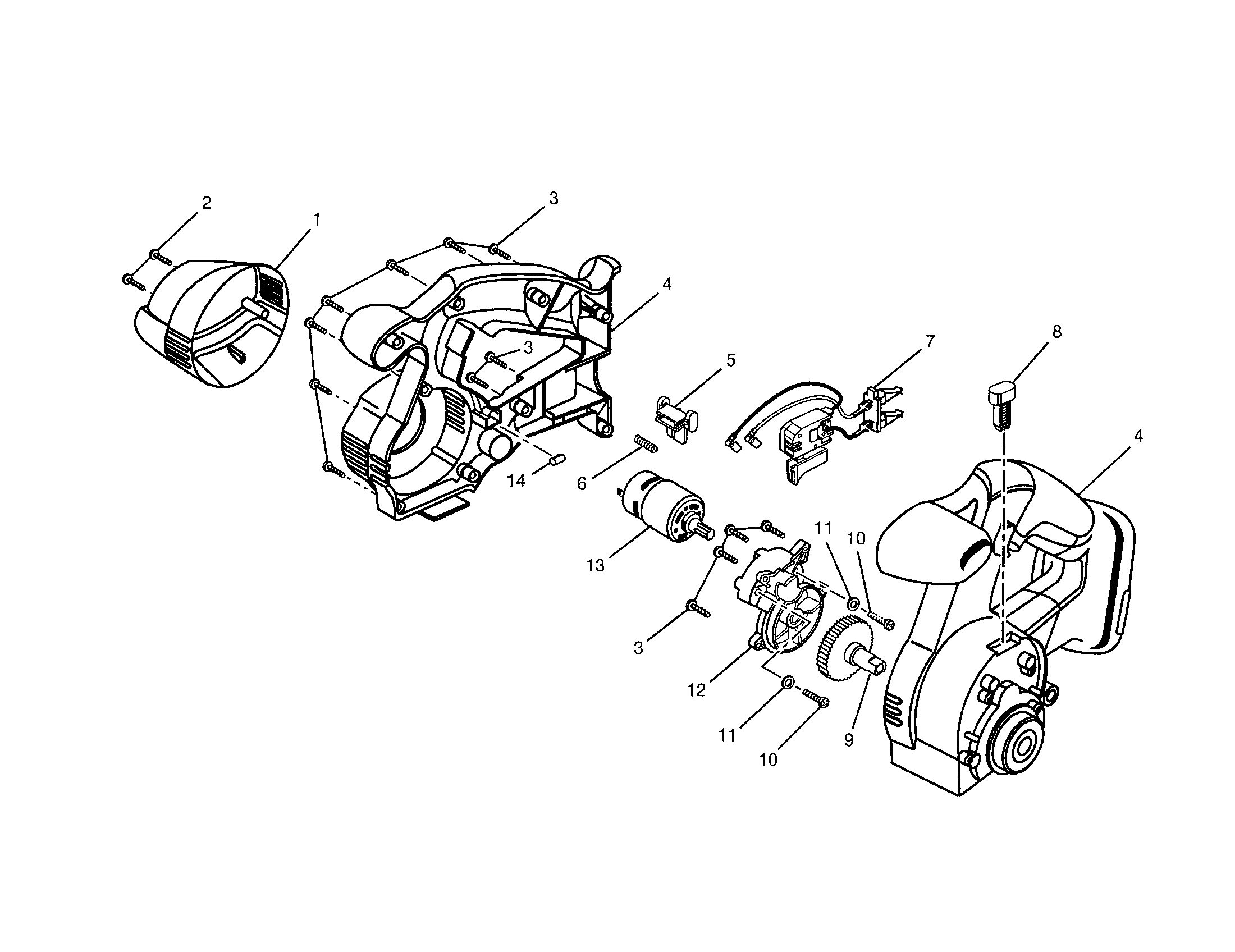

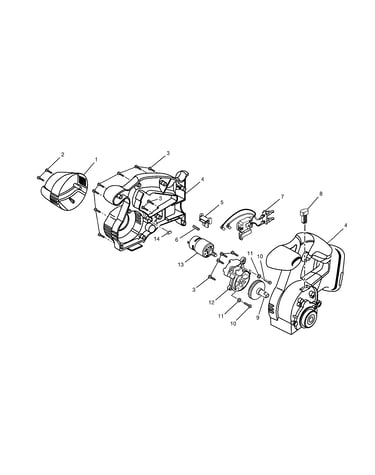

Motor/housing diagram

End cap

Part #5923101

The manufacturer no longer makes this part, and there's no substitute part

Washer 5228001
#32

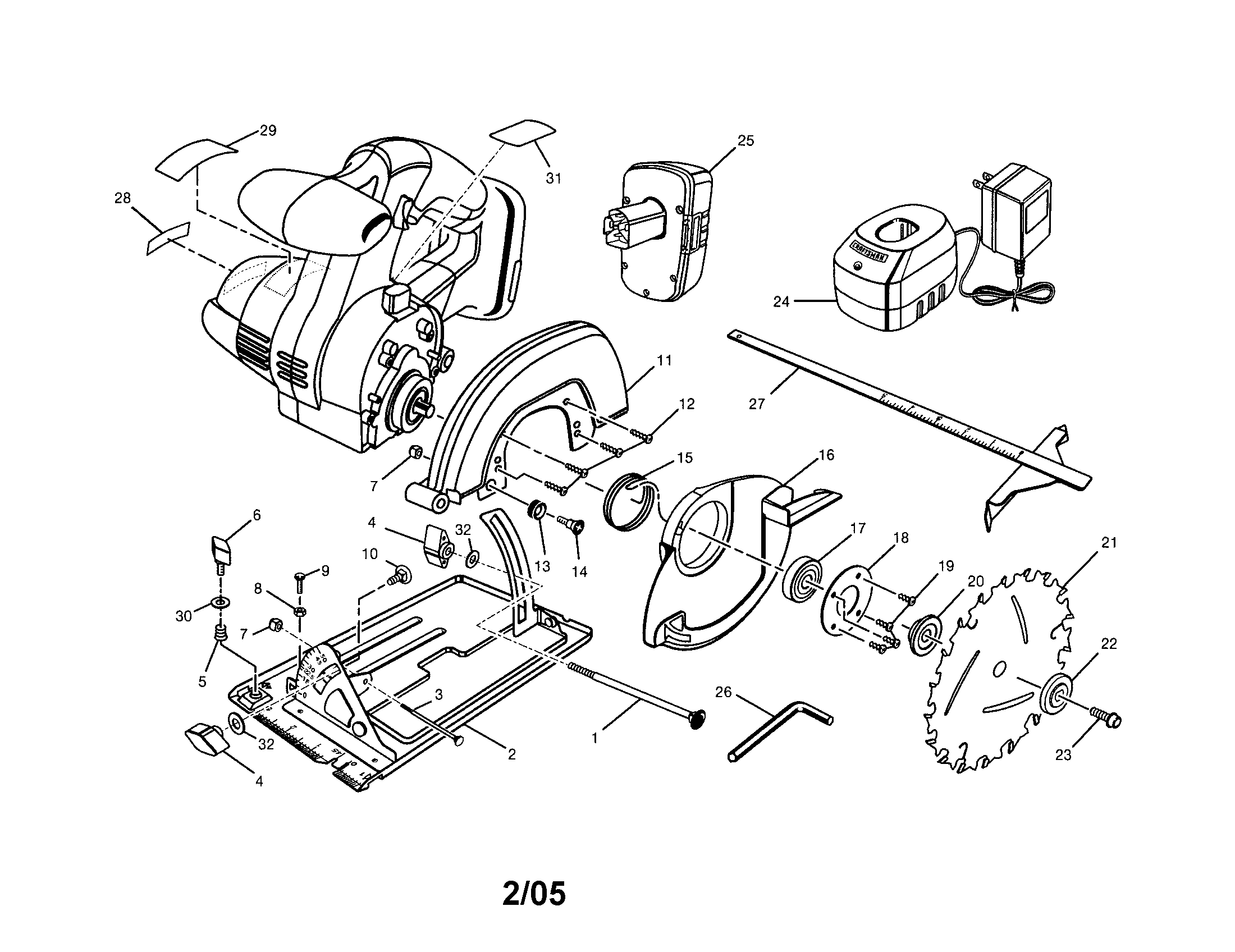

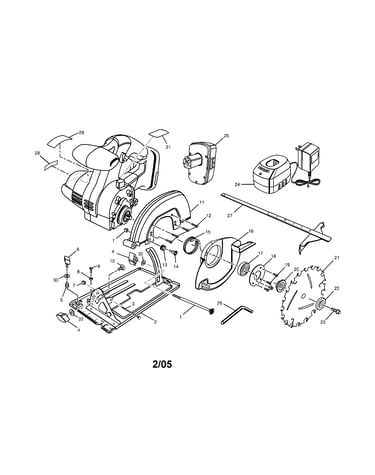

Base/blade guard/blade diagram

Washer

Part #5228001

The manufacturer no longer makes this part, and there's no substitute part

Screw 6614501
#3

Base/blade guard/blade diagram

Screw

Part #6614501

The manufacturer no longer makes this part, and there's no substitute part

Blade Guard 640556013
#11

Base/blade guard/blade diagram

Blade guard

Part #640556013

The manufacturer no longer makes this part, and there's no substitute part

Charger 1426101
#24

Base/blade guard/blade diagram

Charger

Part #1426101

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#21

Base/blade guard/blade diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Knob 5224502
#4

Base/blade guard/blade diagram

Miter saw knob

Part #5224502

The manufacturer no longer makes this part, and there's no substitute part

Gear/spind 300003026
#9

Motor/housing diagram

Gear/spind

Part #300003026

The manufacturer no longer makes this part, and there's no substitute part

Washer 680027001
#30

Base/blade guard/blade diagram

Washer

Part #680027001

The manufacturer no longer makes this part, and there's no substitute part

Spring 680001001
#5

Base/blade guard/blade diagram

Spring

Part #680001001

The manufacturer no longer makes this part, and there's no substitute part
