Ikea
Gas Cooktop

Model # ICS500VB0 Official Ikea gas counter unit

Here are the diagrams and repair parts for Official Ikea ICS500VB0 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Cooktop Gasket W10237005
#13

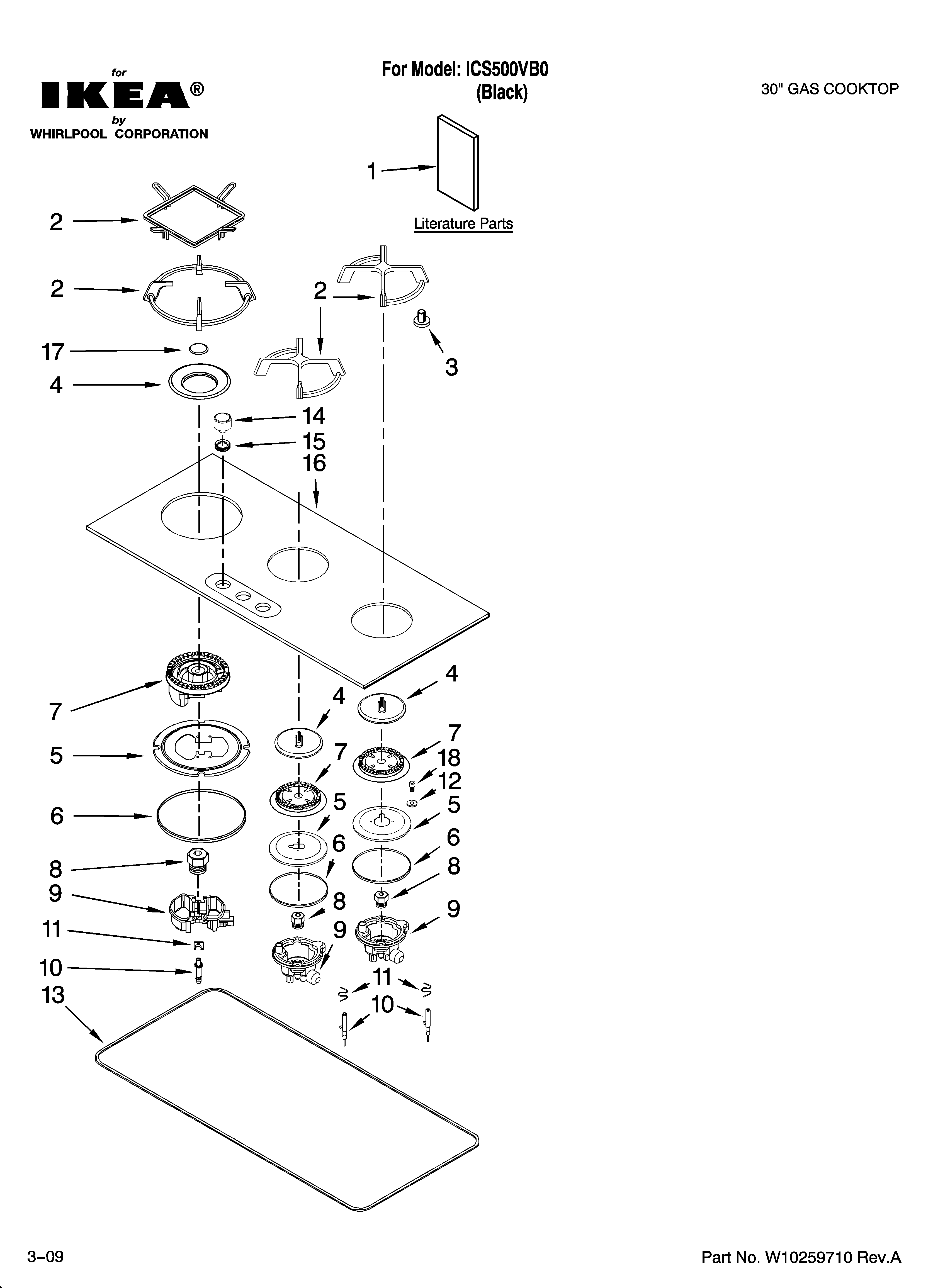

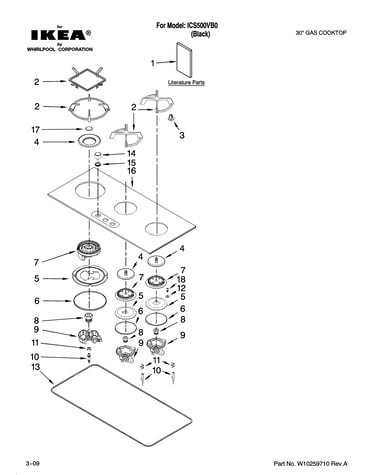

Cooktop, burner and grate parts diagram

Cooktop gasket

Part #W10237005

Replaced by #WPW10237005

?
Manufacturer substitution
This part replaces W10237005. Substitute parts can look different from the original.
$65.52 |
8% OFF Phone Price : $71.52
In Stock
Whirlpool Trim 8186903
#12

Cooktop, burner and grate parts diagram

Whirlpool trim

Part #8186903

$62.47
In Stock
Maytag Regulator 8186962
#11

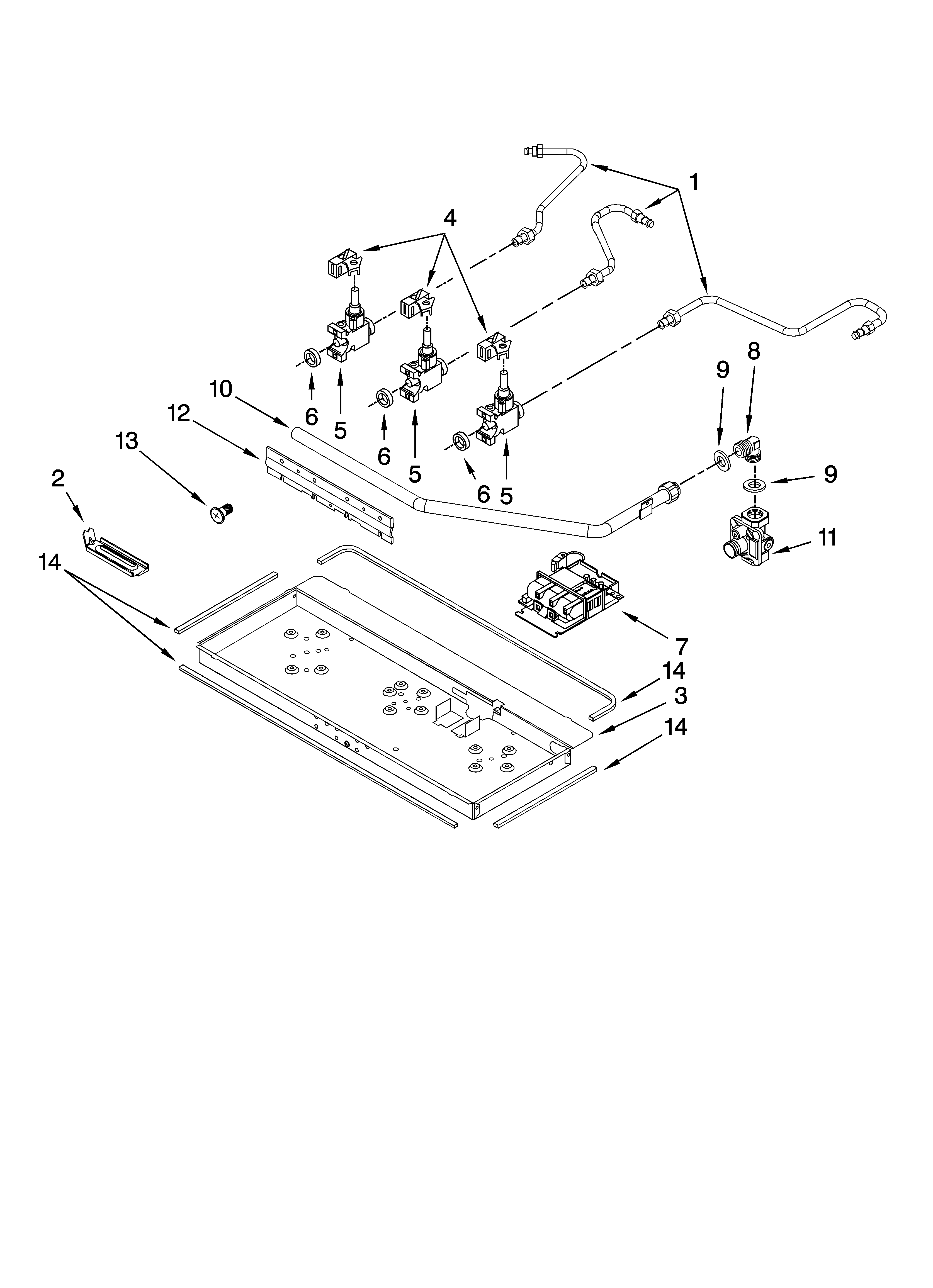

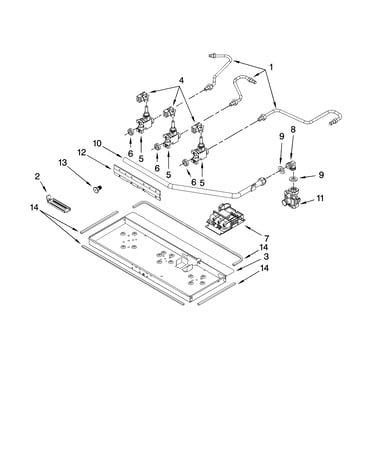

Burner box, gas valves, and switches diagram

Maytag regulator

Part #8186962

$104.53
In Stock
Orifice Spud W10236993
#8A

Cooktop, burner and grate parts diagram

Orifice spud

Part #W10236993

$29.89
In Stock
Whirlpool Surface Igniter W10236997
Whirlpool surface igniter

Part #W10236997

$34.67
In Stock
Burner Valve 8186817
#5A

Burner box, gas valves, and switches diagram

Burner valve

Part #8186817

$115.76
In Stock
Orifice Spud W10236992
#8

Cooktop, burner and grate parts diagram

Orifice spud

Part #W10236992

The manufacturer no longer makes this part, and there's no substitute part

Burner Grate W10236971
#2B

Cooktop, burner and grate parts diagram

Burner grate

Part #W10236971

The manufacturer no longer makes this part, and there's no substitute part

Ring Gasket W10237004
#6

Cooktop, burner and grate parts diagram

Ring gasket

Part #W10237004

The manufacturer no longer makes this part, and there's no substitute part

Grate Pad W10258993
#3

Cooktop, burner and grate parts diagram

Grate pad

Part #W10258993

The manufacturer no longer makes this part, and there's no substitute part
