Model # WCVH4800K1WW Official GE washer

Here are the diagrams and repair parts for Official GE WCVH4800K1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

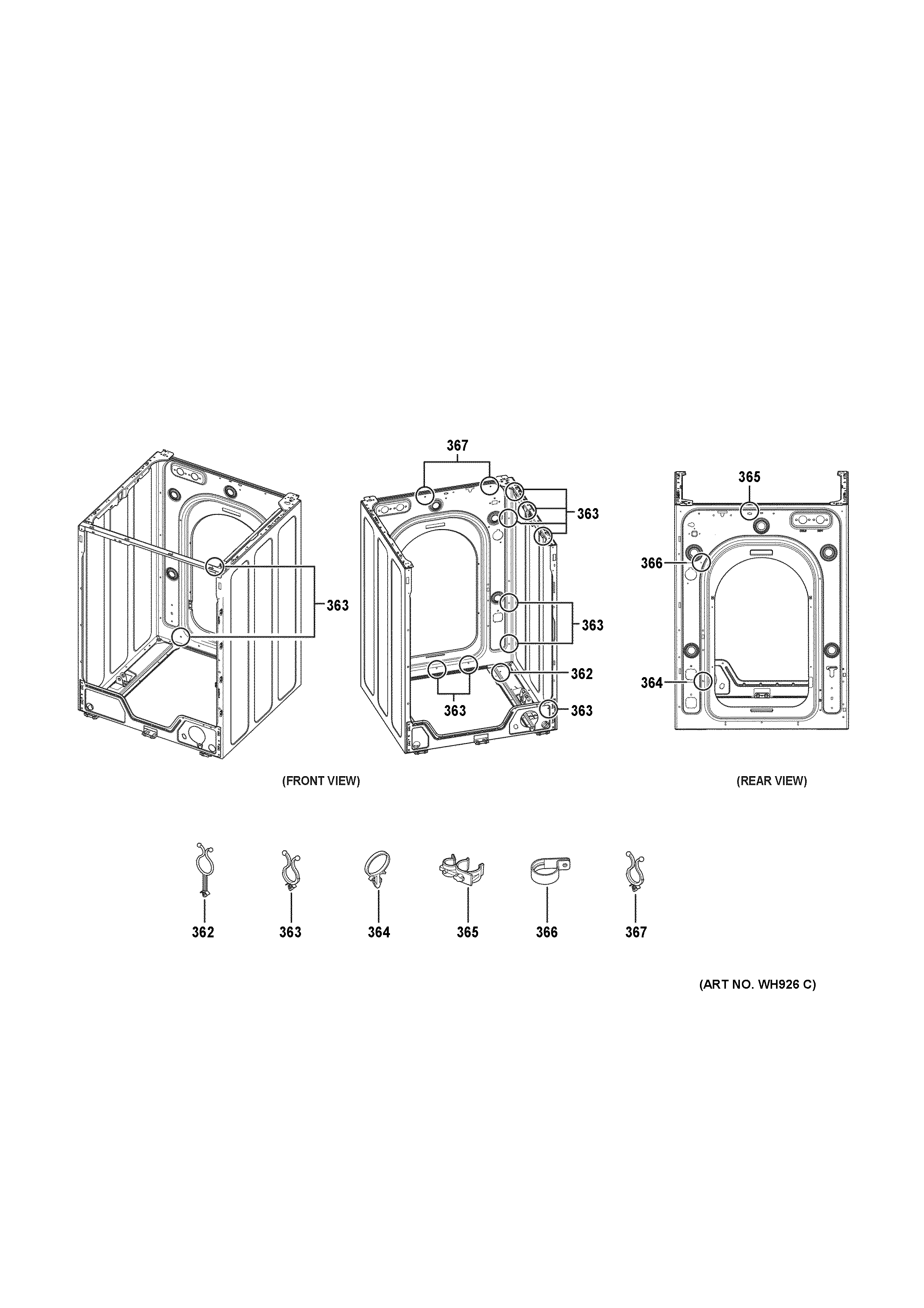

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Washer Door Lock WH10X10008
#217

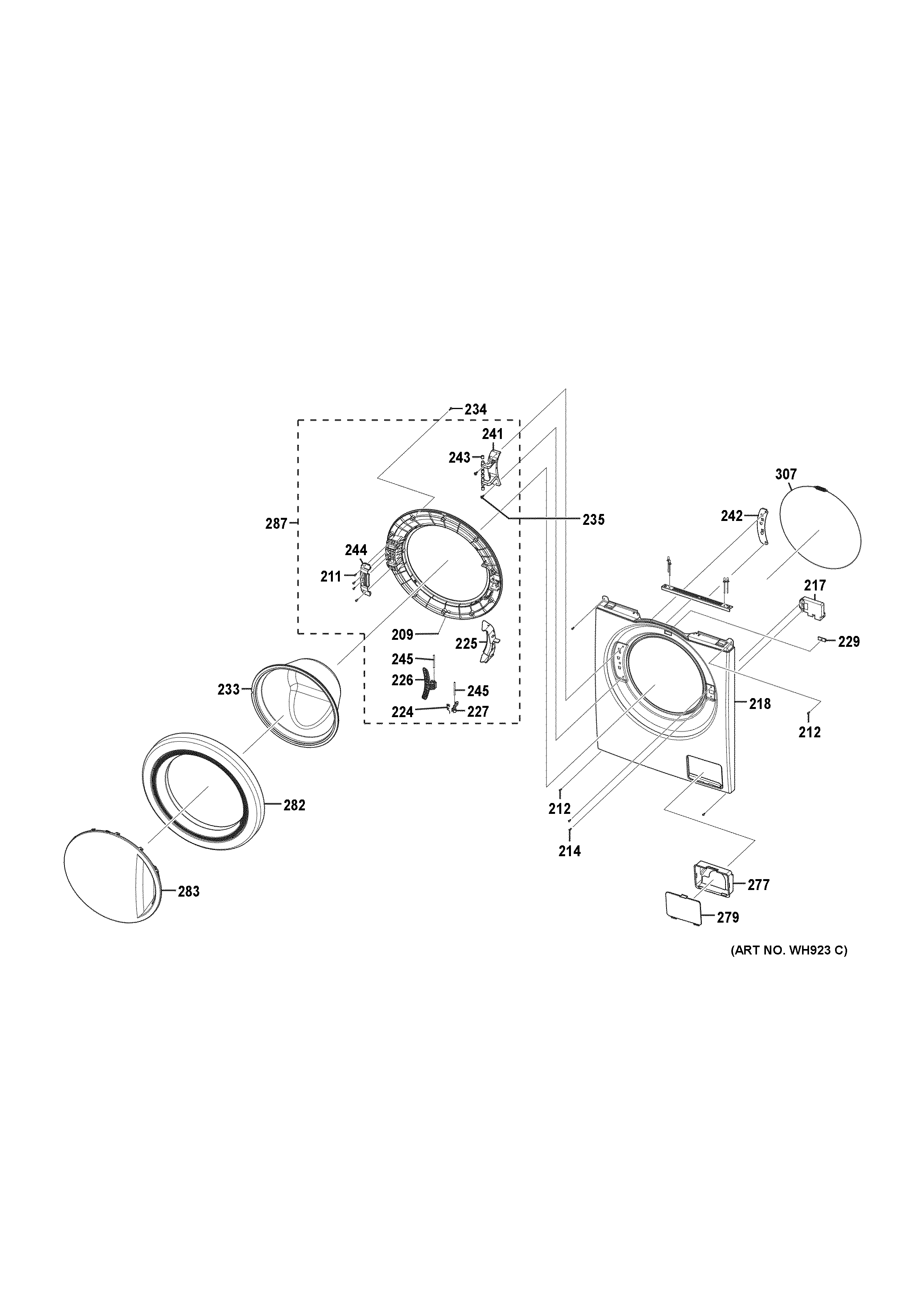

Front panel & door diagram

Washer door lock

Part #WH10X10008

$120.15 |
9% OFF Phone Price : $132.15
In Stock
Washer Spin Basket WH45X10090
#316

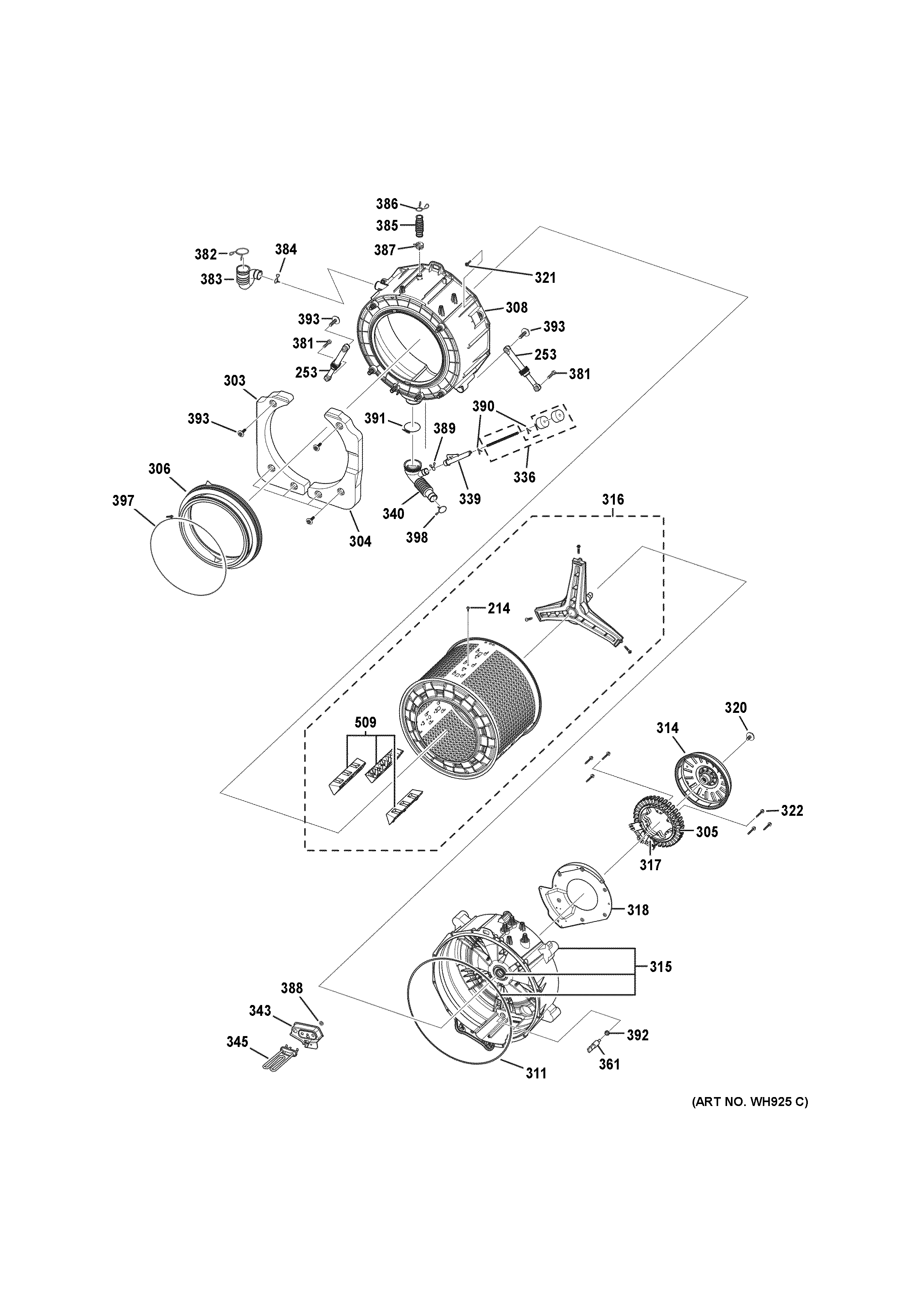

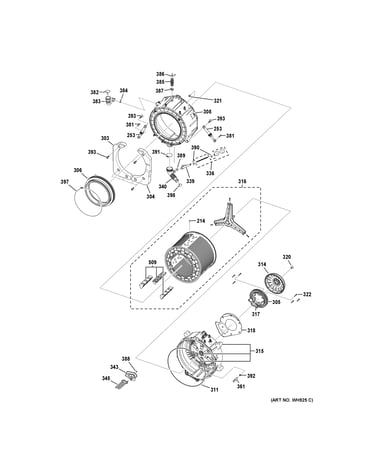

Tub & motor diagram

Washer spin basket

Part #WH45X10090

The manufacturer no longer makes this part, and there's no substitute part

Washer Door Boot WH08X10043
#306

Tub & motor diagram

Washer door boot

Part #WH08X10043

Replaced by #WH08X32017

?
Manufacturer substitution
This part replaces WH08X10043. Substitute parts can look different from the original.
$185.00
In Stock
Washer Outer Rear Tub Assembly WH45X10092
#315

Tub & motor diagram

Washer outer rear tub assembly

Part #WH45X10092

$484.62
In Stock
Washer Outer Front Tub WH45X10091
#308

Tub & motor diagram

Washer outer front tub

Part #WH45X10091

$188.52 |
6% OFF Phone Price : $200.52
In Stock
Washer Damper WH01X10488
#253

Tub & motor diagram

Washer damper

Part #WH01X10488

$52.88 |
10% OFF Phone Price : $58.88
In Stock
Washer Dispenser Drawer Housing Assembly WH41X10242
#153

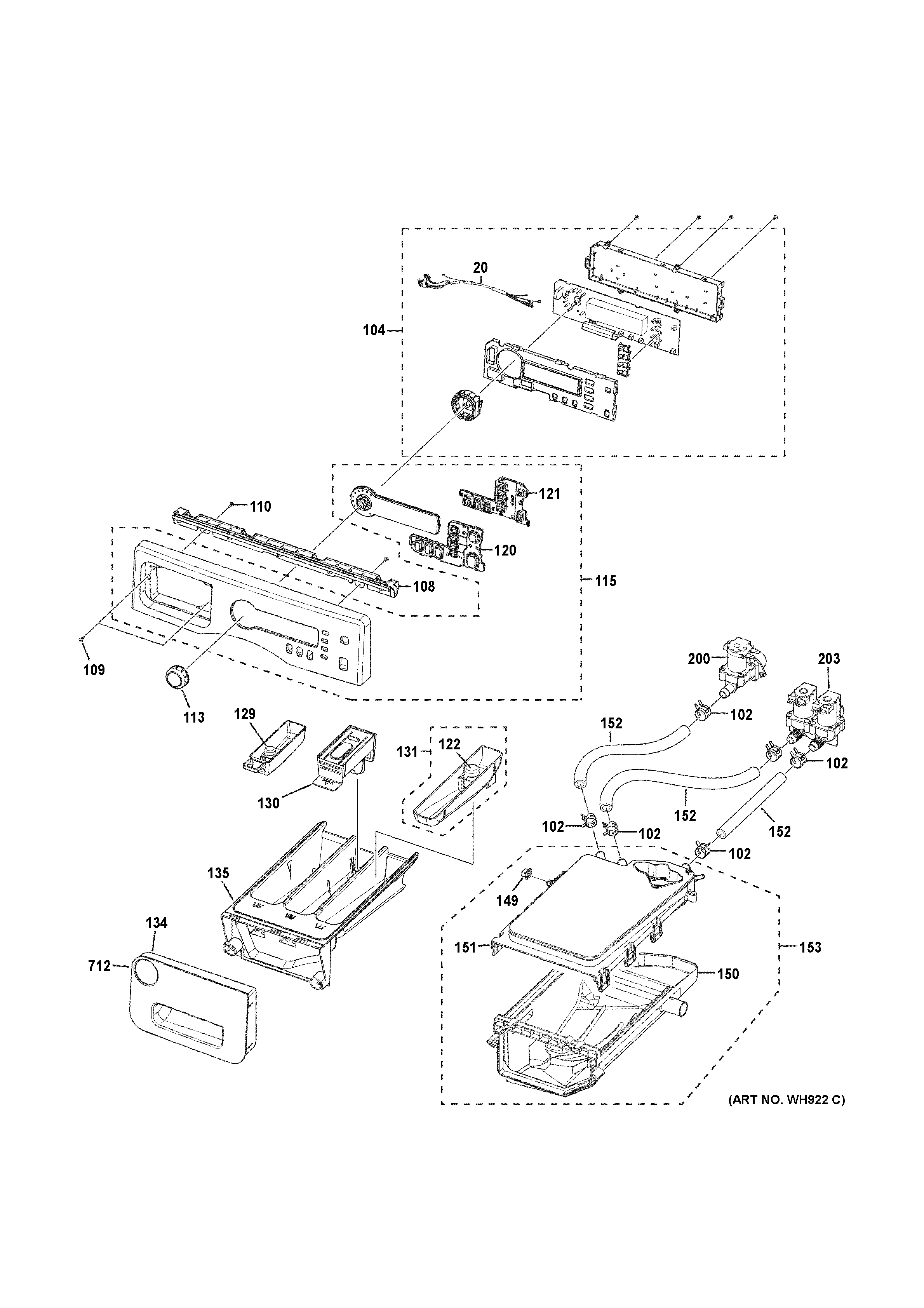

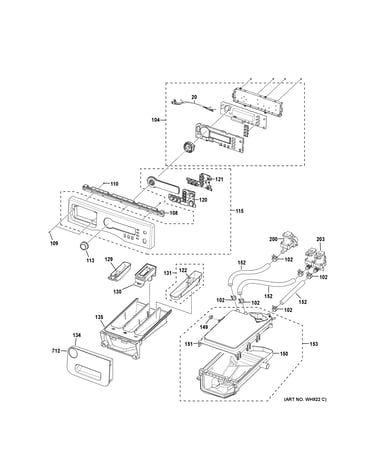

Controls & dispenser diagram

Washer dispenser drawer housing assembly

Part #WH41X10242

$192.28 |
6% OFF Phone Price : $204.28
In Stock
Spring Suspe WH05X10011
#204

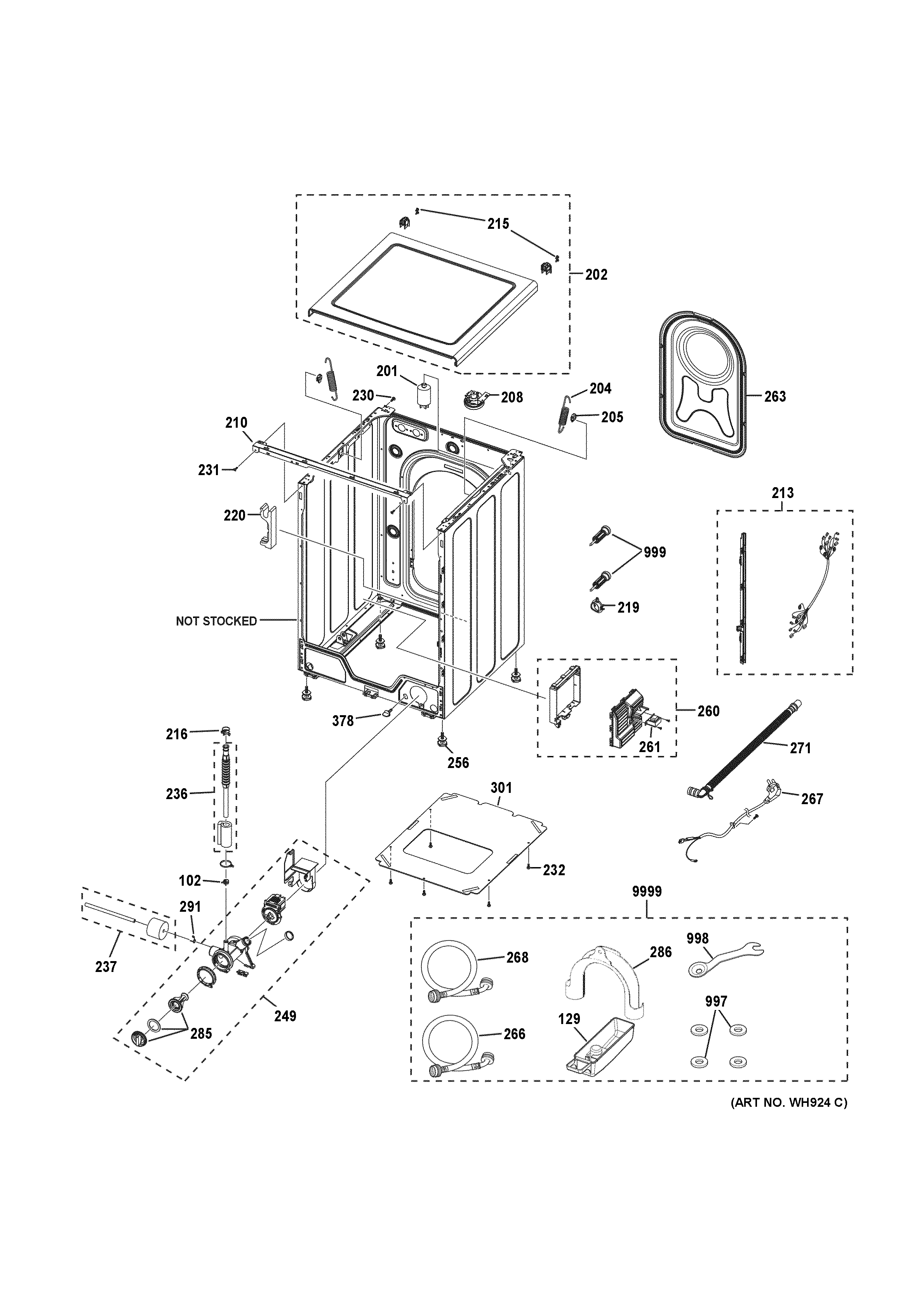

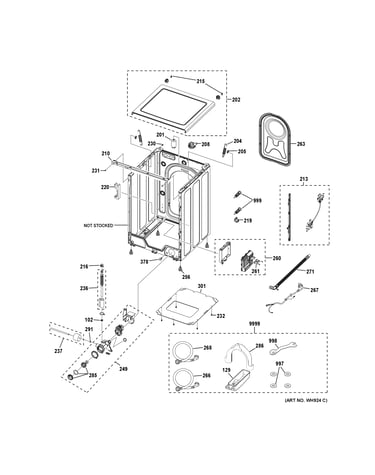

Cabinet, cover & top panel diagram

Spring suspe

Part #WH05X10011

$30.11
In Stock
Washer Electronic Control Board WH12X10448
#260

Cabinet, cover & top panel diagram

Washer electronic control board

Part #WH12X10448

$364.38 |
$12.00 OFF Phone Price : $376.38
In Stock
Washer Drain Hose WH41X10239
#271

Cabinet, cover & top panel diagram

Washer drain hose

Part #WH41X10239

$74.71 |
7% OFF Phone Price : $80.71
In Stock
