Kenmore
Gas Range

Model # 103657900 Official Kenmore gas kitchen heater range

Here are the diagrams and repair parts for Official Kenmore 103657900 gas kitchen heater range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Screw 69014
#159B

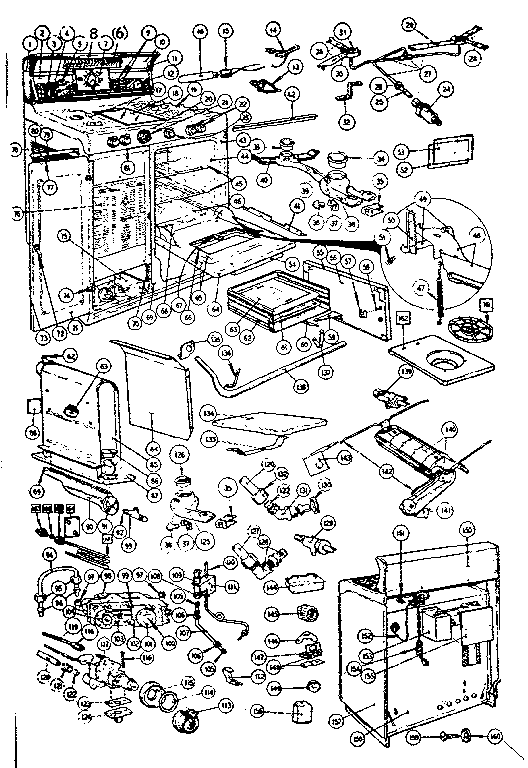

Body section diagram

Screw

Part #69014

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces 69014. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Burner 74428
#39B

Body section diagram

Burner

Part #74428

The manufacturer no longer makes this part, and there's no substitute part

Drawer Link 75397
#60

Body section diagram

Drawer link

Part #75397

The manufacturer no longer makes this part, and there's no substitute part

Lamp Holder 25440
#145

Body section diagram

Lamp holder

Part #25440

The manufacturer no longer makes this part, and there's no substitute part

Safety Knob 76558
#101

Body section diagram

Safety knob

Part #76558

The manufacturer no longer makes this part, and there's no substitute part

Aluminum Washer 21067
#160

Body section diagram

Aluminum washer

Part #21067

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob 77697
#104

Body section diagram

Thermostat knob

Part #77697

The manufacturer no longer makes this part, and there's no substitute part

Door Catch 75223
#72

Body section diagram

Door catch

Part #75223

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 76511
#71

Body section diagram

Door lining

Part #76511

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 68279
#126

Body section diagram

Burner head

Part #68279

The manufacturer no longer makes this part, and there's no substitute part
