Model # 315277011 Official Craftsman 1/4-sheet professional sander

Here are the diagrams and repair parts for Official Craftsman 315277011 1/4-sheet professional sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

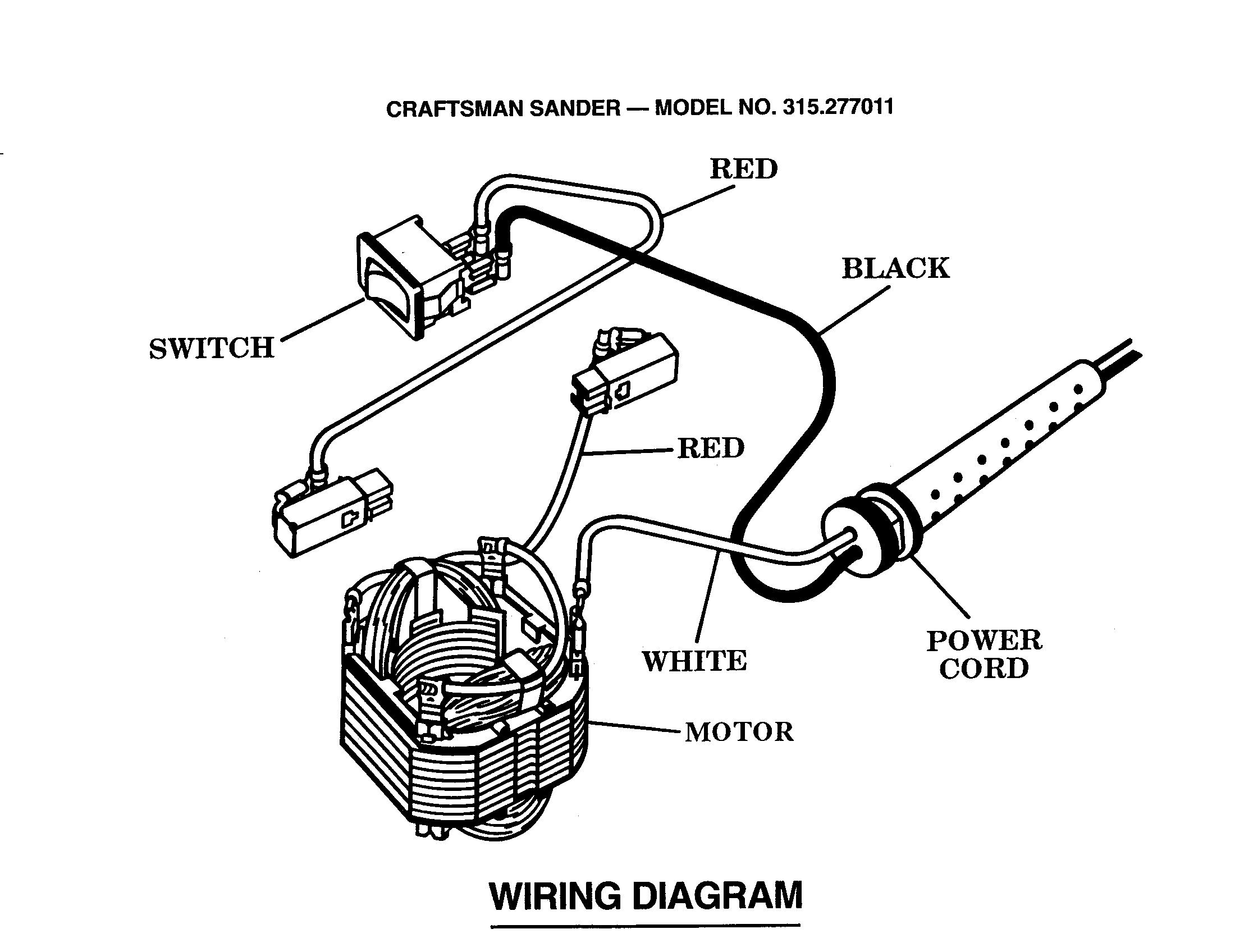

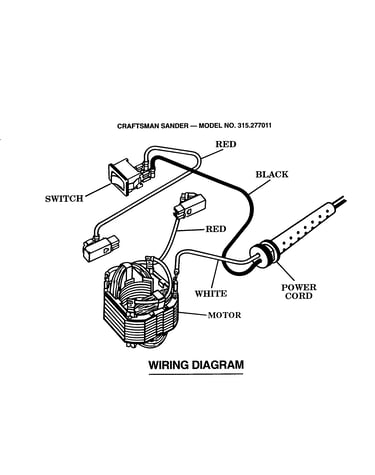

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Switch 968190-002
#3

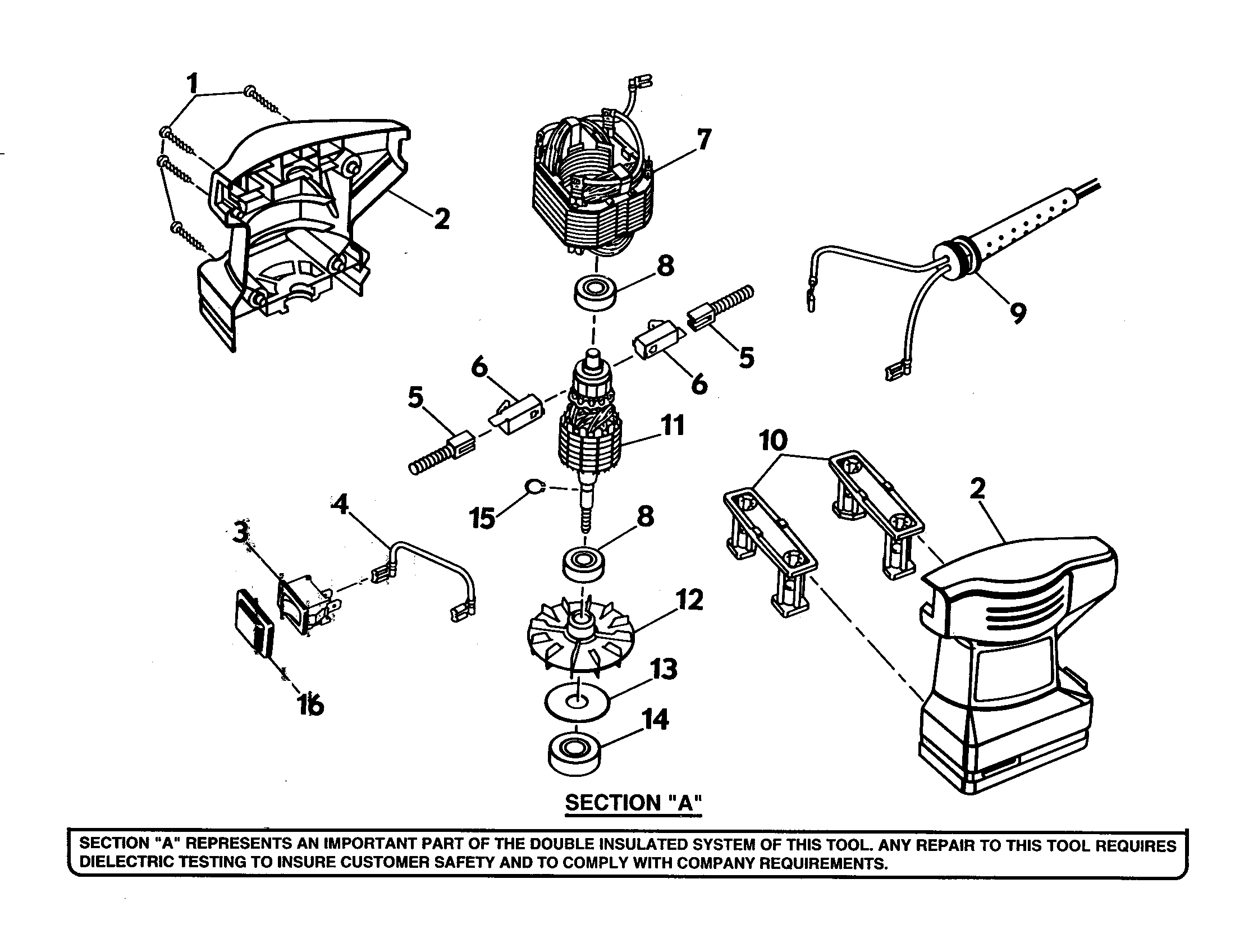

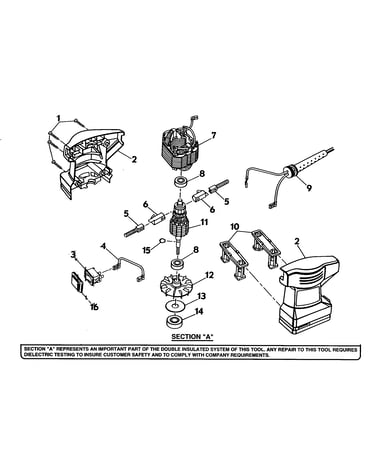

Field and armature assembly diagram

Switch

Part #968190-002

The manufacturer no longer makes this part, and there's no substitute part

Bearing 971201-001
#8

Field and armature assembly diagram

Bearing

Part #971201-001

The manufacturer no longer makes this part, and there's no substitute part

Paper Punch 662447-001
#14

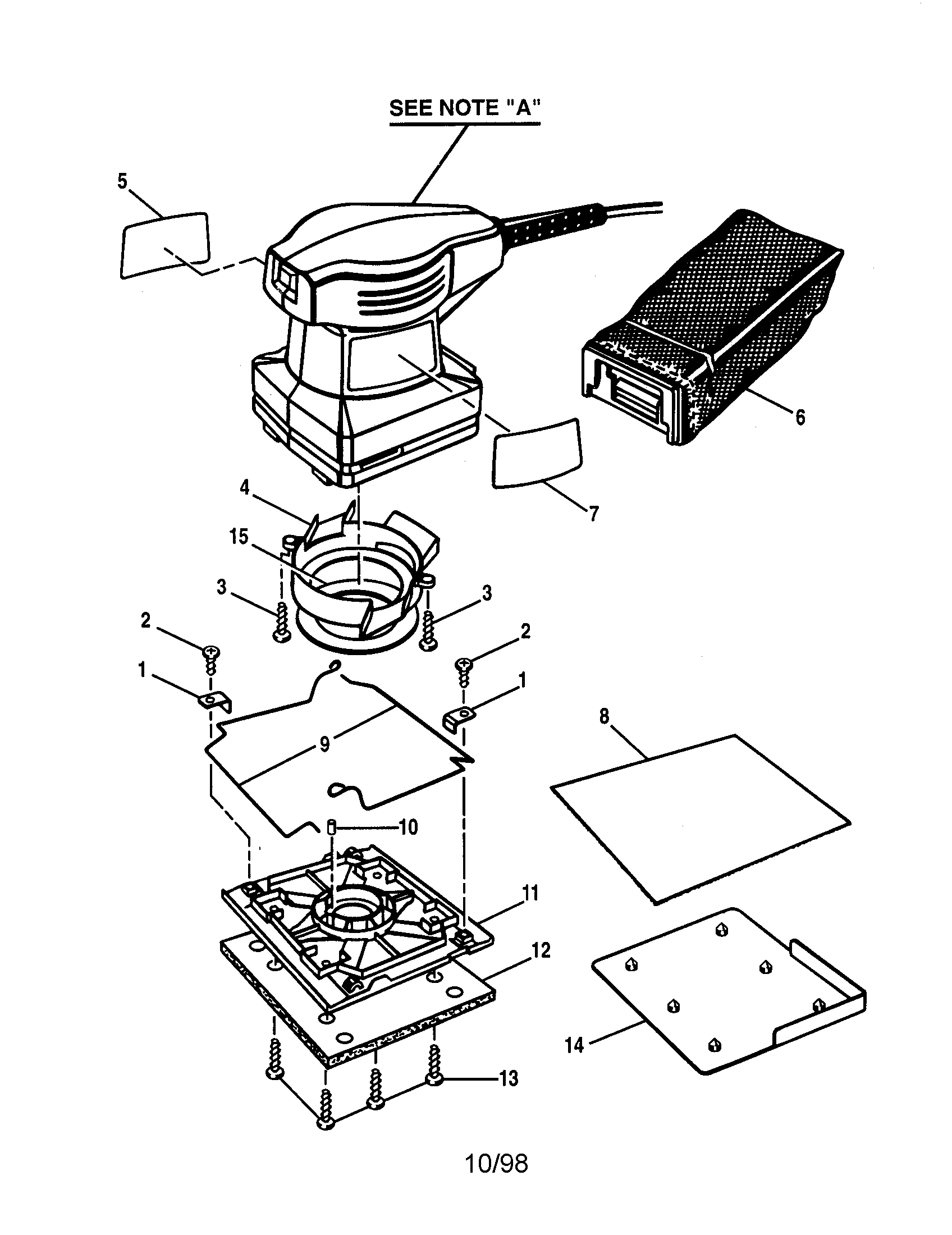

Craftsman sander diagram

Paper punch

Part #662447-001

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#8

Craftsman sander diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 979853-001
#7

Craftsman sander diagram

Logo plate

Part #979853-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 612255-002
#6

Field and armature assembly diagram

Brush tube

Part #612255-002

The manufacturer no longer makes this part, and there's no substitute part

Cover 971443-002
#16

Field and armature assembly diagram

Cover

Part #971443-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 968700-004
#2

Craftsman sander diagram

Screw

Part #968700-004

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 662636-012
#2

Field and armature assembly diagram

Housing assembly

Part #662636-012

The manufacturer no longer makes this part, and there's no substitute part

F. Baffle 662316-001
#4

Craftsman sander diagram

F. baffle

Part #662316-001

The manufacturer no longer makes this part, and there's no substitute part
