Amana
Side-By-Side Refrigerator

Model # XRSS287BW-PXRSS287BW0 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana XRSS287BW-PXRSS287BW0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

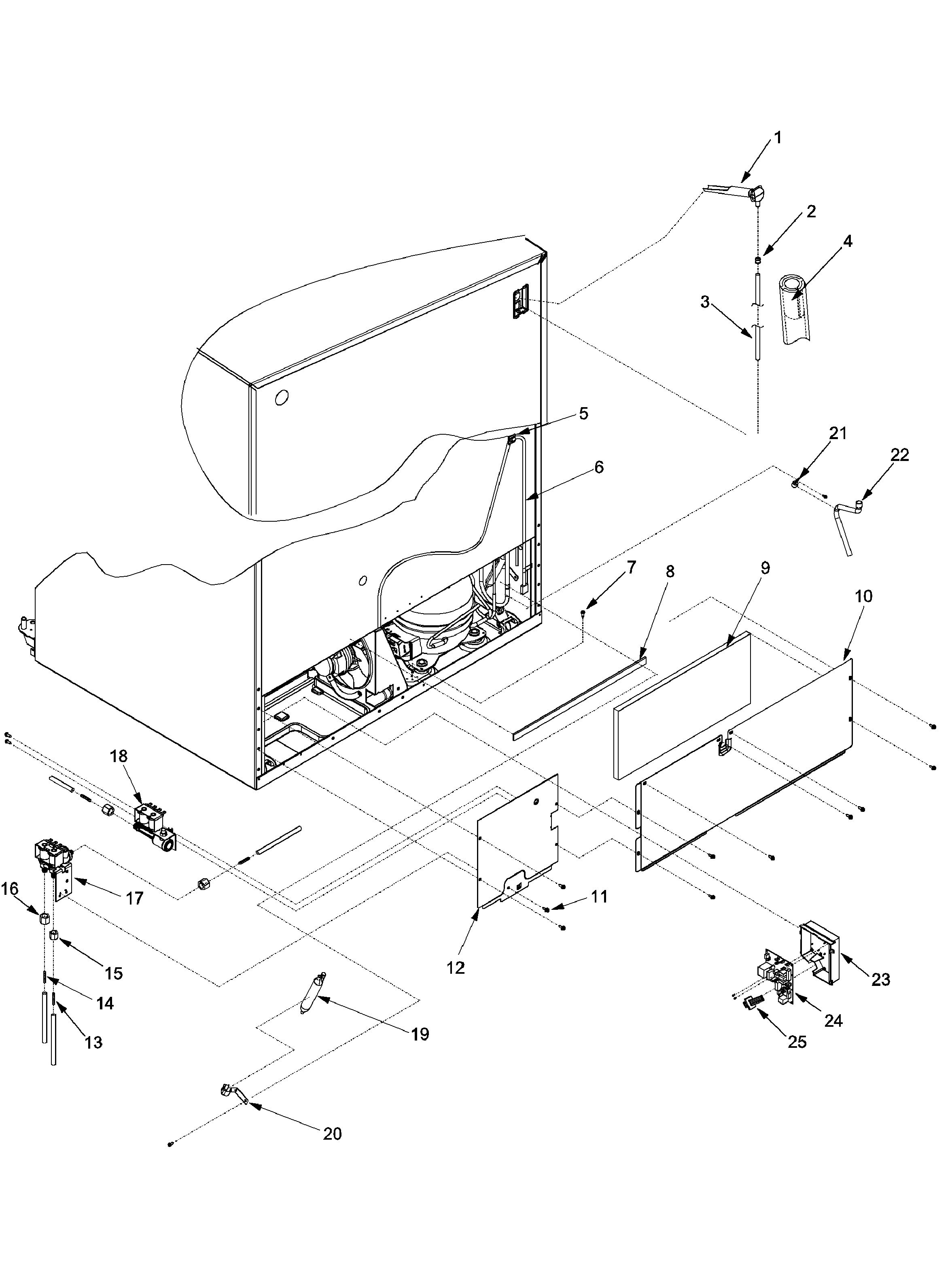

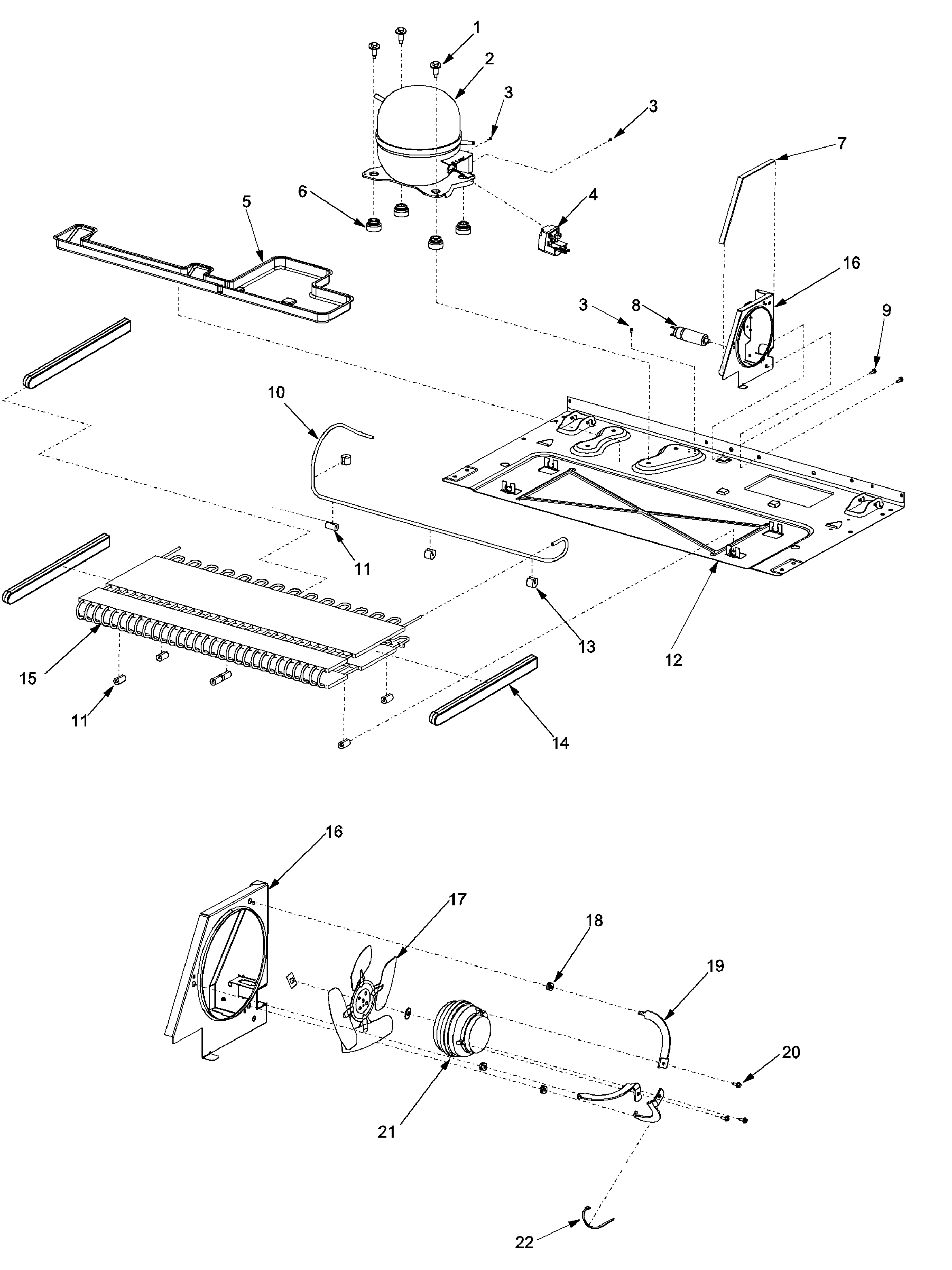

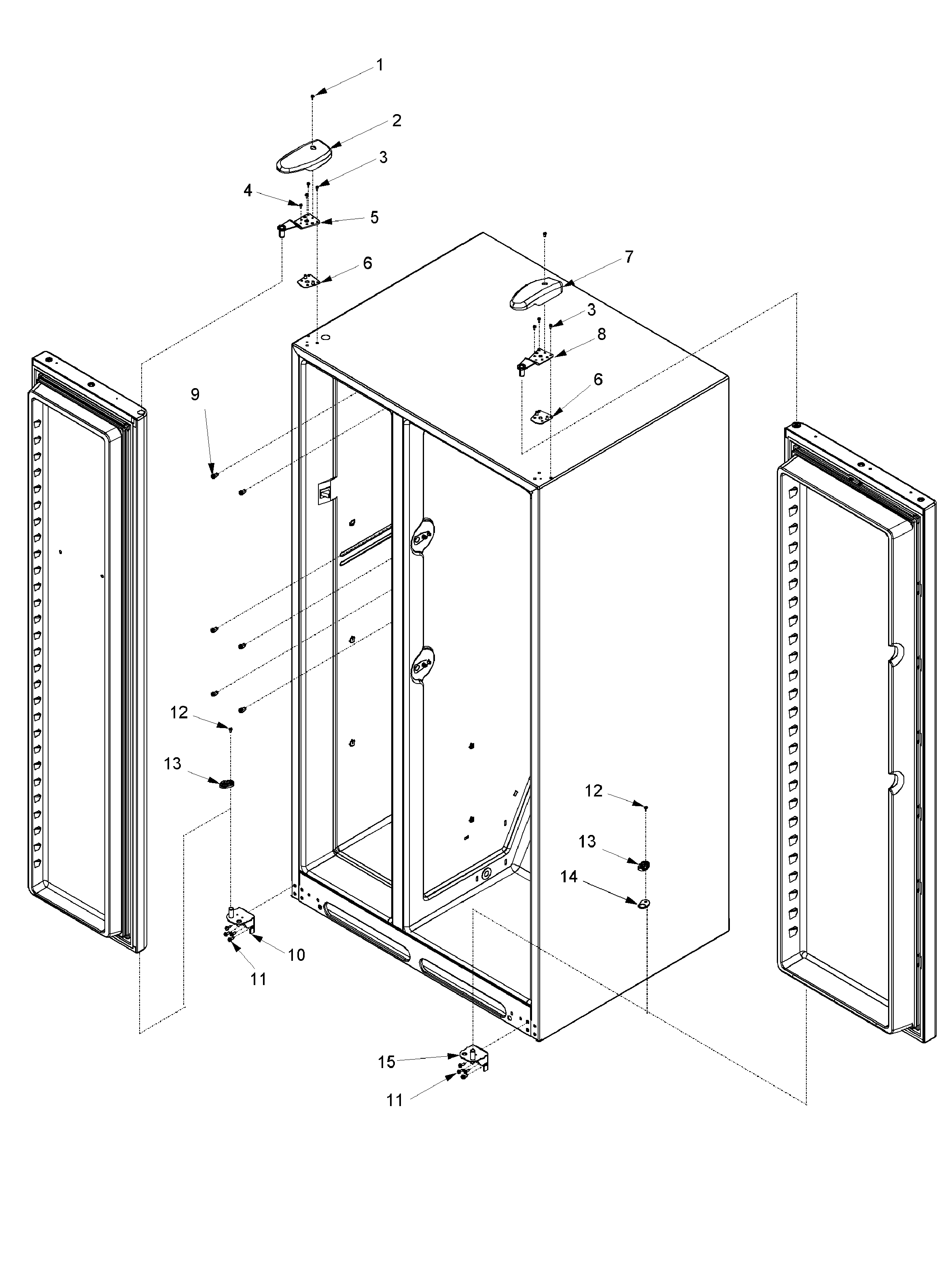

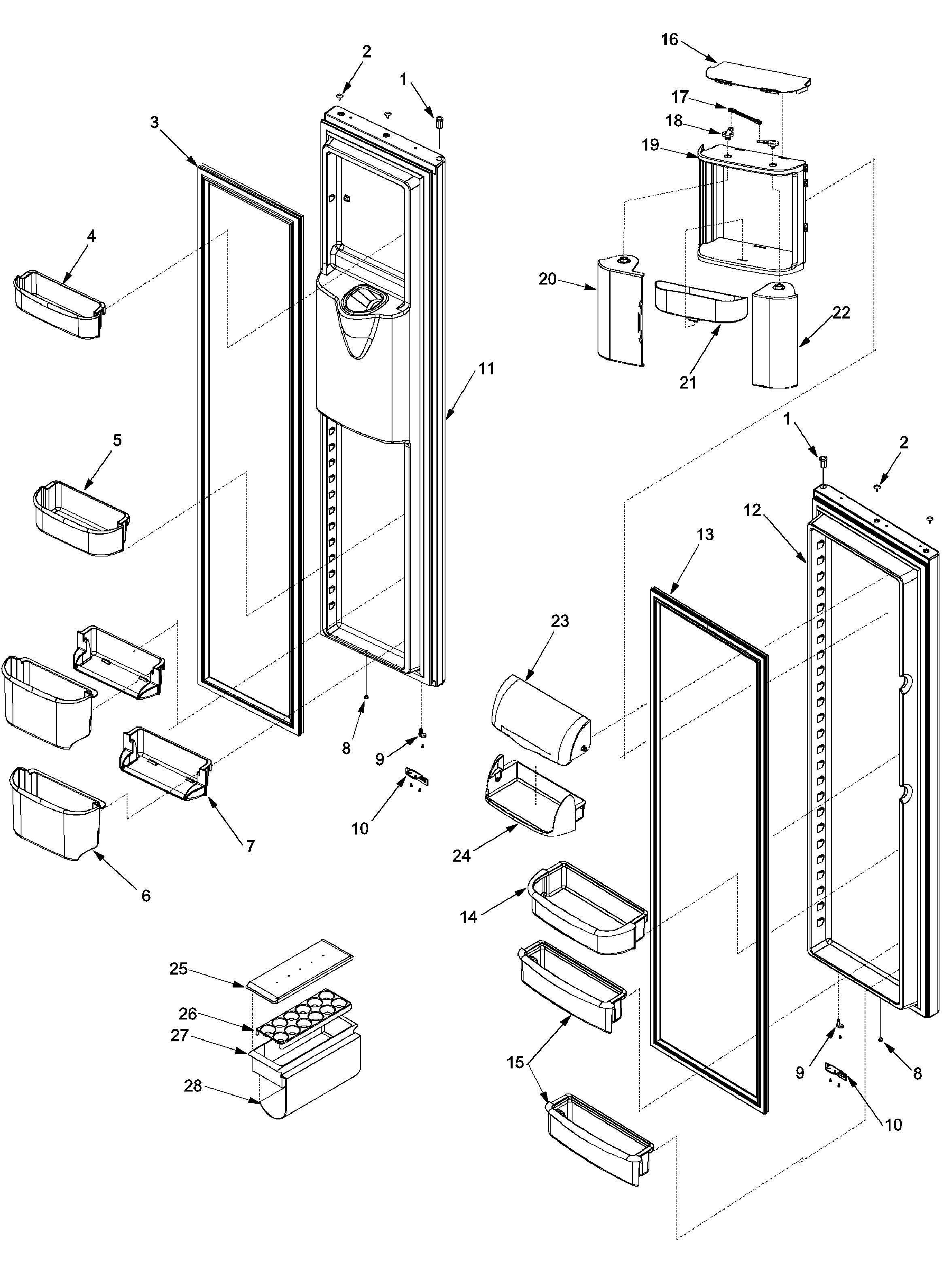

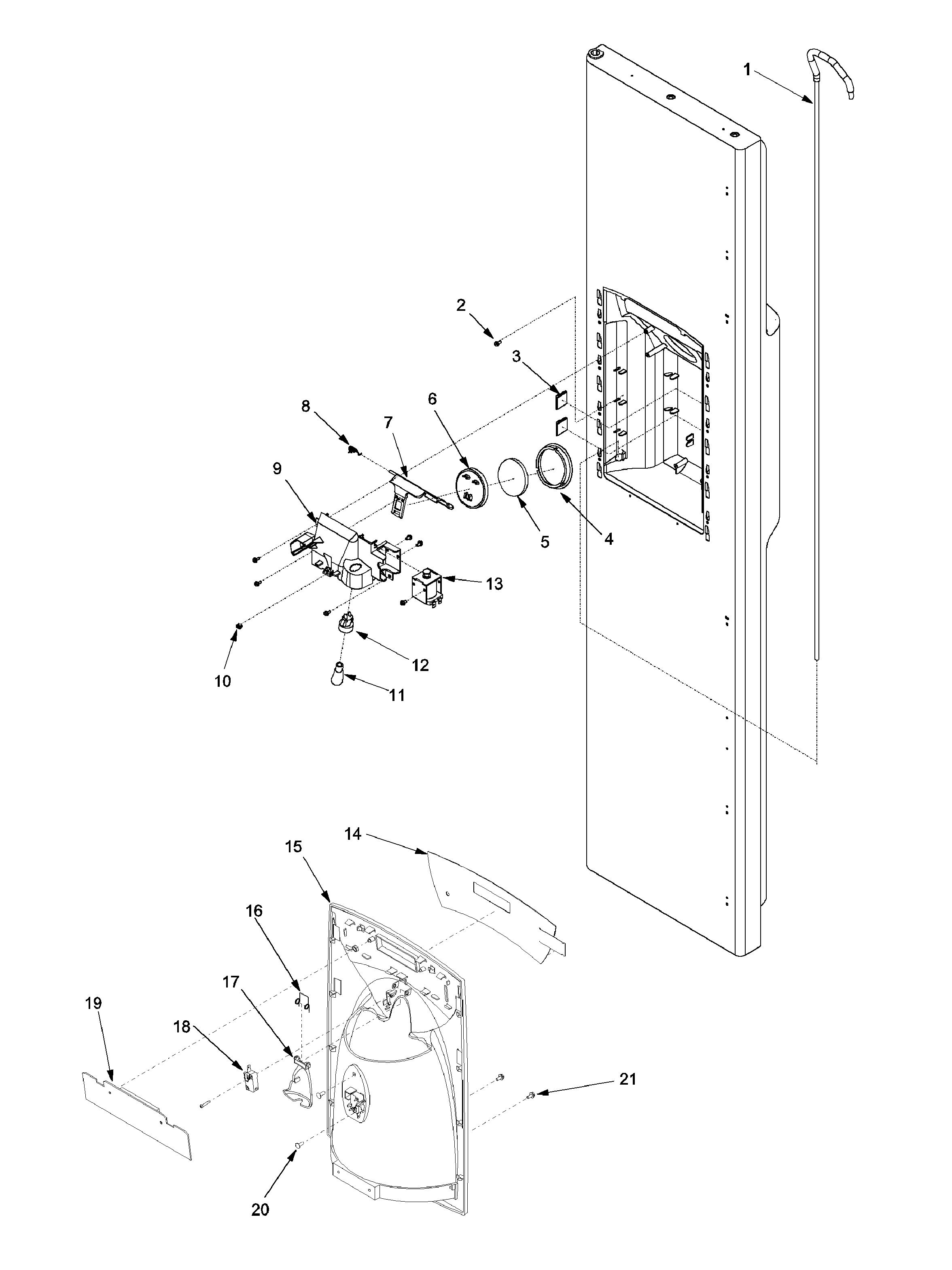

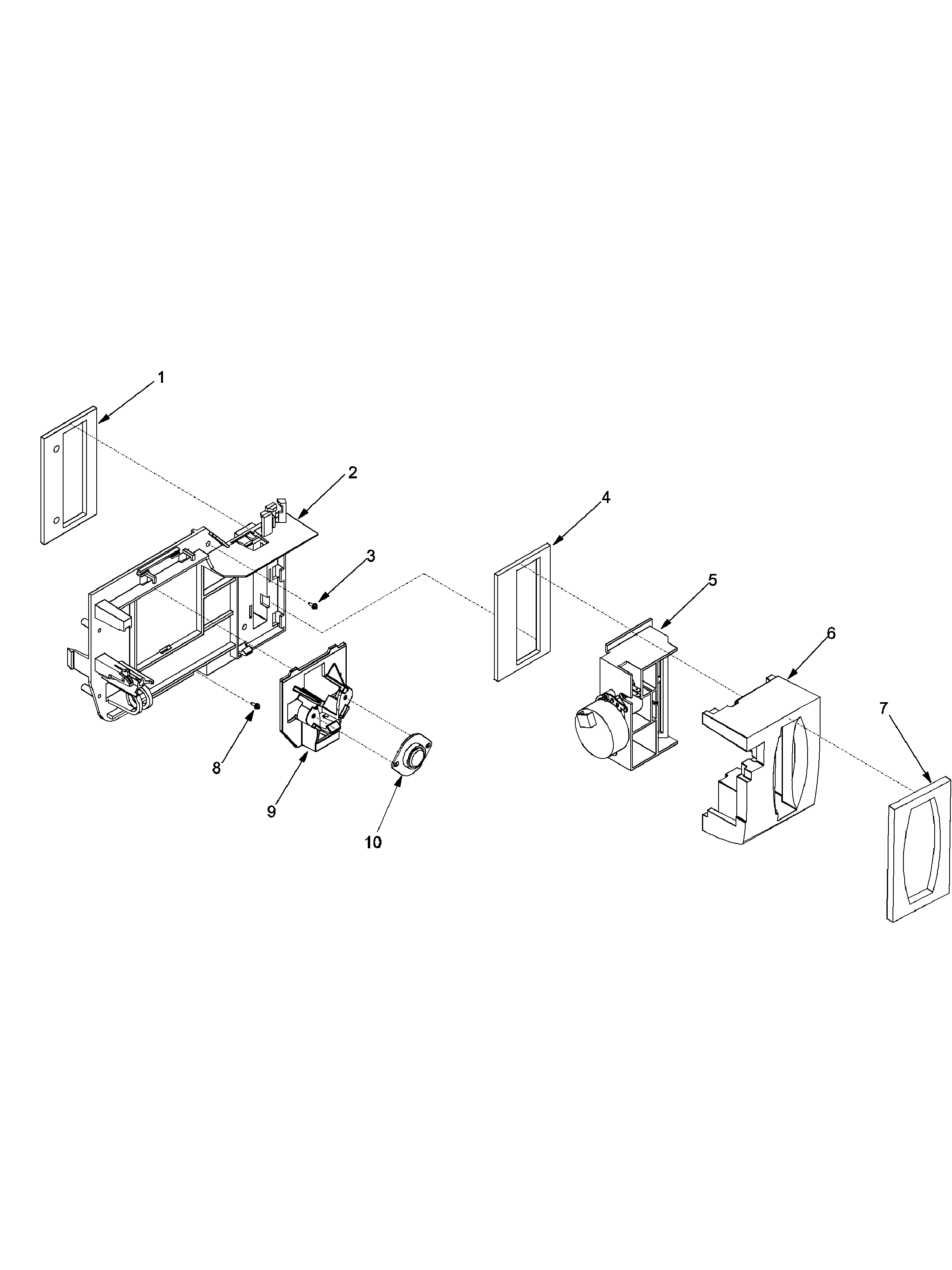

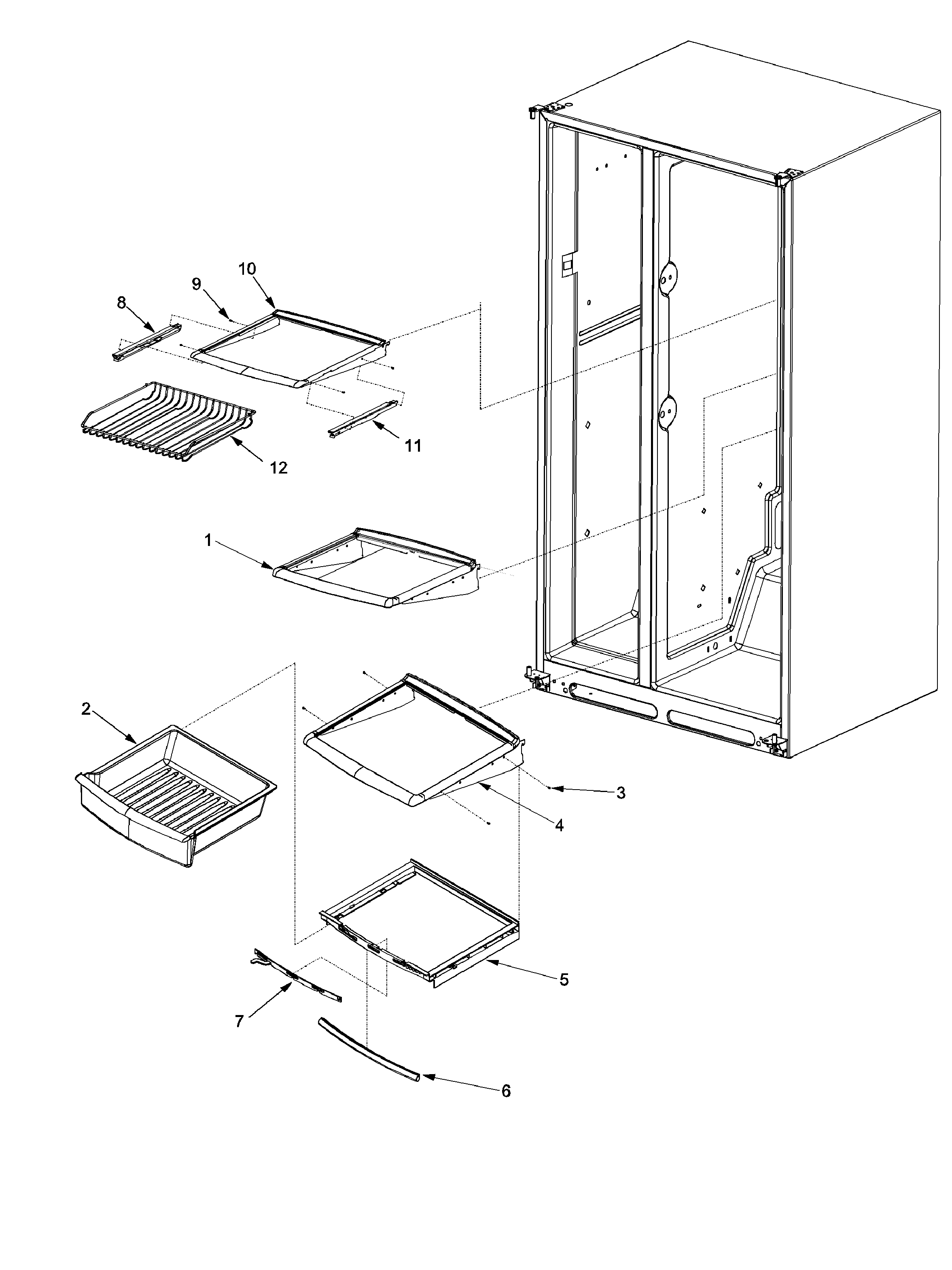

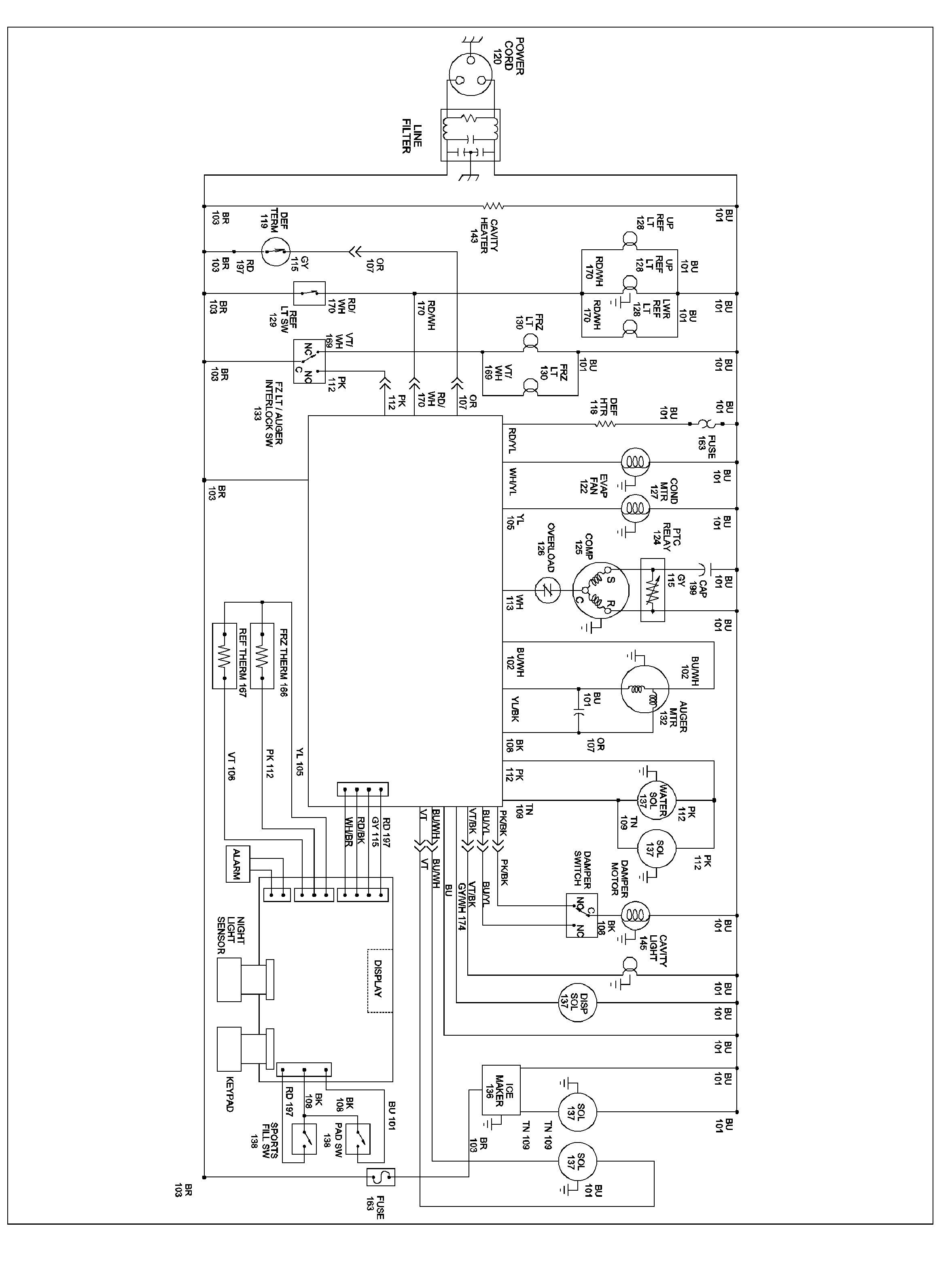

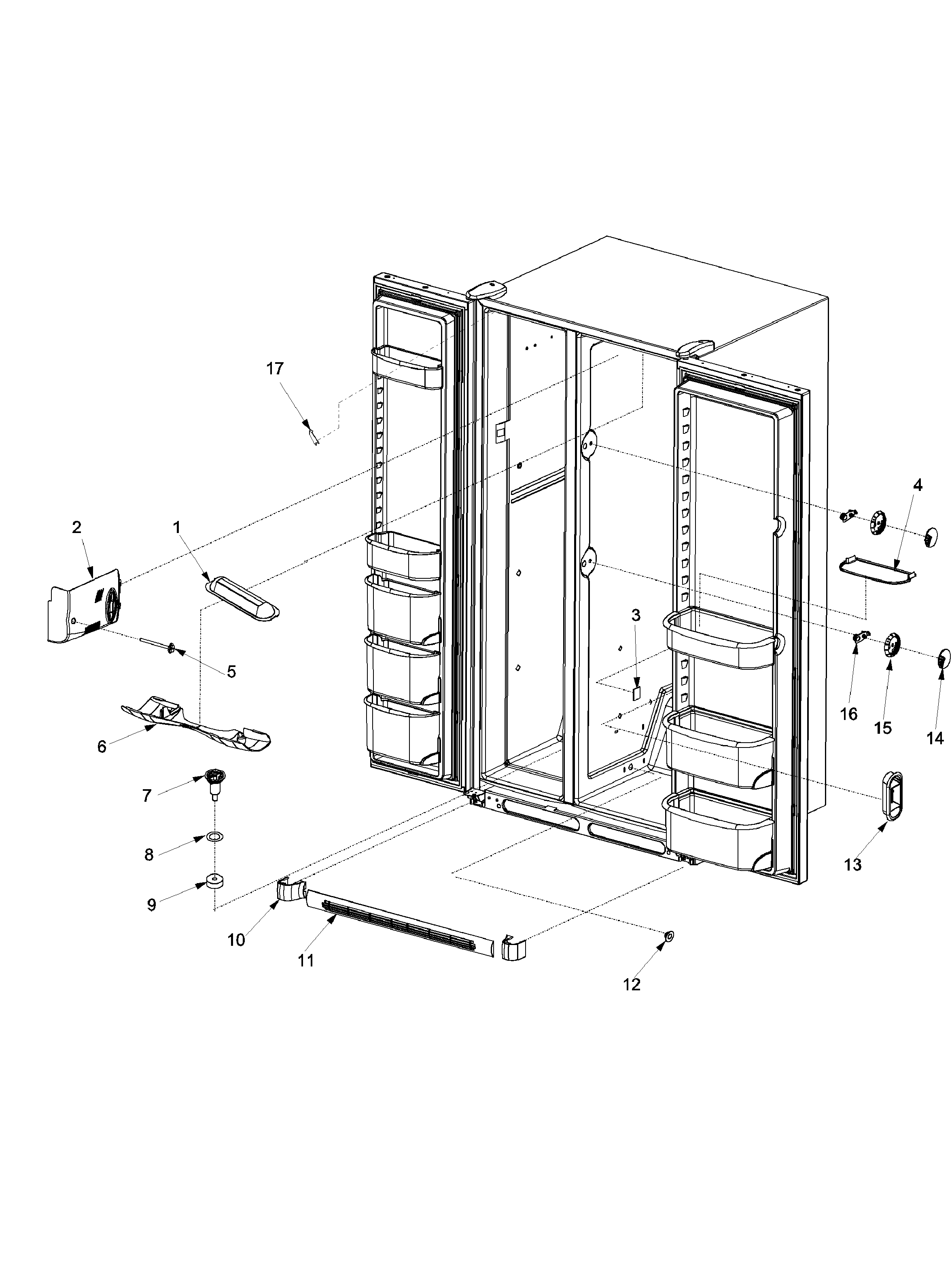

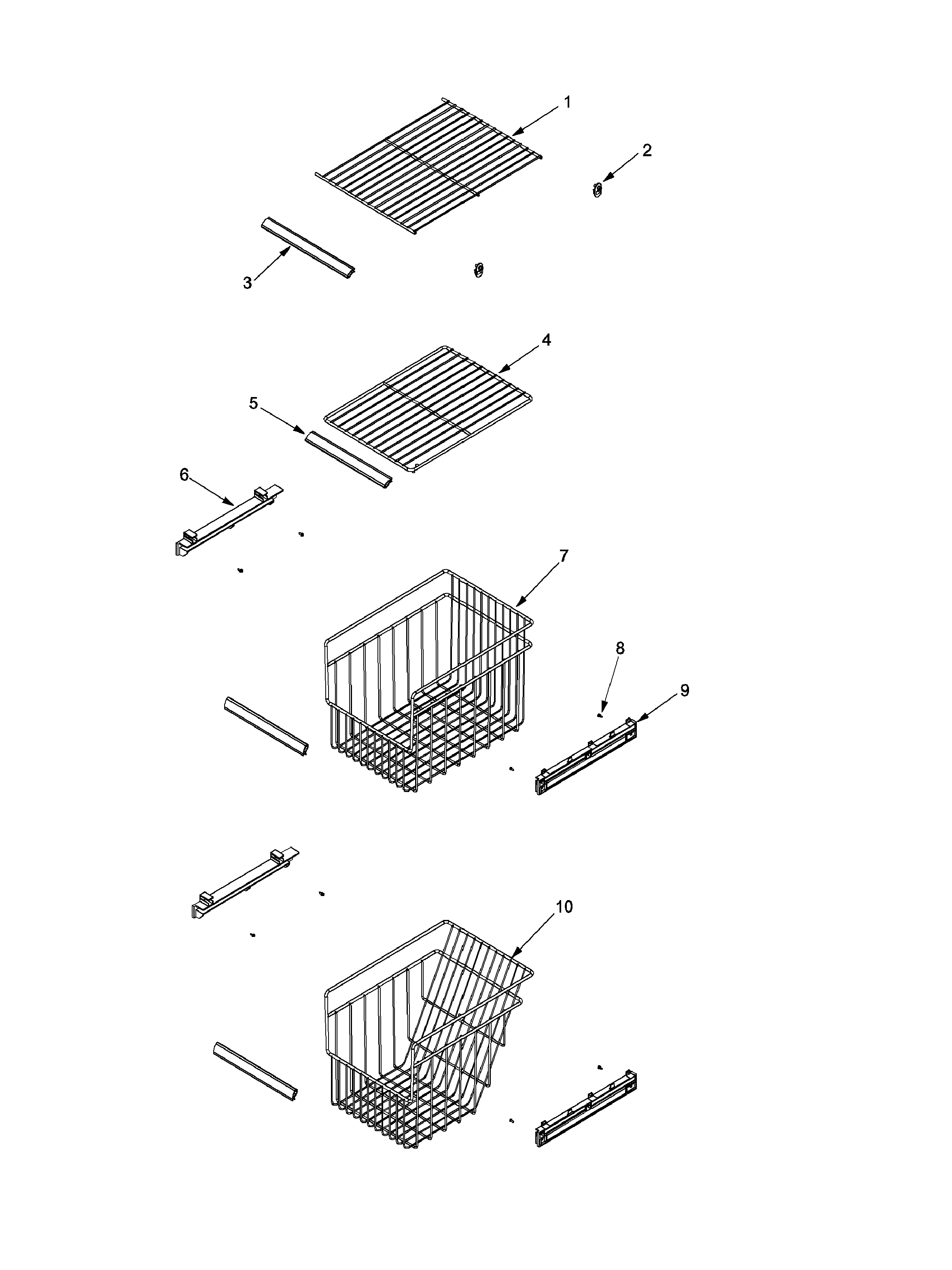

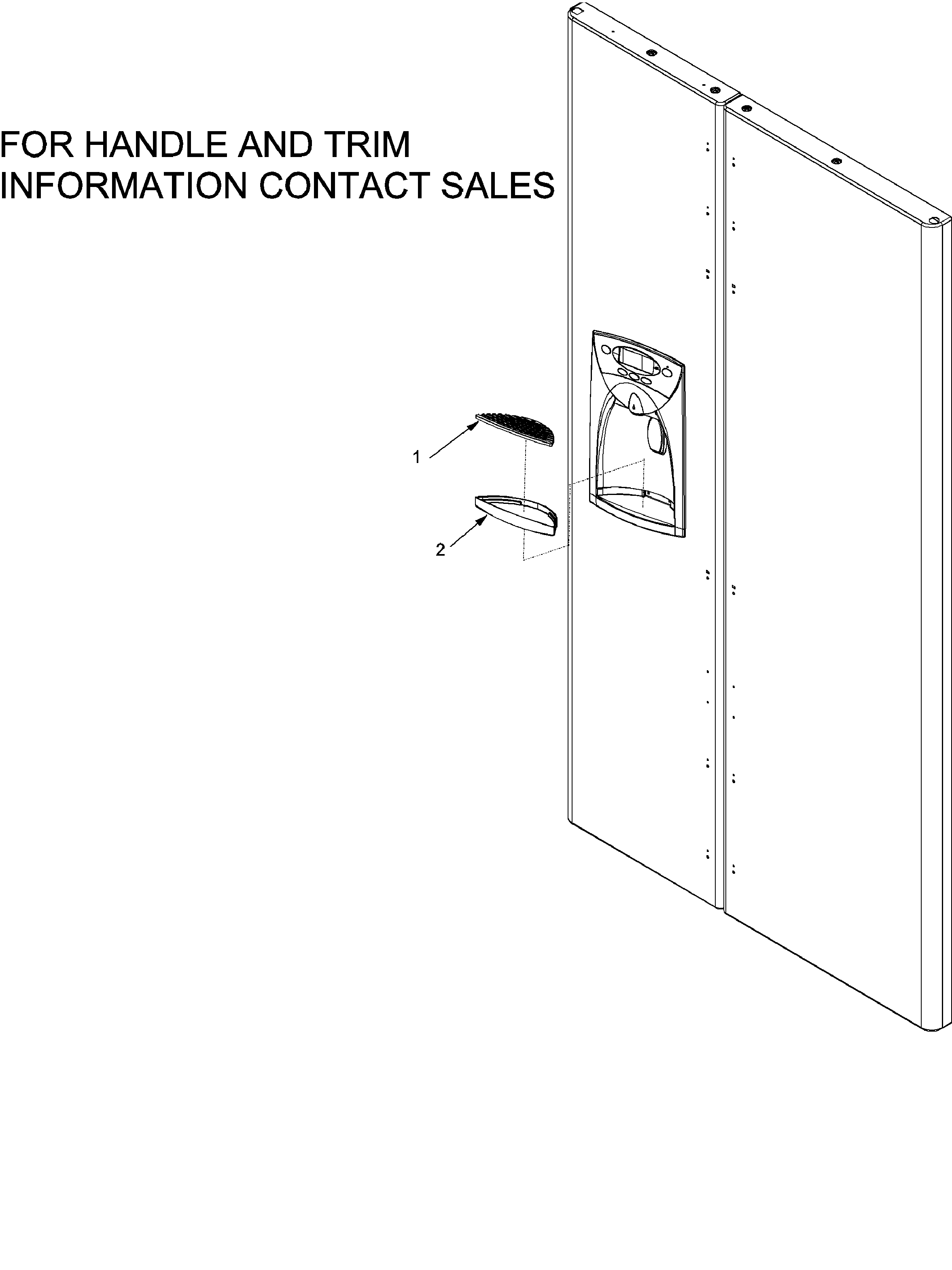

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Refrigerator Blade 12217201
#6

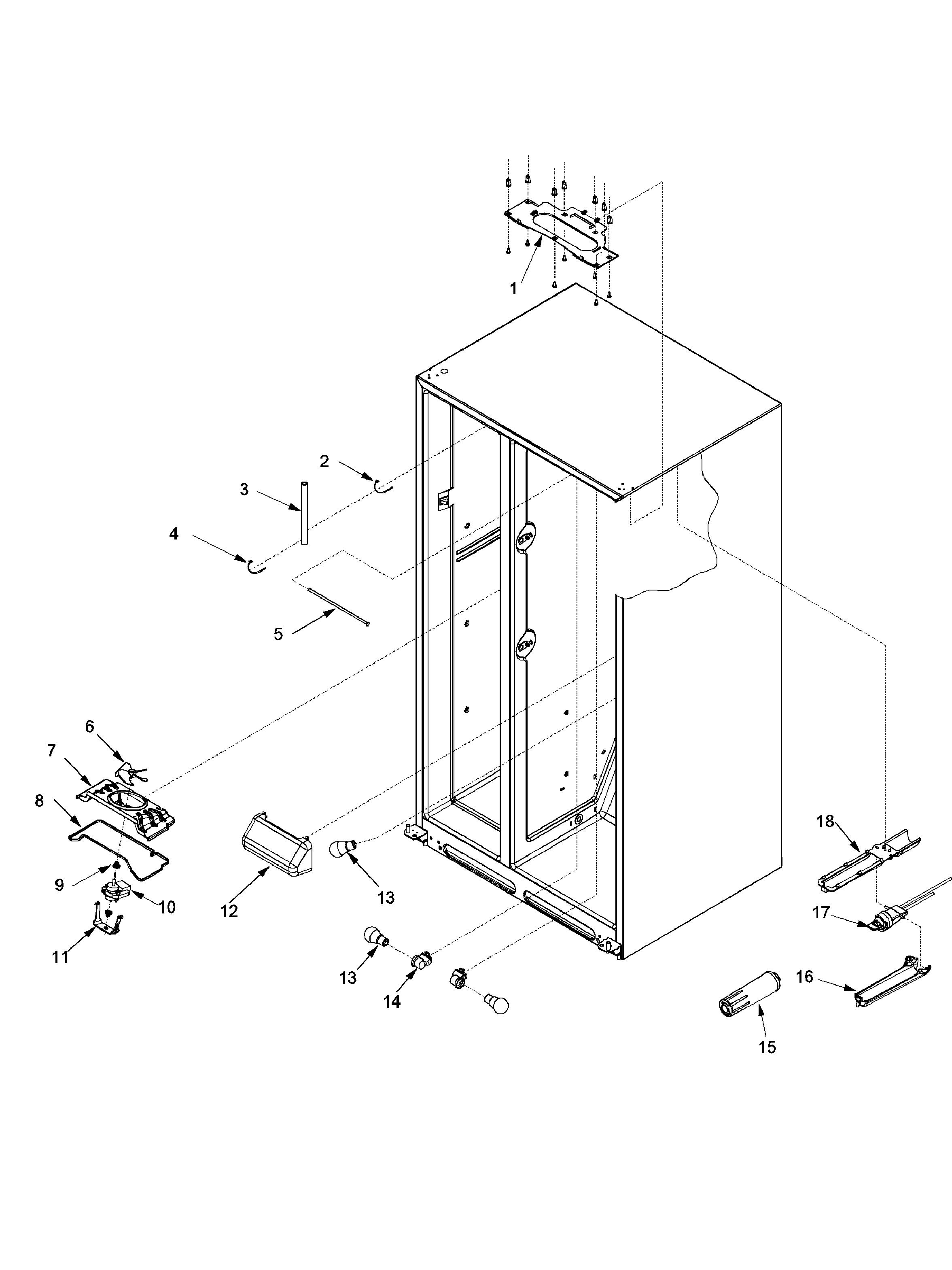

Evap fan assy and lights diagram

Refrigerator blade

Part #12217201

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch 12466103
#20

Evap fan assy and lights diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Water Filter Housing 12568001
#16

Evap fan assy and lights diagram

Refrigerator water filter housing

Part #12568001

Replaced by #WP12568001

?
Manufacturer substitution
This part replaces 12568001. Substitute parts can look different from the original.
BEST SELLER
$50.76 |
11% OFF Phone Price : $56.76
In Stock
Refrigerator Light Socket 67002216
#14

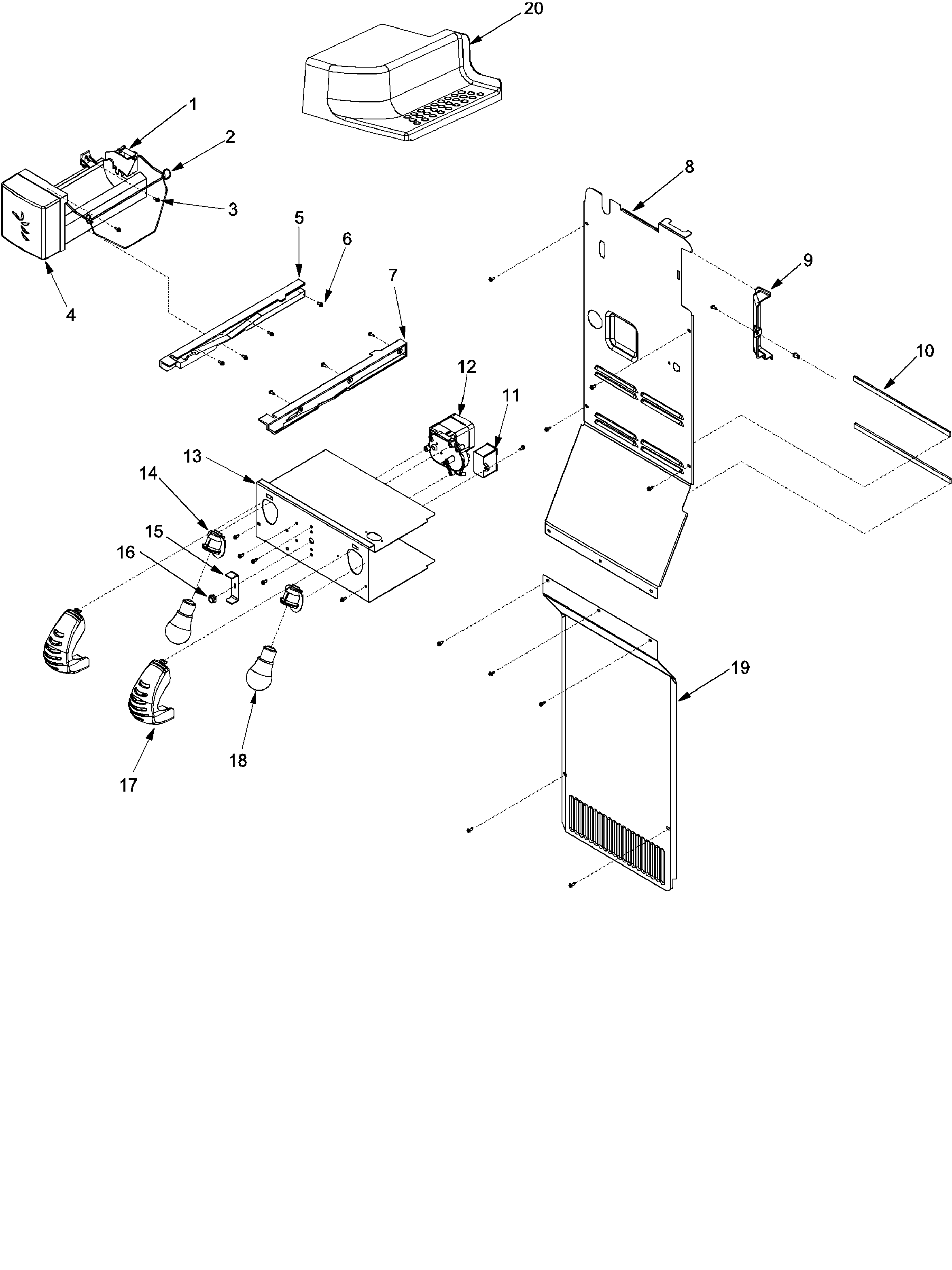

Lights and ice maker diagram

Refrigerator light socket

Part #67002216

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw M0220617
Refrigerator screw

Part #M0220617

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0220617. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Ice Bucket 12517801
#1

Ice bucket assy diagram

Refrigerator ice bucket

Part #12517801

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw M0214931
Refrigerator screw

Part #M0214931

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0214931. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Rocker Switch 12466104
#19

Evap fan assy and lights diagram

Refrigerator rocker switch

Part #12466104

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw M0238642
Refrigerator screw

Part #M0238642

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0238642. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw M0238616
Refrigerator screw

Part #M0238616

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0238616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
