Model # WC502 Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag WC502 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

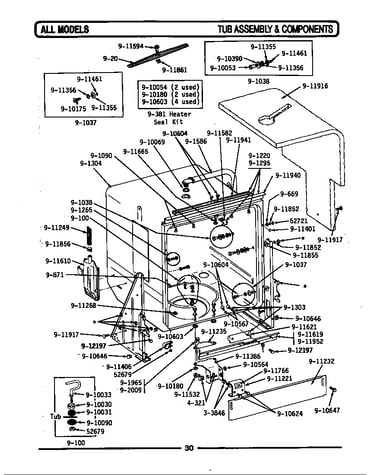

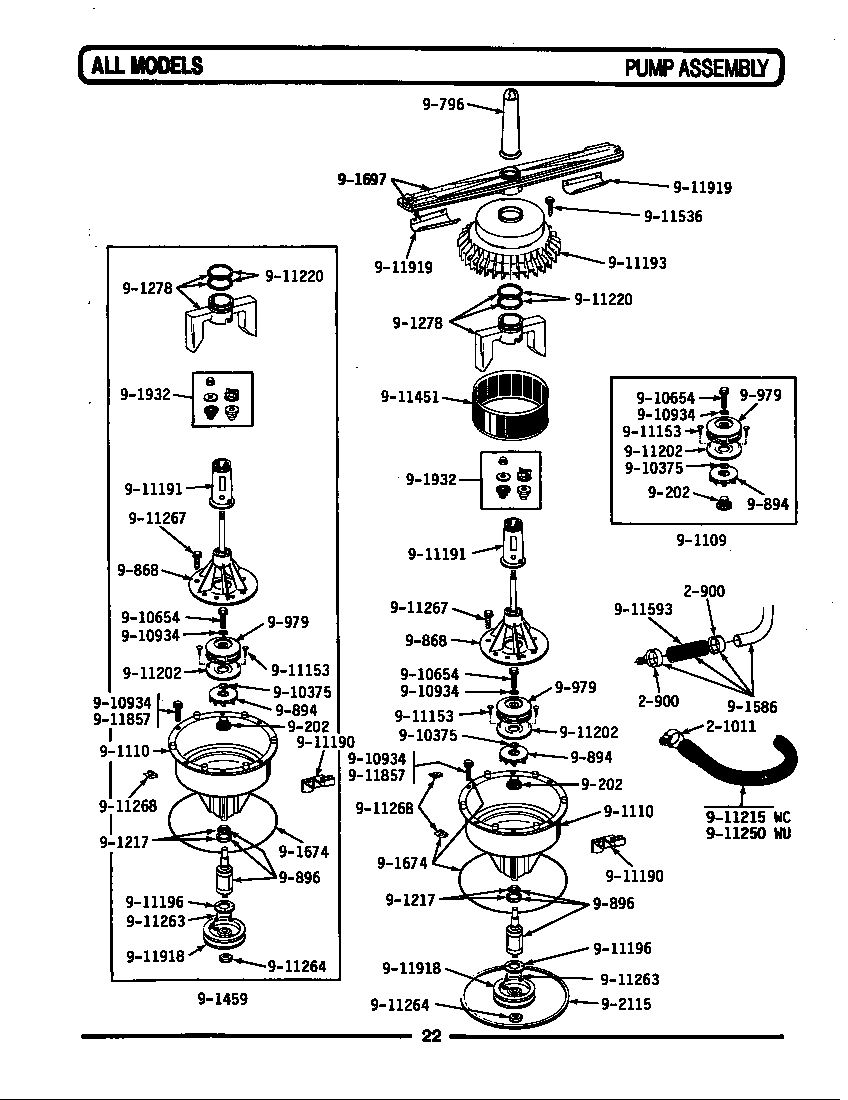

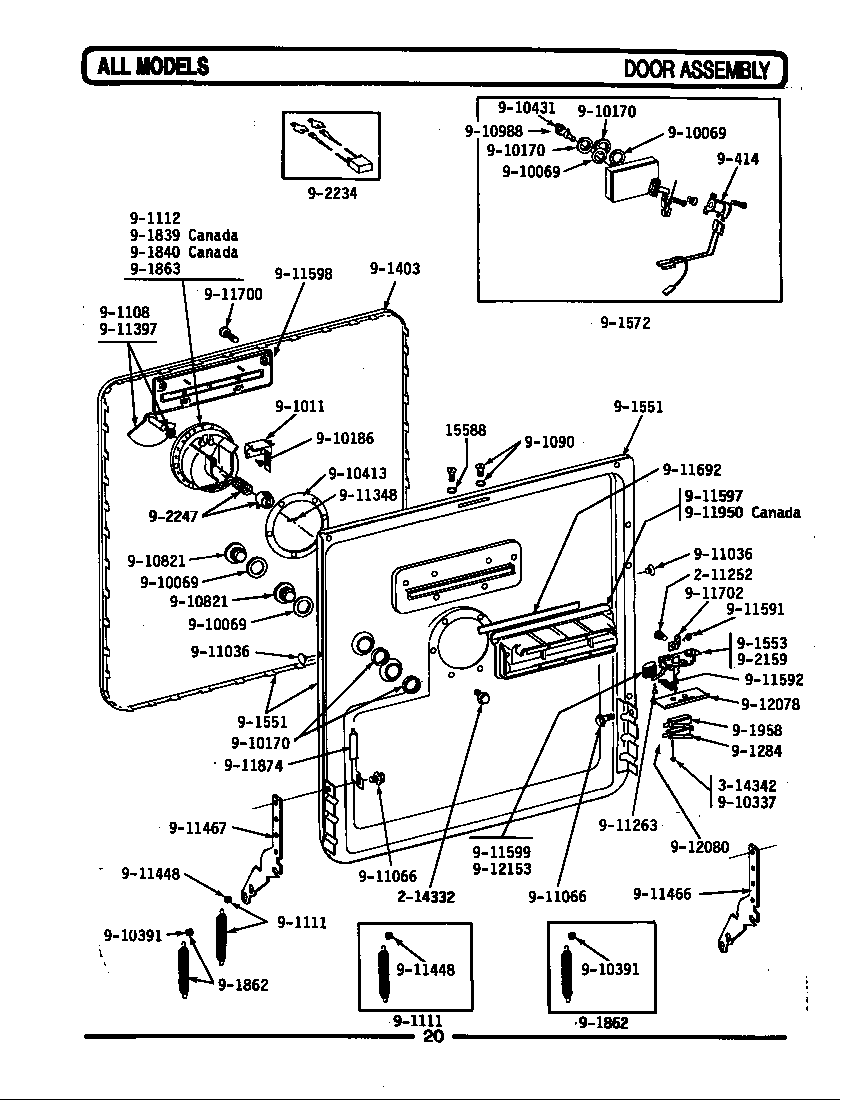

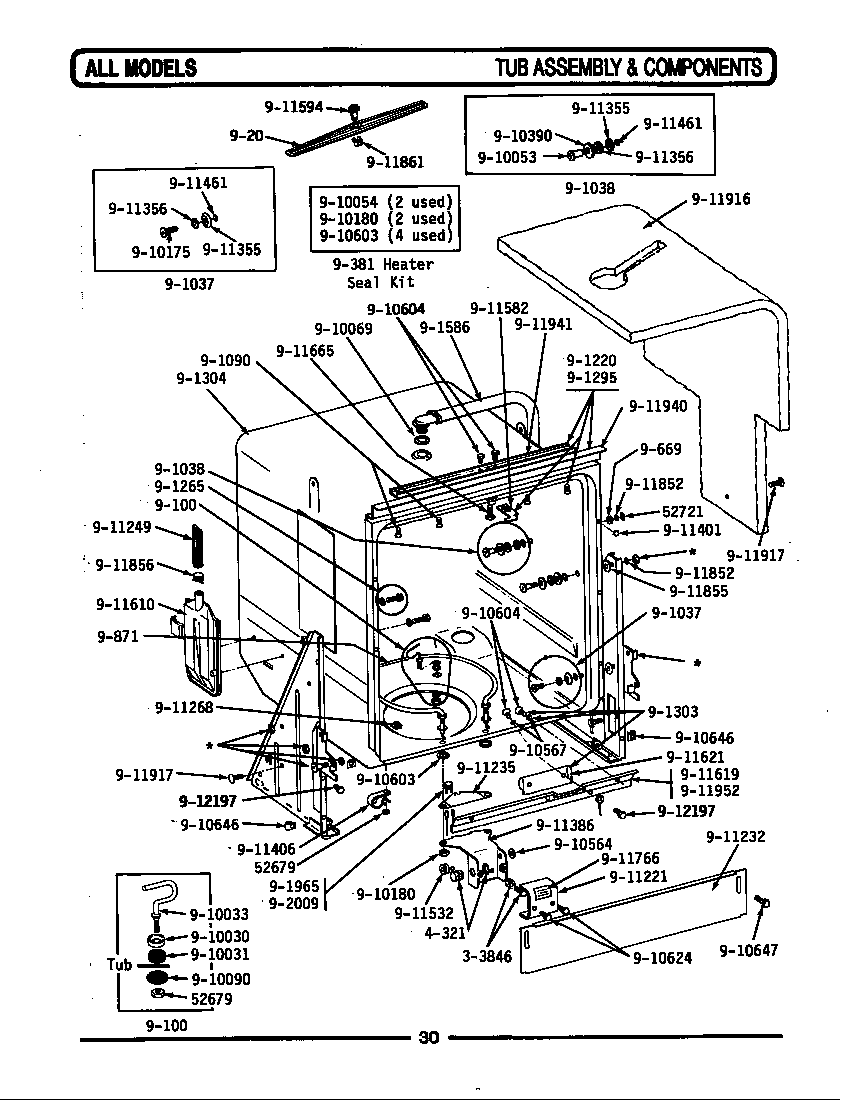

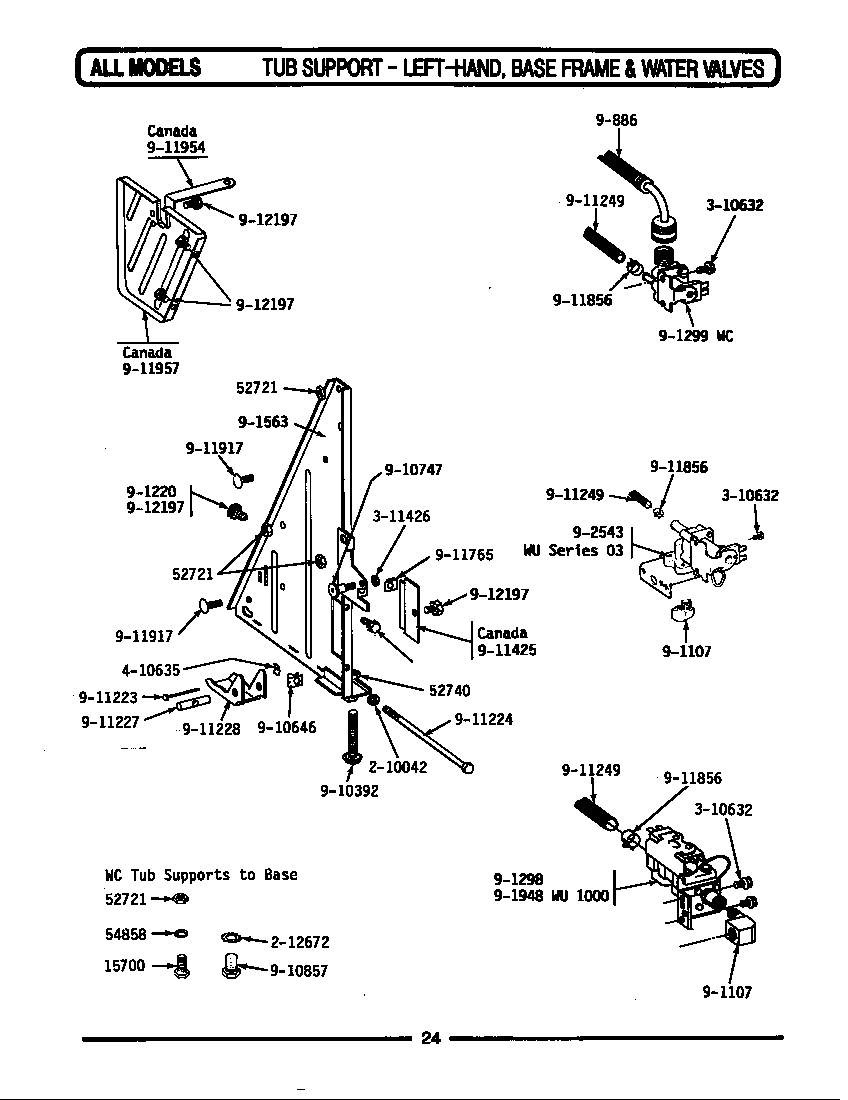

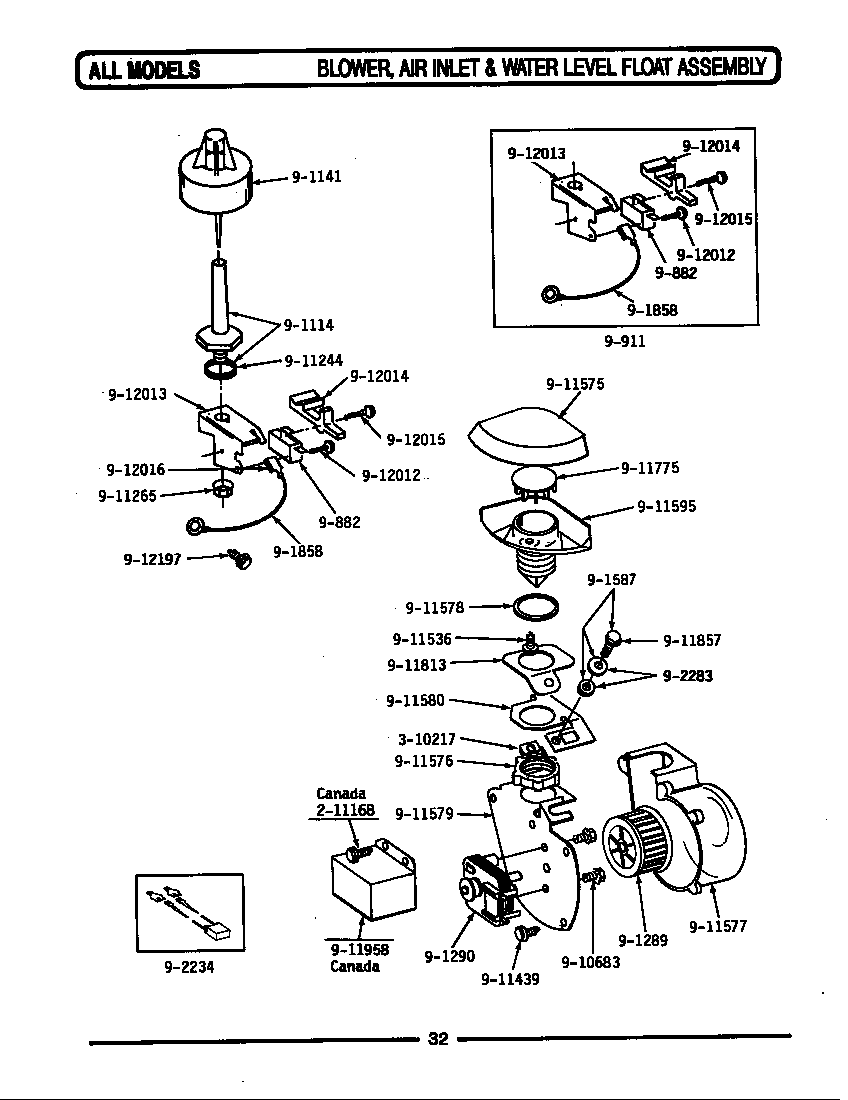

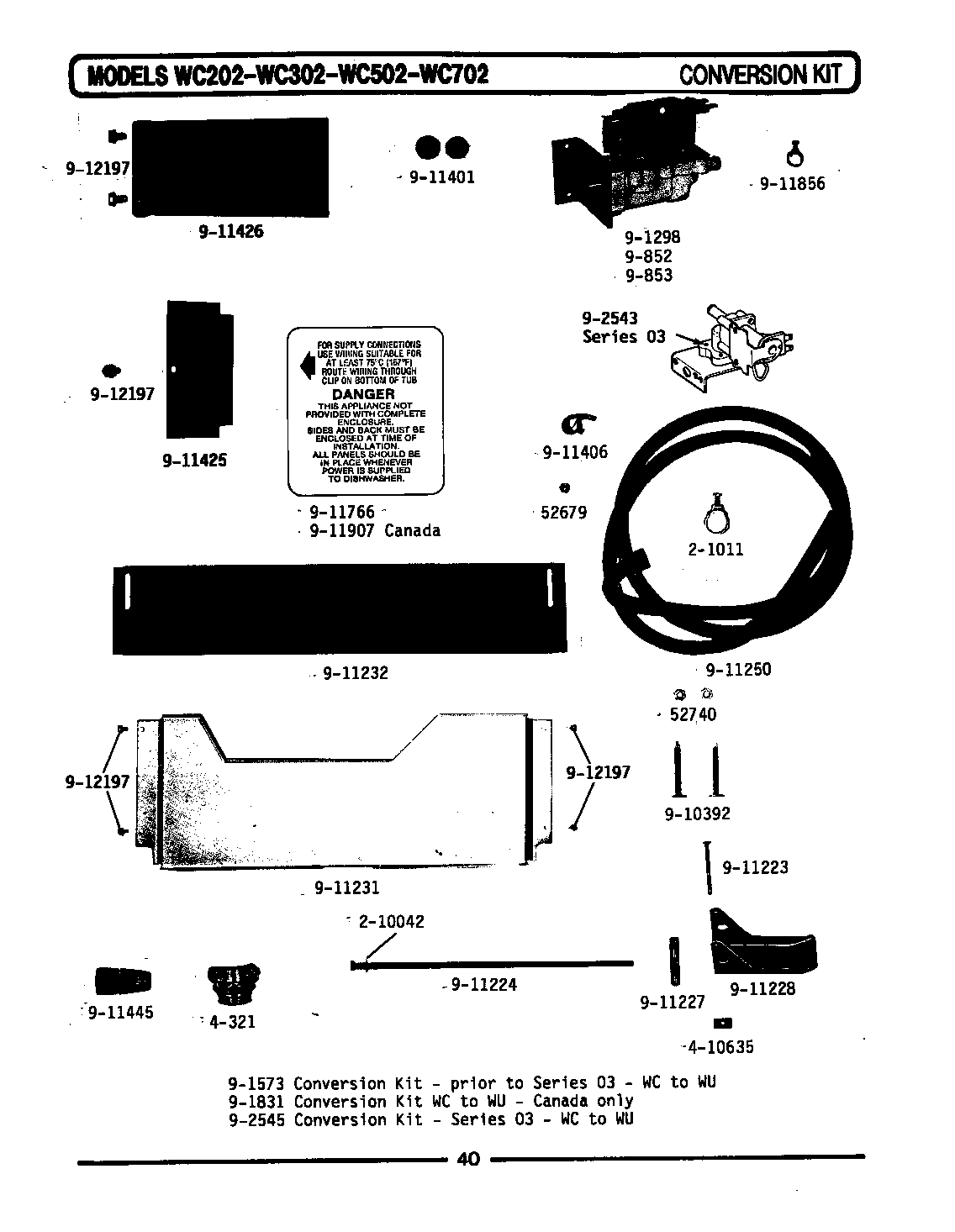

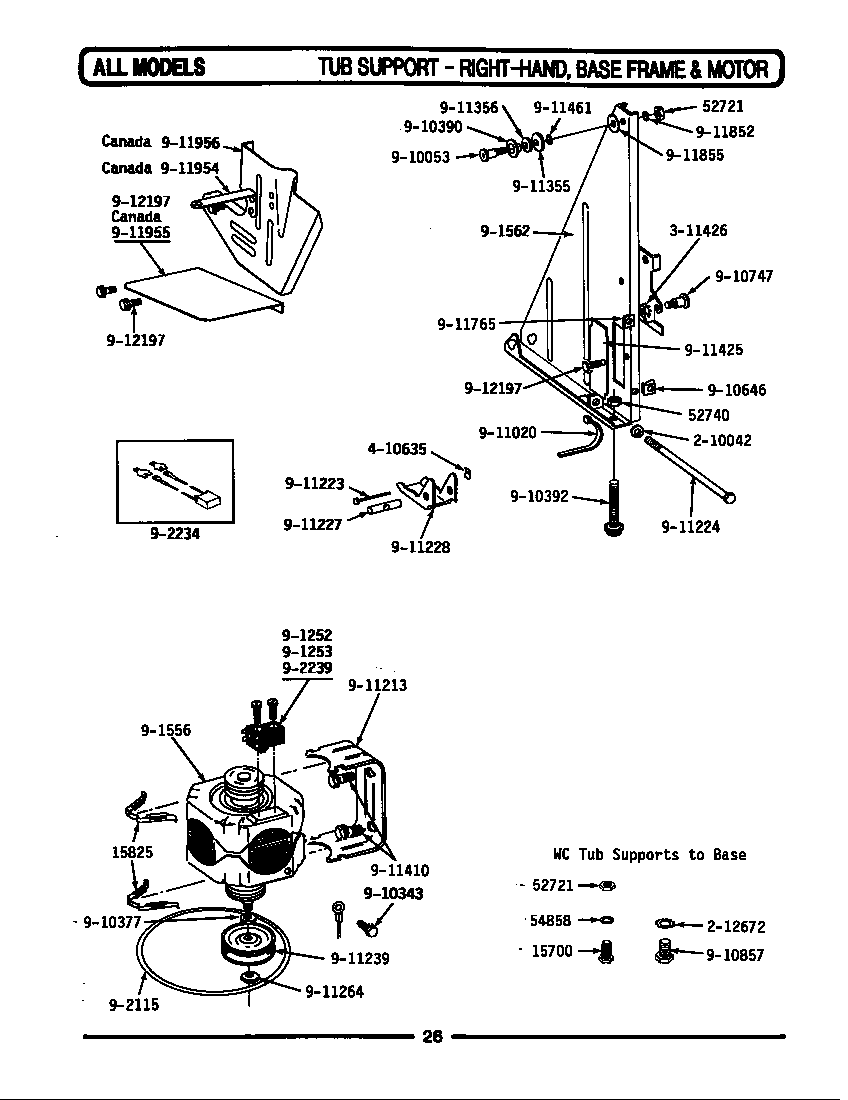

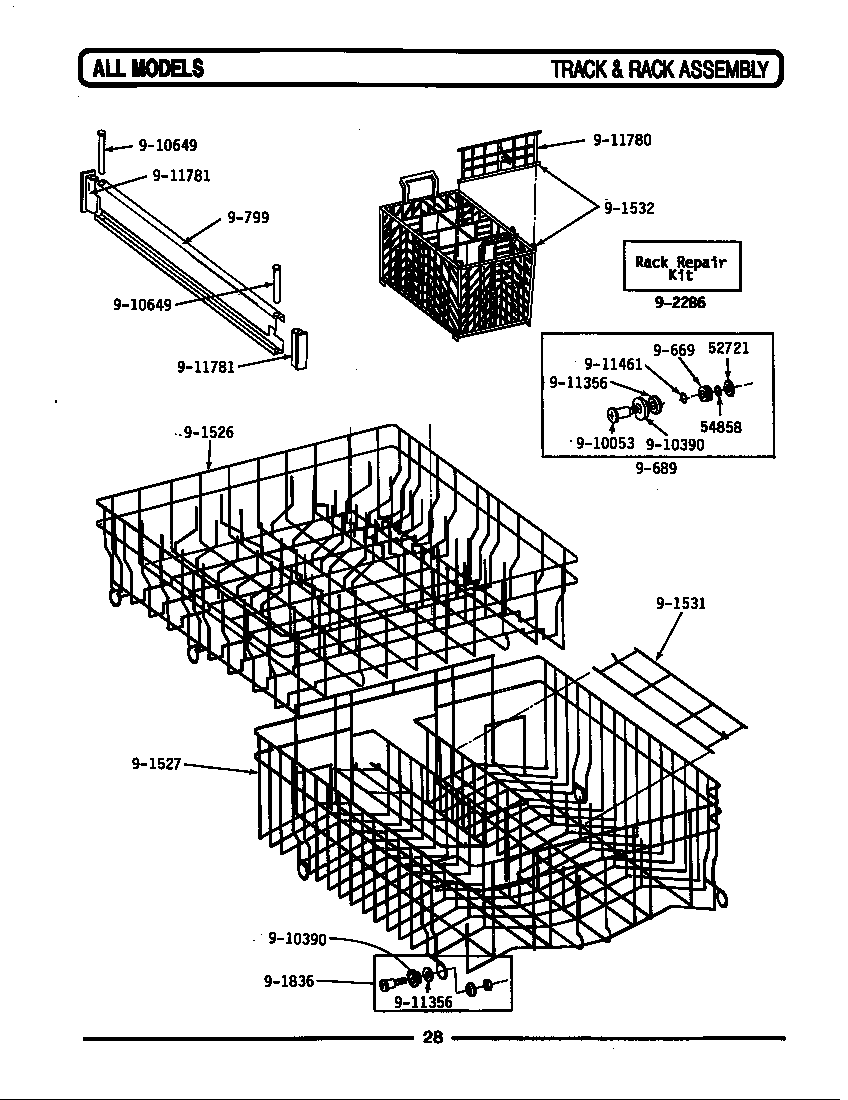

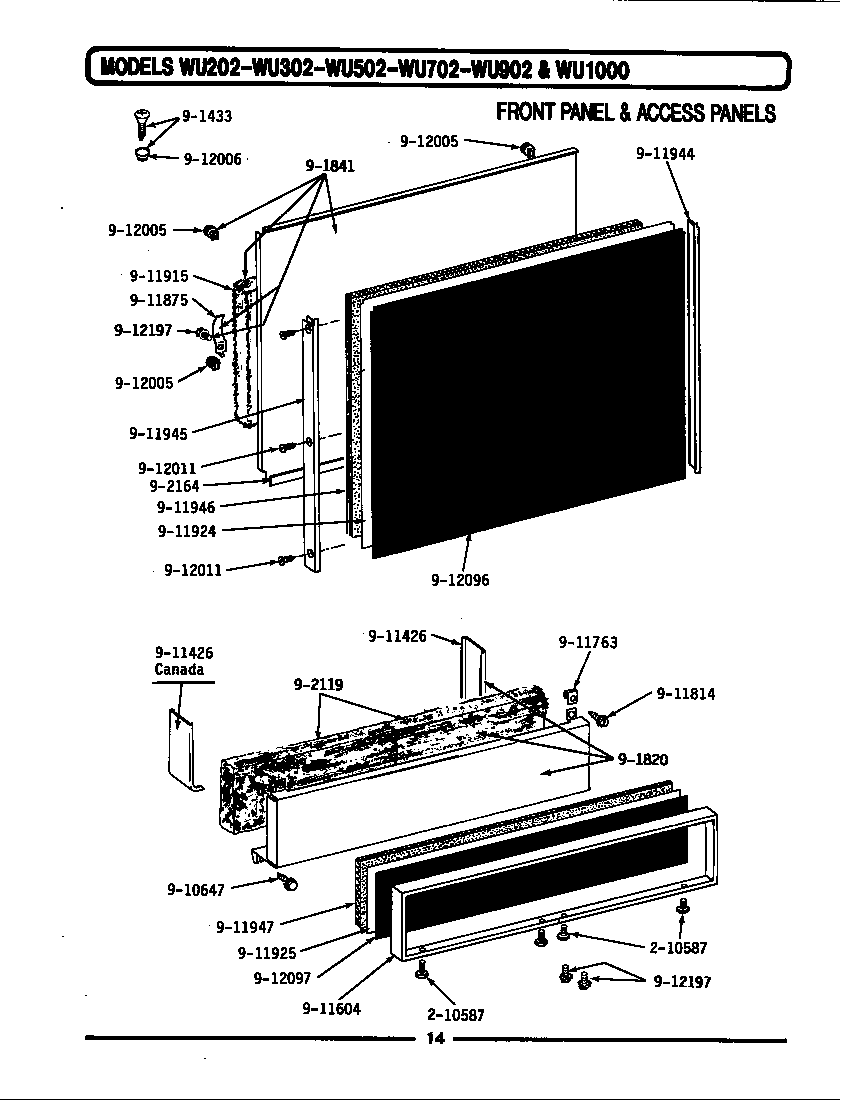

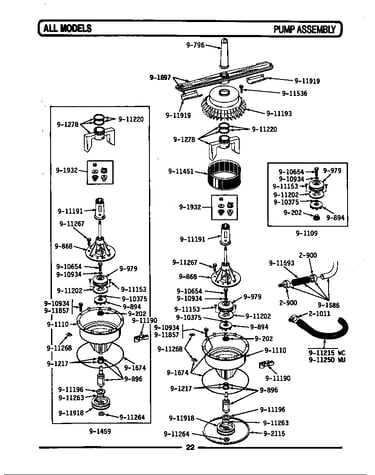

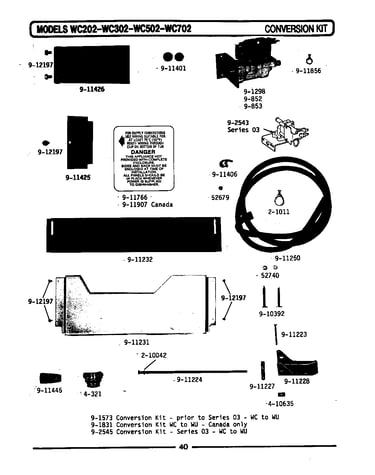

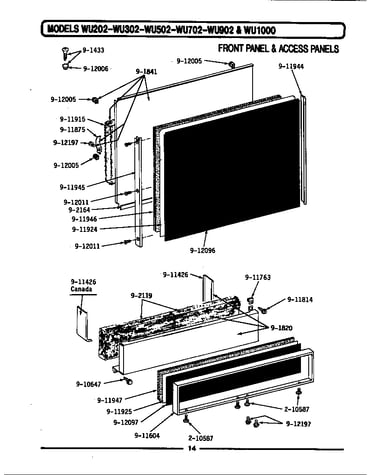

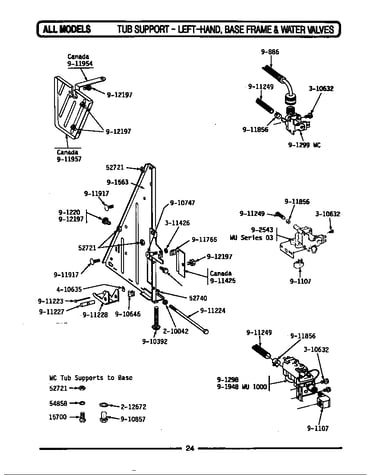

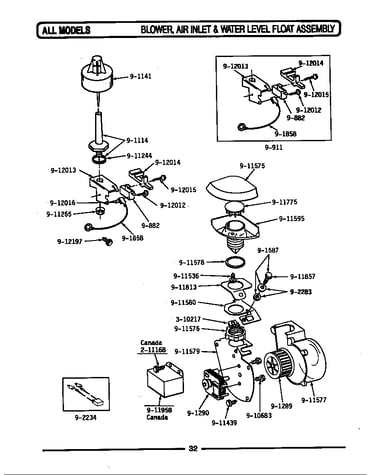

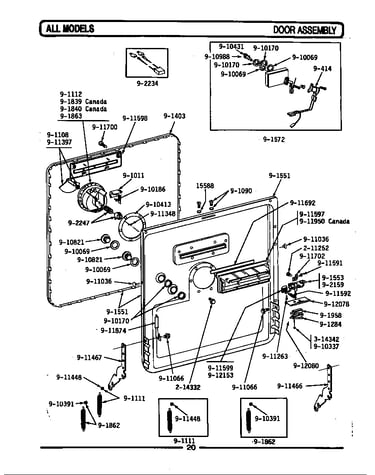

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 348 parts  |
Clamp Spring 911856
Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Screw 211294
#10

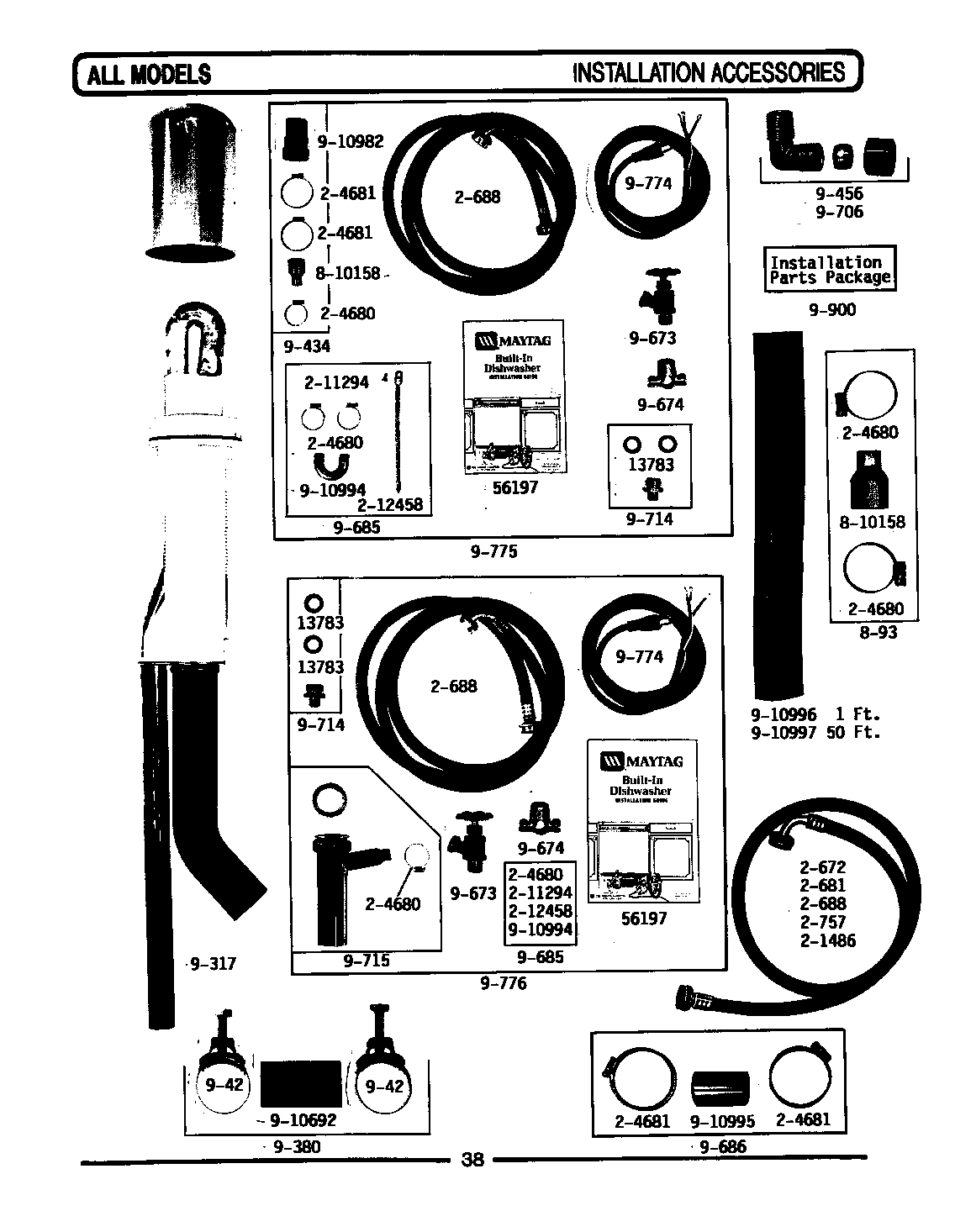

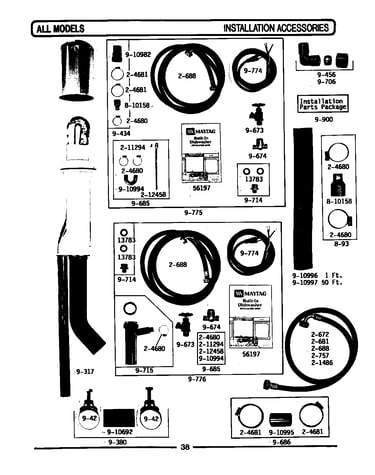

Installation accessories diagram

Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer 911119
#42

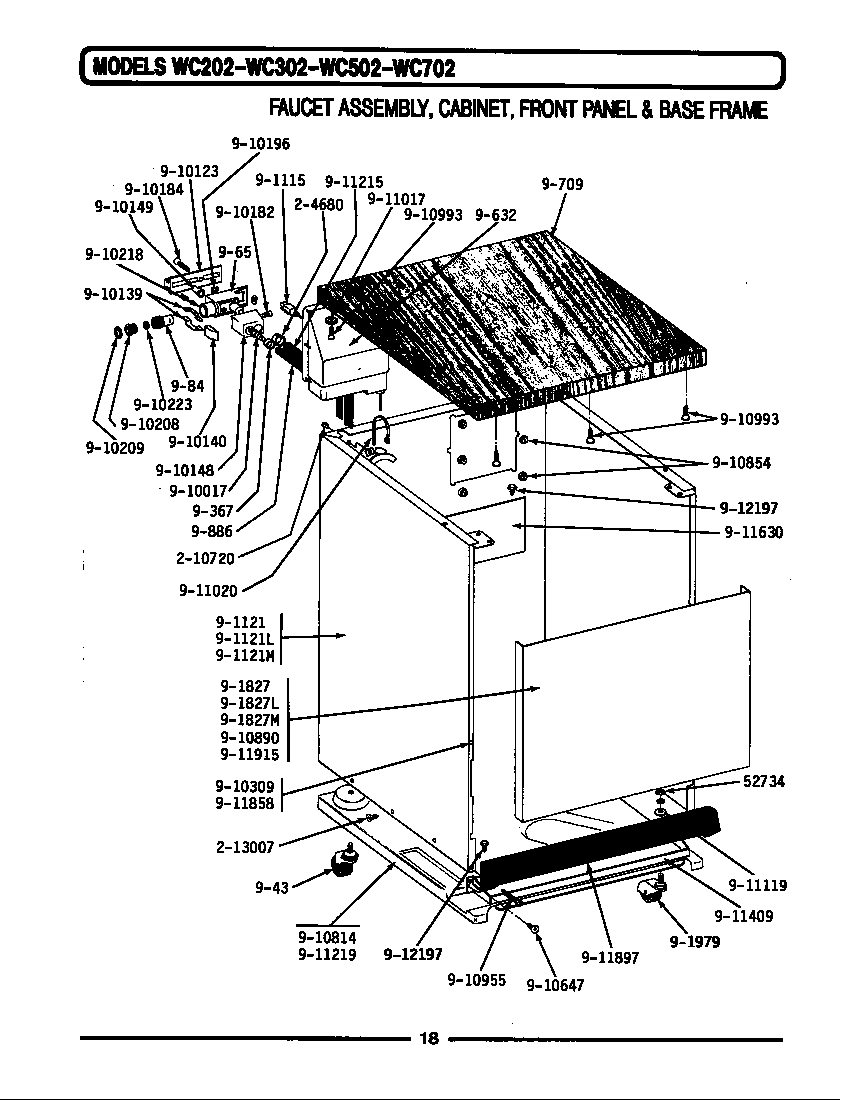

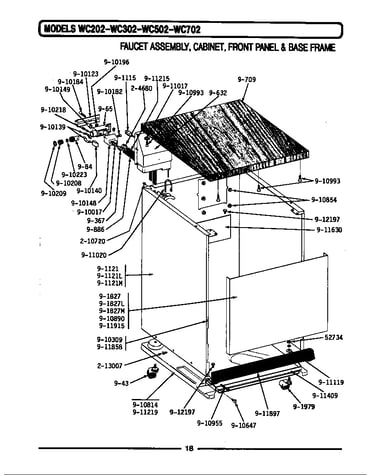

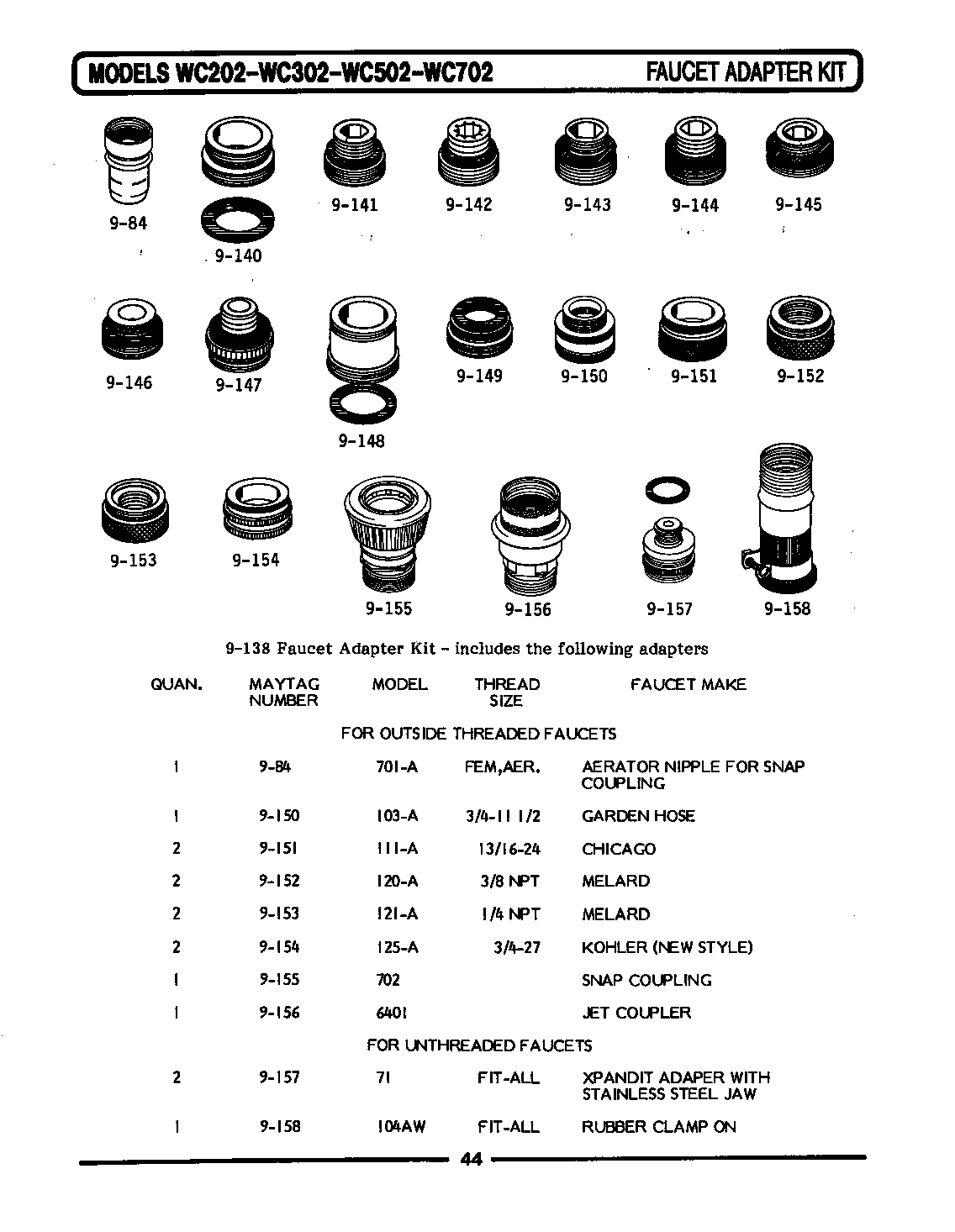

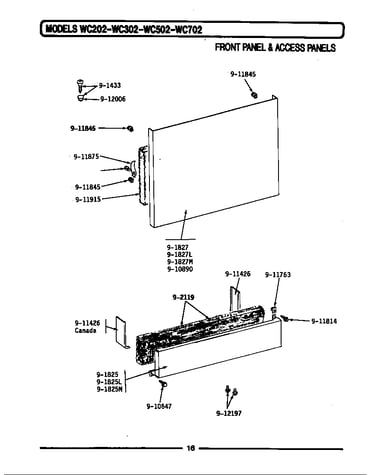

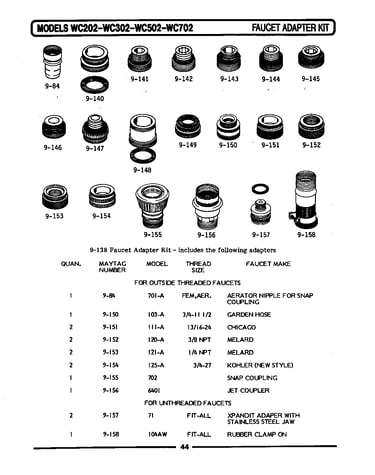

Faucet assy, cbnt, front pnl & base (wc) (wc502) diagram

Washer

Part #911119

Replaced by #WP348197

?
Manufacturer substitution
This part replaces 911119. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 911858
#47

Faucet assy, cbnt, front pnl & base (wc) (wc502) diagram

Screw

Part #911858

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 911858. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 910647
Screw

Part #910647

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 910647. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 210186
#1

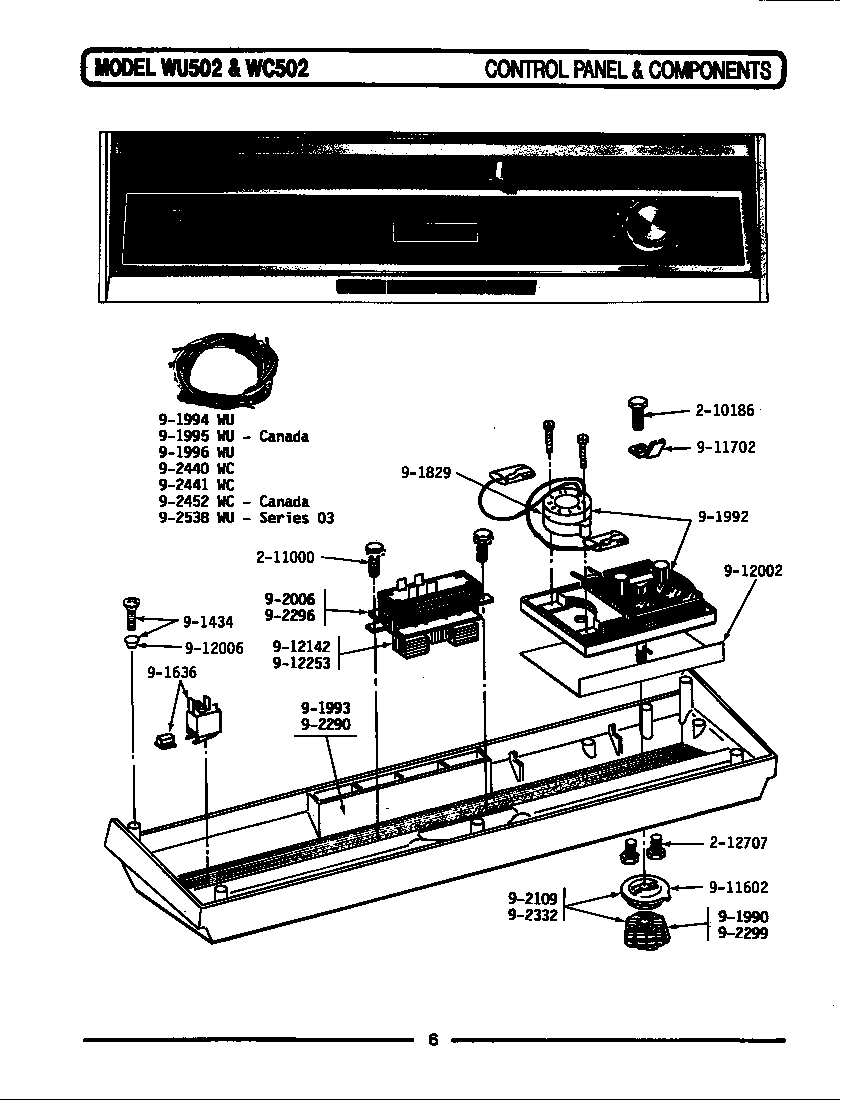

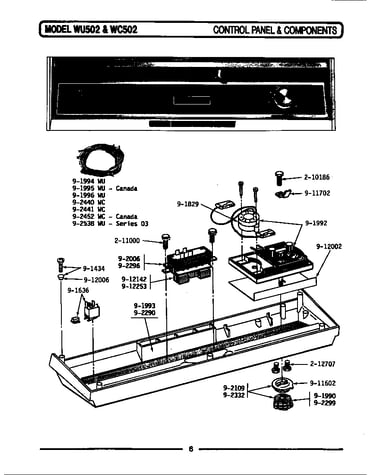

Control panel & components diagram

Screw

Part #210186

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 210186. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Inlet Hose 200688
#5

Installation accessories diagram

Inlet hose

Part #200688

Replaced by #WP76314

?
Manufacturer substitution
This part replaces 200688. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Inlet & Drai 200672
#3

Installation accessories diagram

Inlet & drai

Part #200672

Replaced by #WP76314

?
Manufacturer substitution
This part replaces 200672. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Dishwasher Belt With Lubricant 902115
Dishwasher belt with lubricant

Part #902115

Replaced by #6-9021150

?
Manufacturer substitution
This part replaces 902115. Substitute parts can look different from the original.
$51.43 |
10% OFF Phone Price : $57.43
In Stock
Hose Clamp 900367
#8

Faucet assy, cbnt, front pnl & base (wc) (wc502) diagram

Hose clamp

Part #900367

Replaced by #WP489503

?
Manufacturer substitution
This part replaces 900367. Substitute parts can look different from the original.
This item is not returnable
$8.39 |
11% OFF Phone Price : $9.39
In Stock
