Amana
Side-By-Side Refrigerator

Model # XRSS287BW-PXRSS287BW0 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana XRSS287BW-PXRSS287BW0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

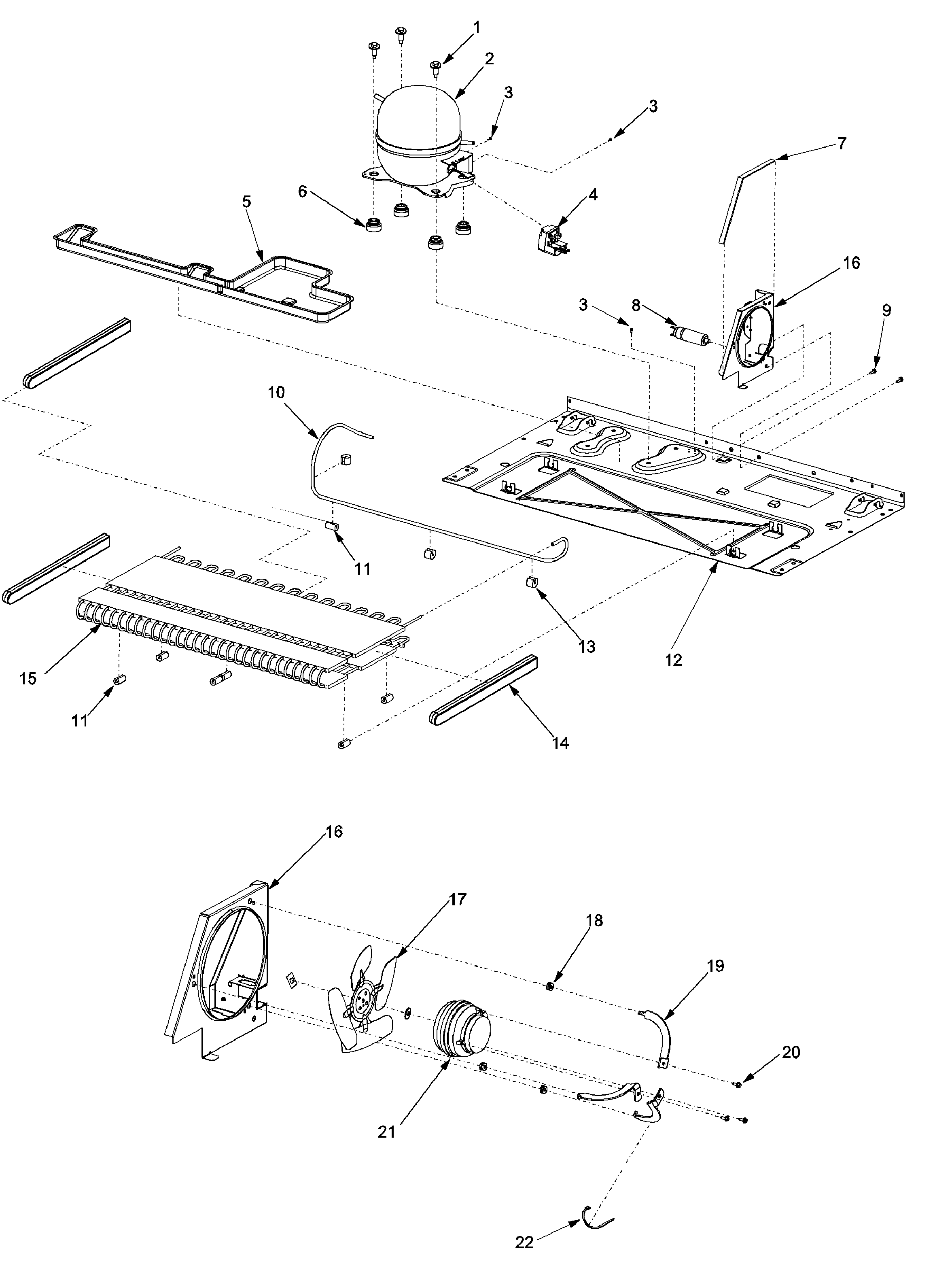

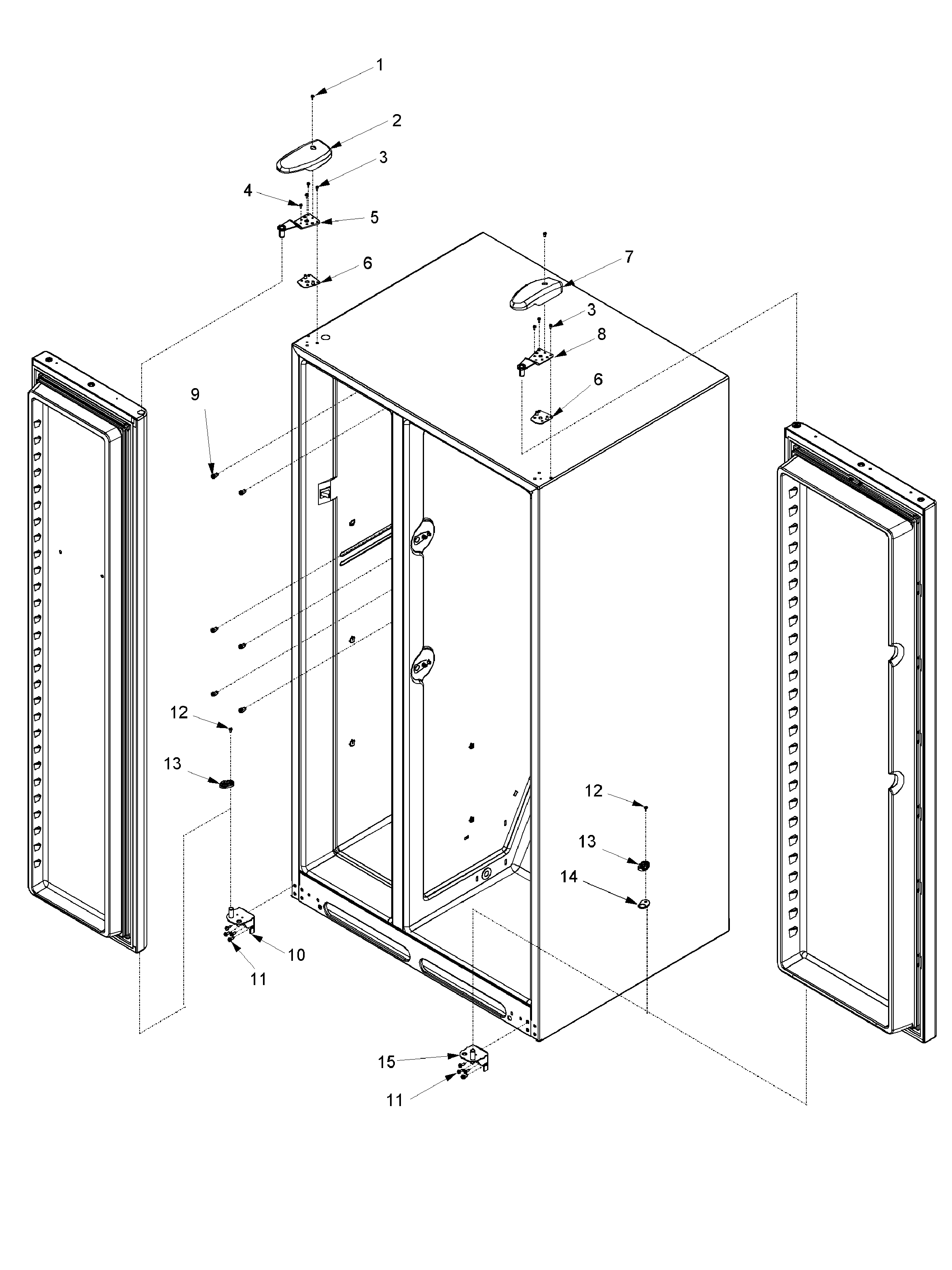

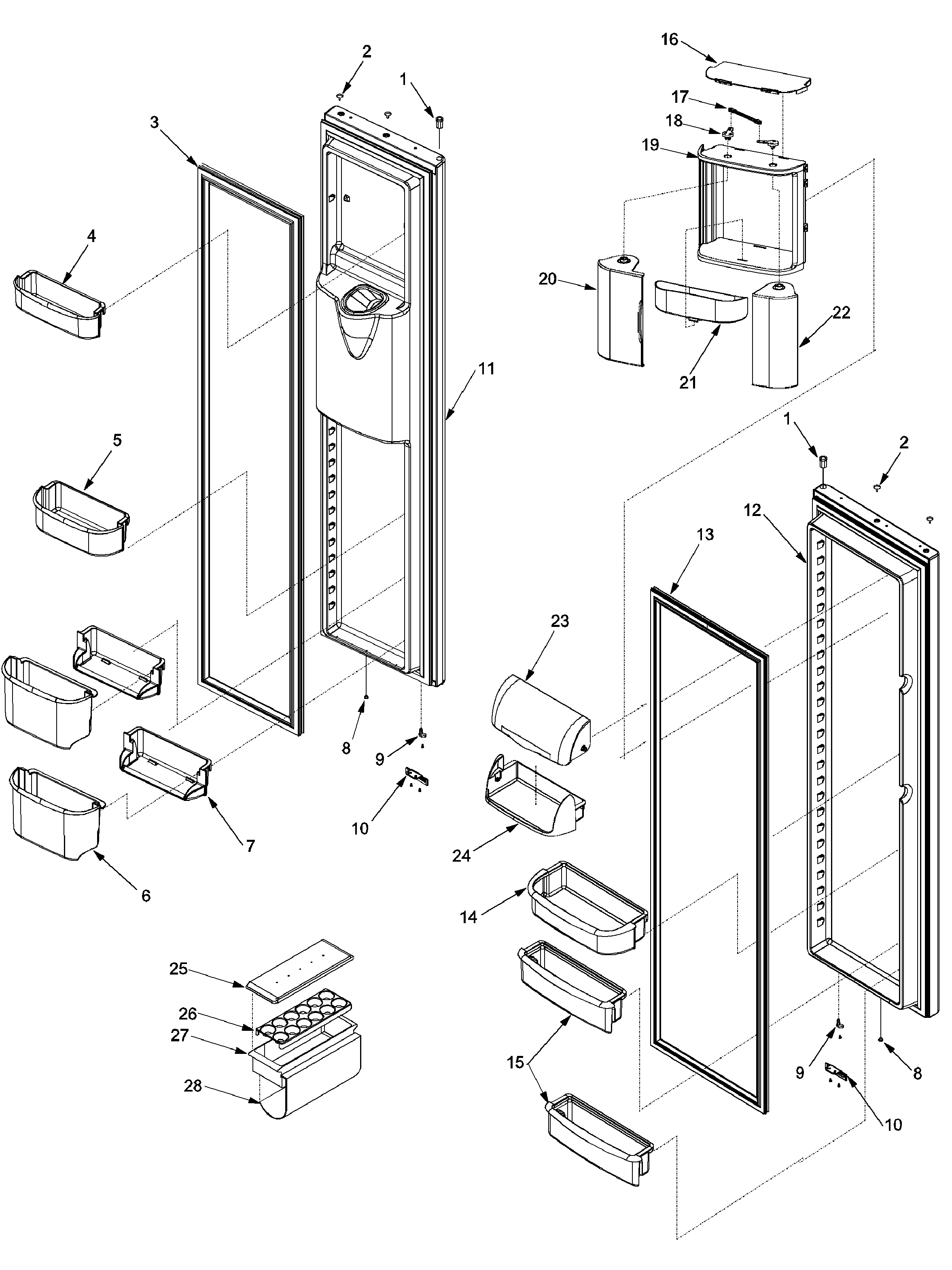

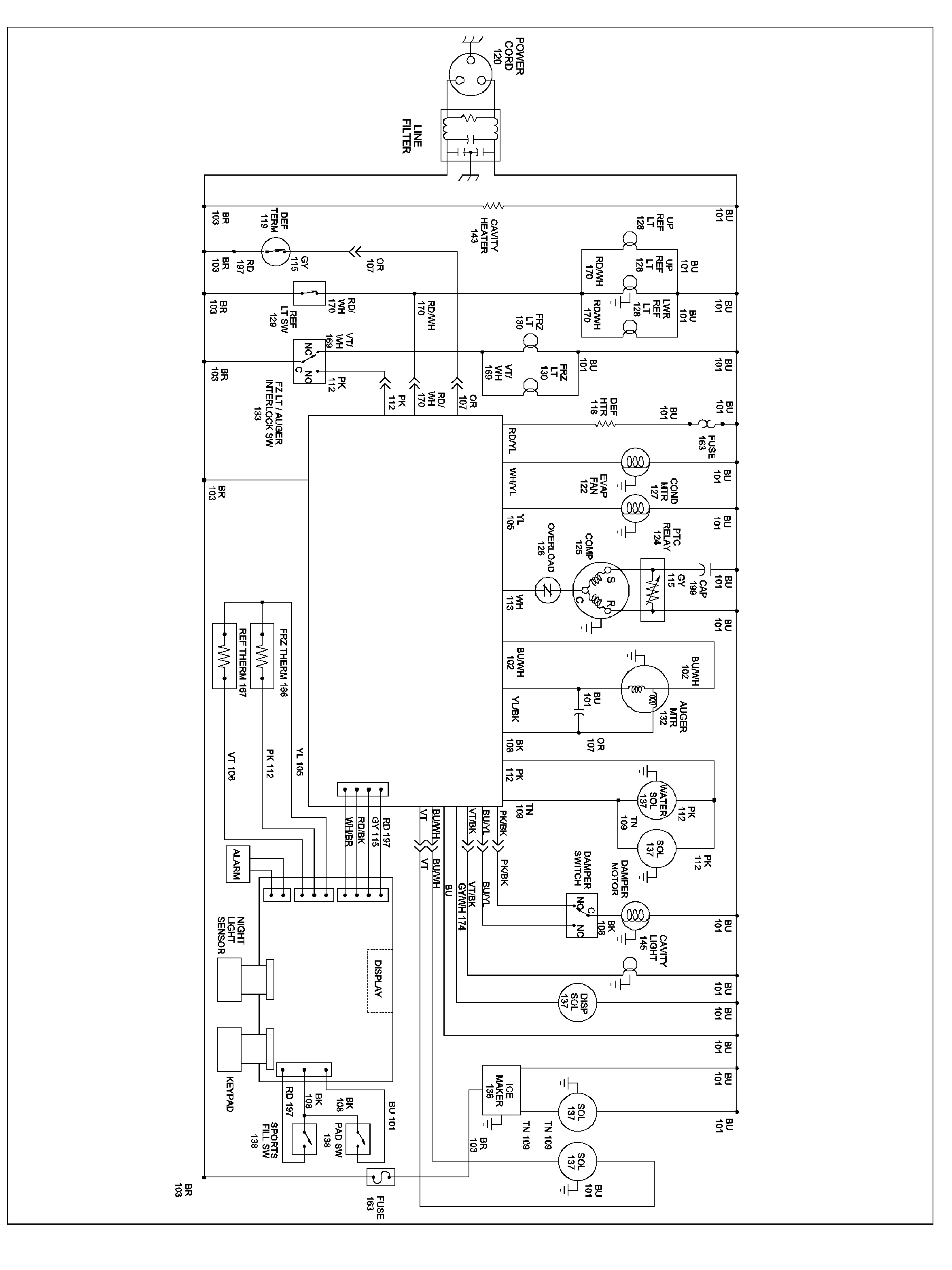

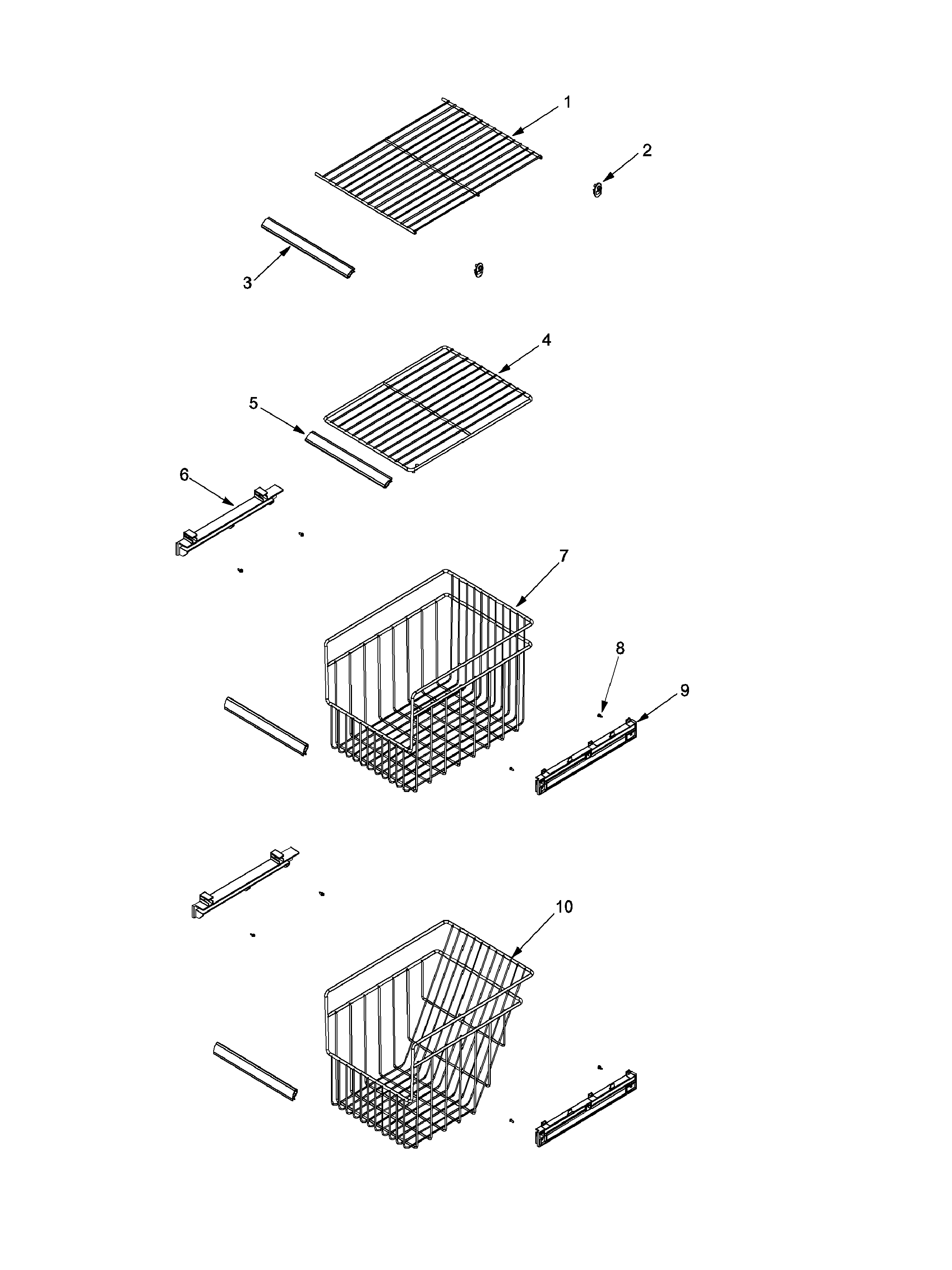

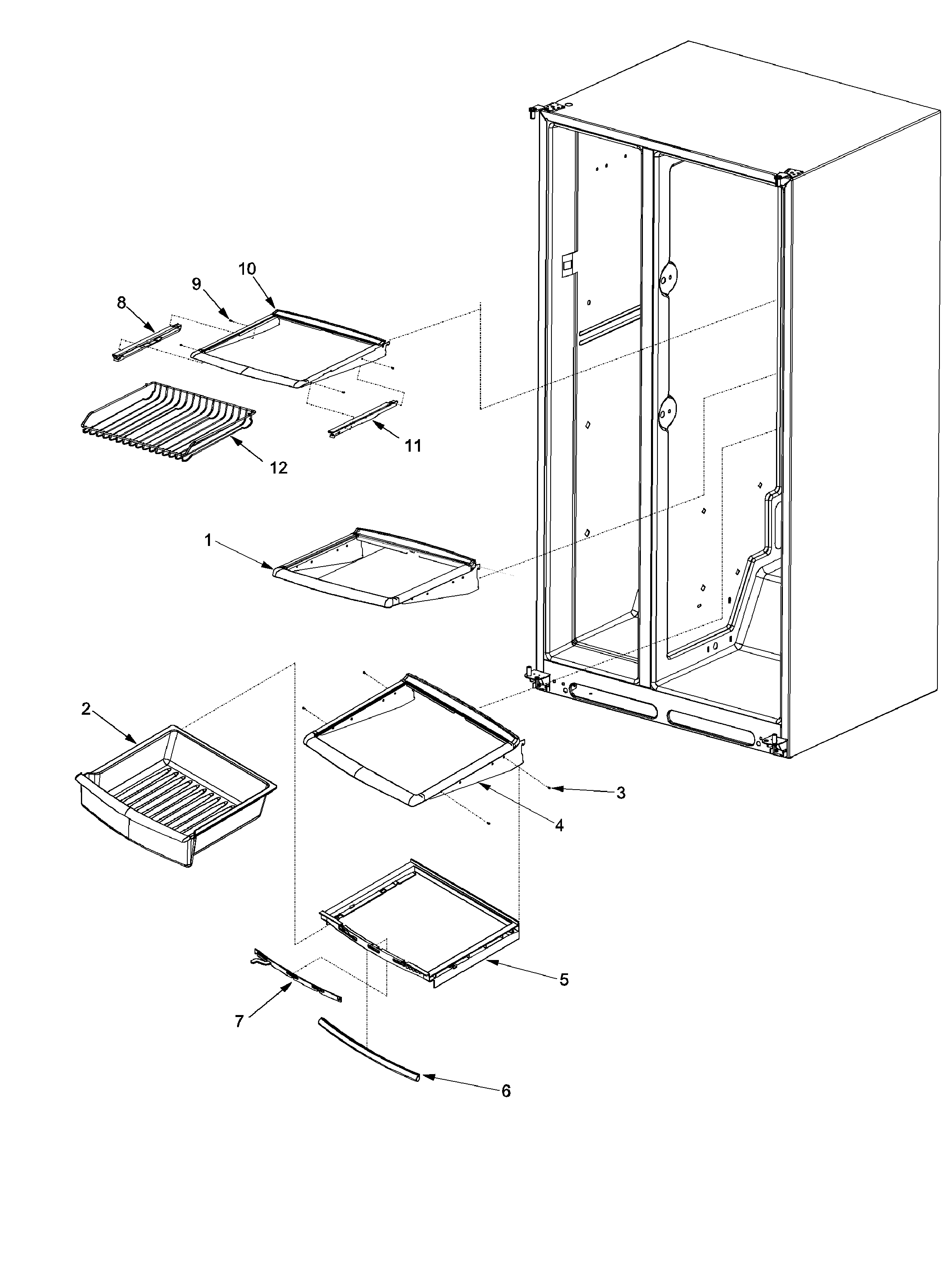

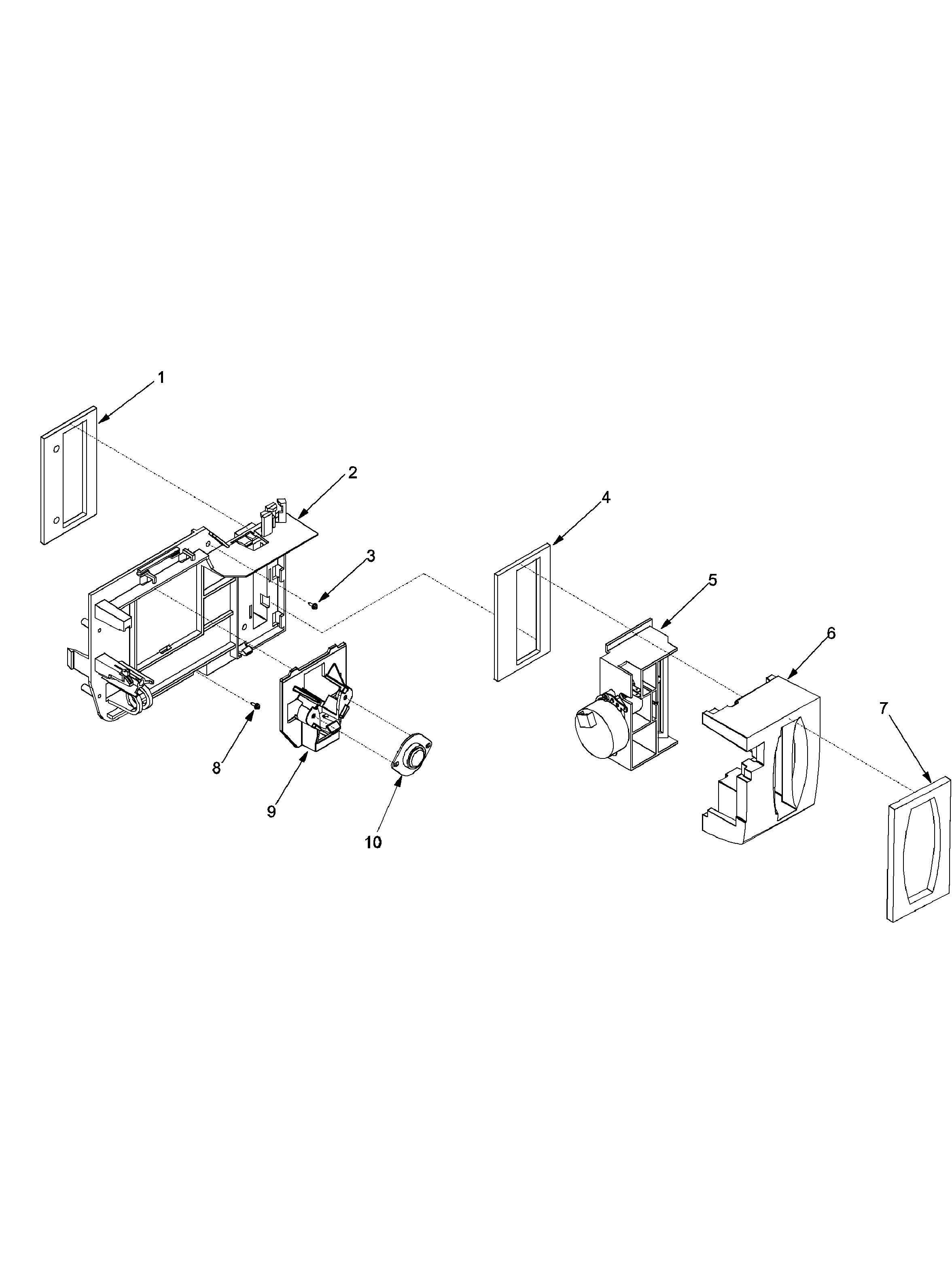

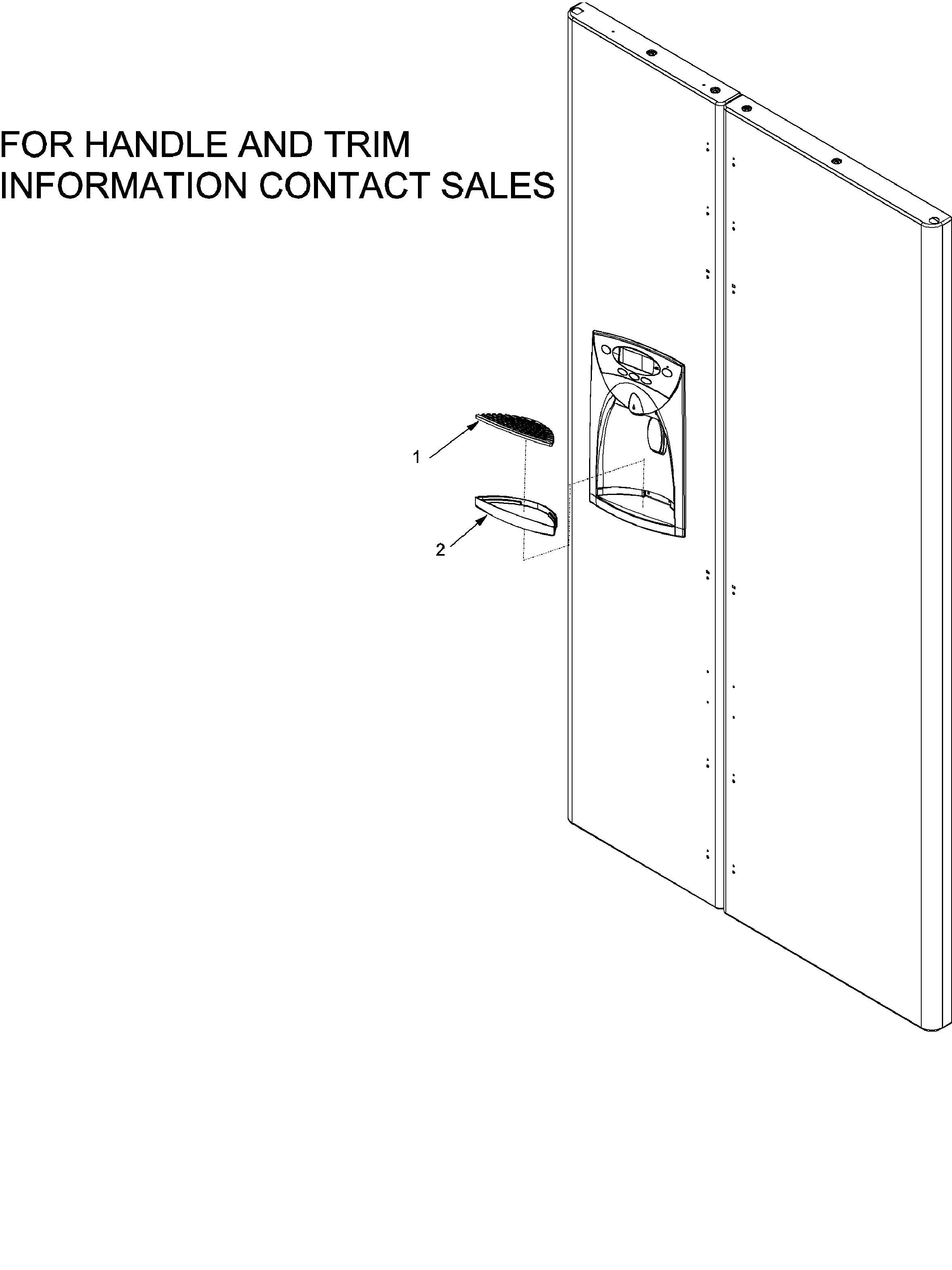

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Whirlpool Everydrop 4 Refrigerator Water Filter (replaces 9984, Ukf8001, W10735404, W11256384) EDR4RXD1
#15

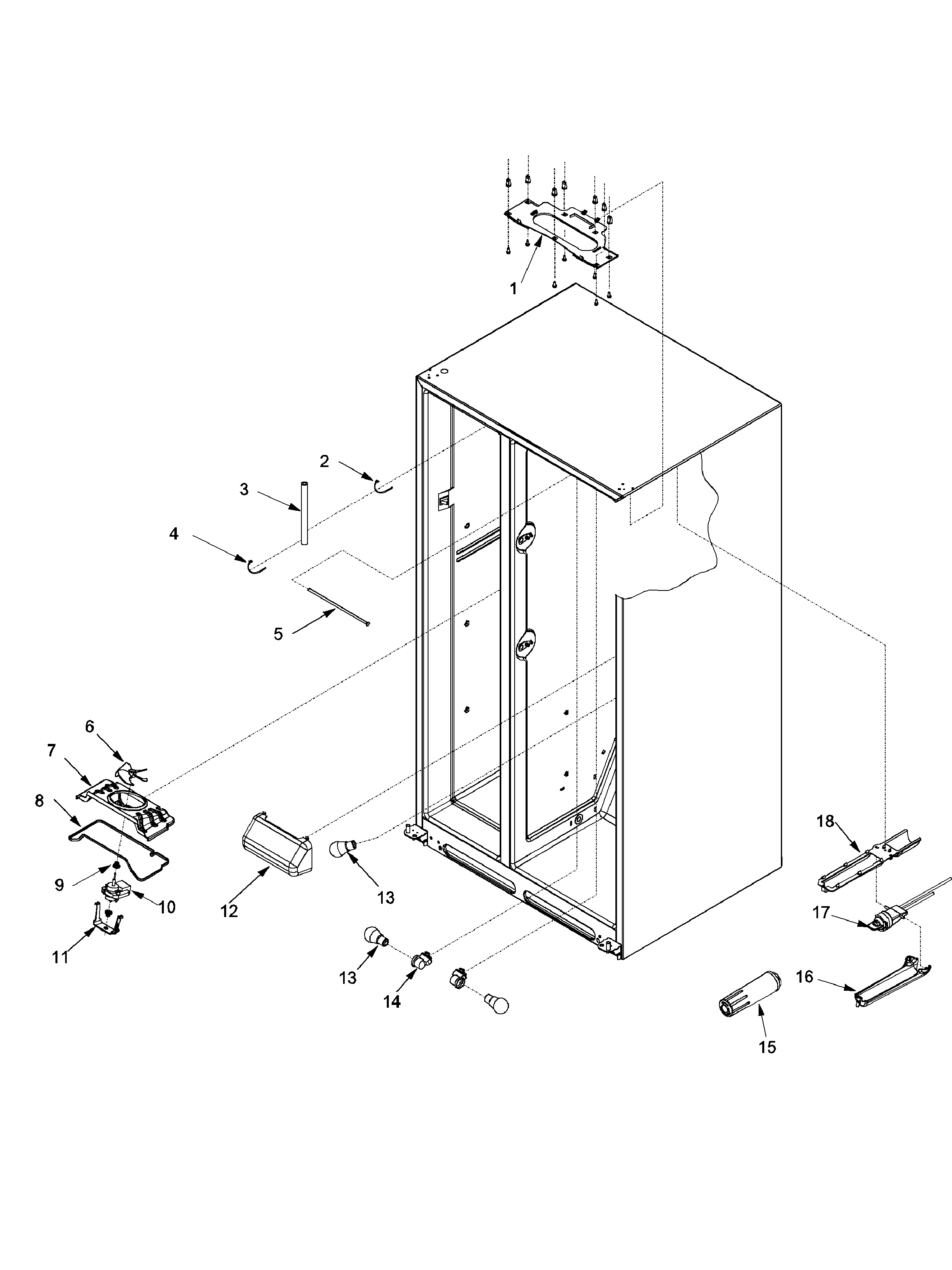

Evap fan assy and lights diagram

Whirlpool everydrop 4 refrigerator water filter (replaces 9984, ukf8001, w10735404, w11256384)

Part #EDR4RXD1

BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Drier 67002232
#19

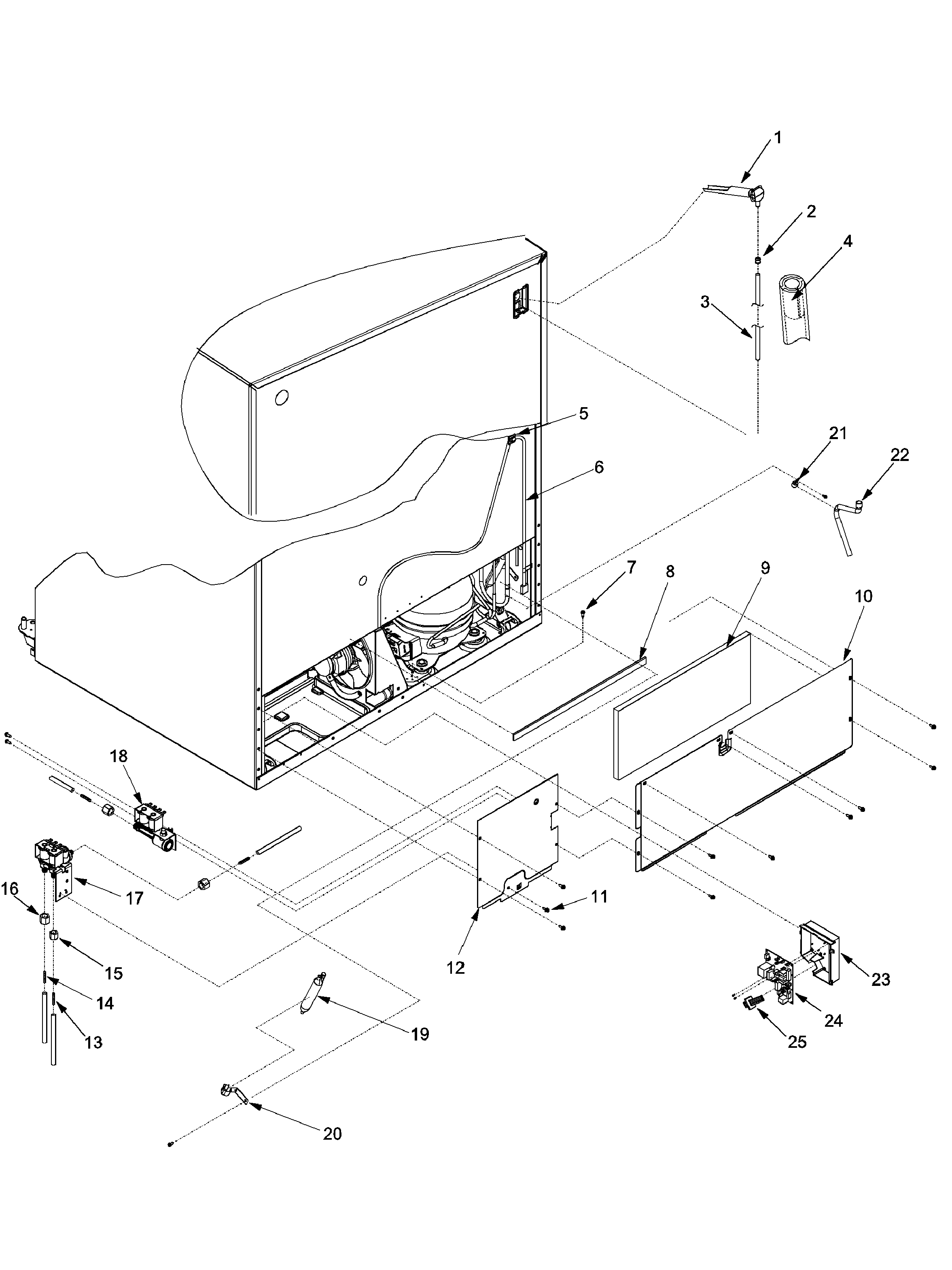

Cabinet back diagram

Refrigerator drier

Part #67002232

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces 67002232. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Fitting M0753001
#15

Cabinet back diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Fill Tube B5705328
#3

Cabinet back diagram

Refrigerator fill tube

Part #B5705328

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705328. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Door Chute 12562701
#6

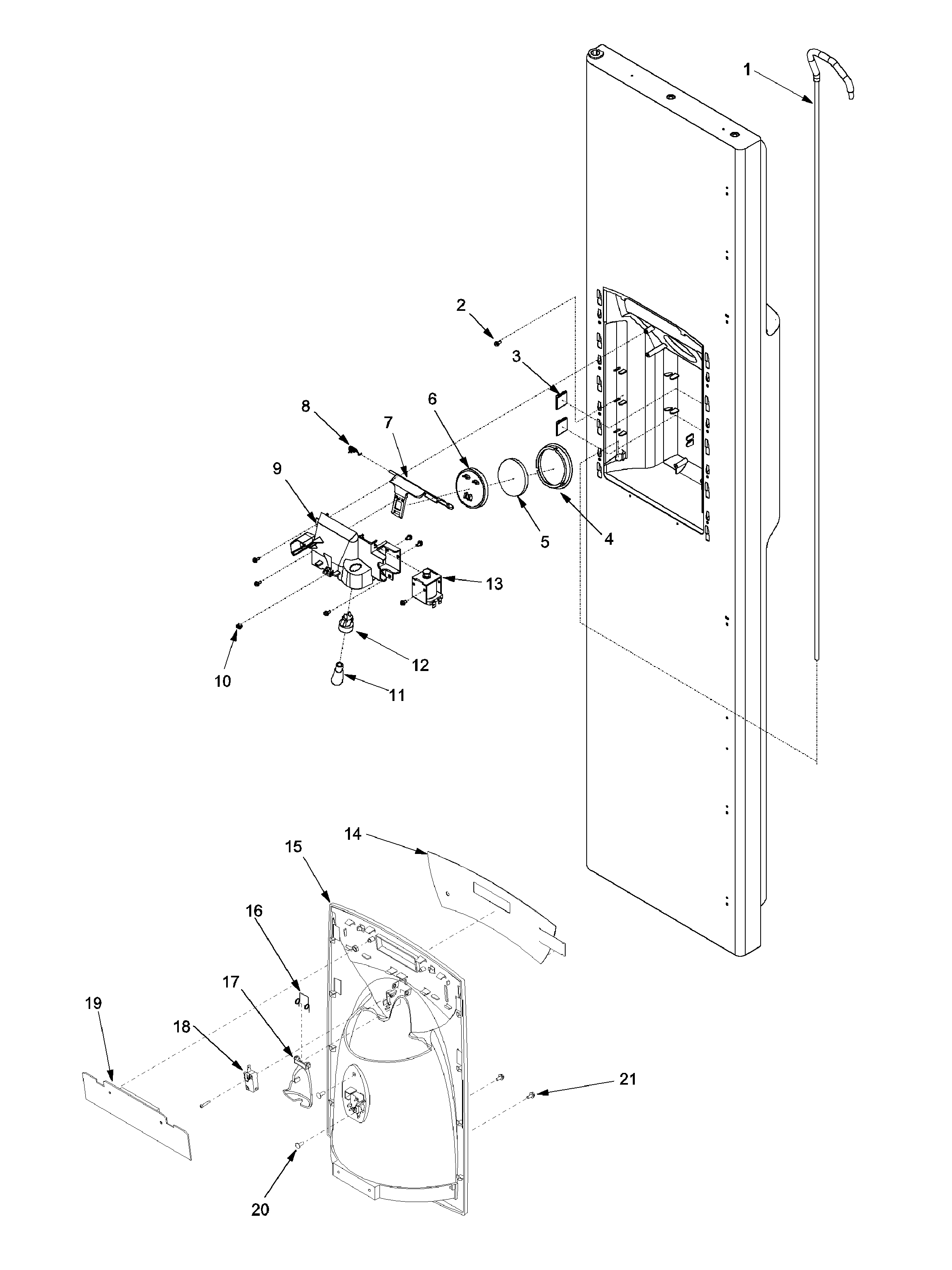

Fz door and facade diagram

Refrigerator door chute

Part #12562701

Replaced by #WP12562701

?
Manufacturer substitution
This part replaces 12562701. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Ice Maker Cover 12582501
#4

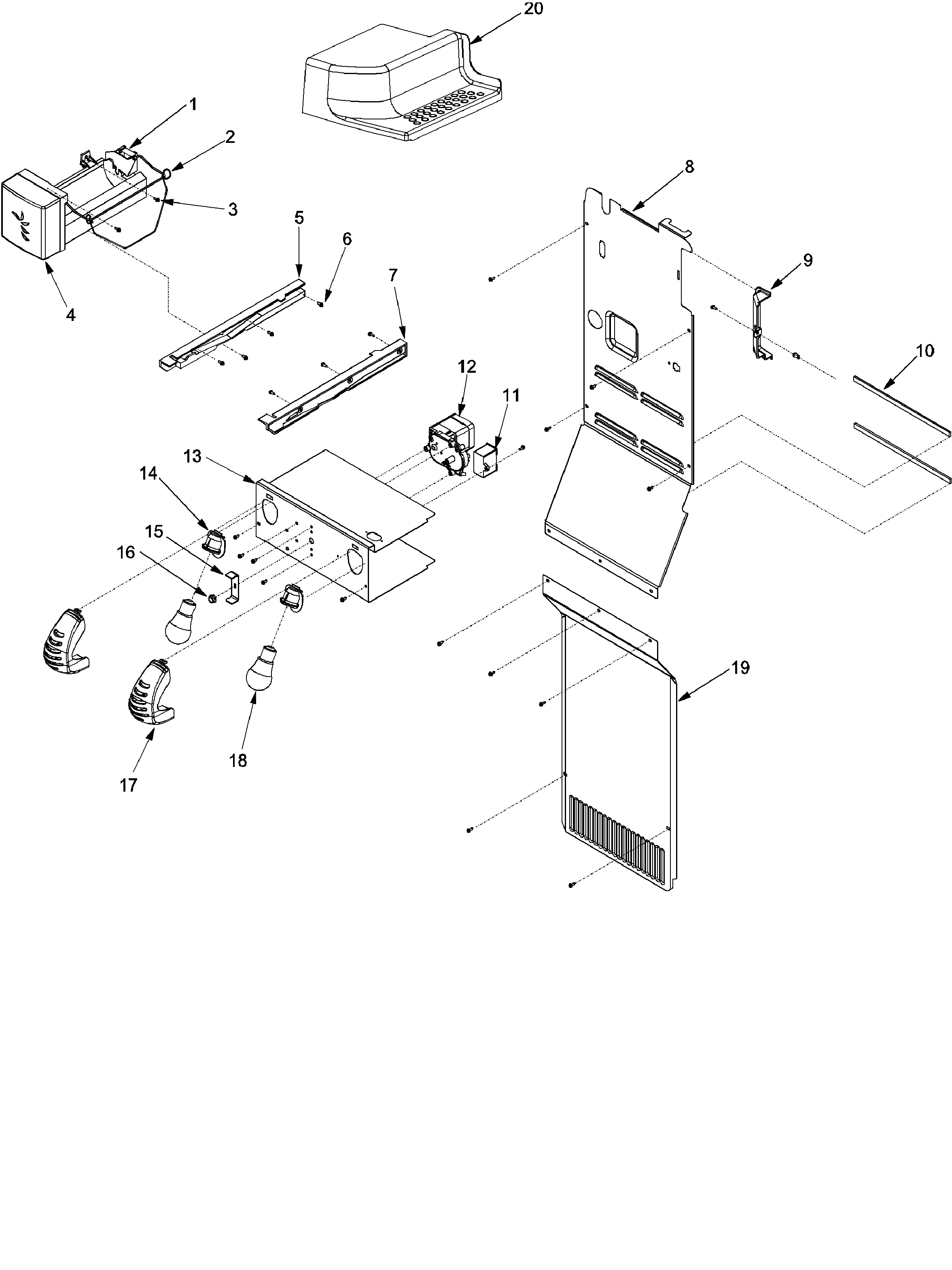

Lights and ice maker diagram

Refrigerator ice maker cover

Part #12582501

Replaced by #WPW10289690

?
Manufacturer substitution
This part replaces 12582501. Substitute parts can look different from the original.
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Helix End Cap D7749401
#2

Ice bucket assy diagram

Helix end cap

Part #D7749401

Replaced by #WPD7749401

?
Manufacturer substitution
This part replaces D7749401. Substitute parts can look different from the original.
This item is not returnable
$22.49 |
21% OFF Phone Price : $28.49
In Stock
Refrigerator Crisper Pan Large 67001503
#6

Crisper assy diagram

Refrigerator crisper pan large

Part #67001503

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw M0239216
#7

Cabinet back diagram

Refrigerator screw

Part #M0239216

Replaced by #WP489399

?
Manufacturer substitution
This part replaces M0239216. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Toe Grille 67002224
#11A

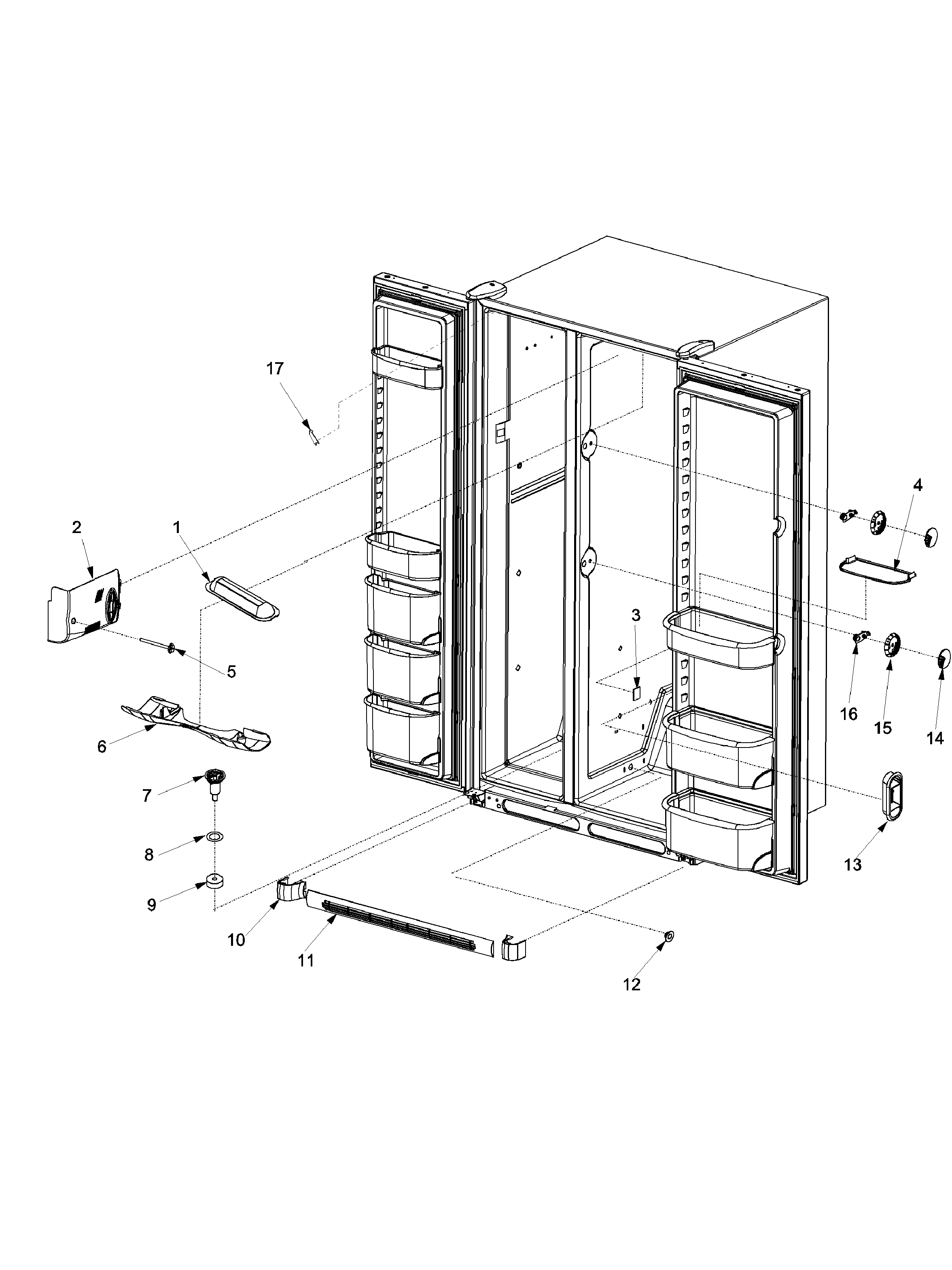

Light covers and toe grille diagram

Toe grille

Part #67002224

Replaced by #WP67002224

?
Manufacturer substitution
This part replaces 67002224. Substitute parts can look different from the original.
$51.31 |
10% OFF Phone Price : $57.31
In Stock
