Model # 502456252 Official Sears 24" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502456252 24" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

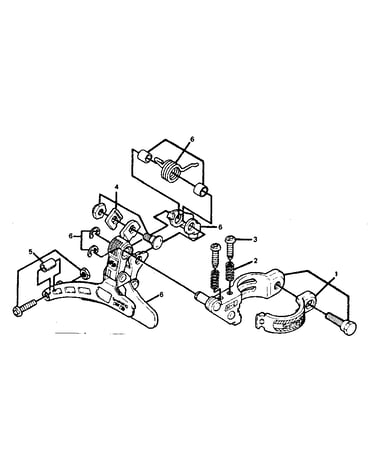

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Brake Shoe 308697
#2

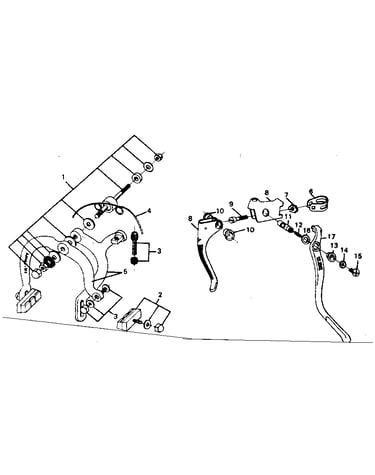

Side pull caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Kickstand As 302339
#13

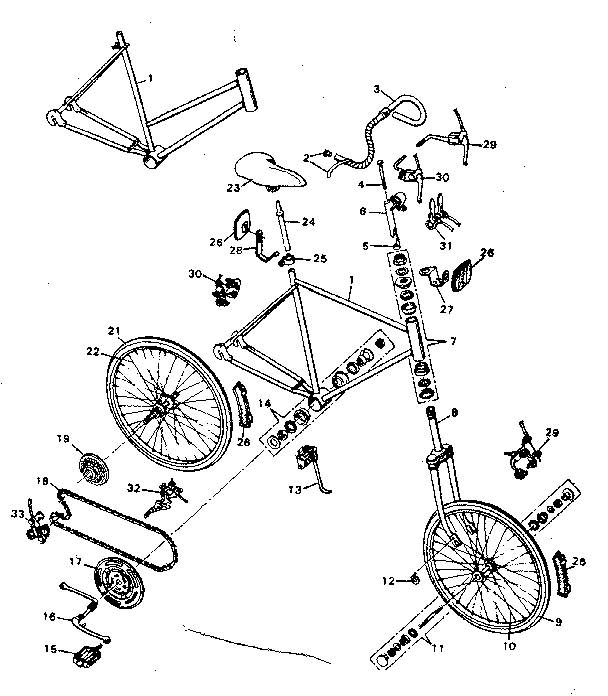

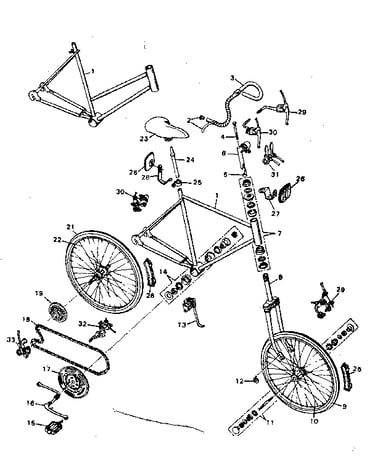

Unit parts diagram

Kickstand as

Part #302339

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518
#11

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

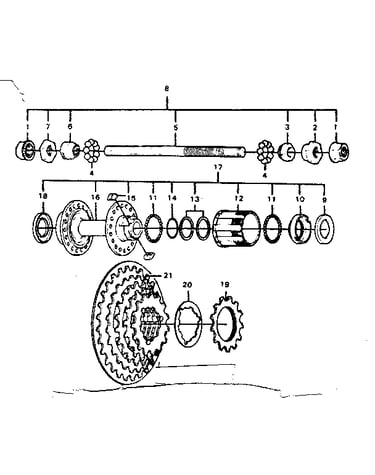

Spkt. Asm 36265PA
Spkt. asm

Part #36265PA

The manufacturer no longer makes this part, and there's no substitute part

Frame 32013BEB
#1B

Unit parts diagram

Frame

Part #32013BEB

The manufacturer no longer makes this part, and there's no substitute part

Bolt 302065
#1

Side pull caliper brake diagram

Bolt

Part #302065

The manufacturer no longer makes this part, and there's no substitute part

Fr Lever 302349
#14

Le type shifter diagram

Fr lever

Part #302349

The manufacturer no longer makes this part, and there's no substitute part

Bushing 300519
#17

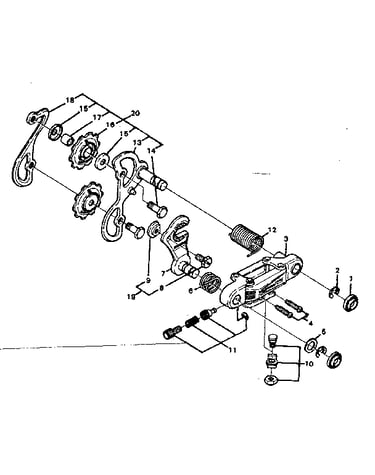

Rear derailleur diagram

Bushing

Part #300519

The manufacturer no longer makes this part, and there's no substitute part

Bushing 304236
#13

Side pull caliper brake diagram

Bushing

Part #304236

The manufacturer no longer makes this part, and there's no substitute part

Spring 300829
#6

Rear derailleur diagram

Spring

Part #300829

The manufacturer no longer makes this part, and there's no substitute part
