Model # FUM21DMDRWH Official GE freezer - d series

Here are the diagrams and repair parts for Official GE FUM21DMDRWH freezer - d series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Freezer Dryer Filter WR86X10014
#740

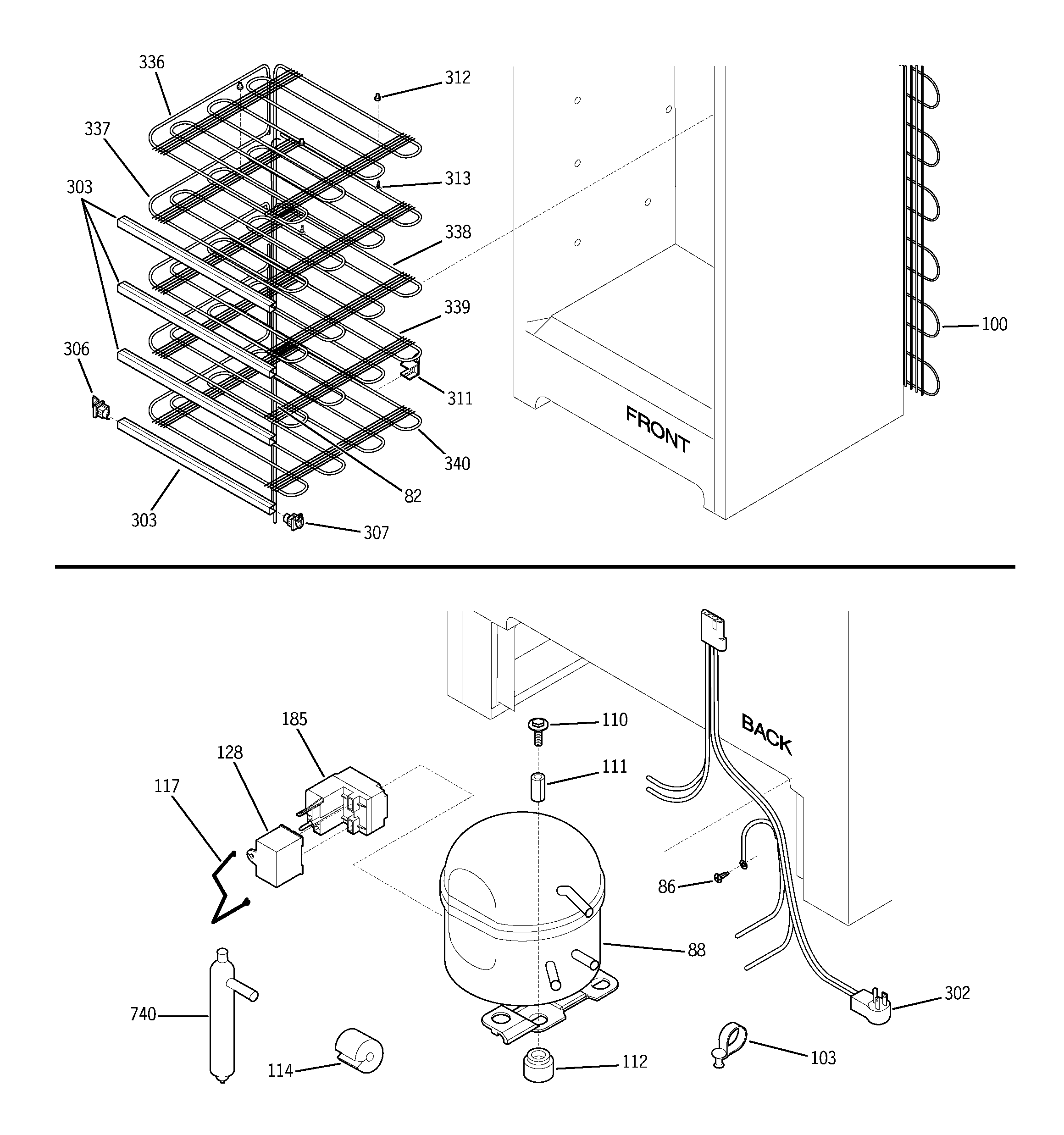

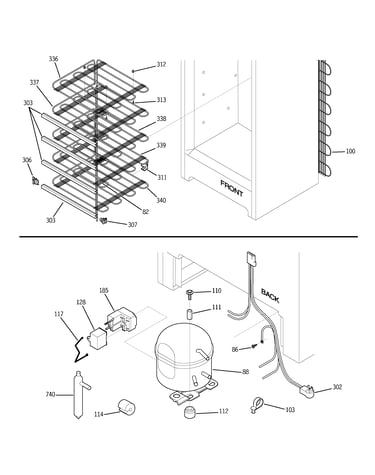

Unit parts diagram

Freezer dryer filter

Part #WR86X10014

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10014. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Freezer Door Gasket WR24X10010
#8

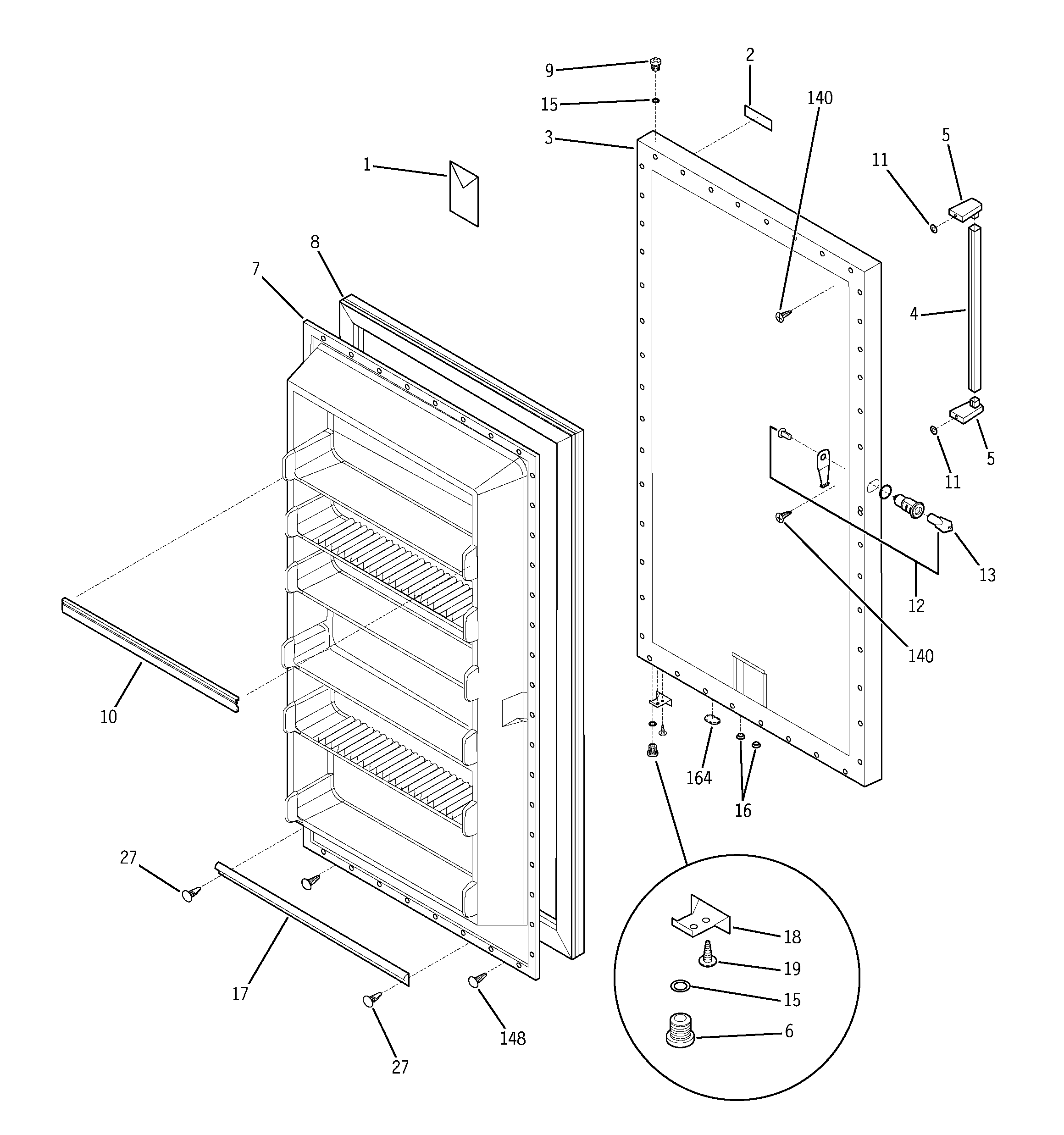

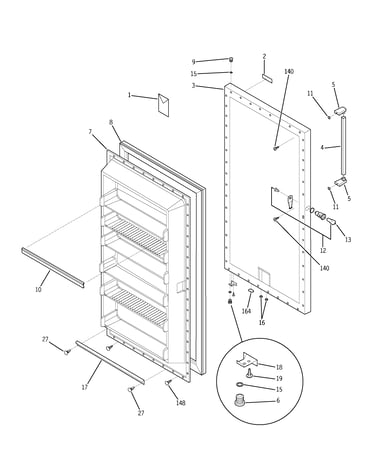

Freezer door diagram

Freezer door gasket

Part #WR24X10010

$186.70 |
6% OFF Phone Price : $198.70
In Stock
Compressor WR87X10086
#88

Unit parts diagram

Compressor

Part #WR87X10086

$351.78 |
$12.00 OFF Phone Price : $363.78
In Stock
Freezer Door Switch WR23X10303
#41

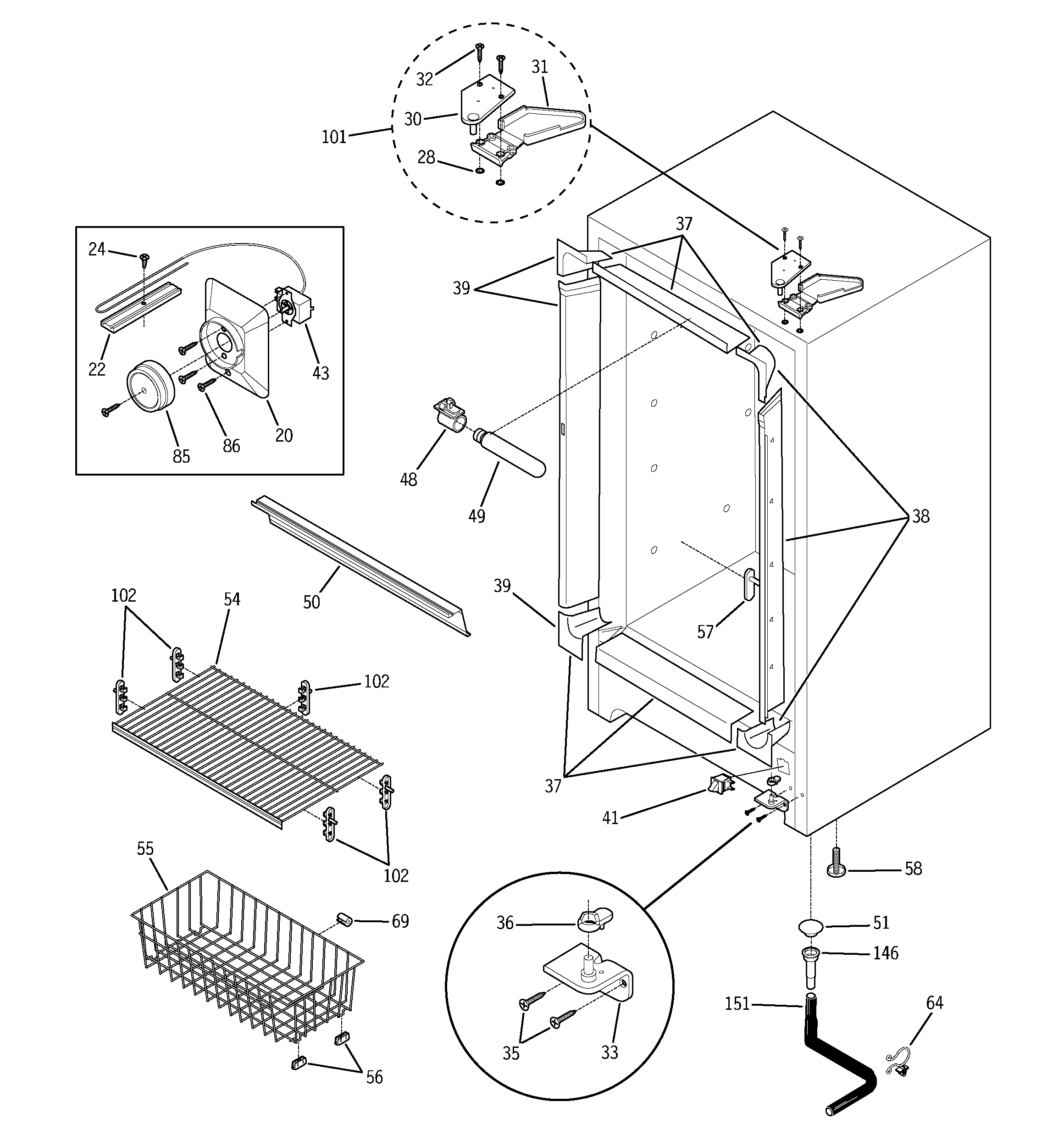

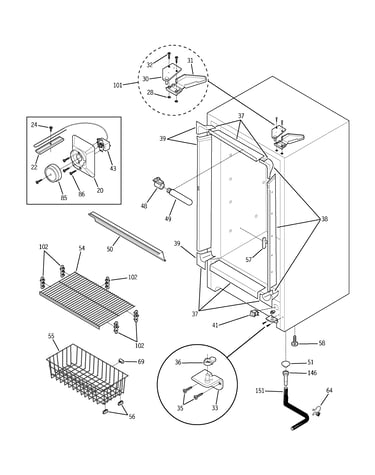

Cabinet diagram

Freezer door switch

Part #WR23X10303

$64.46 |
9% OFF Phone Price : $70.46
In Stock
Glide Basket WR02X11444
#56

Cabinet diagram

Glide basket

Part #WR02X11444

$81.57 |
7% OFF Phone Price : $87.57
In Stock
Temperature Complete Knob WR02X10860
#85

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Condenser WR84X5007
#100

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Grommet Spacer WR01X2182
#312

Unit parts diagram

Grommet spacer

Part #WR01X2182

Replaced by #WR1X2182

?
Manufacturer substitution
This part replaces WR01X2182. Substitute parts can look different from the original.
This item is not returnable
$4.35
In Stock
Mounting Sleeve WR02X9497
#111

Unit parts diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
Freezer Shelf Trim WR38X10299
#303

Unit parts diagram

Freezer shelf trim

Part #WR38X10299

Replaced by #WR38X32250

?
Manufacturer substitution
This part replaces WR38X10299. Substitute parts can look different from the original.
$111.07
In Stock
