Model # 6287630610 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 6287630610 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

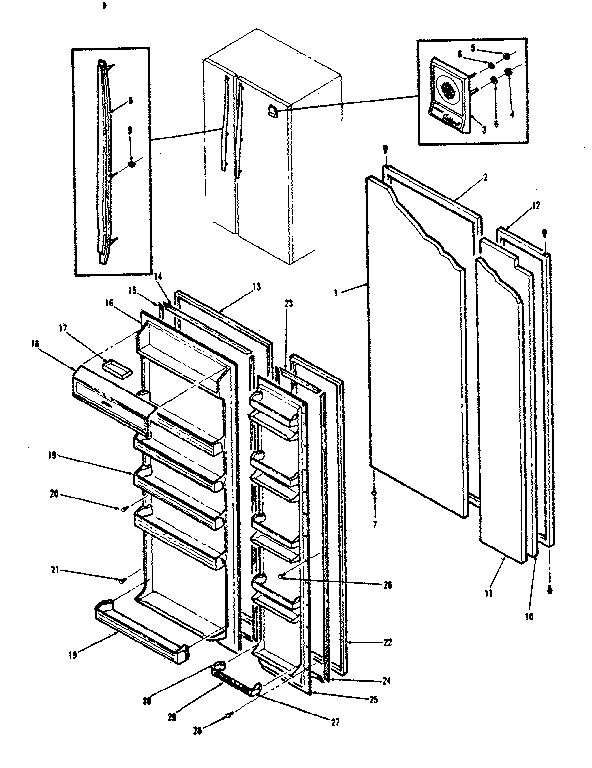

SELECT DIAGRAM
Browse Parts for
6287630610 Refrigerator
#59

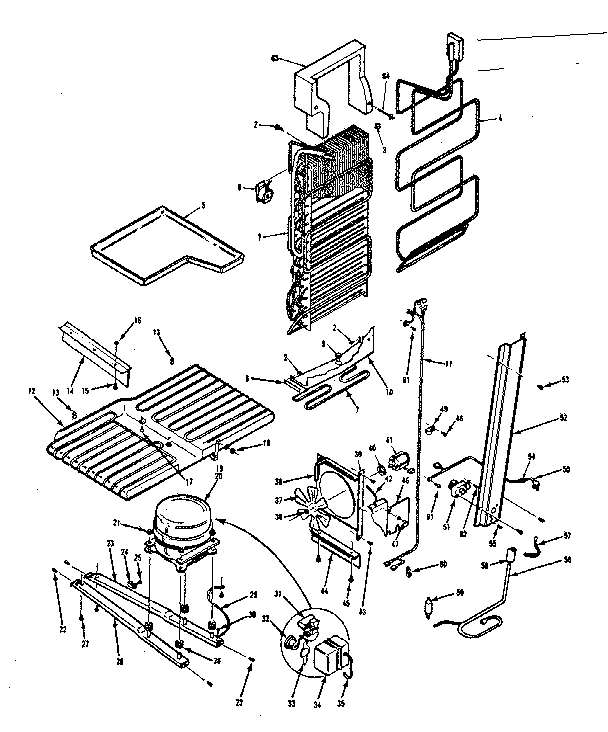

Unit diagram
Refrigerator filter drier
Part #1167150
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces 1167150. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#51
Unit diagram
Refrigerator timer
Part #1230354
Replaced by #W10822278
?
Manufacturer substitution
This part replaces 1230354. Substitute parts can look different from the original.
$28.65 |
17% OFF Phone Price : $34.65
In Stock
#50

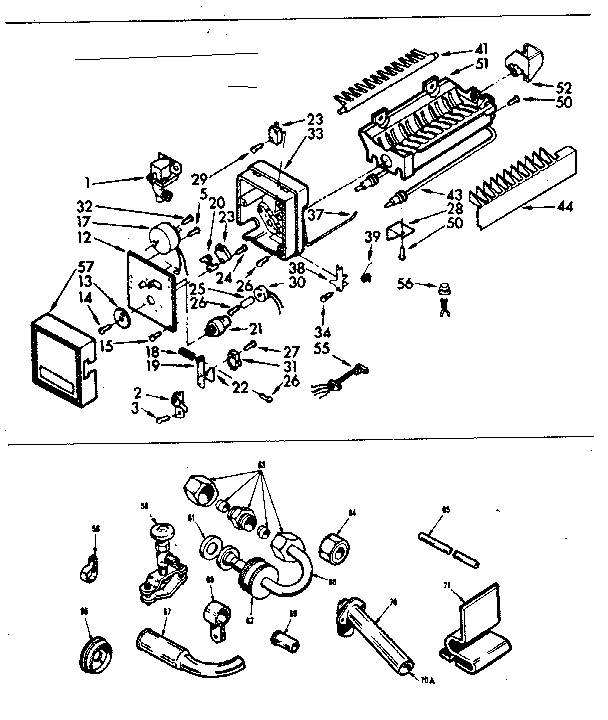

Icemaker diagram
Refrigerator screw
Part #1088290
Replaced by #WP489128
?
Manufacturer substitution
This part replaces 1088290. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator screw
Part #1146943
Replaced by #5304455650
?
Manufacturer substitution
This part replaces 1146943. Substitute parts can look different from the original.
This item is not returnable
$15.65 |
11% OFF Phone Price : $17.65
In Stock
Refrigerator screw
Part #1164391
Replaced by #5304455650
?
Manufacturer substitution
This part replaces 1164391. Substitute parts can look different from the original.
This item is not returnable
$15.65 |
11% OFF Phone Price : $17.65
In Stock
#65
Icemaker diagram
Refrigerator tube
Part #1230291
Replaced by #5308010366
?
Manufacturer substitution
This part replaces 1230291. Substitute parts can look different from the original.
$18.94 |
10% OFF Phone Price : $20.94
In Stock
#59

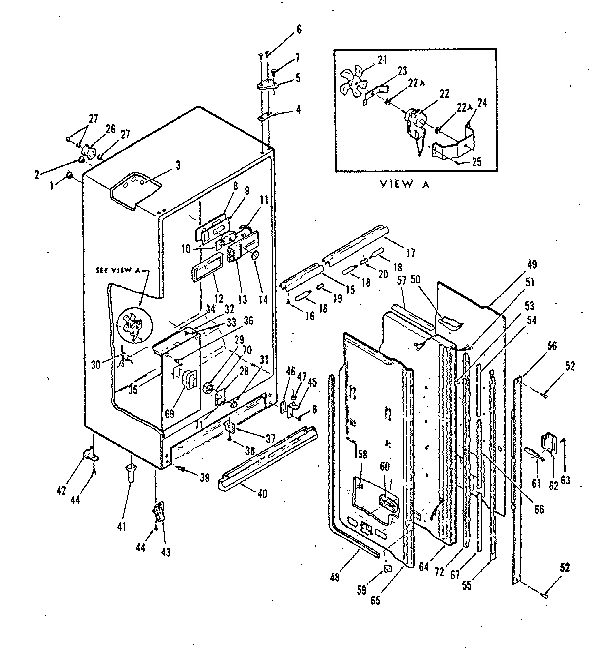

Refrigerator cabinet - air handling diagram
Refrigerator switch
Part #1229158
Replaced by #5309918806
?
Manufacturer substitution
This part replaces 1229158. Substitute parts can look different from the original.
This item is not returnable
$24.07 |
20% OFF Phone Price : $30.07
In Stock
Refrigerator screw
Part #1146178
The manufacturer no longer makes this part, and there's no substitute part
#28
Icemaker diagram
Refrigerator bracket
Part #1088277
Replaced by #WP2256087
?
Manufacturer substitution
This part replaces 1088277. Substitute parts can look different from the original.
$32.87
In Stock
#28
Unit diagram
Refrigerator grommet
Part #1229571
Replaced by #216498900
?
Manufacturer substitution
This part replaces 1229571. Substitute parts can look different from the original.
This item is not returnable
$14.15 |
12% OFF Phone Price : $16.15
In Stock
