GE
Electric Wall Oven

Model # JTP70BM1BB Official GE electric oven

Here are the diagrams and repair parts for Official GE JTP70BM1BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Wall Oven Temperature Sensor WB23T10015
#253

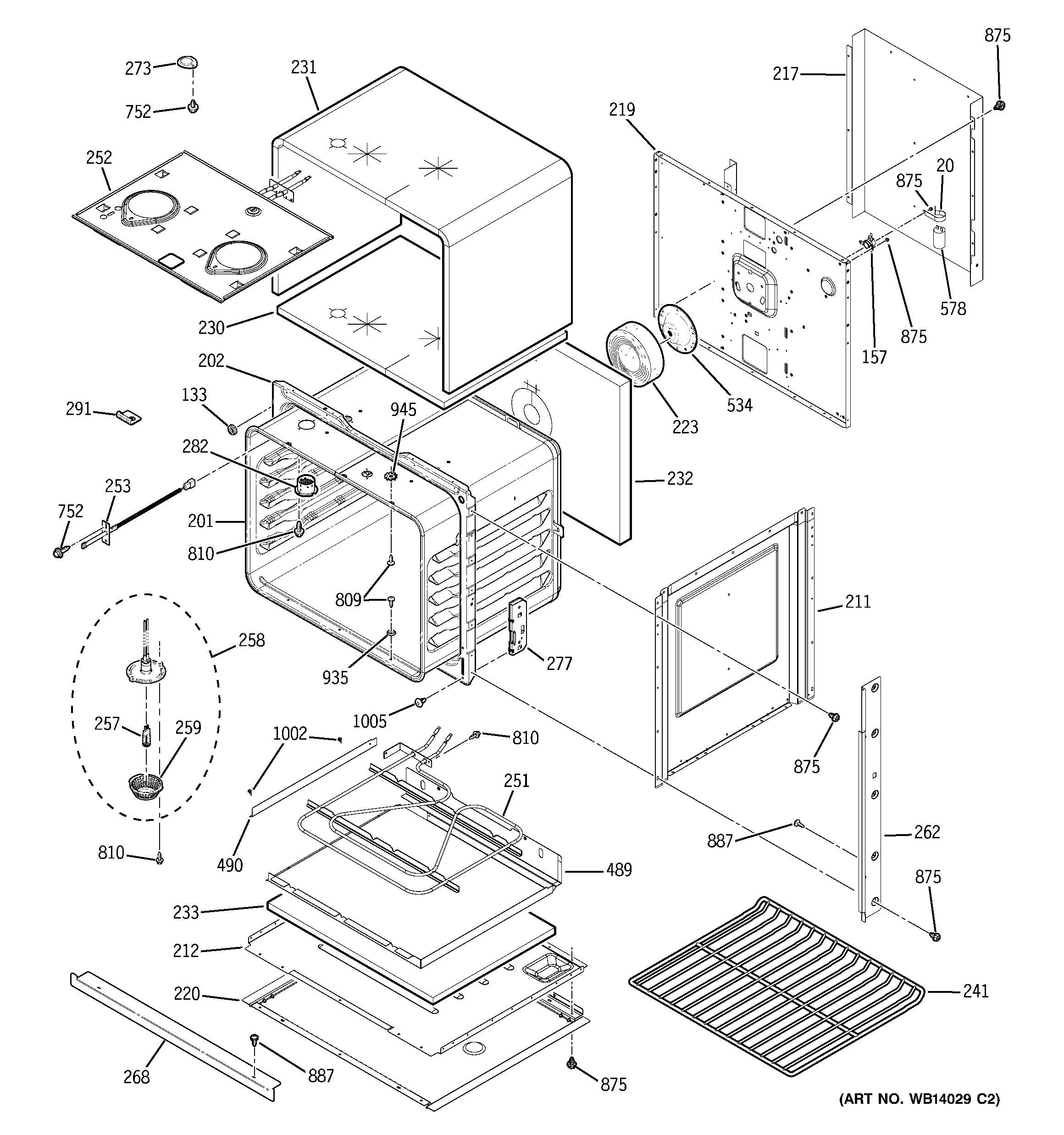

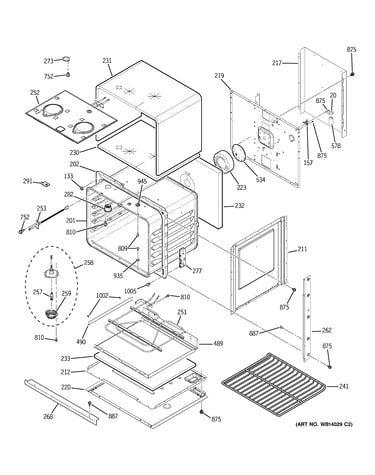

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Pack Window WB56T10152
#338

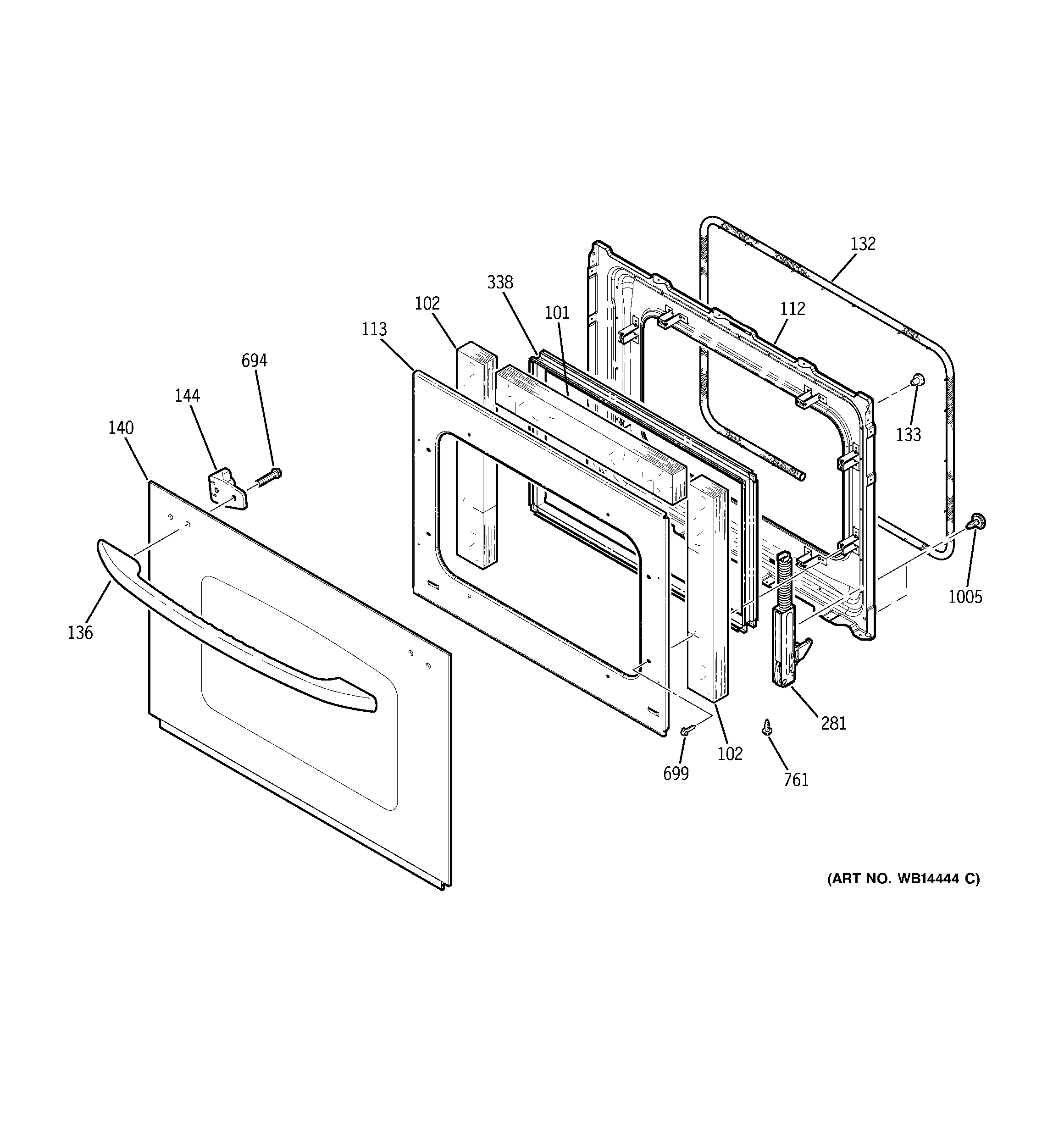

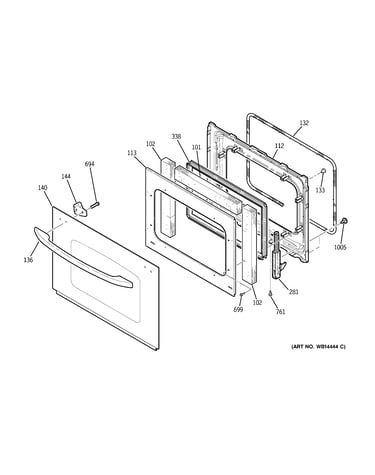

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

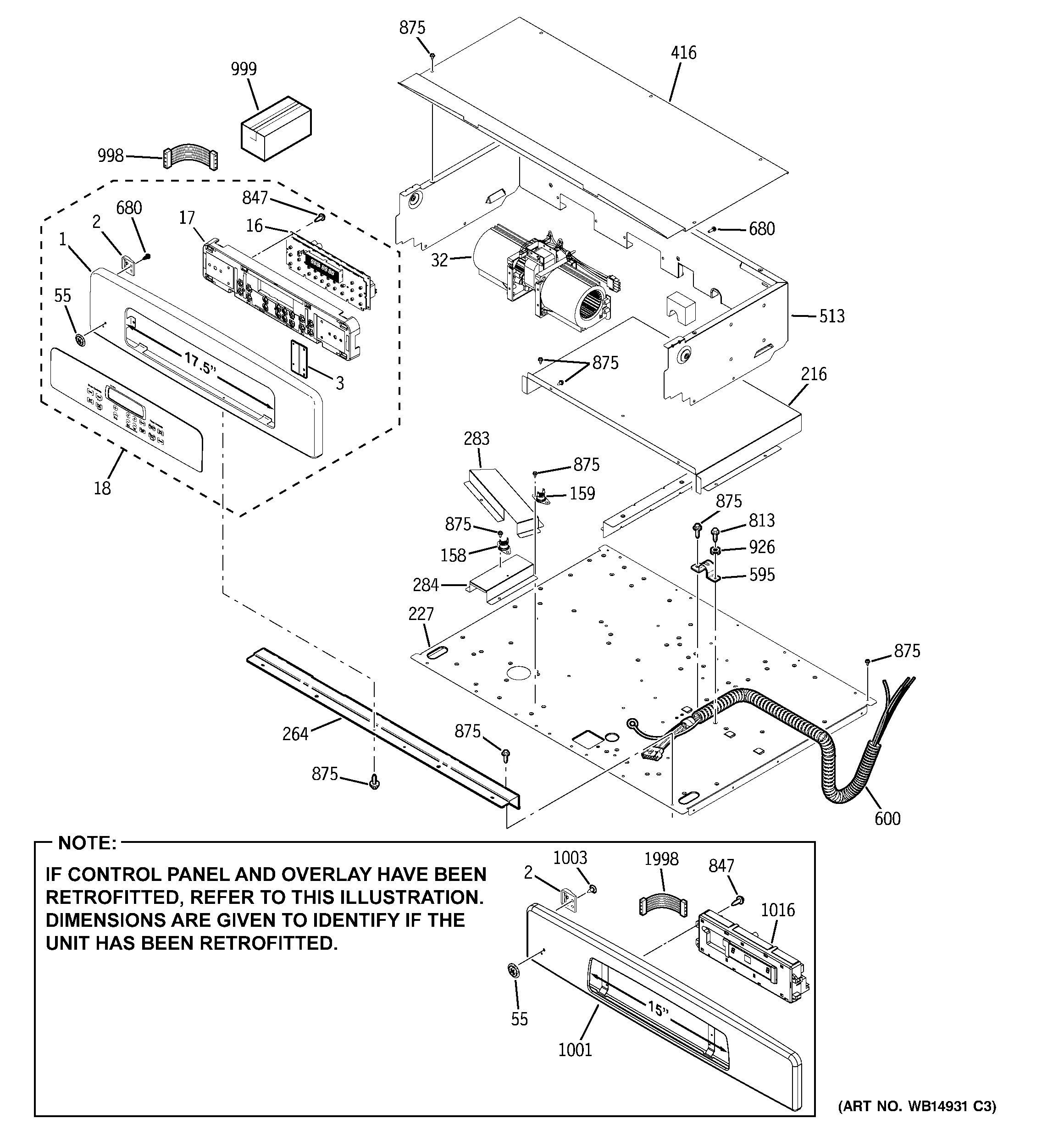

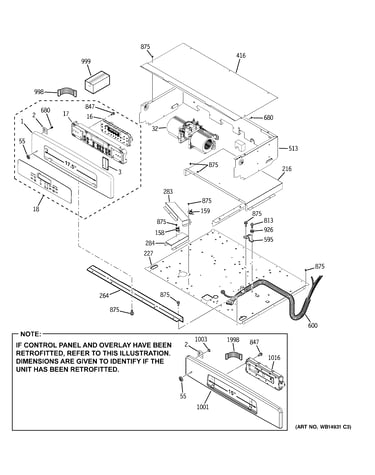

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Bake Element WB44T10087
#251

Body parts diagram

Bake element

Part #WB44T10087

Replaced by #WB44T10105

?
Manufacturer substitution
This part replaces WB44T10087. Substitute parts can look different from the original.
$72.93 |
8% OFF Phone Price : $78.93
In Stock
Wall Oven Convection Fan Motor WB26T10043
#511

Convection fan diagram

Wall oven convection fan motor

Part #WB26T10043

$176.33 |
6% OFF Phone Price : $188.33
In Stock
Range Oven Control Board WB27T11159
#1016

Control panel diagram

Range oven control board

Part #WB27T11159

$249.09 |
5% OFF Phone Price : $261.09
In Stock
Range Oven Rack WB48T10050
#241

Body parts diagram

Range oven rack

Part #WB48T10050

$64.46 |
9% OFF Phone Price : $70.46
Back Order
