Model # JV936D2SS Official GE range hood

Here are the diagrams and repair parts for Official GE JV936D2SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Range Hood Light Switch WB24X10077
#558

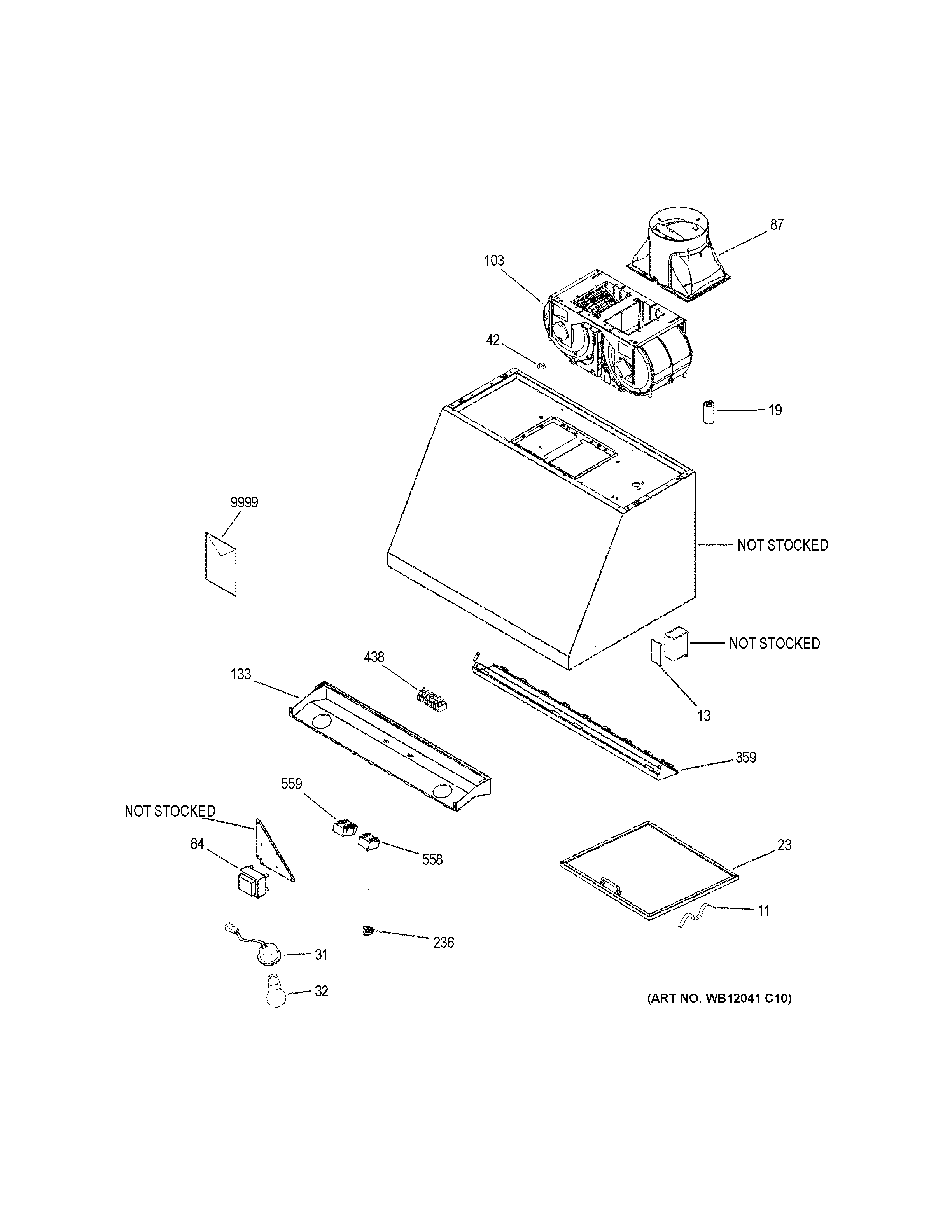

Range hood diagram

Range hood light switch

Part #WB24X10077

$55.34 |
10% OFF Phone Price : $61.34
In Stock
Cooking Appliance Halogen Light Bulb (replaces Wb08x10045, Wb36x10176, Wr02x11184) WB01X10239
#32

Range hood diagram

Cooking appliance halogen light bulb (replaces wb08x10045, wb36x10176, wr02x11184)

Part #WB01X10239

$27.25 |
18% OFF Phone Price : $33.25
Back Order
Range Hood Blower Assembly WB38X10056
#103

Range hood diagram

Range hood blower assembly

Part #WB38X10056

Replaced by #WB26X28614

?
Manufacturer substitution
This part replaces WB38X10056. Substitute parts can look different from the original.
$622.00 |
$12.00 OFF Phone Price : $634.00
In Stock
Range Hood Control Knob WB03X10140
#236

Range hood diagram

Range hood control knob

Part #WB03X10140

This item is not returnable
$18.98 |
10% OFF Was : $21.09
Back Order
Range Hood Light Socket WB08X10021
#31

Range hood diagram

Range hood light socket

Part #WB08X10021

Replaced by #WB25X27226

?
Manufacturer substitution
This part replaces WB08X10021. Substitute parts can look different from the original.
$102.19 |
11% OFF Phone Price : $114.19
In Stock
Transition Damper WB02X10762
#87

Range hood diagram

Transition damper

Part #WB02X10762

Replaced by #WB02X11509

?
Manufacturer substitution
This part replaces WB02X10762. Substitute parts can look different from the original.
$110.11 |
10% OFF Phone Price : $122.11
In Stock
Nut WB01X10336
#42

Range hood diagram

Nut

Part #WB01X10336

$8.11
In Stock
Terminal Block WB17X10010
#438

Range hood diagram

Terminal block

Part #WB17X10010

$14.44
In Stock
Junction Box WB02X10872
#13

Range hood diagram

Junction box

Part #WB02X10872

$17.52 |
10% OFF Phone Price : $19.52
In Stock
Filter Clip WB02X11042
#11

Range hood diagram

Filter clip

Part #WB02X11042

$9.91
In Stock
