Model # KSCS23FVMS01 Official KitchenAid side-by-side refrigerator
Here are the diagrams and repair parts for Official KitchenAid KSCS23FVMS01 side-by-side refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

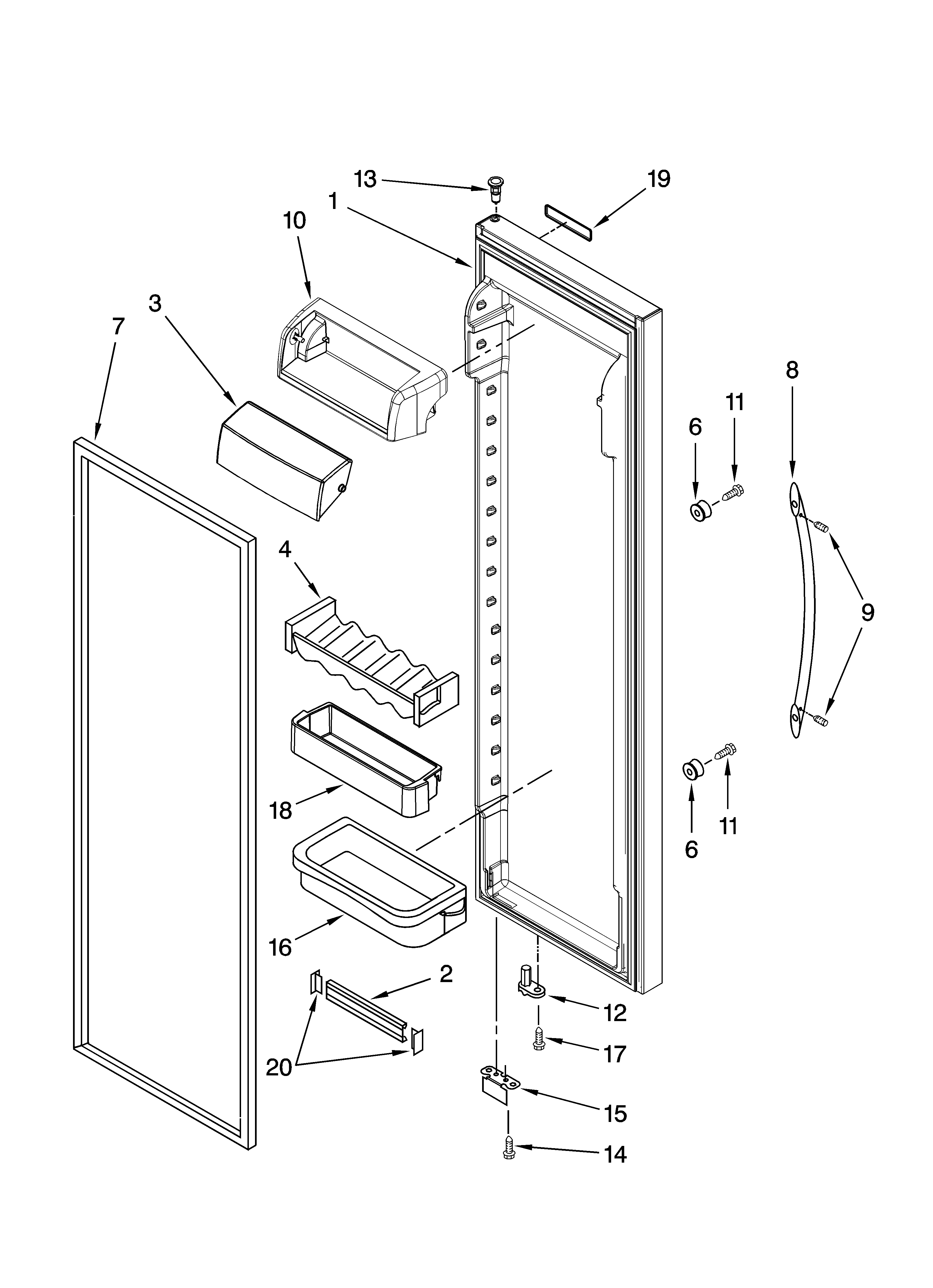

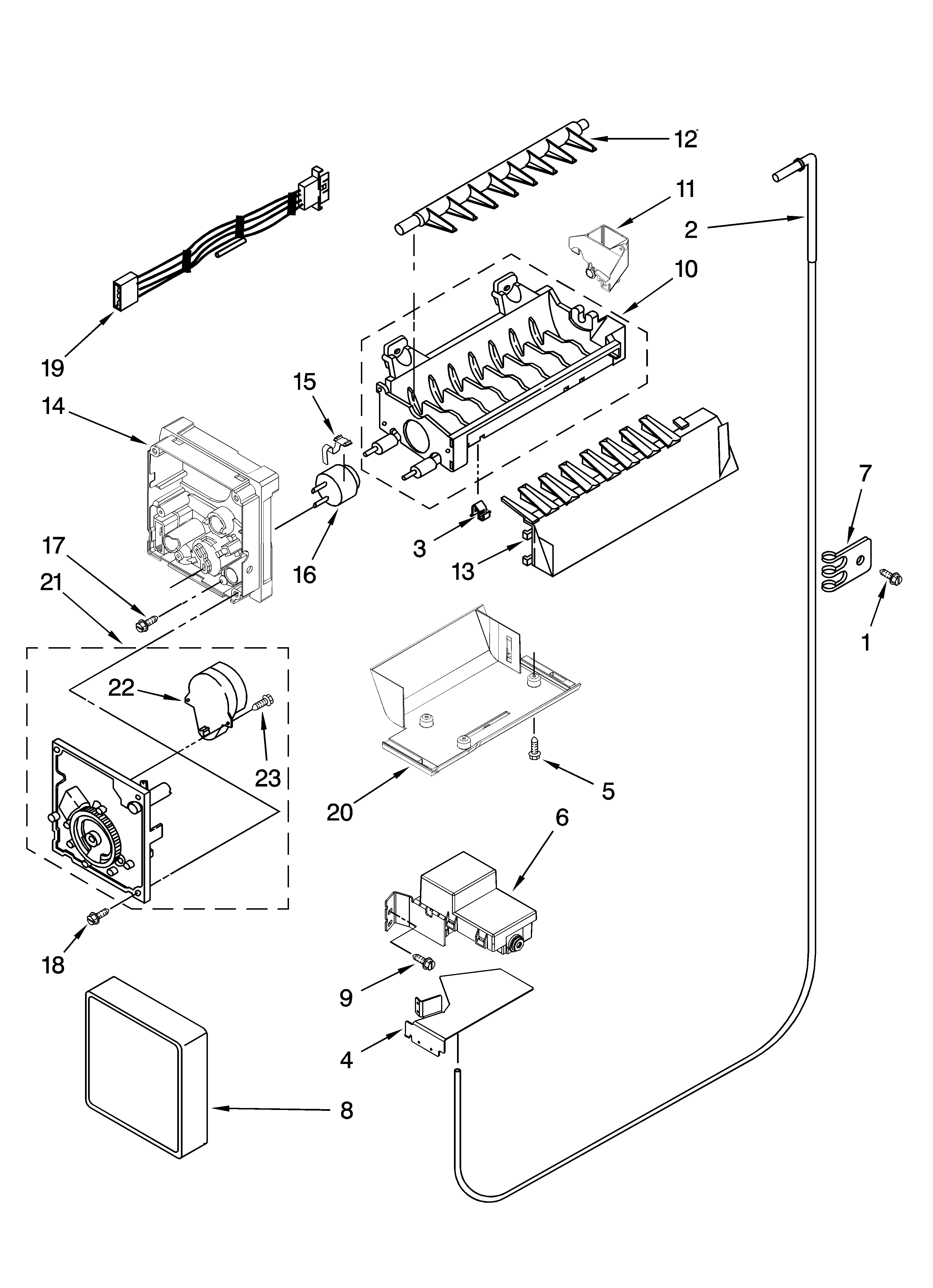

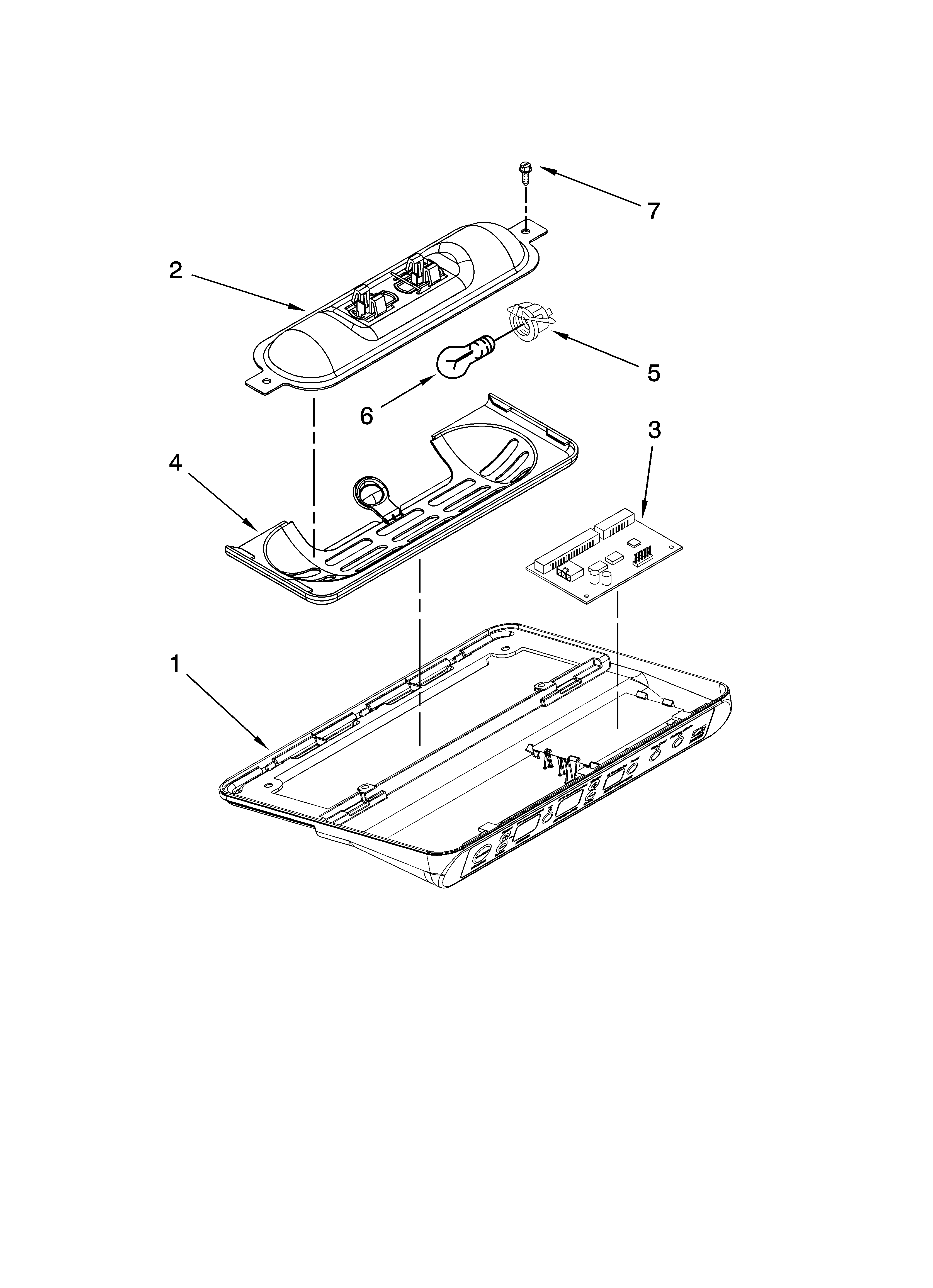

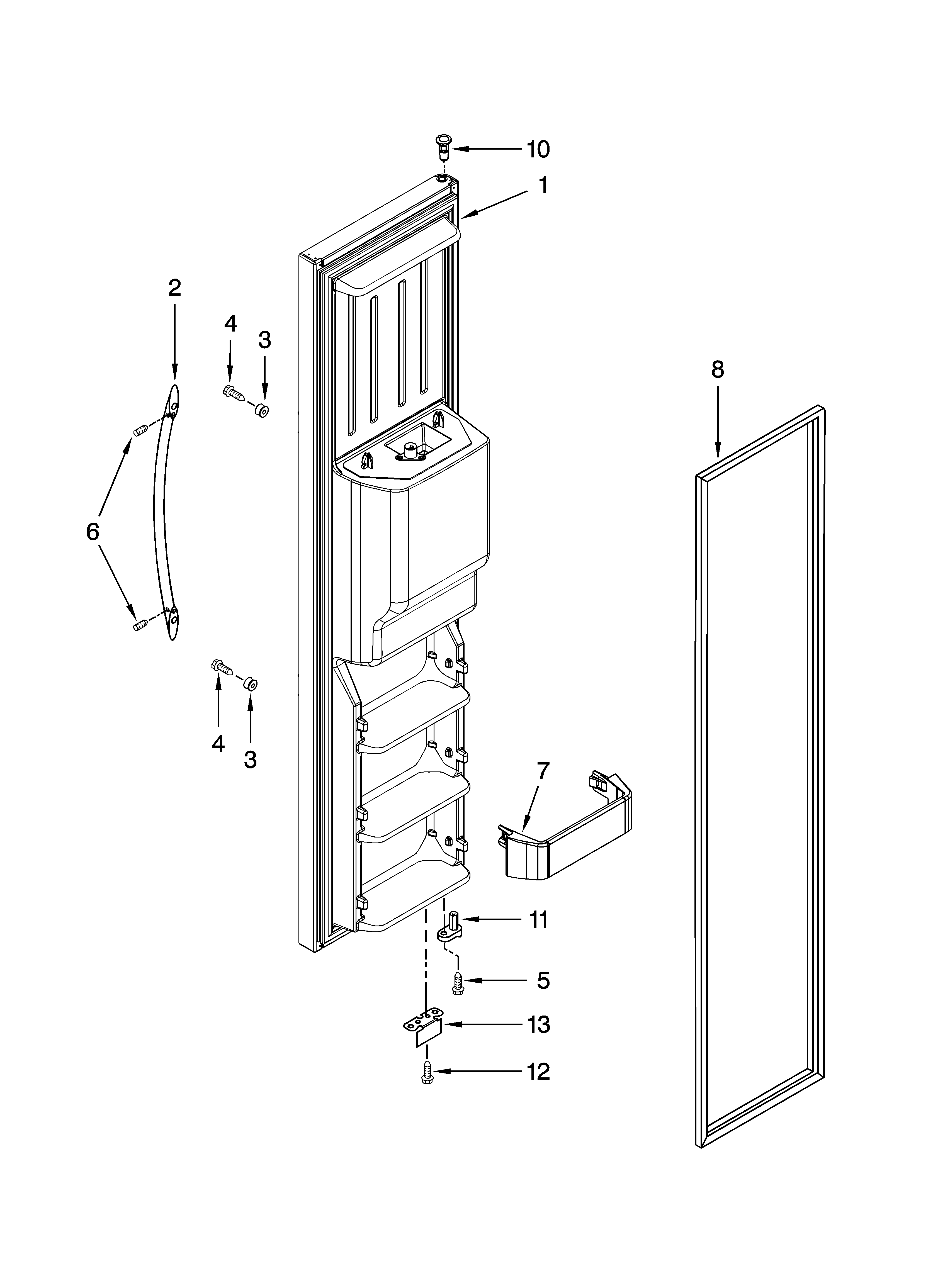

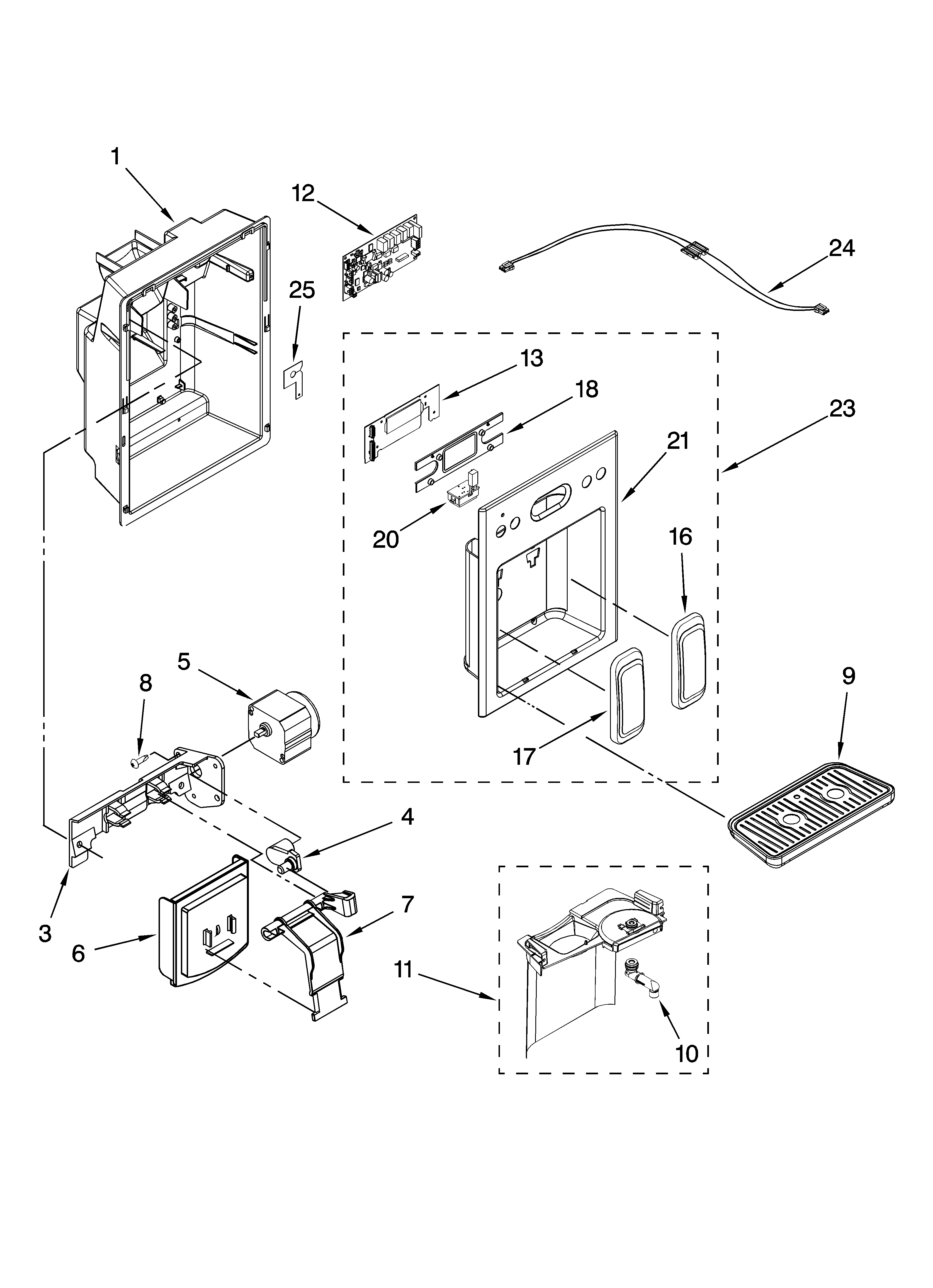

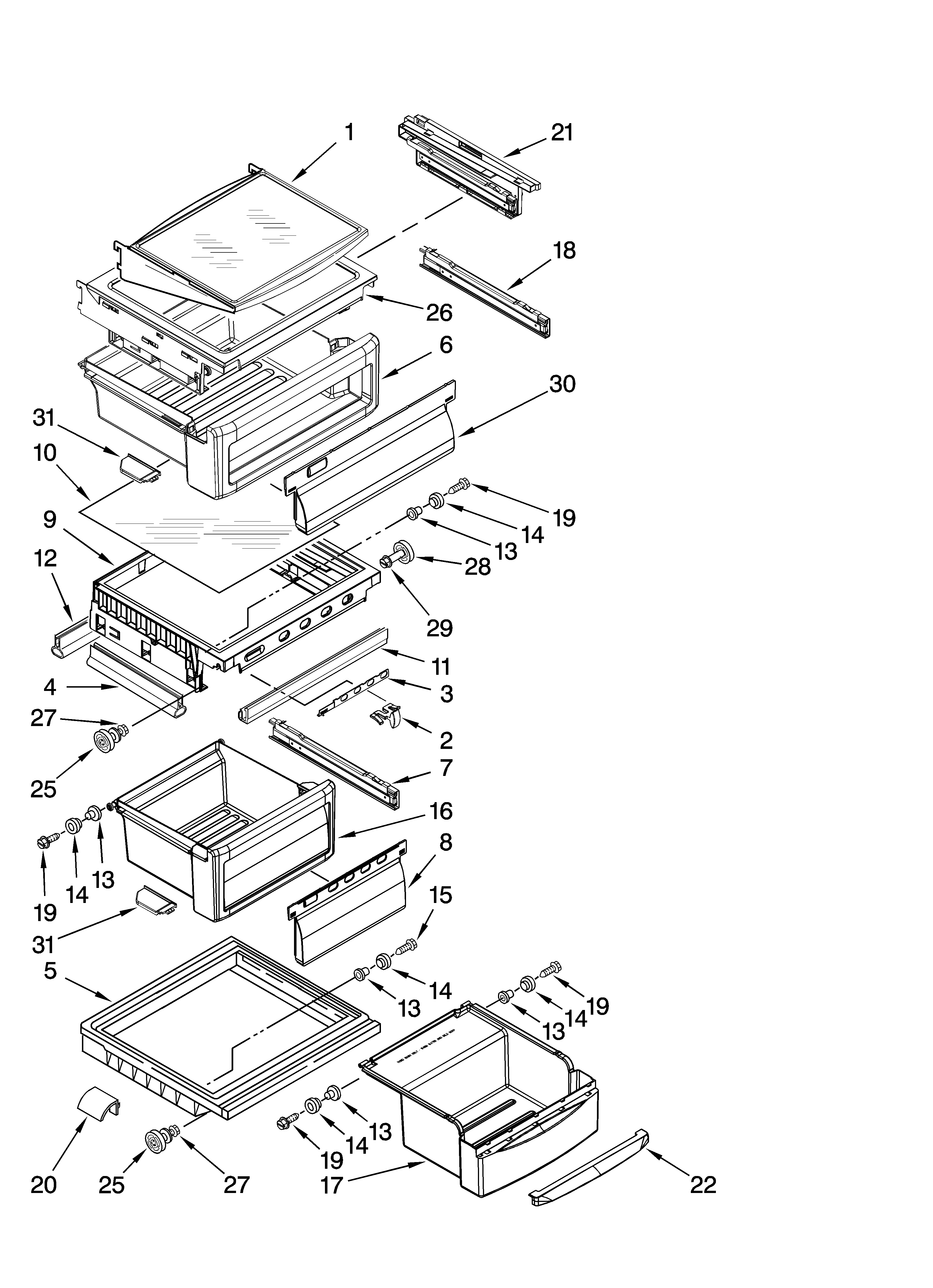

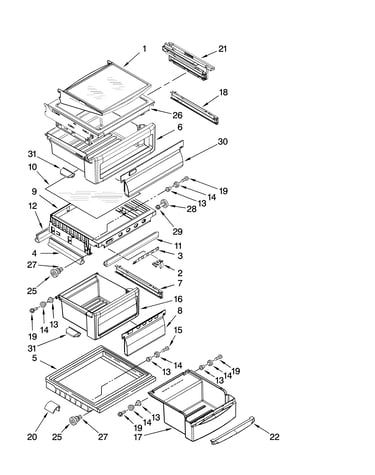

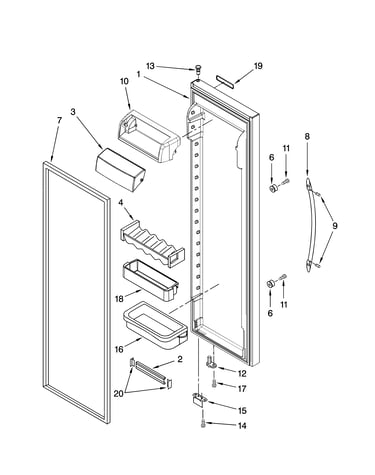

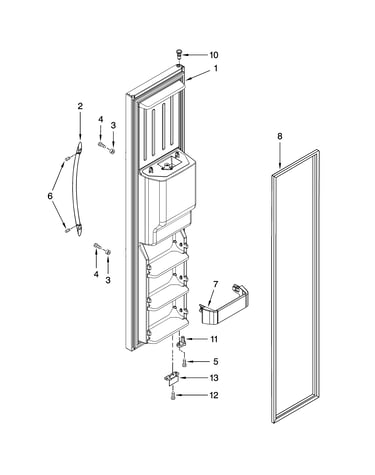

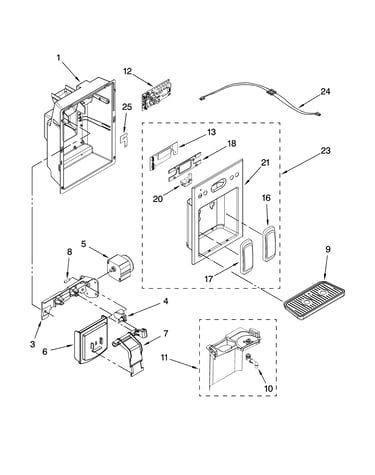

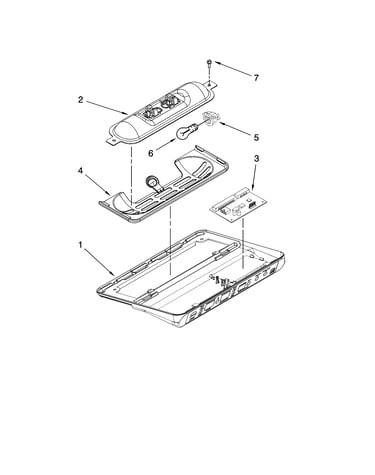

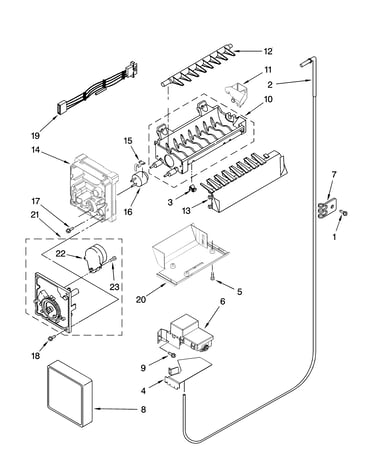

SELECT DIAGRAM
Browse Parts forKSCS23FVMS01 Refrigerators
- #28

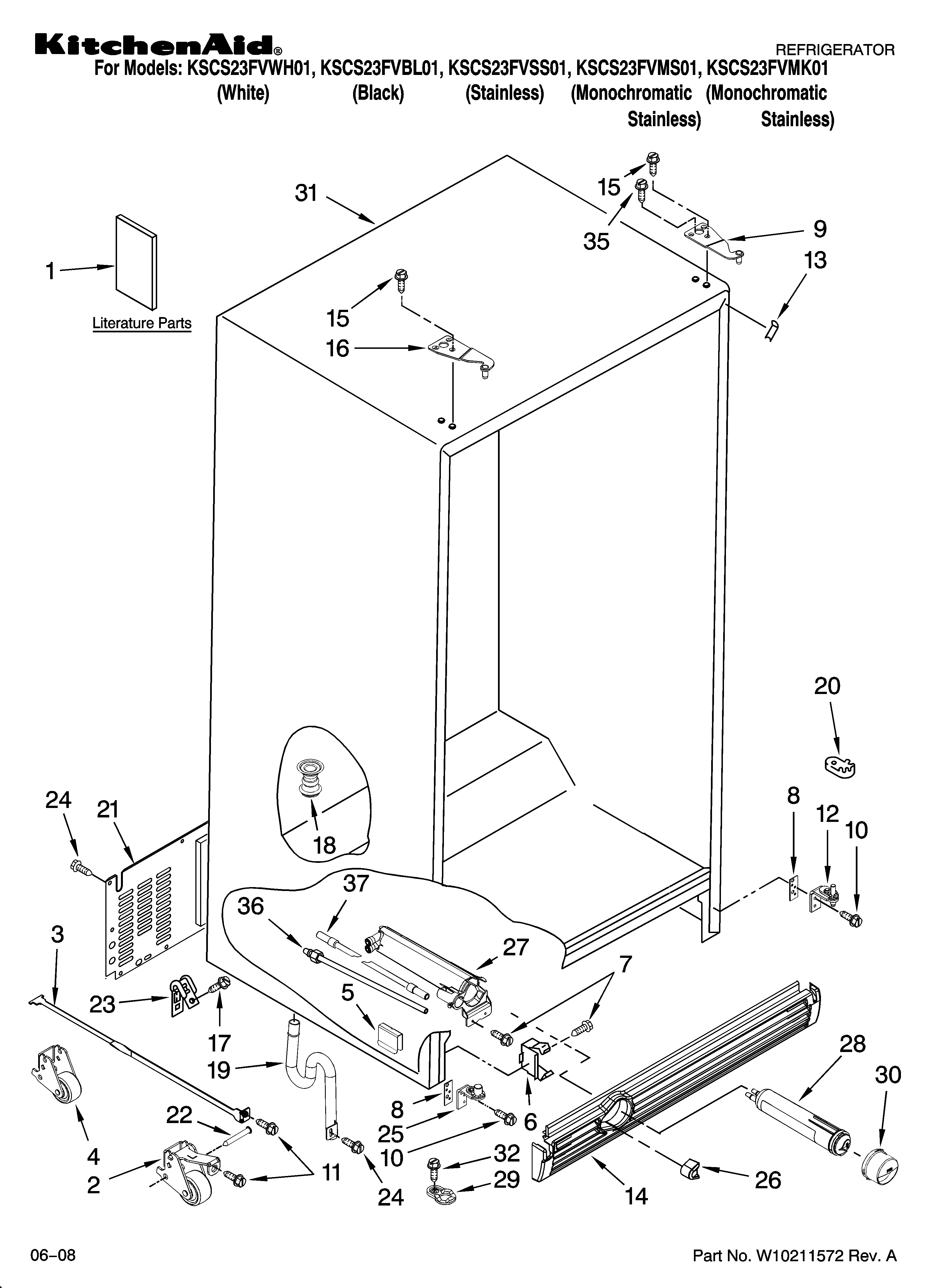

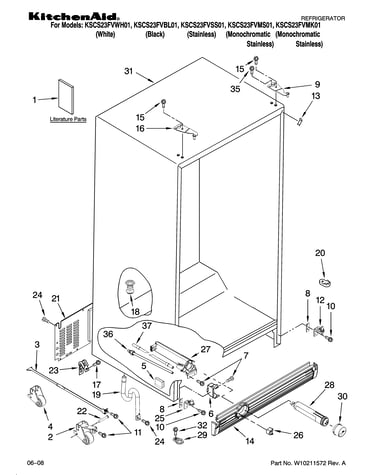

Cabinet parts diagram
Refrigerator filterPart #8212650
Replaced by #EDR3RXD1
?Manufacturer substitutionThis part replaces 8212650. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$59.99In Stock - #27

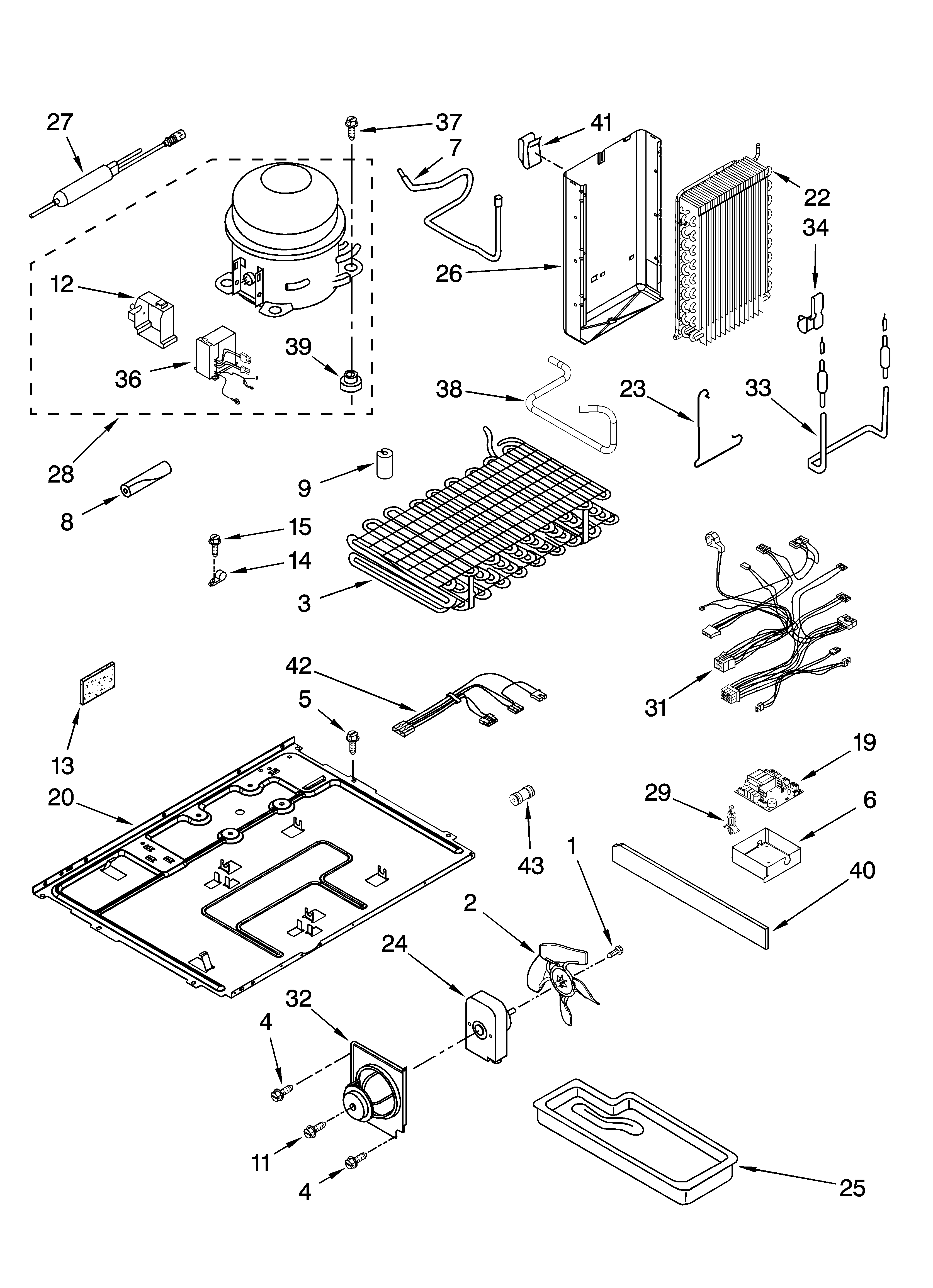

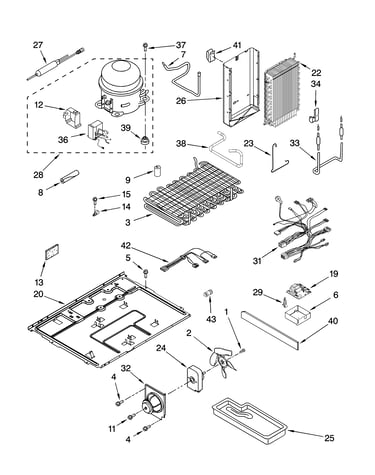

Unit parts diagram
Drier tubePart #W10177049
Replaced by #WPW10143759
?Manufacturer substitutionThis part replaces W10177049. Substitute parts can look different from the original.$20.04 |23% OFF Phone Price : $26.04In Stock - #6

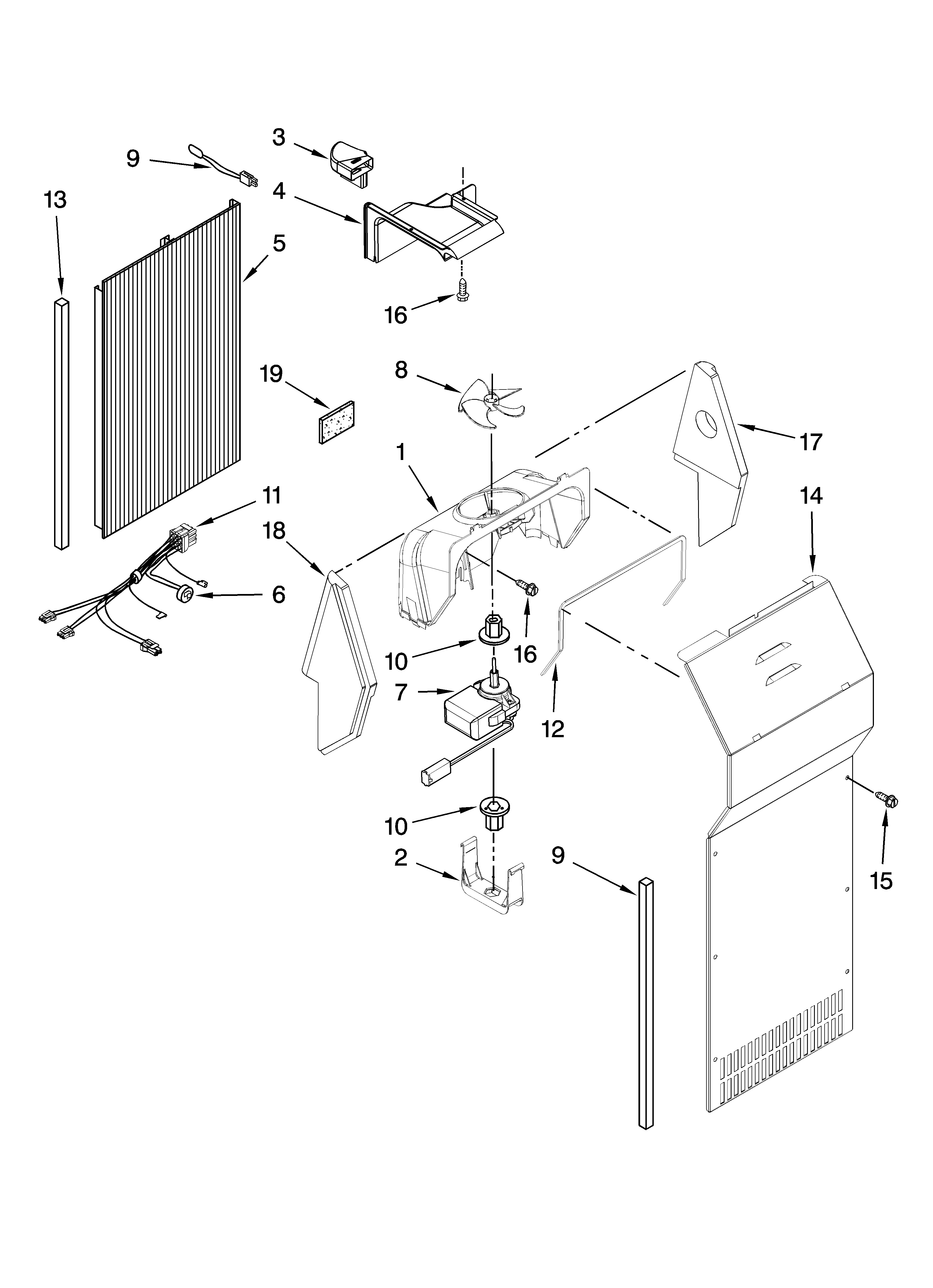

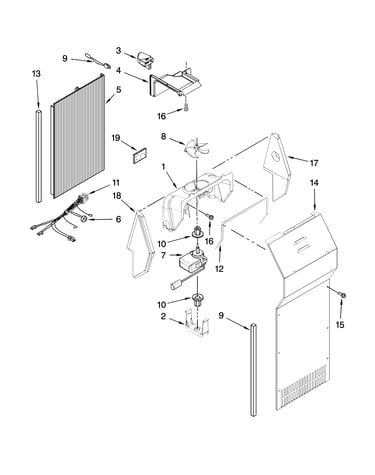

Air flow parts diagram
Refrigerator bi-metal thermostatPart #2321799
Replaced by #WPW10225581
?Manufacturer substitutionThis part replaces 2321799. Substitute parts can look different from the original.$28.63 |17% OFF Phone Price : $34.63In Stock - #6

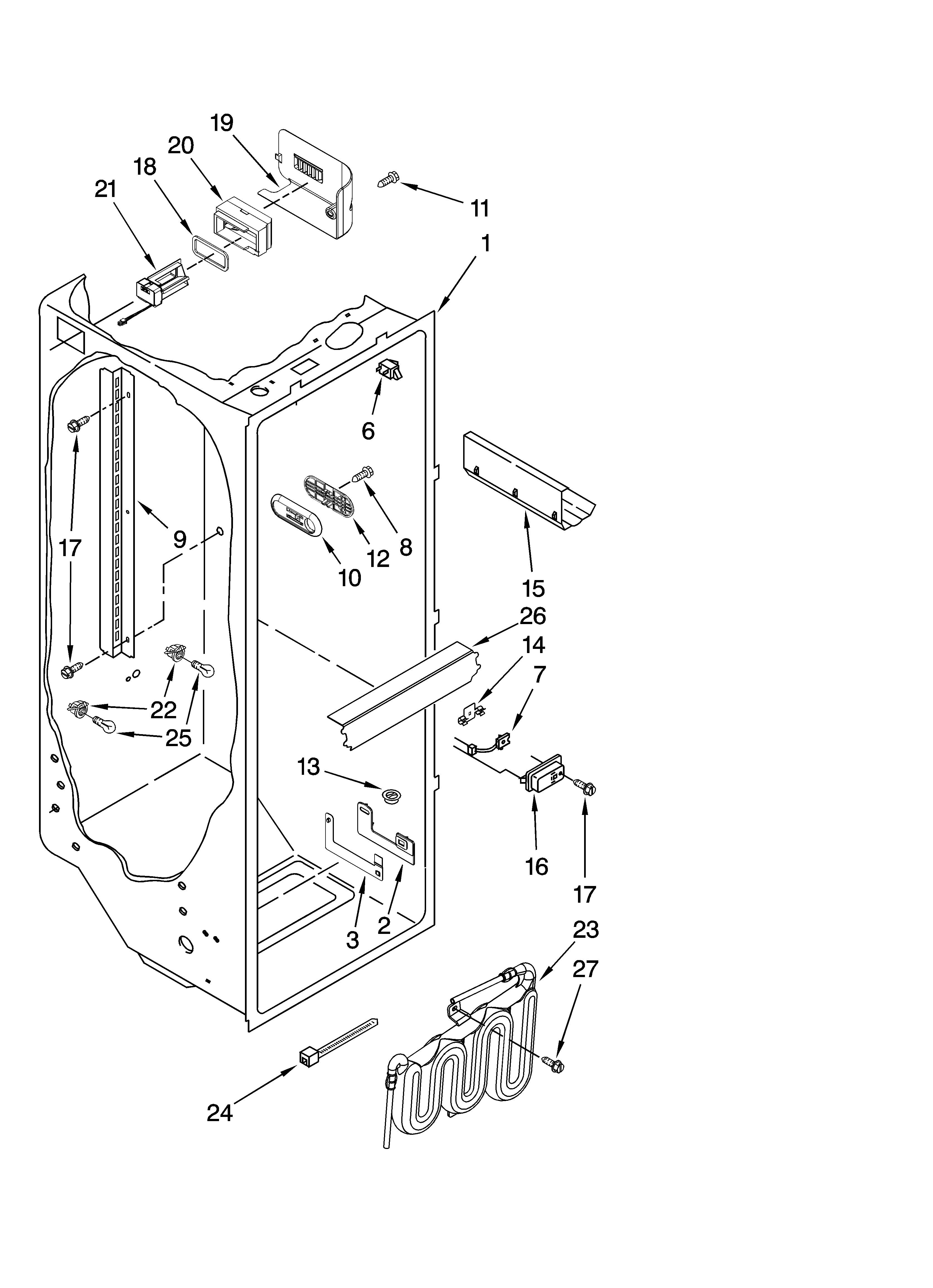

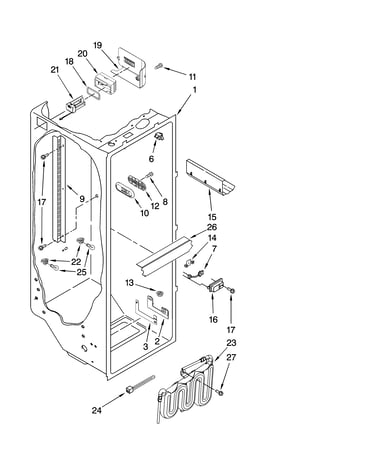

Refrigerator liner parts diagram
Refrigerator light switchPart #1118894
Replaced by #W11384469
?Manufacturer substitutionThis part replaces 1118894. Substitute parts can look different from the original.$20.16 |23% OFF Phone Price : $26.16In Stock - #22
Unit parts diagram
Refrigerator evaporatorPart #2188823
Replaced by #WP2188823
?Manufacturer substitutionThis part replaces 2188823. Substitute parts can look different from the original.$279.03 |$12.00 OFF Phone Price : $291.03In Stock - #8
Air flow parts diagram
Refrigerator evaporator fan bladePart #2169142
Replaced by #WP2169142
?Manufacturer substitutionThis part replaces 2169142. Substitute parts can look different from the original.$24.98 |19% OFF Phone Price : $30.98In Stock - #37
Cabinet parts diagram
Refrigerator water tubePart #2319867
Replaced by #8201597
?Manufacturer substitutionThis part replaces 2319867. Substitute parts can look different from the original.$27.15 |18% OFF Phone Price : $33.15In Stock - #30A
Cabinet parts diagram
Refrigerator water filter cap (black)Part #2260502B
Replaced by #WP2260518B
?Manufacturer substitutionThis part replaces 2260502B. Substitute parts can look different from the original.$25.17 |19% OFF Phone Price : $31.17In Stock - #25

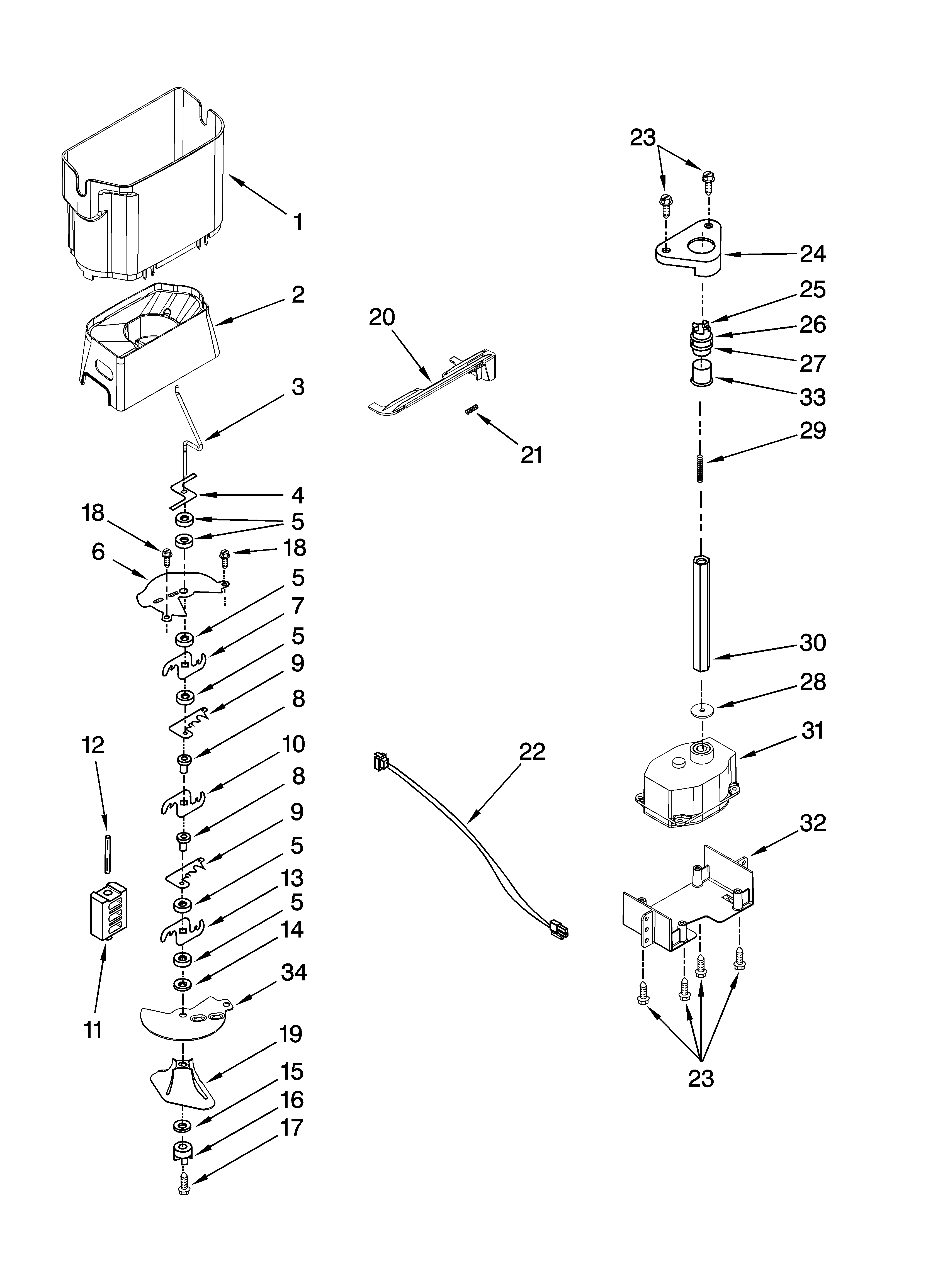

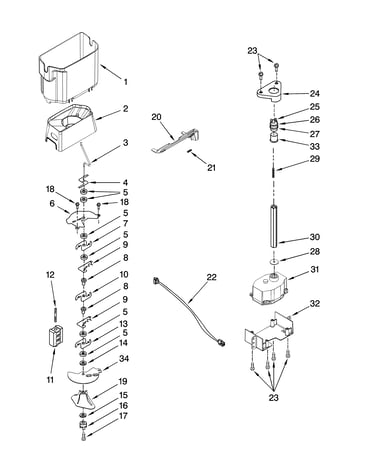

Motor and ice container parts diagram
Refrigerator auger motor couplerPart #2220458
Replaced by #WP2220458
?Manufacturer substitutionThis part replaces 2220458. Substitute parts can look different from the original.$18.67 |10% OFF Phone Price : $20.67In Stock - #20

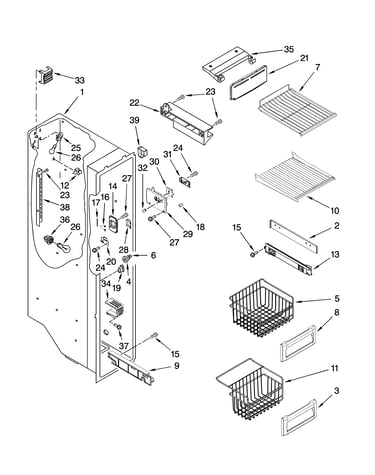

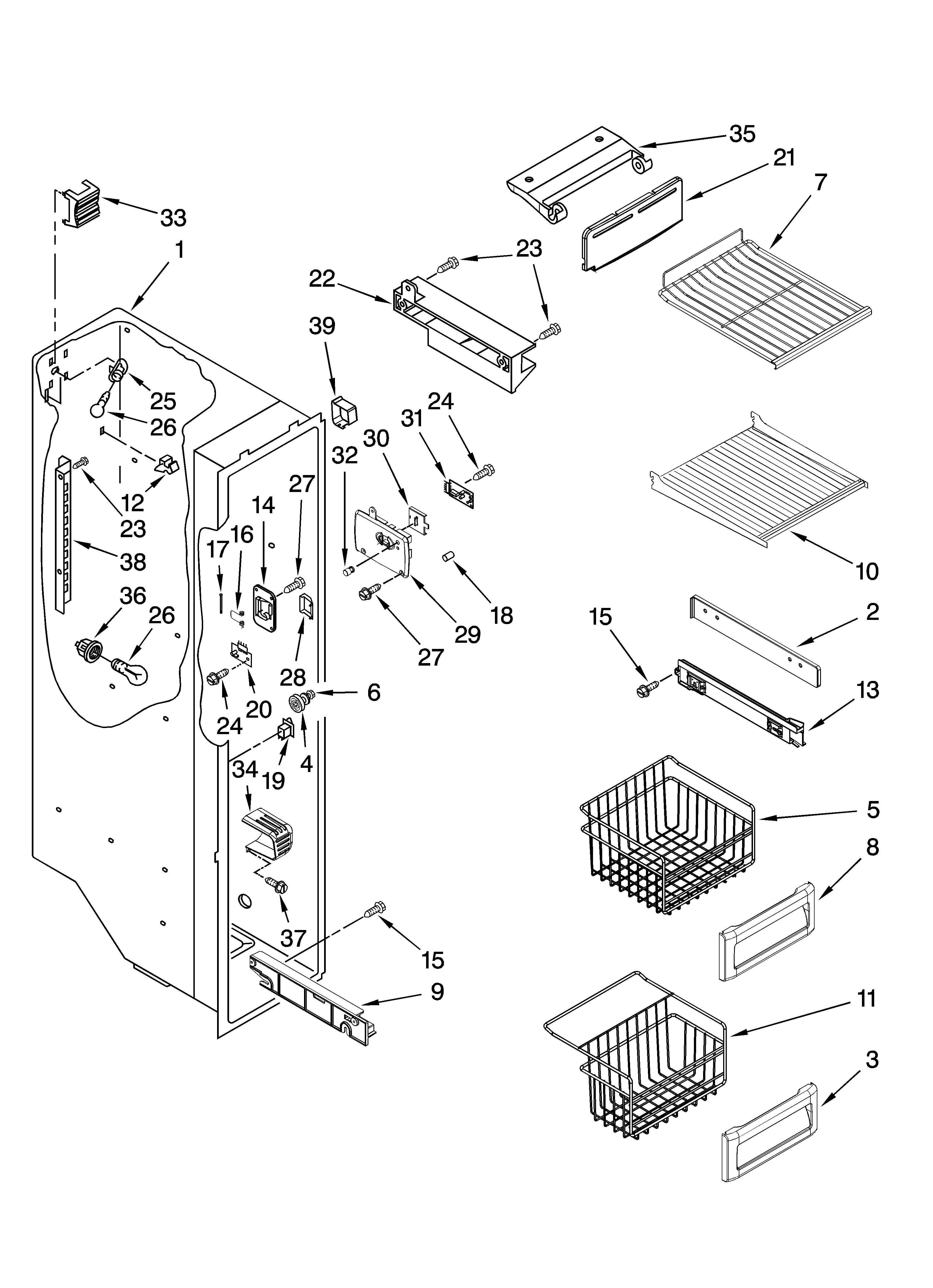

Freezer liner parts diagram
Refrigerator electronic controlPart #W10193840
Replaced by #W10757851
?Manufacturer substitutionThis part replaces W10193840. Substitute parts can look different from the original.$193.56 |6% OFF Phone Price : $205.56In Stock
Most common symptoms to help you fix your refrigerators
Choose a symptom to see related refrigerator repairs.
Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…
Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…
Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…
Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…
Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…
Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…
Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…
