Marvel
Upright Freezer

Model # 45FF Official Marvel freezer

Here are the diagrams and repair parts for Official Marvel 45FF freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

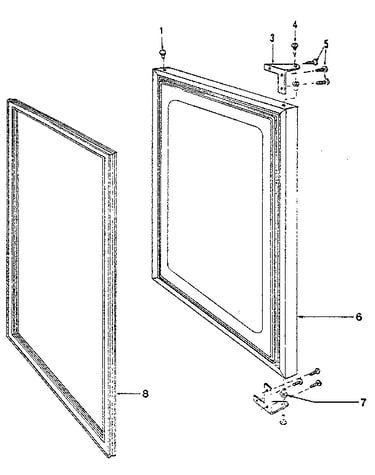

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Thermostat 42241341
#38

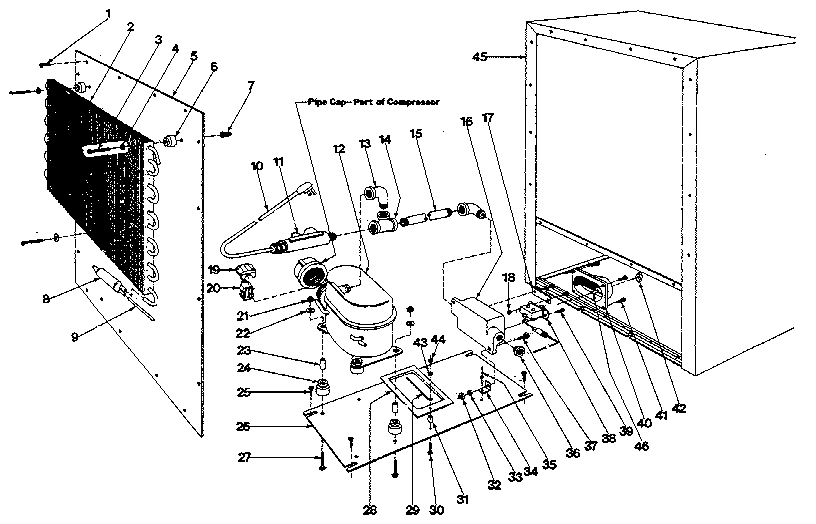

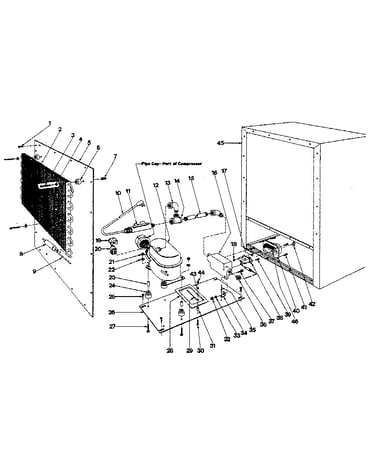

Unit parts diagram

Thermostat

Part #42241341

The manufacturer no longer makes this part, and there's no substitute part

Fitting 41003122
#11

Unit parts diagram

Fitting

Part #41003122

The manufacturer no longer makes this part, and there's no substitute part

Nut 08204875
#32

Unit parts diagram

Nut

Part #08204875

The manufacturer no longer makes this part, and there's no substitute part

Spacer 41002538
#5

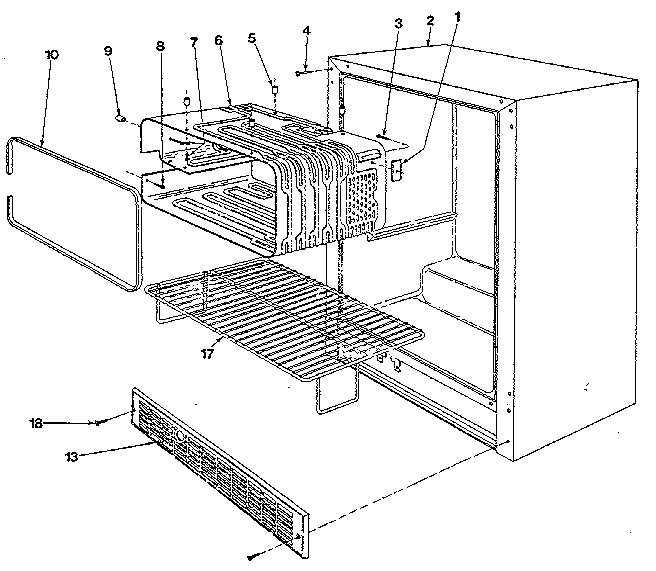

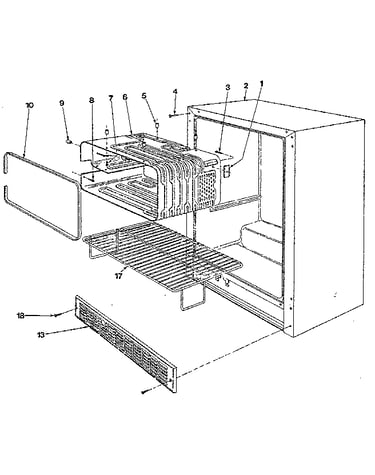

Cabinet parts diagram

Spacer

Part #41002538

The manufacturer no longer makes this part, and there's no substitute part

Screw 08204992
#41

Unit parts diagram

Screw

Part #08204992

The manufacturer no longer makes this part, and there's no substitute part

Dwyer Screw 08204902
#3

Unit parts diagram

Dwyer screw

Part #08204902

The manufacturer no longer makes this part, and there's no substitute part

Street El-90 41001581
#13

Unit parts diagram

Street el-90

Part #41001581

The manufacturer no longer makes this part, and there's no substitute part

Panel 41001283
#5

Unit parts diagram

Panel

Part #41001283

The manufacturer no longer makes this part, and there's no substitute part

Dwyer Trim 41000698
#10

Cabinet parts diagram

Dwyer trim

Part #41000698

The manufacturer no longer makes this part, and there's no substitute part

Sears Bolt 08205050
#27

Unit parts diagram

Sears bolt

Part #08205050

The manufacturer no longer makes this part, and there's no substitute part
