Model # DW746X Official Black & Decker table saw

Here are the diagrams and repair parts for Official Black & Decker DW746X table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

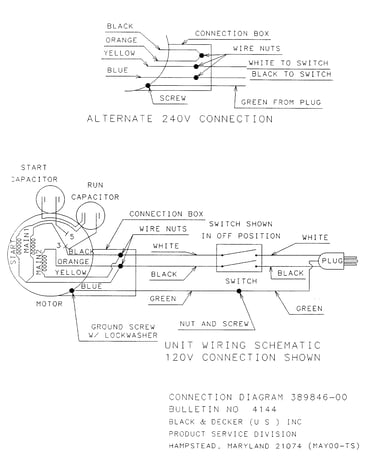

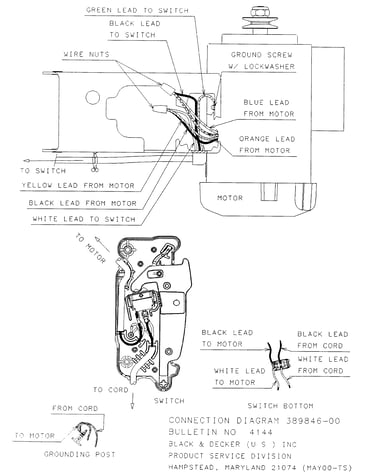

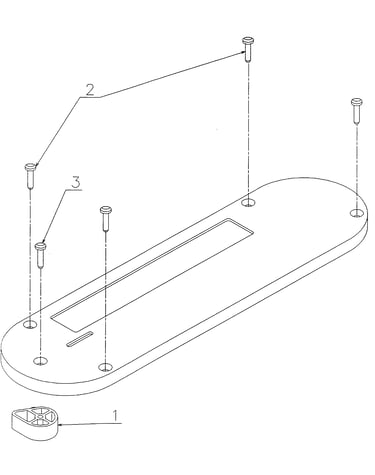

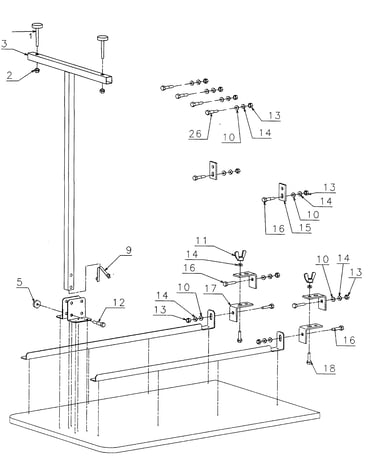

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Washer 389297-00
#11

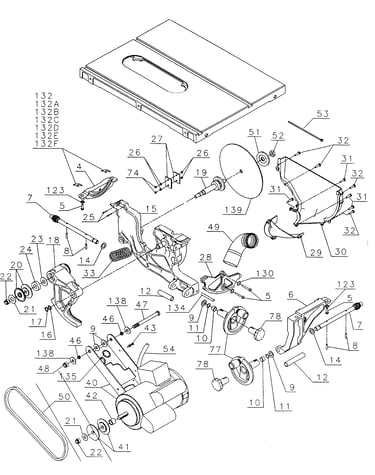

Motor/blade assy diagram

Washer

Part #389297-00

The manufacturer no longer makes this part, and there's no substitute part

M8x1.25x20mm 330045-32
M8x1.25x20mm

Part #330045-32

The manufacturer no longer makes this part, and there's no substitute part

Nut 389031-00
#45

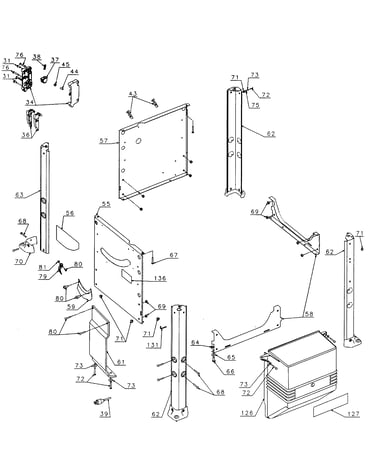

Stand diagram

Nut

Part #389031-00

The manufacturer no longer makes this part, and there's no substitute part

Motor Cord 389882-00
#54

Motor/blade assy diagram

Motor cord

Part #389882-00

The manufacturer no longer makes this part, and there's no substitute part

Bracket 429898-01
#3

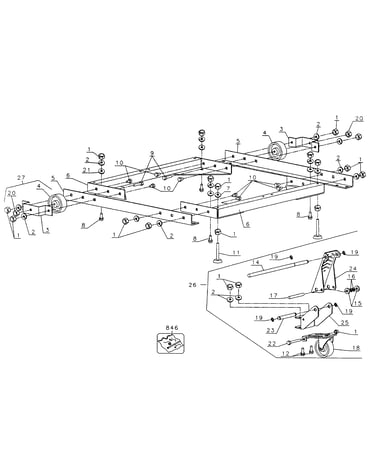

Moble base diagram

Bracket

Part #429898-01

The manufacturer no longer makes this part, and there's no substitute part

Bracket 392123-00
#4

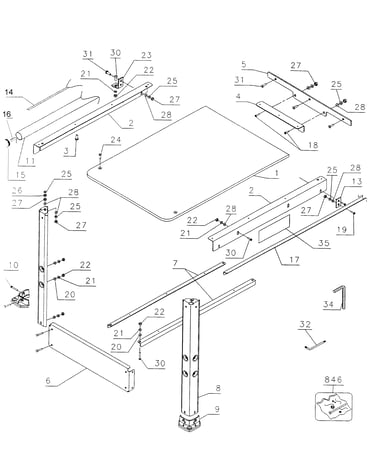

Fence rail diagram

Bracket

Part #392123-00

The manufacturer no longer makes this part, and there's no substitute part

Label 153516-00
#2

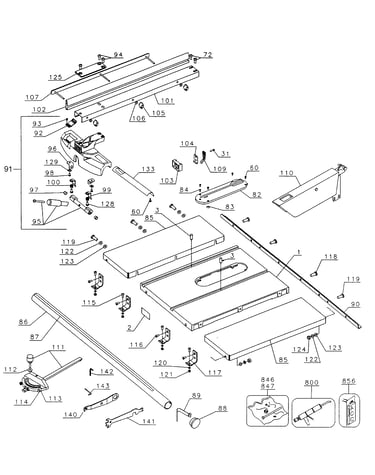

Table diagram

Label

Part #153516-00

The manufacturer no longer makes this part, and there's no substitute part

Roller 429898-13
#15

Moble base diagram

Roller

Part #429898-13

The manufacturer no longer makes this part, and there's no substitute part

Wrench 385928-00
#34

Fence rail diagram

Wrench

Part #385928-00

The manufacturer no longer makes this part, and there's no substitute part

Nut 389046-00
#81

Stand diagram

Nut

Part #389046-00

The manufacturer no longer makes this part, and there's no substitute part
