KitchenAid
Blender

Model # KSB580CR0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid KSB580CR0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Power Cord 9708928
#11

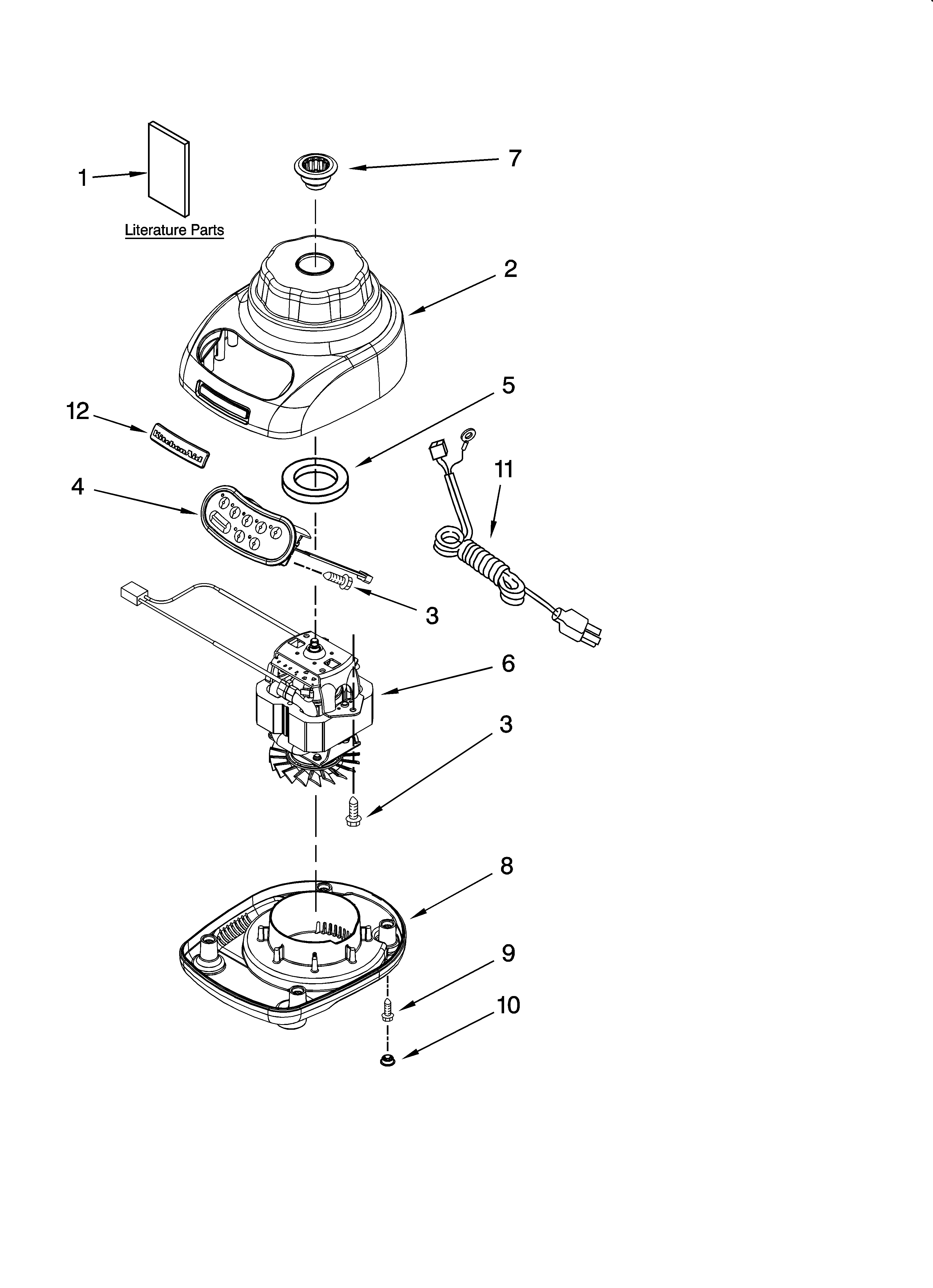

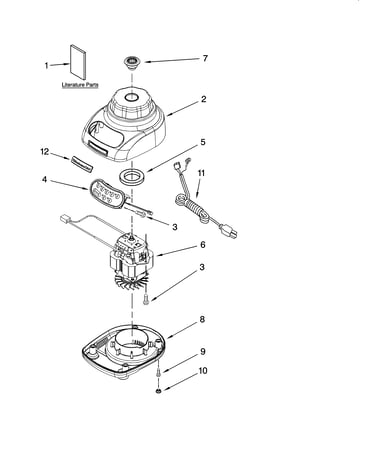

Unit parts diagram

Power cord

Part #9708928

In Stock
Jar 9708904
#2

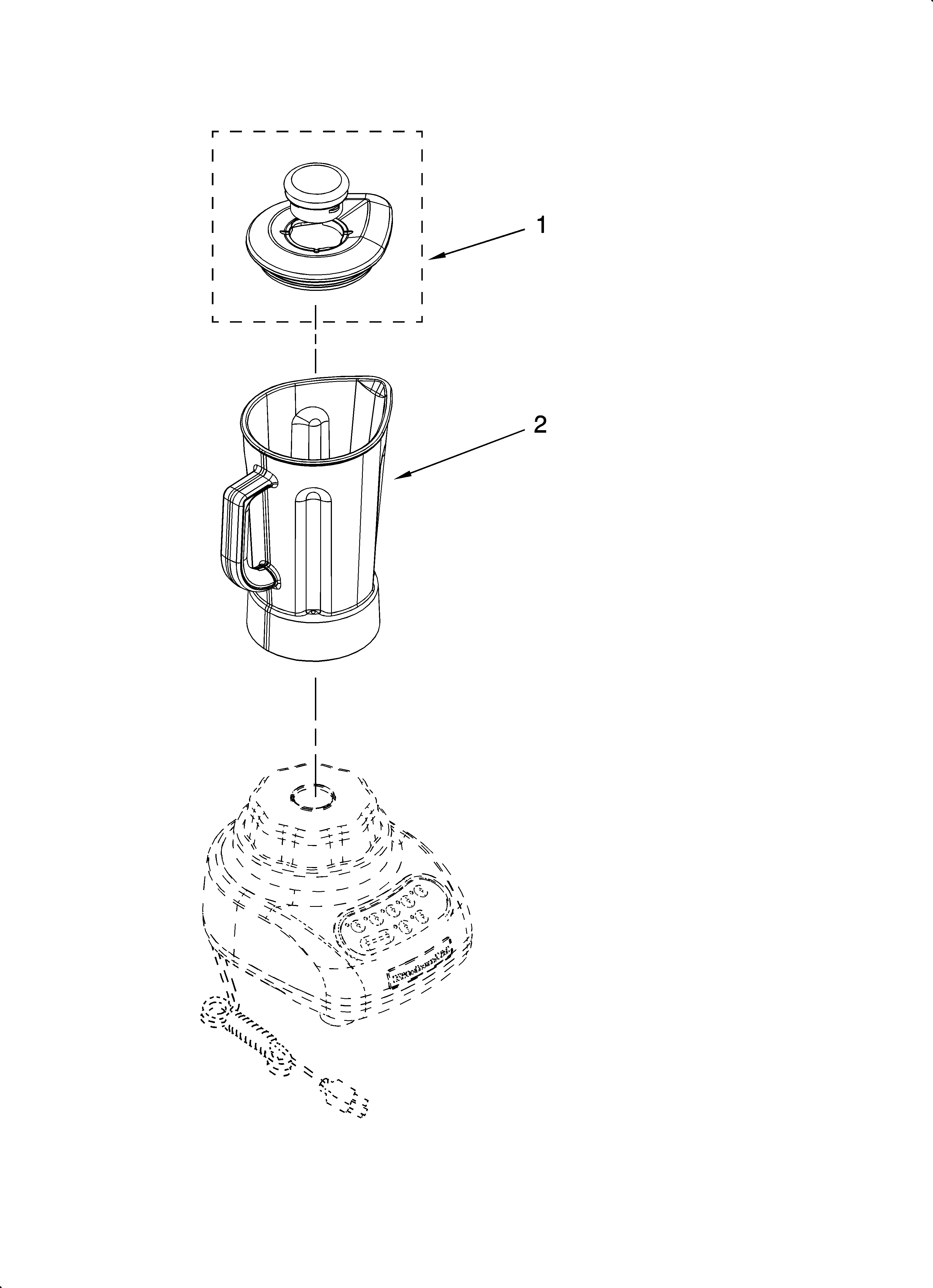

Attachment parts diagram

Jar

Part #9708904

Replaced by #WPW10555711

?
Manufacturer substitution
This part replaces 9708904. Substitute parts can look different from the original.
$82.13
7% OFF Phone Price : $88.13
In Stock
Blender Lid Assembly 9709363
#1

Attachment parts diagram

Blender lid assembly

Part #9709363

Replaced by #WP9709363

?
Manufacturer substitution
This part replaces 9709363. Substitute parts can look different from the original.
$26.27
19% OFF Phone Price : $32.27
Back Order
Motor 9708887
#6

Unit parts diagram

Motor

Part #9708887

Replaced by #WPW10225872

?
Manufacturer substitution
This part replaces 9708887. Substitute parts can look different from the original.
$58.40
9% OFF Phone Price : $64.40
In Stock
Housing 9709257
#2

Unit parts diagram

Housing

Part #9709257

Replaced by #W10291035

?
Manufacturer substitution
This part replaces 9709257. Substitute parts can look different from the original.
In Stock
Coupling 9708914
#7

Unit parts diagram

Coupling

Part #9708914

Replaced by #WPW10279256

?
Manufacturer substitution
This part replaces 9708914. Substitute parts can look different from the original.
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Seal 9709366
#5

Unit parts diagram

Seal

Part #9709366

Replaced by #WP9709366

?
Manufacturer substitution
This part replaces 9709366. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Housing 9709500
#2A

Unit parts diagram

Housing

Part #9709500

Replaced by #W10291034

?
Manufacturer substitution
This part replaces 9709500. Substitute parts can look different from the original.
In Stock
Foot 9708927
#10

Unit parts diagram

Foot

Part #9708927

Replaced by #WPW10524701

?
Manufacturer substitution
This part replaces 9708927. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Nameplate 9708916
#12

Unit parts diagram

Nameplate

Part #9708916

Replaced by #W10161493

?
Manufacturer substitution
This part replaces 9708916. Substitute parts can look different from the original.
$26.99
18% OFF Phone Price : $32.99
In Stock
