Model # 315116080 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315116080 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Sander Motor Housing Rubber Plug 623019-004
#3

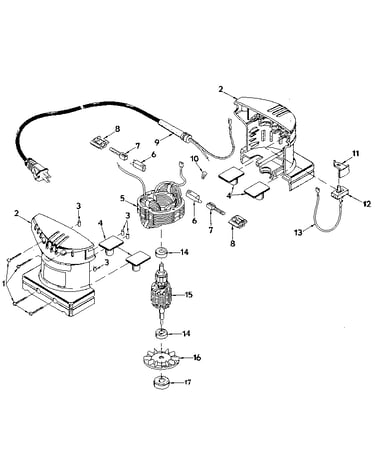

Section "a" diagram

Sander motor housing rubber plug

Part #623019-004

The manufacturer no longer makes this part, and there's no substitute part

Tube 999185-001
#6

Section "a" diagram

Tube

Part #999185-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 990352-001
#17

Section "a" diagram

Ball bearing

Part #990352-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-042
#7

Section "a" diagram

Brush assembly

Part #610784-042

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 999068-001
#2

Section "a" diagram

Housing assembly

Part #999068-001

The manufacturer no longer makes this part, and there's no substitute part

Cushion 999586-001
#6

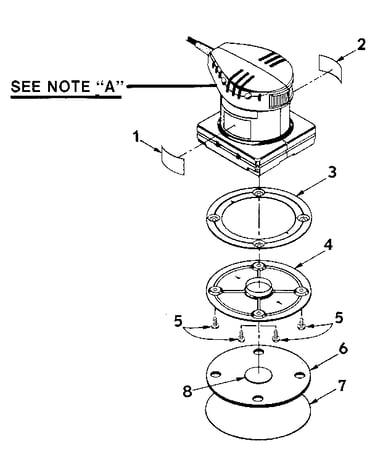

Platen assembly diagram

Cushion

Part #999586-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 999223-003
#15

Section "a" diagram

Armature

Part #999223-003

The manufacturer no longer makes this part, and there's no substitute part

Switch 999227-003
#12

Section "a" diagram

Switch

Part #999227-003

The manufacturer no longer makes this part, and there's no substitute part

Screw 999162-001
#5

Platen assembly diagram

Screw

Part #999162-001

The manufacturer no longer makes this part, and there's no substitute part

Lead/term 999370-002
#13

Section "a" diagram

Lead/term

Part #999370-002

The manufacturer no longer makes this part, and there's no substitute part
