Model # AEQ7000CES1 Official Frigidaire dryer

Here are the diagrams and repair parts for Official Frigidaire AEQ7000CES1 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

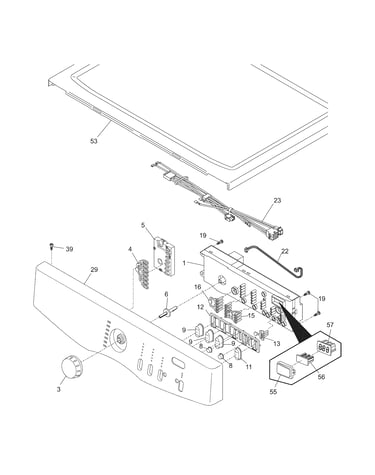

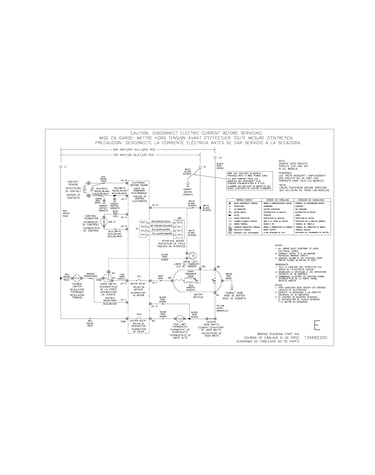

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AEQ7000CES1 Dryer
Frigidaire Dryer Drum Belt (replaces 134163400, 134503900) 134503600
#25

Motor diagram

Frigidaire dryer drum belt (replaces 134163400, 134503900)

Part #134503600

4.17 (24)
BEST SELLER
$8.11 |
11% OFF Phone Price : $9.11
In Stock
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

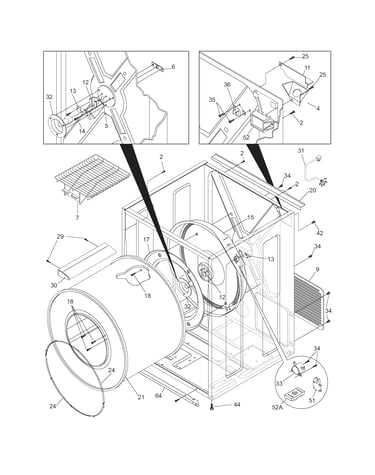

Cabinet/drum diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

2.5 (4)
BEST SELLER
$7.08 |
12% OFF Phone Price : $8.08
In Stock
Kelvinator Dryer High-limit Thermostat (replaces 73204267) 3204267
#33

Cabinet/drum diagram

Kelvinator dryer high-limit thermostat (replaces 73204267)

Part #3204267

4 (2)
BEST SELLER
$50.70 |
11% OFF Phone Price : $56.70
In Stock
Frigidaire Dryer Blower Wheel And Housing Assembly (replaces 131775610) 131775600
#10

Motor diagram

Frigidaire dryer blower wheel and housing assembly (replaces 131775610)

Part #131775600

4.1 (20)
BEST SELLER
$93.02 |
6% OFF Phone Price : $99.02
In Stock
Dryer Drum Support Shaft (replaces 137088600) 131777700
#32

Cabinet/drum diagram

Dryer drum support shaft (replaces 137088600)

Part #131777700

3.83 (18)
BEST SELLER
$57.92 |
9% OFF Phone Price : $63.92
In Stock
Dryer Thermistor (replaces 134216500) 134587700
#15

Motor diagram

Dryer thermistor (replaces 134216500)

Part #134587700

3.67 (6)
BEST SELLER
$37.94 |
14% OFF Phone Price : $43.94
In Stock
Latch 134548000
#25

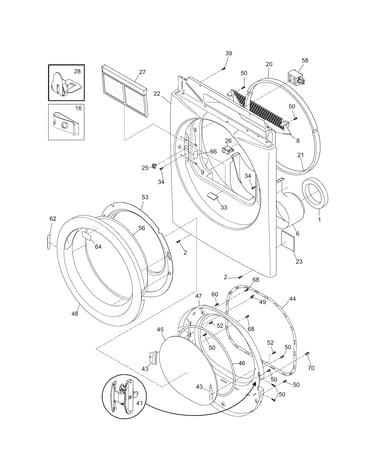

Front panel/lint filter diagram

Latch

Part #134548000

Replaced by #131658800

?
Manufacturer substitution
This part replaces 134548000. Substitute parts can look different from the original.
3.86 (42)
BEST SELLER
$43.57 |
12% OFF Phone Price : $49.57
In Stock
Dryer Thermal Limiter (replaces 146062-000, 5303209192) 134120900
#36

Cabinet/drum diagram

Dryer thermal limiter (replaces 146062-000, 5303209192)

Part #134120900

4.33 (3)
BEST SELLER
$12.79 |
14% OFF Phone Price : $14.79
In Stock
Frigidaire Dryer Heating Element Assembly (replaces 131505700) 131553900
#15

Cabinet/drum diagram

Frigidaire dryer heating element assembly (replaces 131505700)

Part #131553900

4.63 (16)
BEST SELLER
$120.03 |
9% OFF Phone Price : $132.03
In Stock
Dryer Idler Assembly (replaces 131863000, 131863004) 131863007
#23

Motor diagram

Dryer idler assembly (replaces 131863000, 131863004)

Part #131863007

4.71 (7)
BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
