Model # MAV7600AGW Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MAV7600AGW washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

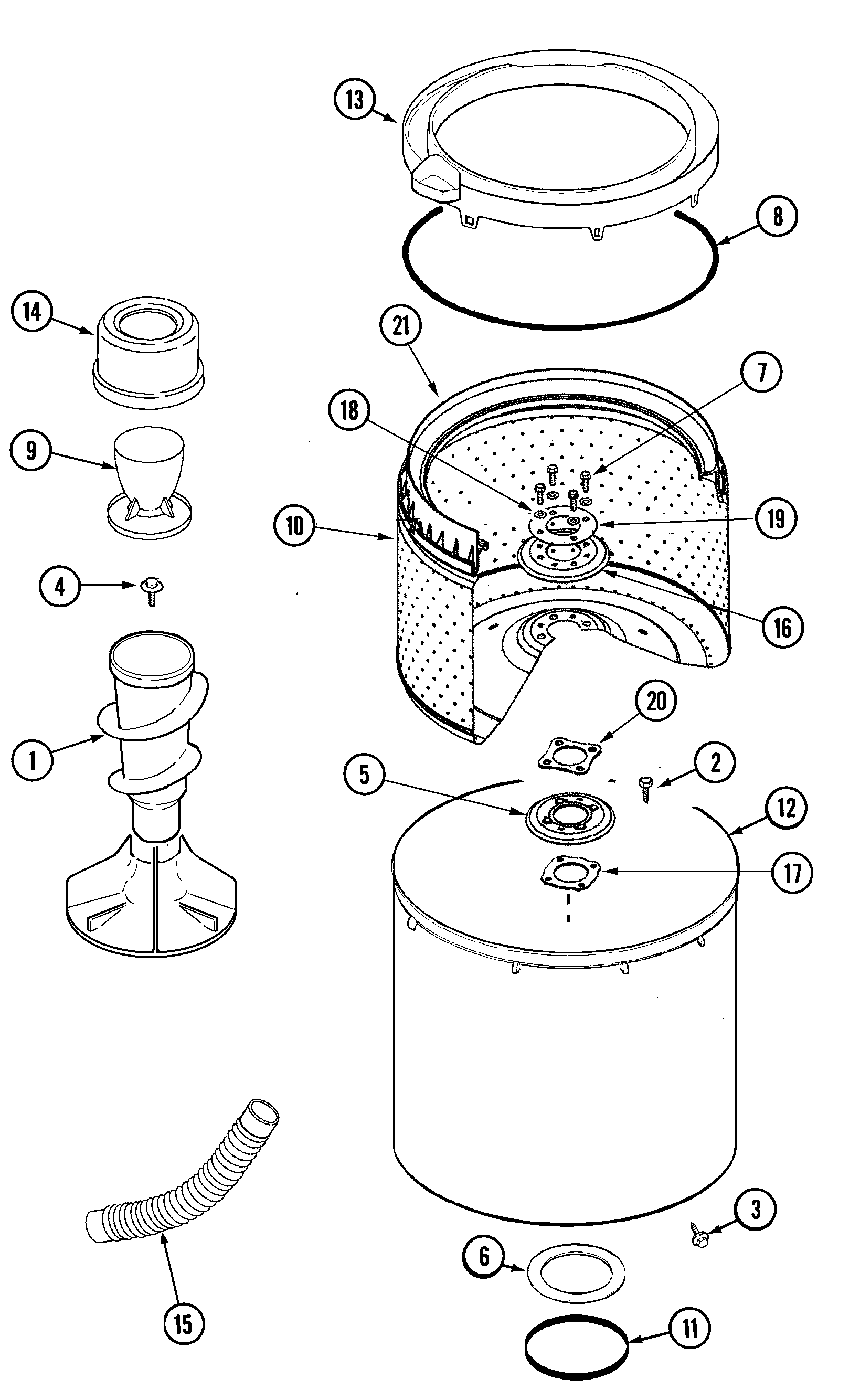

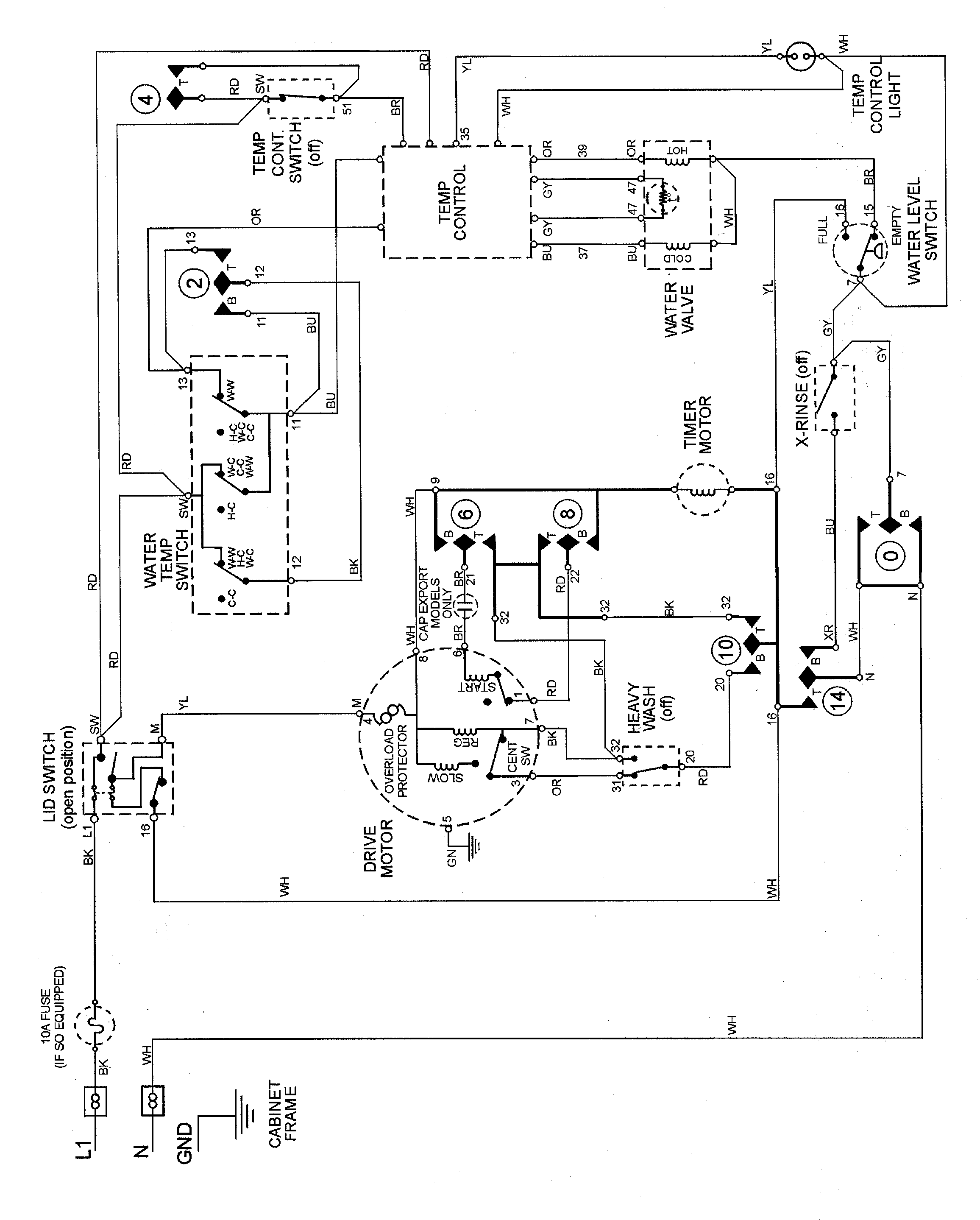

SELECT DIAGRAM
Browse Parts for
MAV7600AGW Washer
#7

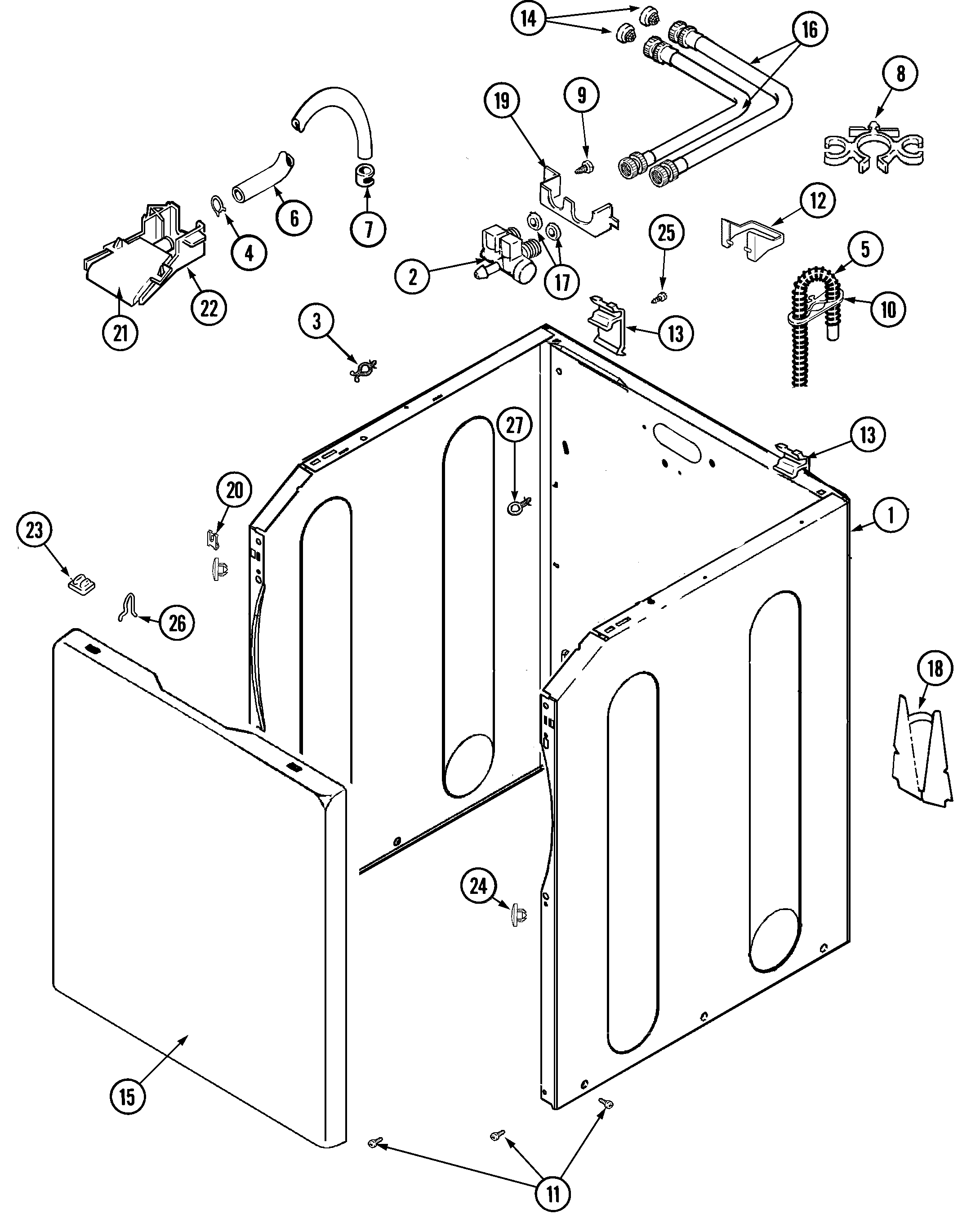

Cabinet diagram
Clamp,hose-i
Part #216169
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#12

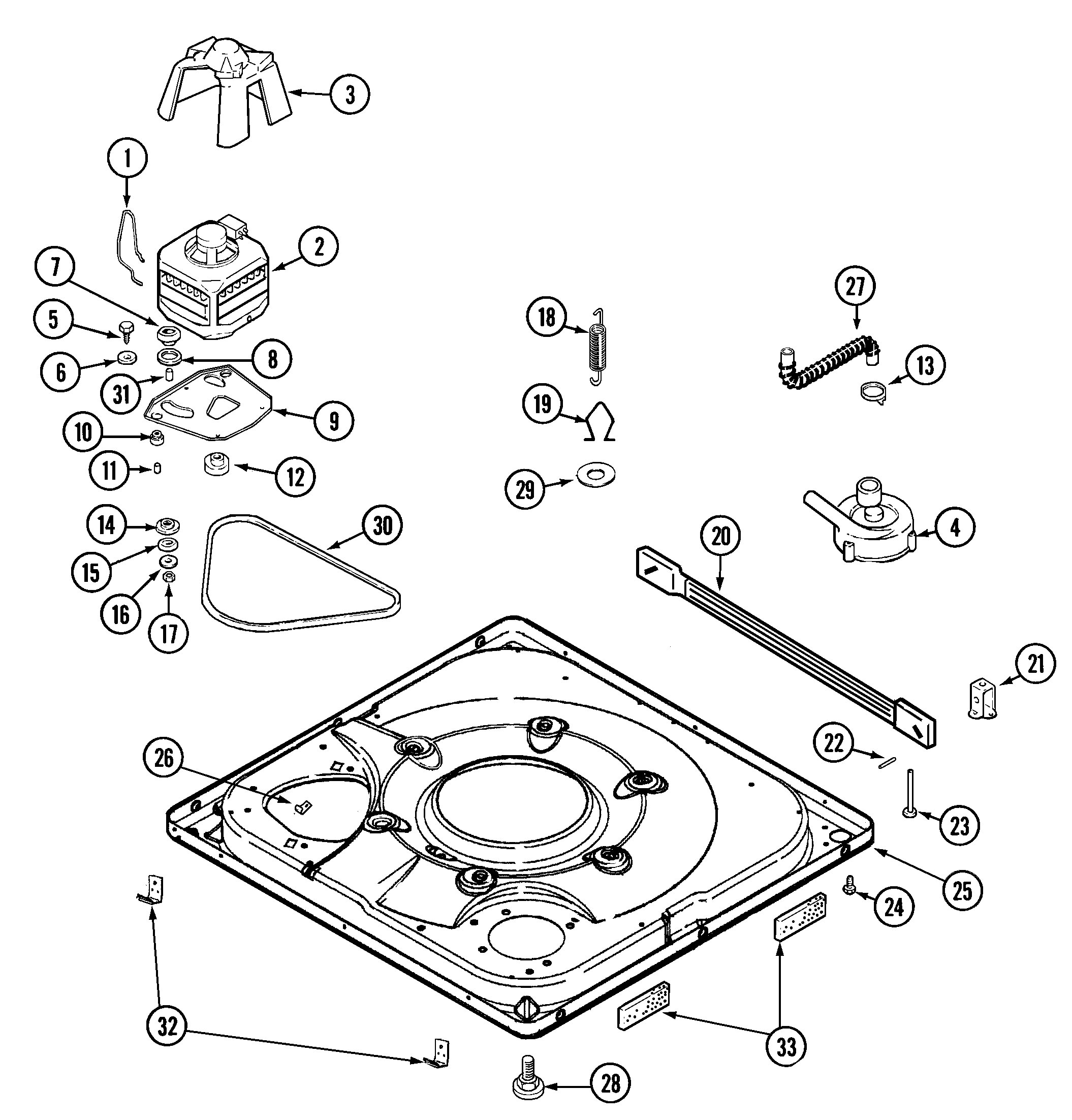

Base diagram
Pulley
Part #22004297
Replaced by #WP21001950
?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
$128.85 |
9% OFF Phone Price : $140.85
In Stock
#20

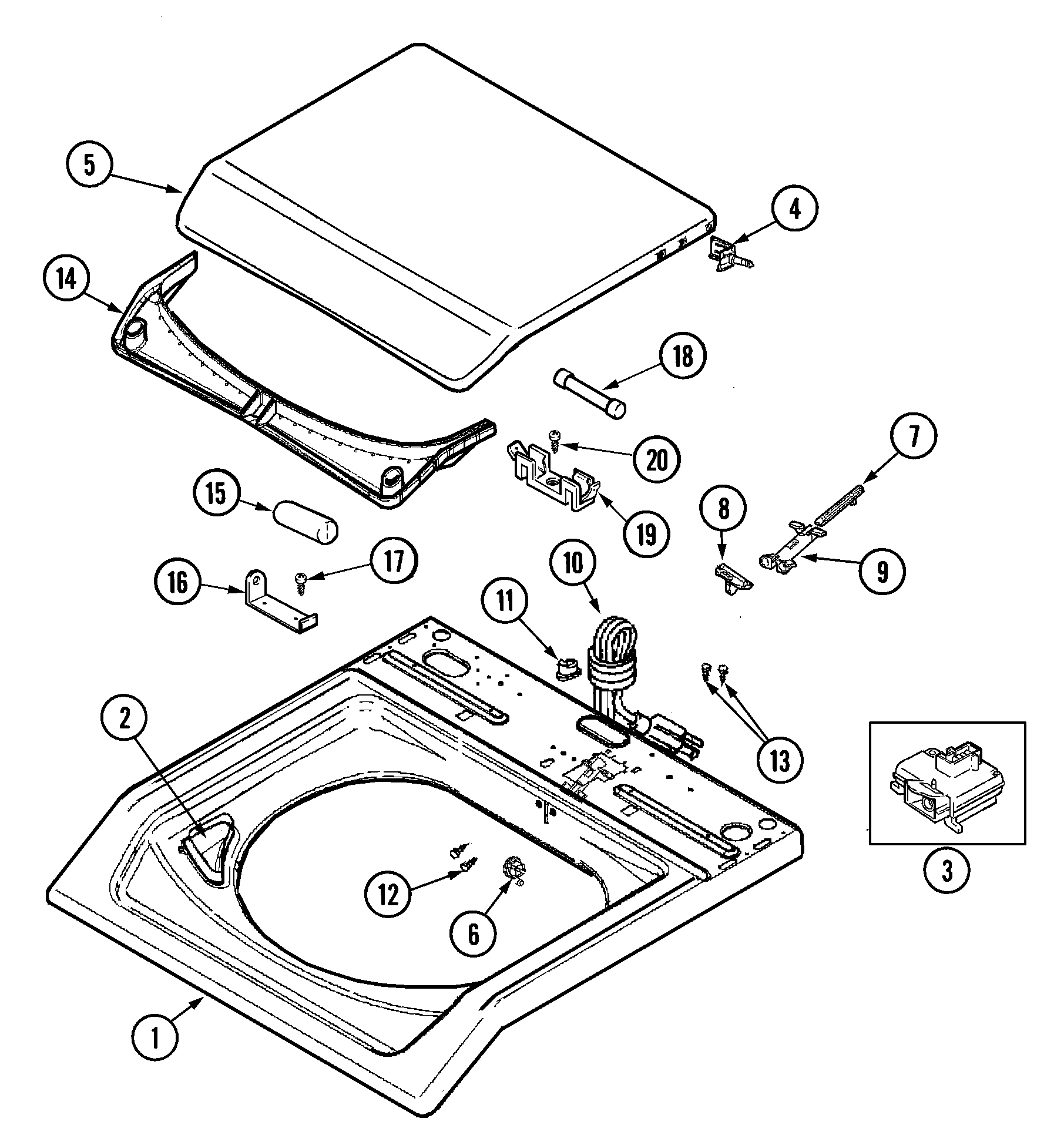

Top diagram
Screw
Part #22003538
Replaced by #WP693995
?
Manufacturer substitution
This part replaces 22003538. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#22
Transmission diagram
Snubber
Part #21001161
Replaced by #WP21002026
?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
#4
Base diagram
Pump
Part #21001732
Replaced by #WP35-6465
?
Manufacturer substitution
This part replaces 21001732. Substitute parts can look different from the original.
$84.87 |
7% OFF Phone Price : $90.87
In Stock
#3
Top diagram
Washer lid switch
Part #22003804
Replaced by #WP22003804
?
Manufacturer substitution
This part replaces 22003804. Substitute parts can look different from the original.
$49.90 |
11% OFF Phone Price : $55.90
In Stock
#8A

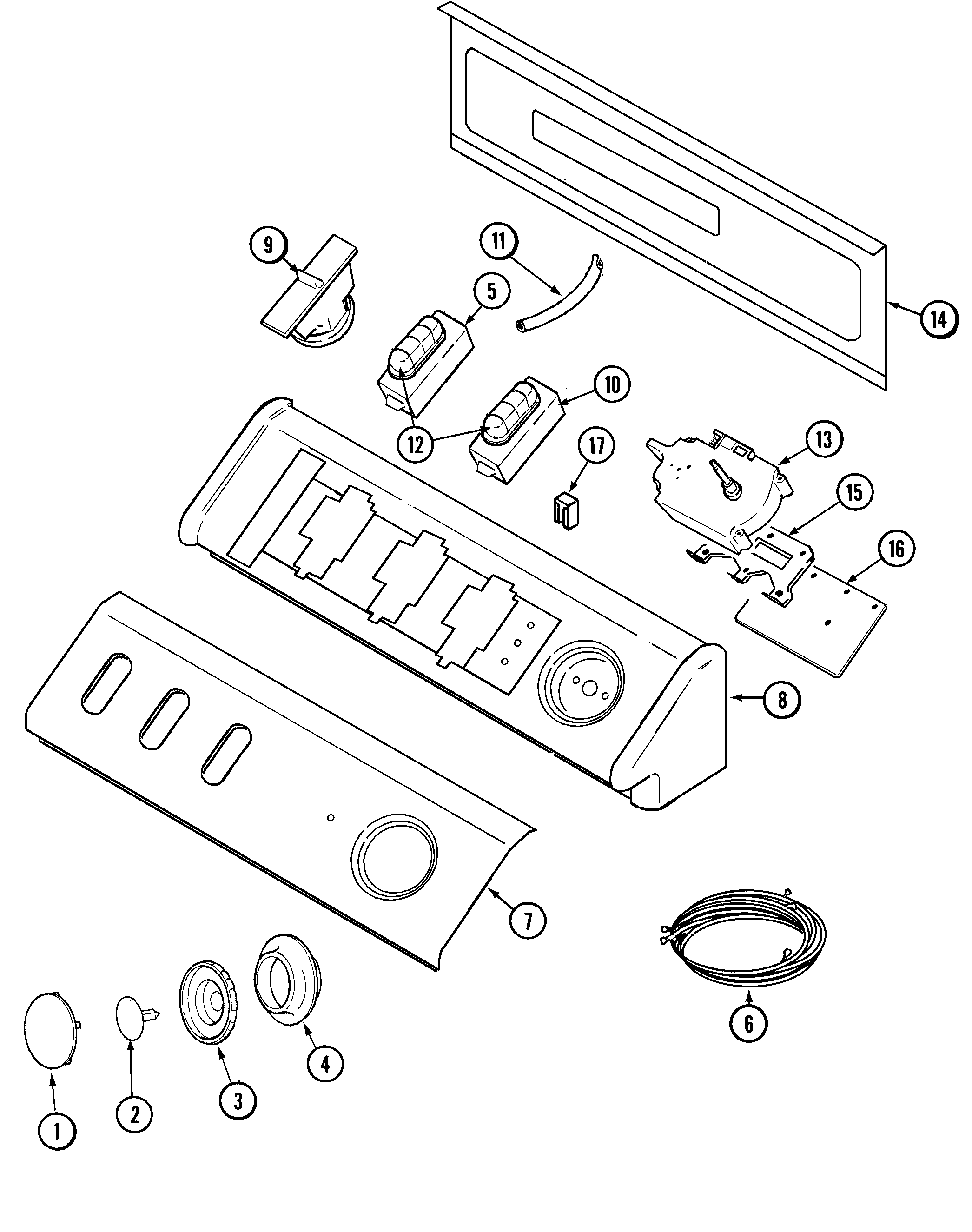

Control panel diagram
Screw
Part #22002925
Replaced by #WP489128
?
Manufacturer substitution
This part replaces 22002925. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#13
Top diagram
Ground screw
Part #705026
Replaced by #WP489128
?
Manufacturer substitution
This part replaces 705026. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#18
Base diagram
Washer suspension spring
Part #21001598
Replaced by #WP21001598
?
Manufacturer substitution
This part replaces 21001598. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#26A
Transmission diagram
Seal hub
Part #21001868
Replaced by #W10219156
?
Manufacturer substitution
This part replaces 21001868. Substitute parts can look different from the original.
$148.42 |
7% OFF Phone Price : $160.42
In Stock
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
