Model # GDT580SGF4BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GDT580SGF4BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Dishwasher Spray Arm, Lower WD22X10091
#501

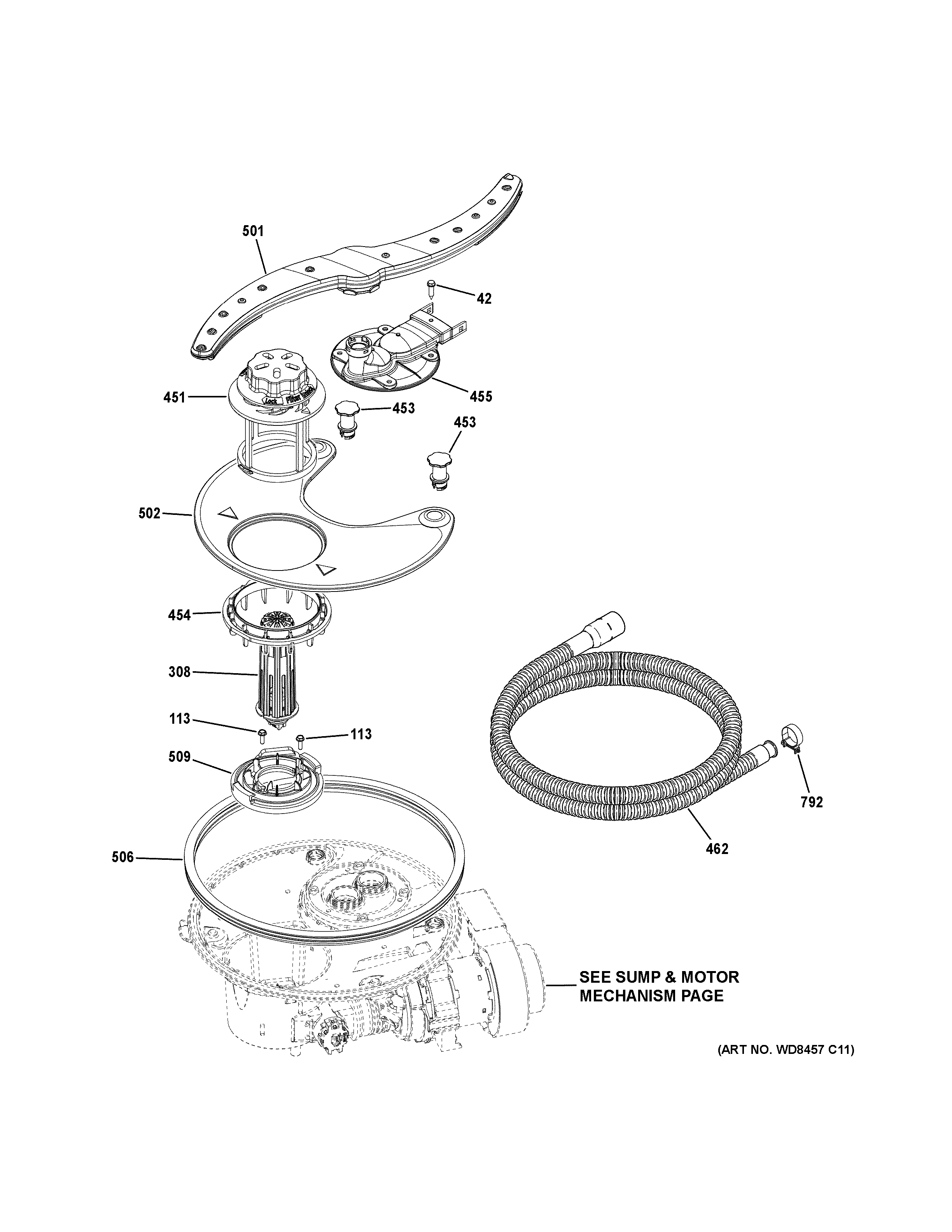

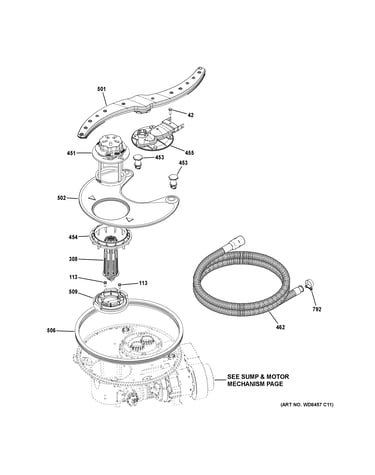

Sump & filter assembly diagram

Dishwasher spray arm, lower

Part #WD22X10091

Replaced by #WD22X27724

?
Manufacturer substitution
This part replaces WD22X10091. Substitute parts can look different from the original.
BEST SELLER
$20.65 |
23% OFF Phone Price : $26.65
In Stock
Dishwasher Heating Element WD05X21294
#101

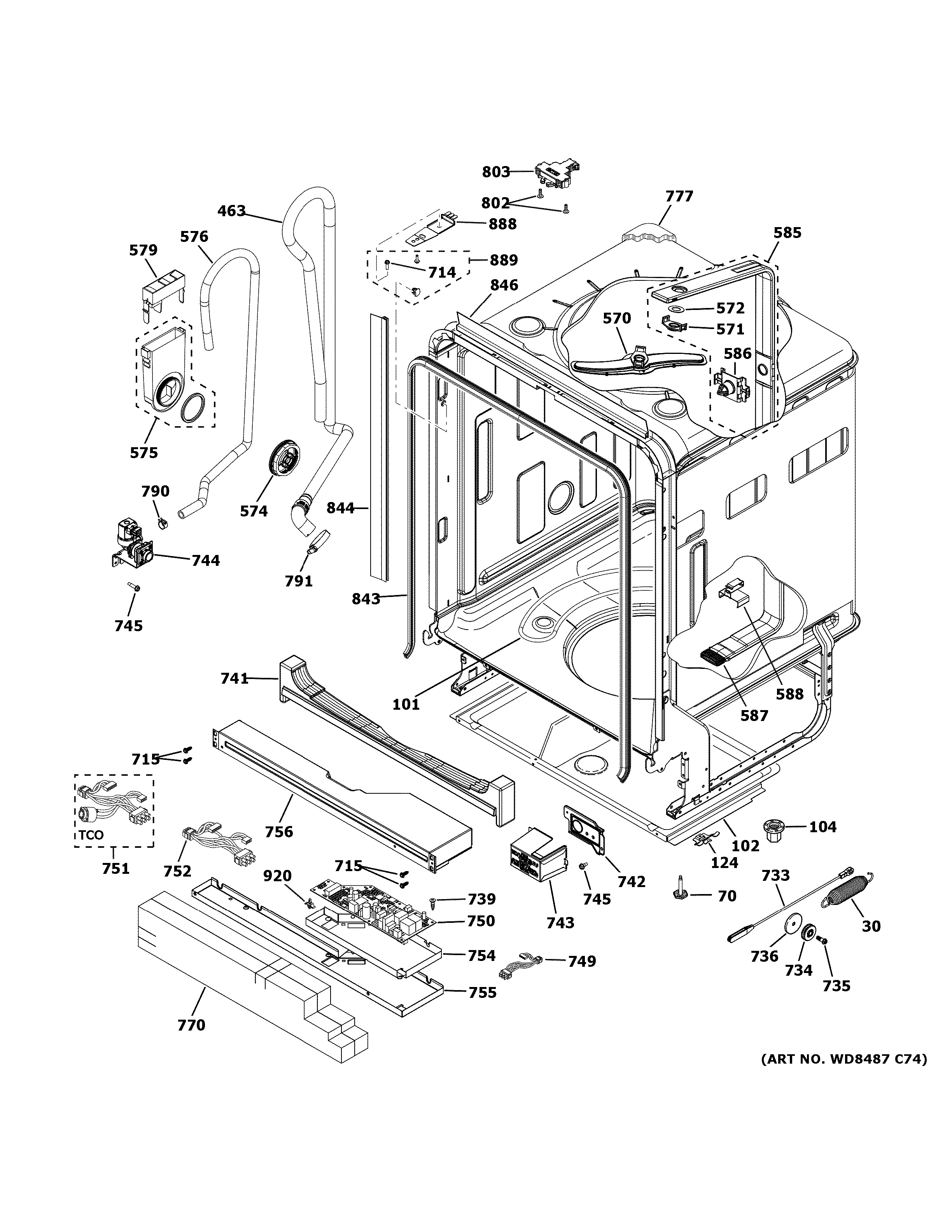

Body parts diagram

Dishwasher heating element

Part #WD05X21294

Replaced by #WD05X30818

?
Manufacturer substitution
This part replaces WD05X21294. Substitute parts can look different from the original.
BEST SELLER
$48.78 |
11% OFF Phone Price : $54.78
In Stock
Dishwasher Spray Arm, Middle WD22X10089
#618

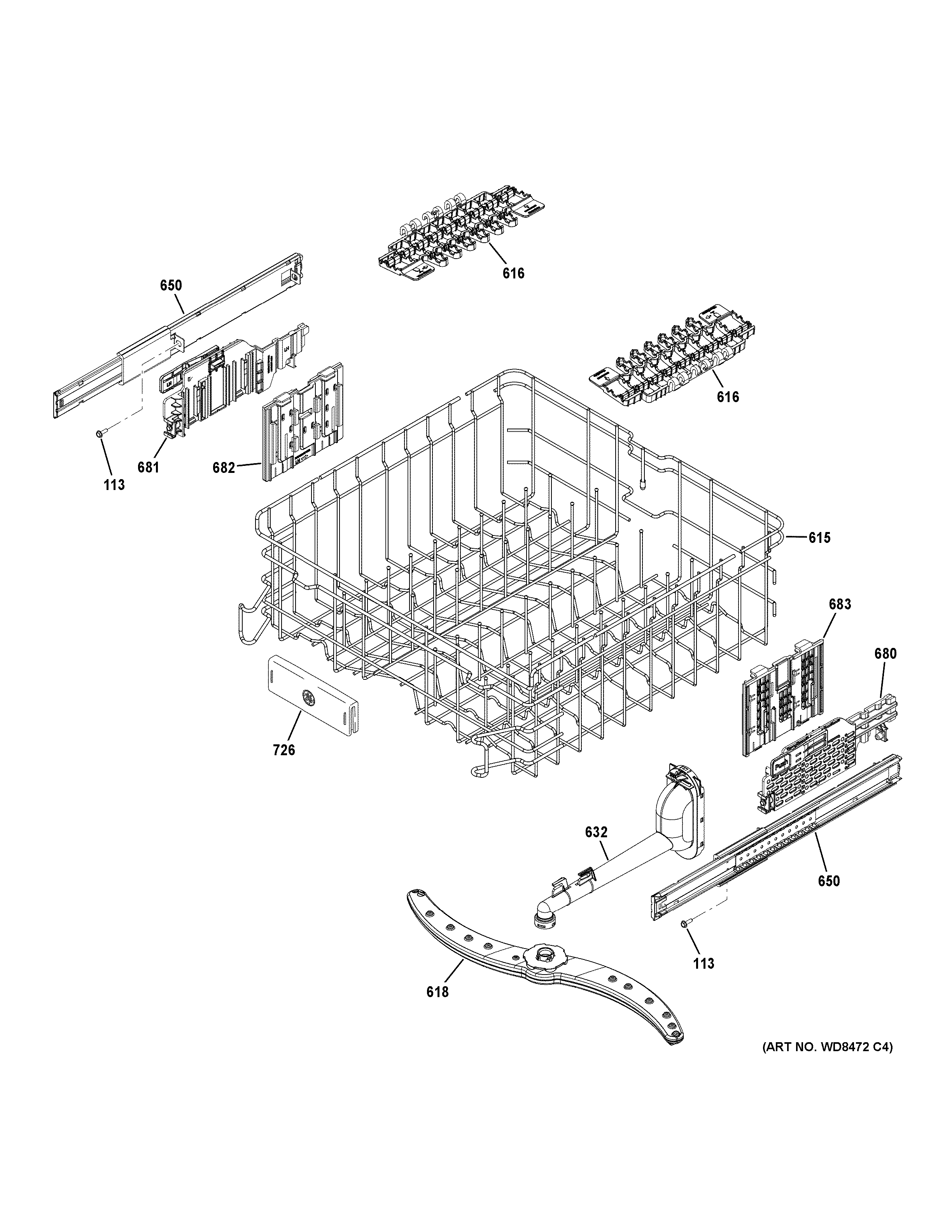

Upper rack assembly diagram

Dishwasher spray arm, middle

Part #WD22X10089

Replaced by #WD22X27740

?
Manufacturer substitution
This part replaces WD22X10089. Substitute parts can look different from the original.
BEST SELLER
$29.82 |
17% OFF Phone Price : $35.82
In Stock
Dishwasher Float Switch (replaces Wd21x10492, Wd21x20204) WD21X10519
#308

Sump & filter assembly diagram

Dishwasher float switch (replaces wd21x10492, wd21x20204)

Part #WD21X10519

BEST SELLER
$46.86 |
11% OFF Phone Price : $52.86
In Stock
Dishwasher Lower Dishrack Roller WD12X10435
#704

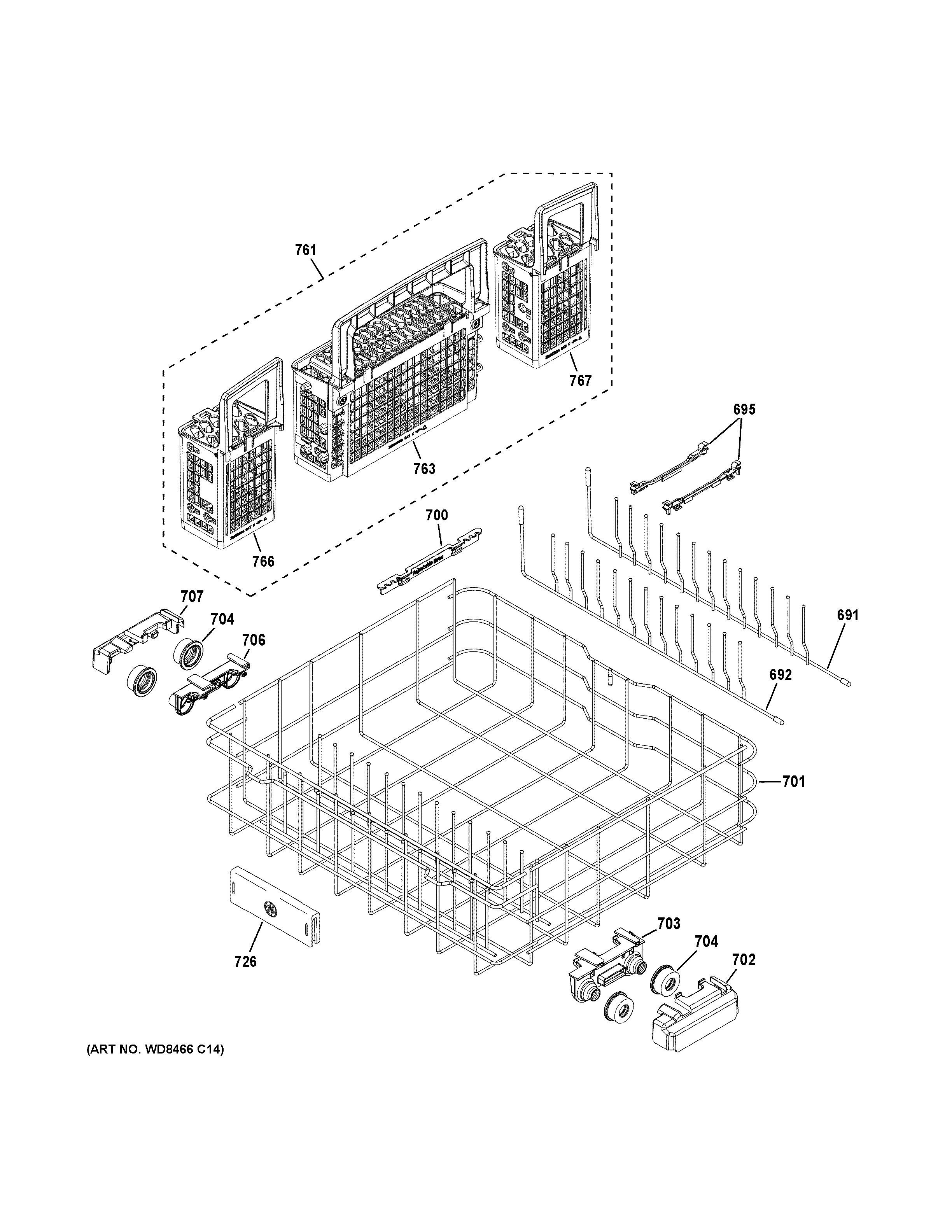

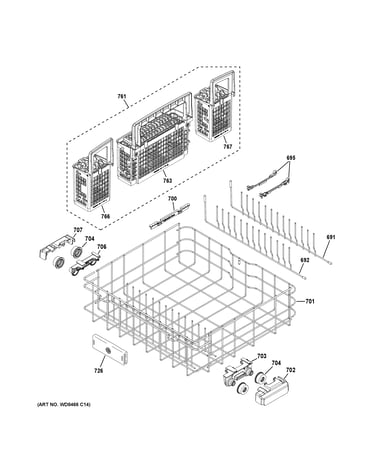

Lower rack assembly diagram

Dishwasher lower dishrack roller

Part #WD12X10435

Replaced by #WD12X26146

?
Manufacturer substitution
This part replaces WD12X10435. Substitute parts can look different from the original.
BEST SELLER
$7.67 |
12% OFF Phone Price : $8.67
In Stock
Dishwasher Water Inlet Valve WD15X21340
#744

Body parts diagram

Dishwasher water inlet valve

Part #WD15X21340

Replaced by #WD15X22999

?
Manufacturer substitution
This part replaces WD15X21340. Substitute parts can look different from the original.
BEST SELLER
$28.02 |
18% OFF Phone Price : $34.02
In Stock
Dishwasher Drain Hose (replaces Wd24x24650) WD24X10062
#462

Sump & filter assembly diagram

Dishwasher drain hose (replaces wd24x24650)

Part #WD24X10062

BEST SELLER
$22.44 |
21% OFF Phone Price : $28.44
In Stock
Dishwasher Electronic Control Board WD21X20720
#750

Body parts diagram

Dishwasher electronic control board

Part #WD21X20720

Replaced by #WD21X22276

?
Manufacturer substitution
This part replaces WD21X20720. Substitute parts can look different from the original.
BEST SELLER
$203.92 |
6% OFF Phone Price : $215.92
In Stock
Dishwasher Wire Harness WD21X20739
#751

Body parts diagram

Dishwasher wire harness

Part #WD21X20739

Replaced by #WD49X23781

?
Manufacturer substitution
This part replaces WD21X20739. Substitute parts can look different from the original.
BEST SELLER
$142.00 |
8% OFF Phone Price : $154.00
In Stock
Dishwasher Door Latch Strike WD13X10071
#804

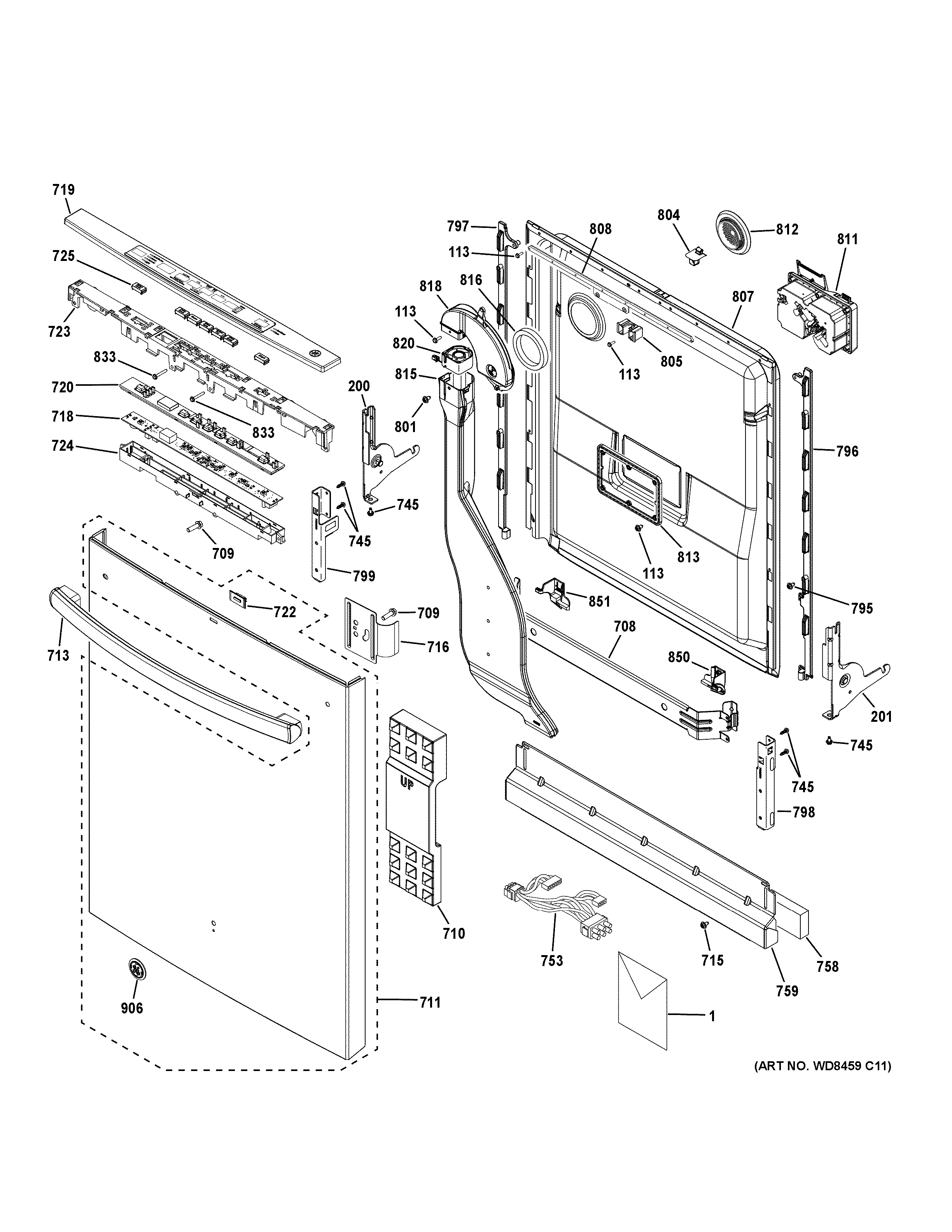

Escutcheon & door assembly diagram
