Royal Sovereign
Portable Air Conditioner

Model # ARP-1000ES Official Royal Sovereign portable air conditioner

Here are the diagrams and repair parts for Official Royal Sovereign ARP-1000ES portable air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Royal Sovereign Room Air Conditioner Exhaust Nozzle Connector A5815-090-H-BS
#59

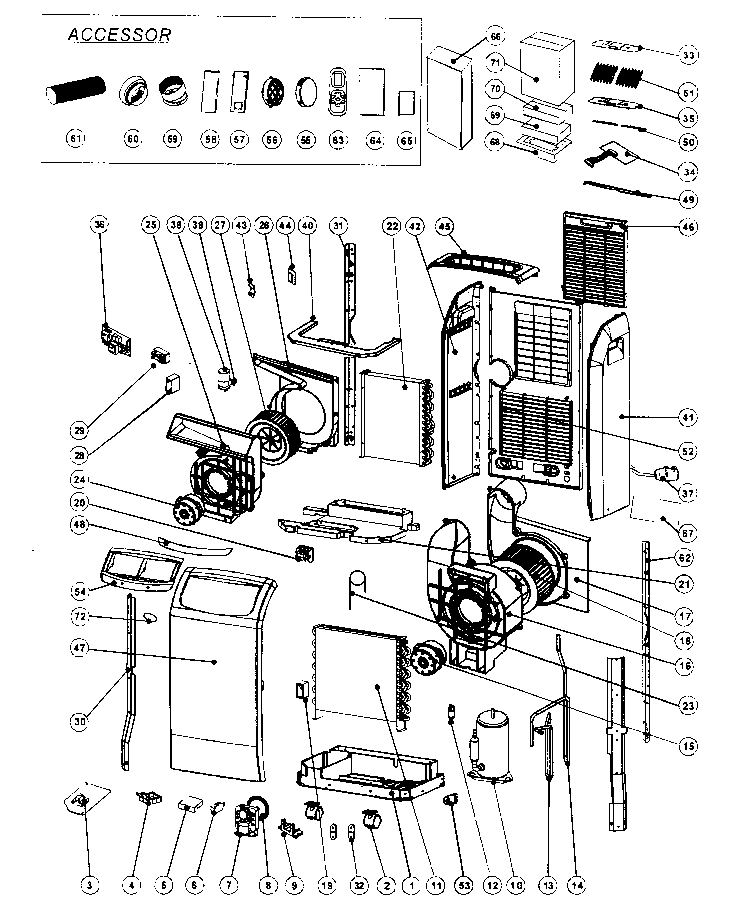

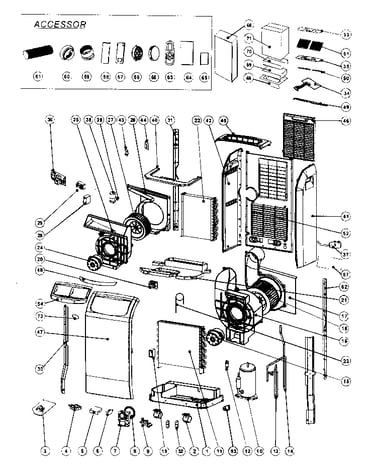

Cabinet parts diagram

Royal sovereign room air conditioner exhaust nozzle connector

Part #A5815-090-H-BS

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Capacitor A2509-590
#19

Cabinet parts diagram

Royal sovereign capacitor

Part #A2509-590

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Room Air Conditioner Power Cord A3700-460
#37

Cabinet parts diagram

Royal sovereign room air conditioner power cord

Part #A3700-460

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Control Panel A6931-340-E3
#35

Cabinet parts diagram

Royal sovereign control panel

Part #A6931-340-E3

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Room Air Conditioner Fan Motor Capacitor A2509-110
#38

Cabinet parts diagram

Royal sovereign room air conditioner fan motor capacitor

Part #A2509-110

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Evaporator A3419-190
#22

Cabinet parts diagram

Royal sovereign evaporator

Part #A3419-190

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Air Deflector Fan A4243-450-A-BS
#51

Cabinet parts diagram

Royal sovereign air deflector fan

Part #A4243-450-A-BS

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Room Air Conditioner Window Exhaust Panel Cap A6101-230-H-BS
#55

Cabinet parts diagram

Royal sovereign room air conditioner window exhaust panel cap

Part #A6101-230-H-BS

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Discharge A6208-730
#13

Cabinet parts diagram

Royal sovereign discharge

Part #A6208-730

The manufacturer no longer makes this part, and there's no substitute part

Royal Sovereign Drain Bucket A5408-090-D-AF
#3

Cabinet parts diagram

Royal sovereign drain bucket

Part #A5408-090-D-AF

The manufacturer no longer makes this part, and there's no substitute part
