Model # DLL3680SBLWH Official Hotpoint gas dryer

Here are the diagrams and repair parts for Official Hotpoint DLL3680SBLWH gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

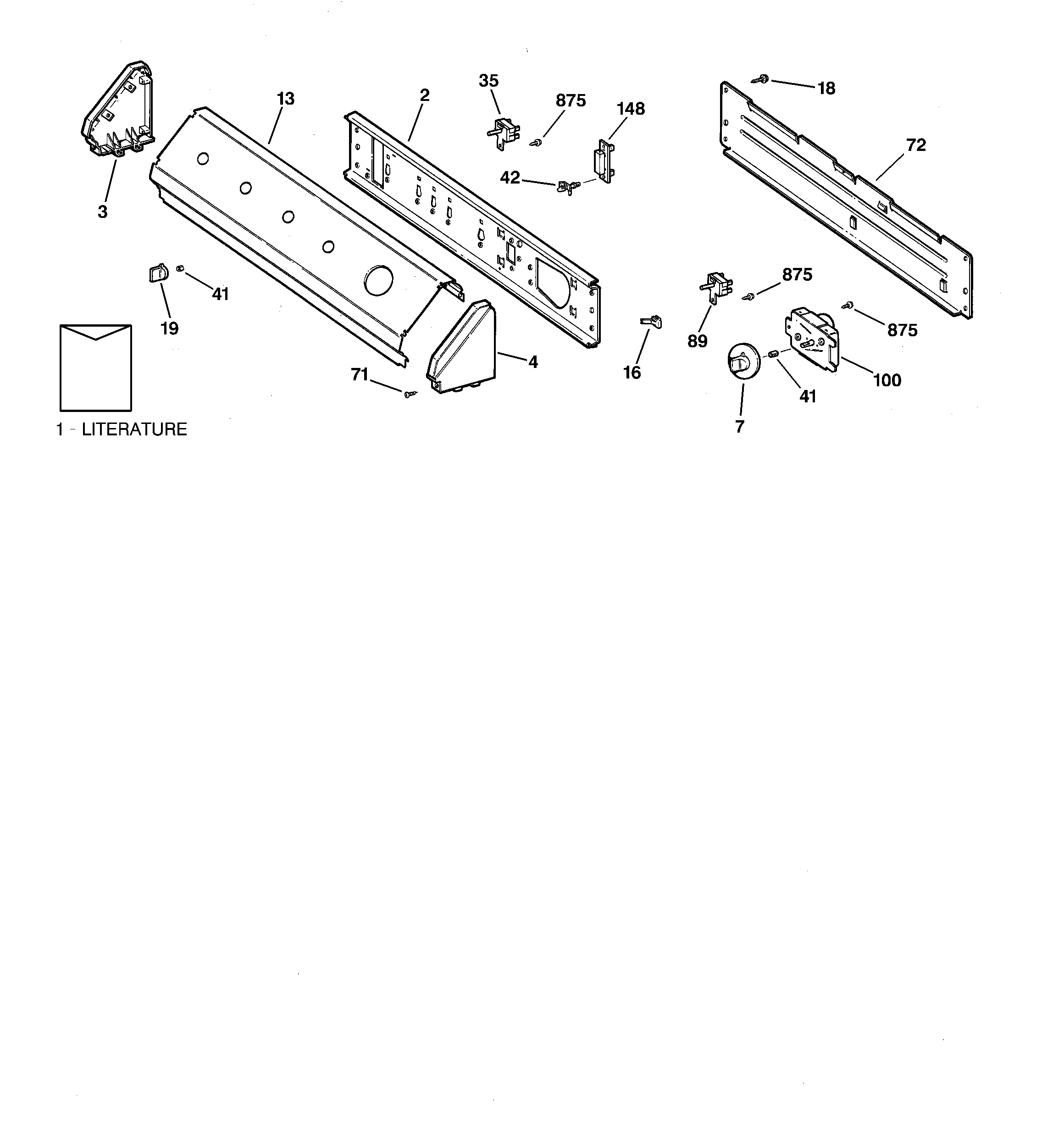

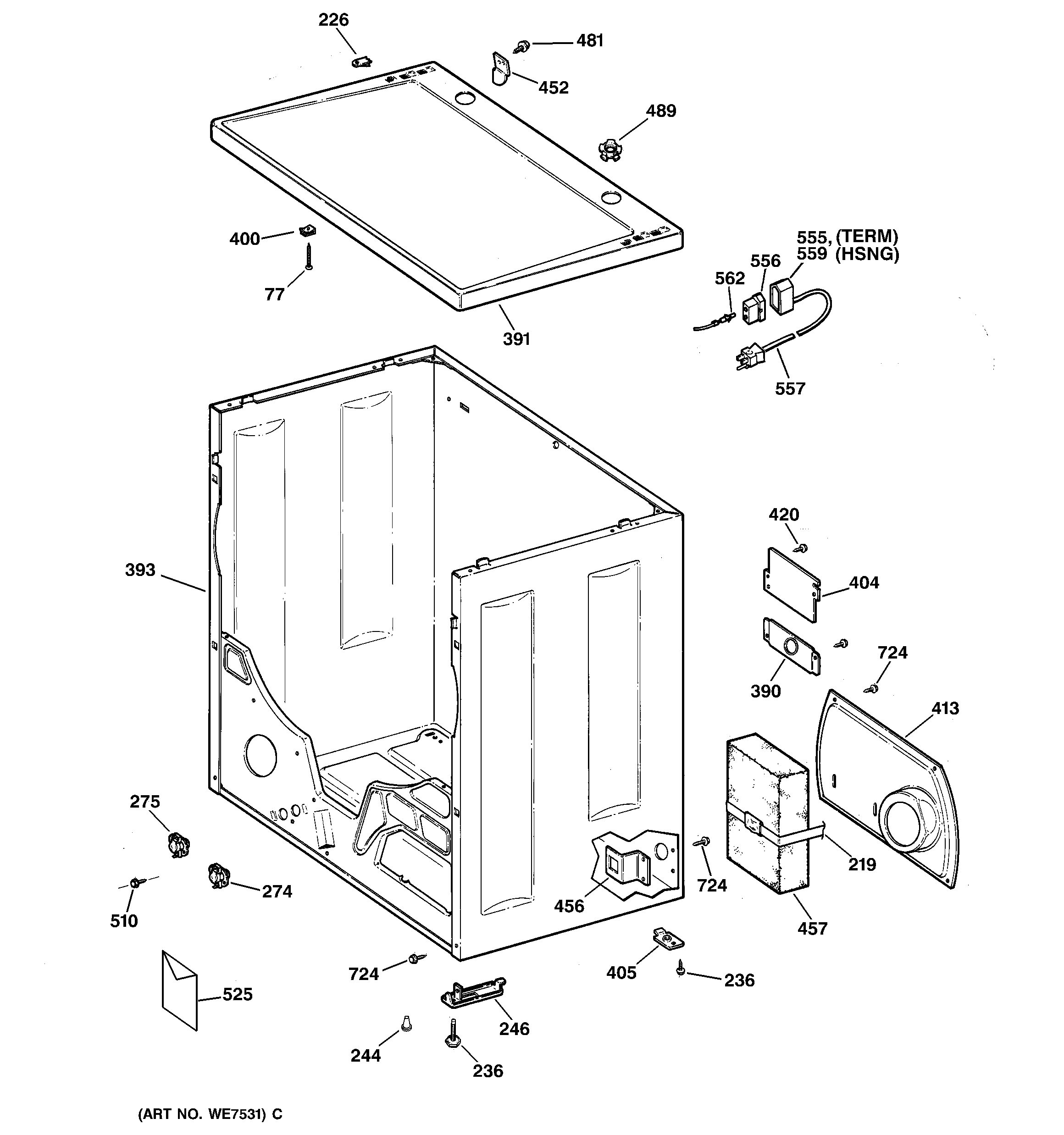

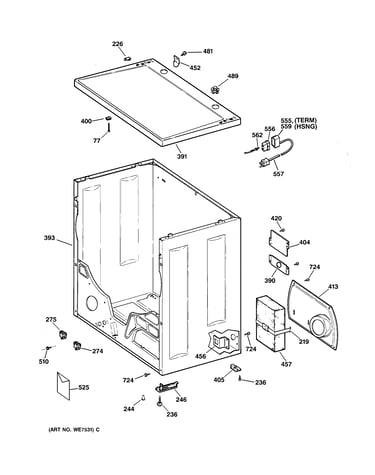

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Idler Pulley WE12X0092
#216

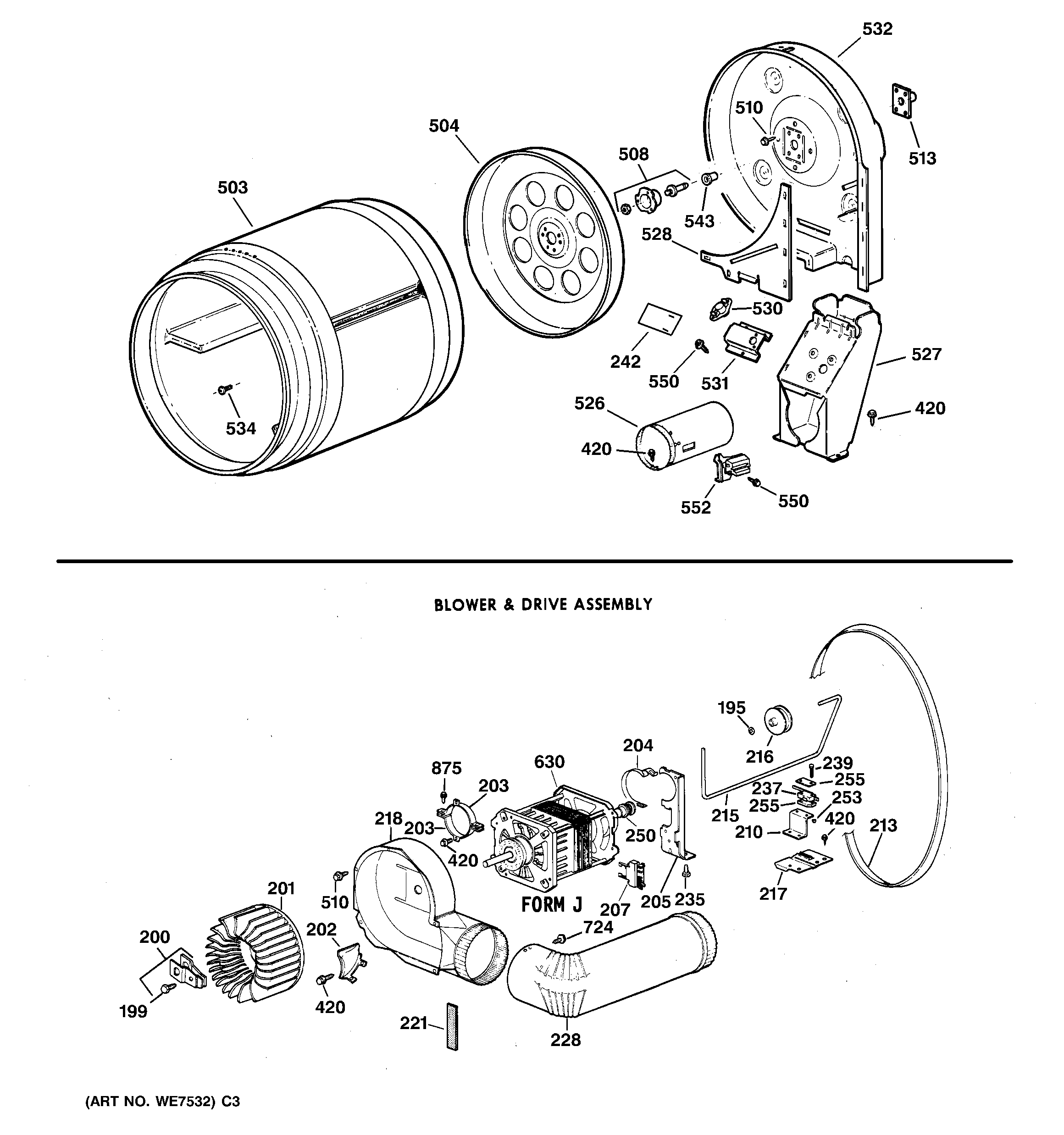

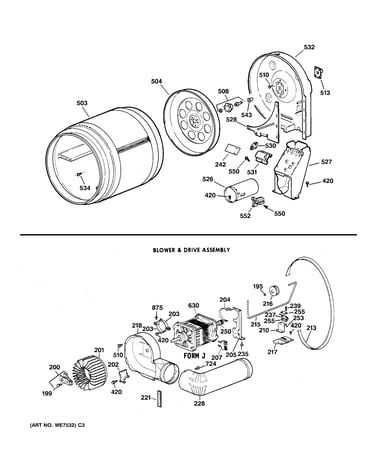

Drum, blower & drive assembly diagram

Idler pulley

Part #WE12X0092

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12X0092. Substitute parts can look different from the original.
BEST SELLER
$25.35 |
19% OFF Phone Price : $31.35
In Stock
Shft-brkt As WE03X0039
#508

Drum, blower & drive assembly diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Lamp WE04X0718
#314

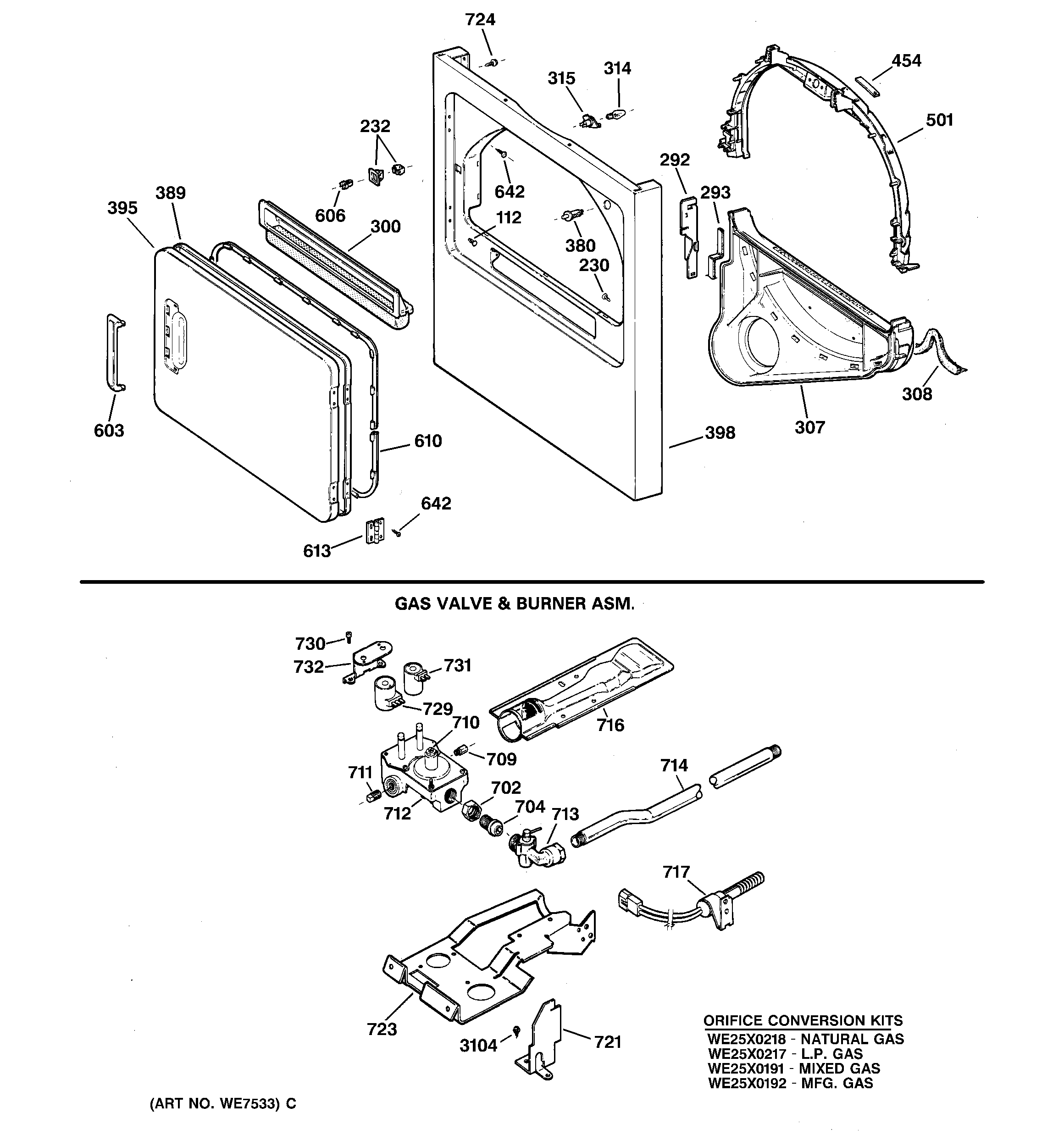

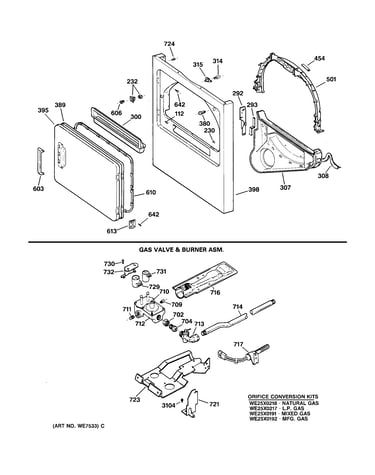

Front panel, door, gas valve & burn diagram

Lamp

Part #WE04X0718

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE04X0718. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Motor WE17X0032
#630

Drum, blower & drive assembly diagram

Motor

Part #WE17X0032

Replaced by #WE17X10010

?
Manufacturer substitution
This part replaces WE17X0032. Substitute parts can look different from the original.
BEST SELLER
$223.60 |
5% OFF Phone Price : $235.60
In Stock
Dryer Blower Wheel WE16X0017
#201

Drum, blower & drive assembly diagram

Dryer blower wheel

Part #WE16X0017

Replaced by #WE16M15

?
Manufacturer substitution
This part replaces WE16X0017. Substitute parts can look different from the original.
BEST SELLER
$60.14 |
9% OFF Phone Price : $66.14
In Stock
Dual Coil WE04X0692
#729

Front panel, door, gas valve & burn diagram

Dual coil

Part #WE04X0692

Replaced by #WE4X692

?
Manufacturer substitution
This part replaces WE04X0692. Substitute parts can look different from the original.
BEST SELLER
$39.58 |
13% OFF Phone Price : $45.58
In Stock
Main Coil WE04X0693
#731

Front panel, door, gas valve & burn diagram

Main coil

Part #WE04X0693

Replaced by #WE4X693

?
Manufacturer substitution
This part replaces WE04X0693. Substitute parts can look different from the original.
BEST SELLER
$31.40 |
16% OFF Phone Price : $37.40
In Stock
Heat Detergent WE04X0448
#552

Drum, blower & drive assembly diagram

Heat detergent

Part #WE04X0448

Replaced by #WE4X448

?
Manufacturer substitution
This part replaces WE04X0448. Substitute parts can look different from the original.
BEST SELLER
$47.23 |
11% OFF Phone Price : $53.23
In Stock
Latch Clip WE01X1032
#232

Front panel, door, gas valve & burn diagram

Latch clip

Part #WE01X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE01X1032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Door Strike WE01X1192
#606

Front panel, door, gas valve & burn diagram

Door strike

Part #WE01X1192

Replaced by #WE1X1192

?
Manufacturer substitution
This part replaces WE01X1192. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
