Model # 58CTA04510012 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58CTA04510012 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Furnace Burner Igniter (replaces 331930-751, 41-403) LH33ZS004

#90

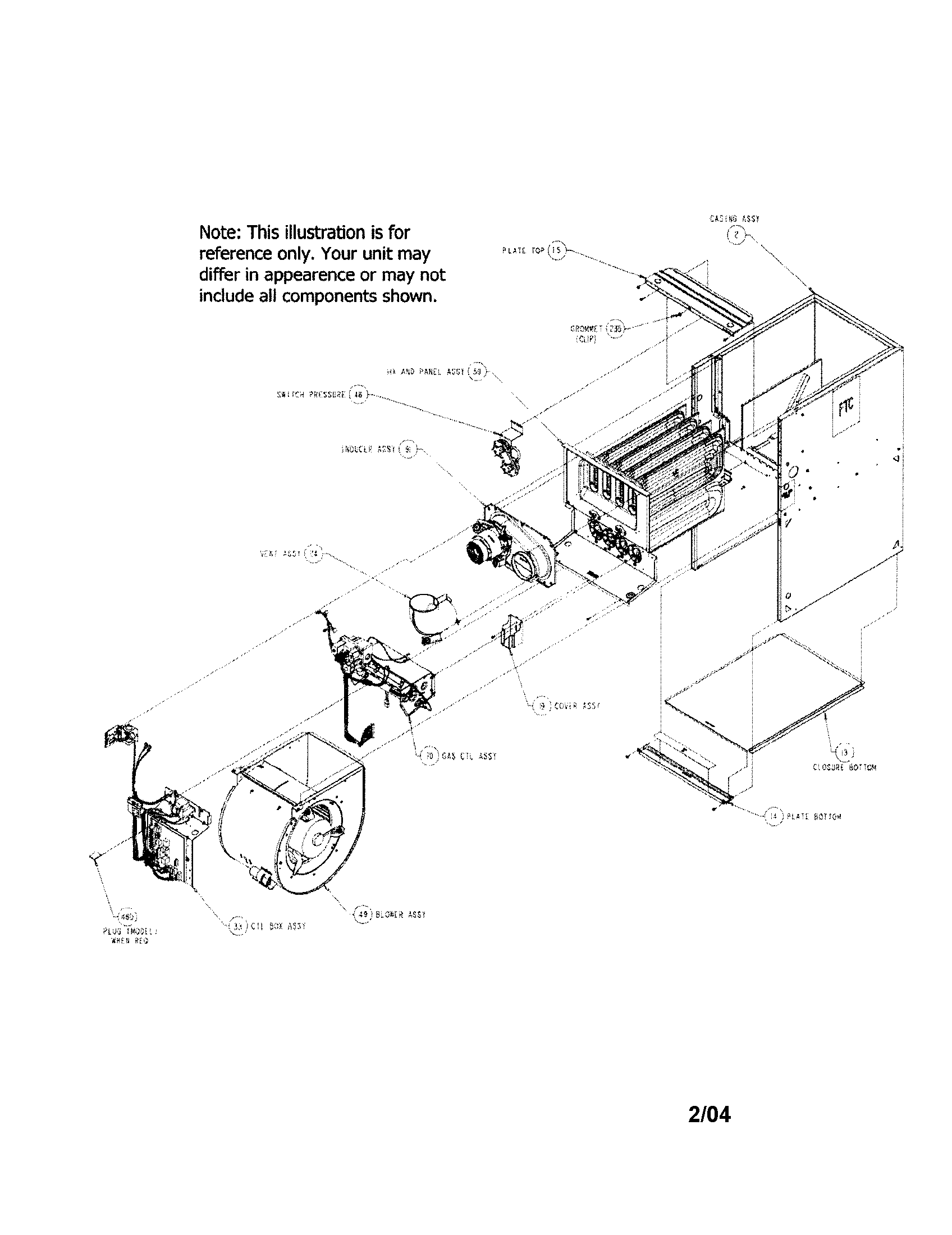

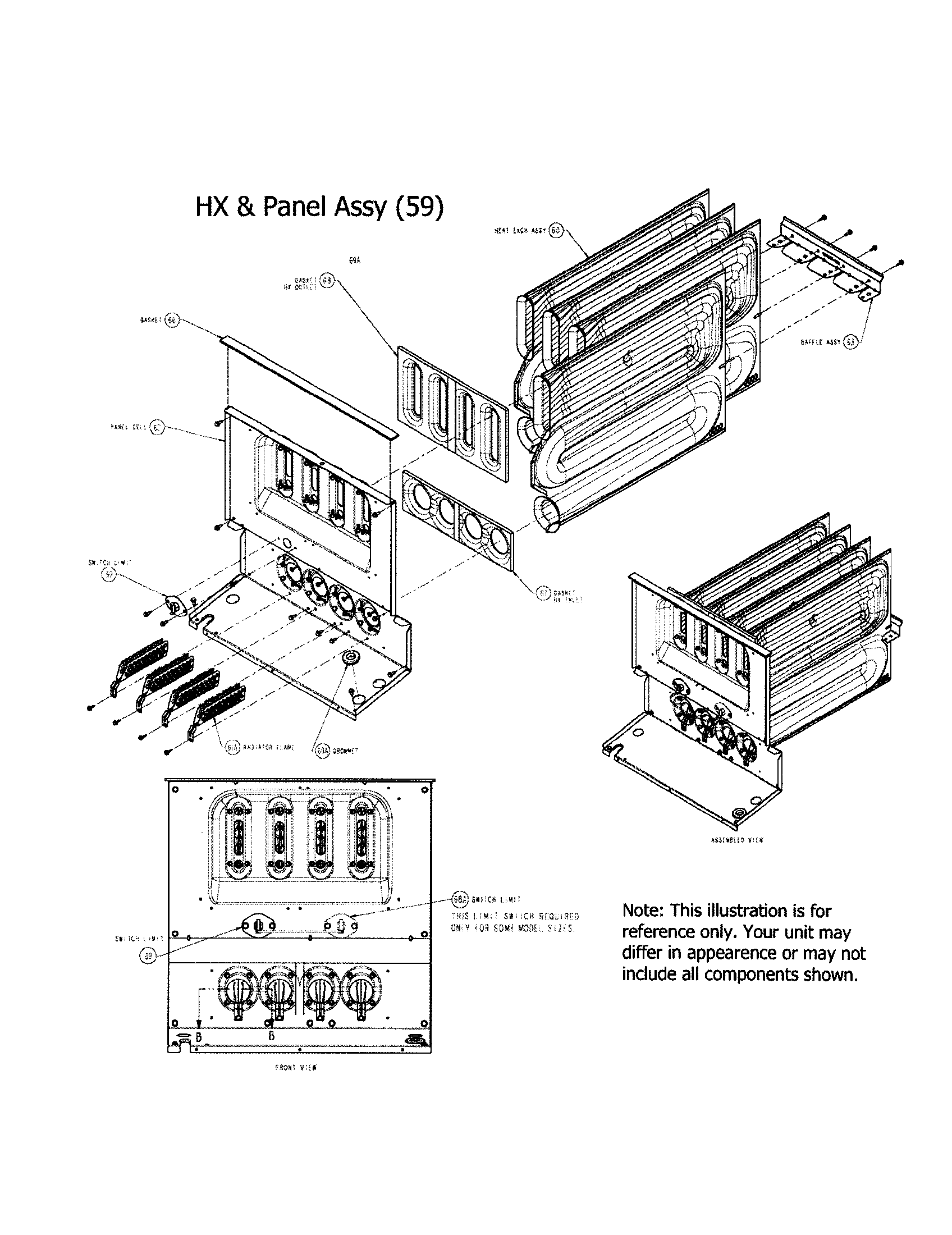

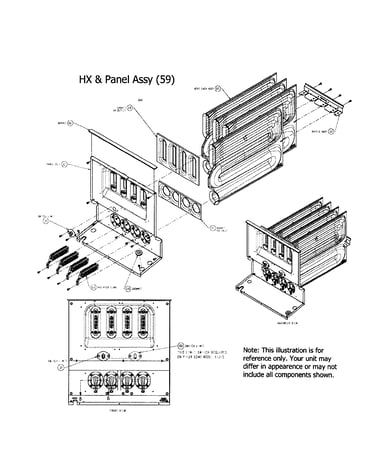

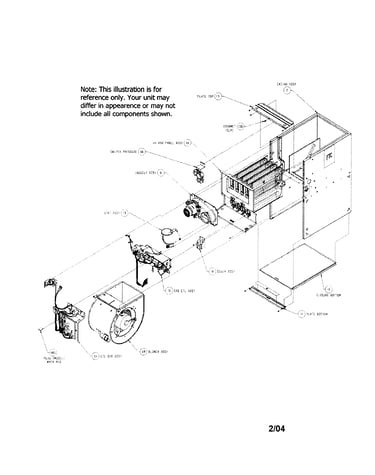

All parts diagram

Furnace burner igniter (replaces 331930-751, 41-403)

Part #LH33ZS004

$47.08 |
11% OFF Phone Price : $53.08
In Stock
Furnace Screw Grommet AS88PD005

#23B

All parts diagram

Furnace screw grommet

Part #AS88PD005

This item is not returnable
$8.23
In Stock
Fan LA22RA101

#58

All parts diagram

Fan

Part #LA22RA101

$208.74
In Stock
Switch HK06WC058

#48

All parts diagram

Switch

Part #HK06WC058

The manufacturer no longer makes this part, and there's no substitute part

Paint 661858

#23C

All parts diagram

Paint

Part #661858

$108.76
In Stock
Cut-off 310283-301

#50

All parts diagram

Cut-off

Part #310283-301

$27.54
In Stock
Blo Hsg 327265-751

#52

All parts diagram

Blo hsg

Part #327265-751

$4355.21
In Stock
Grommet KA56GR140

#69A

All parts diagram

Grommet

Part #KA56GR140

This item is not returnable
$2.97
In Stock
Furnace Temperature Limit Switch HH18HA493

#32

All parts diagram

Furnace temperature limit switch

Part #HH18HA493

This item is not returnable
$18.83
In Stock
Payne Shield 327264-401

#102

All parts diagram

Payne shield

Part #327264-401

This item is not returnable
$3.83
In Stock
