Model # DSC-HX10V/R Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX10V-R digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Sheet , Release Muffle 441938701
#66

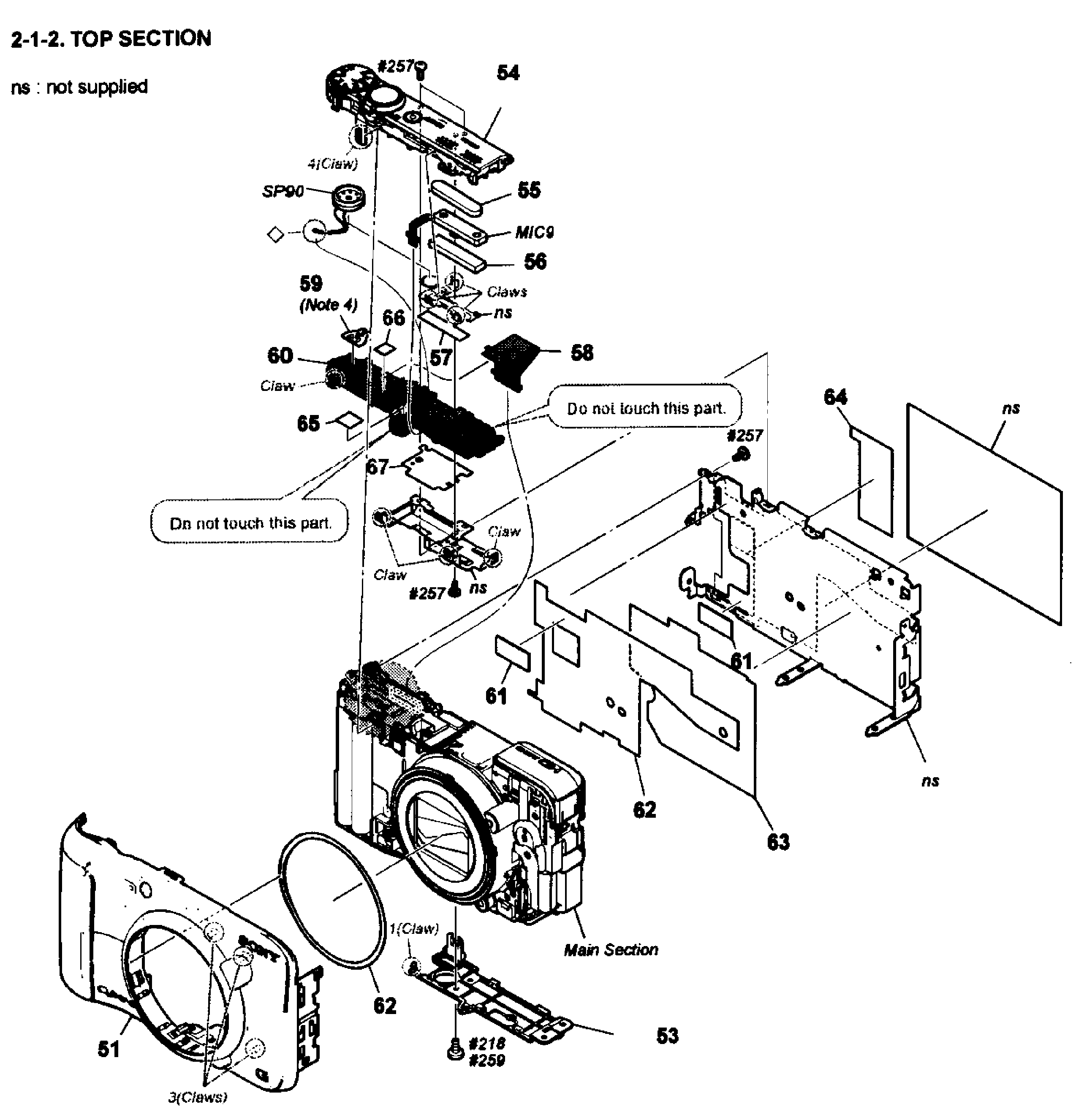

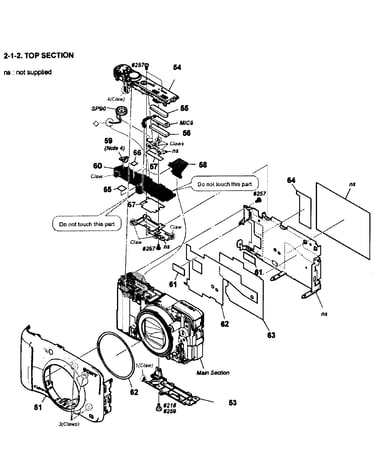

Top section diagram

Sheet , release muffle

Part #441938701

This item is not returnable
$2.28
In Stock
Tape, Barrier 420813202
#153

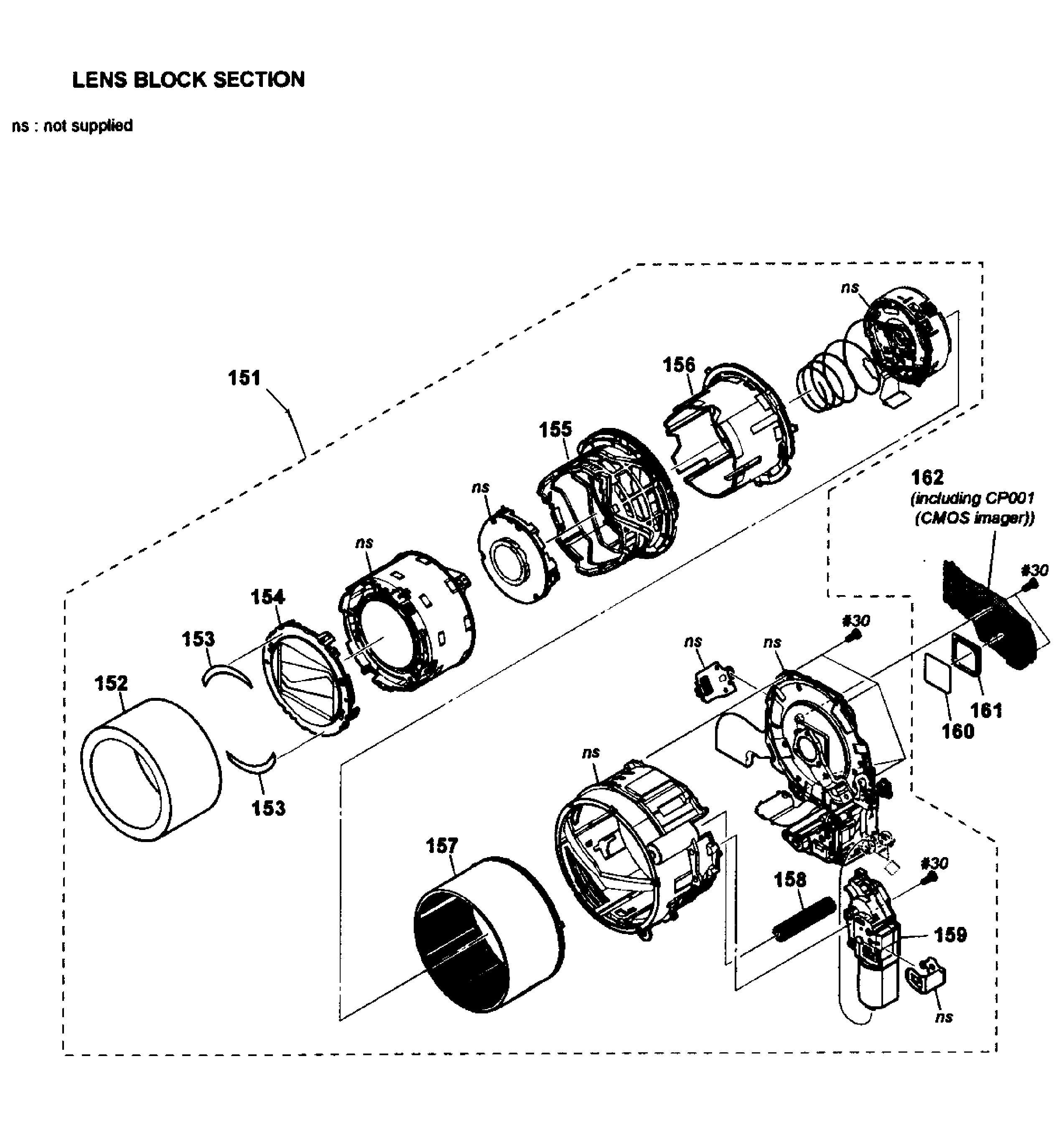

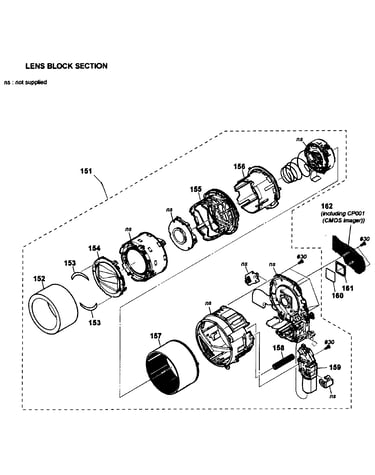

Lens block diagram

Tape, barrier

Part #420813202

This item is not returnable
$4.83
In Stock
Sony Cabinet St (red) 441660821
#109

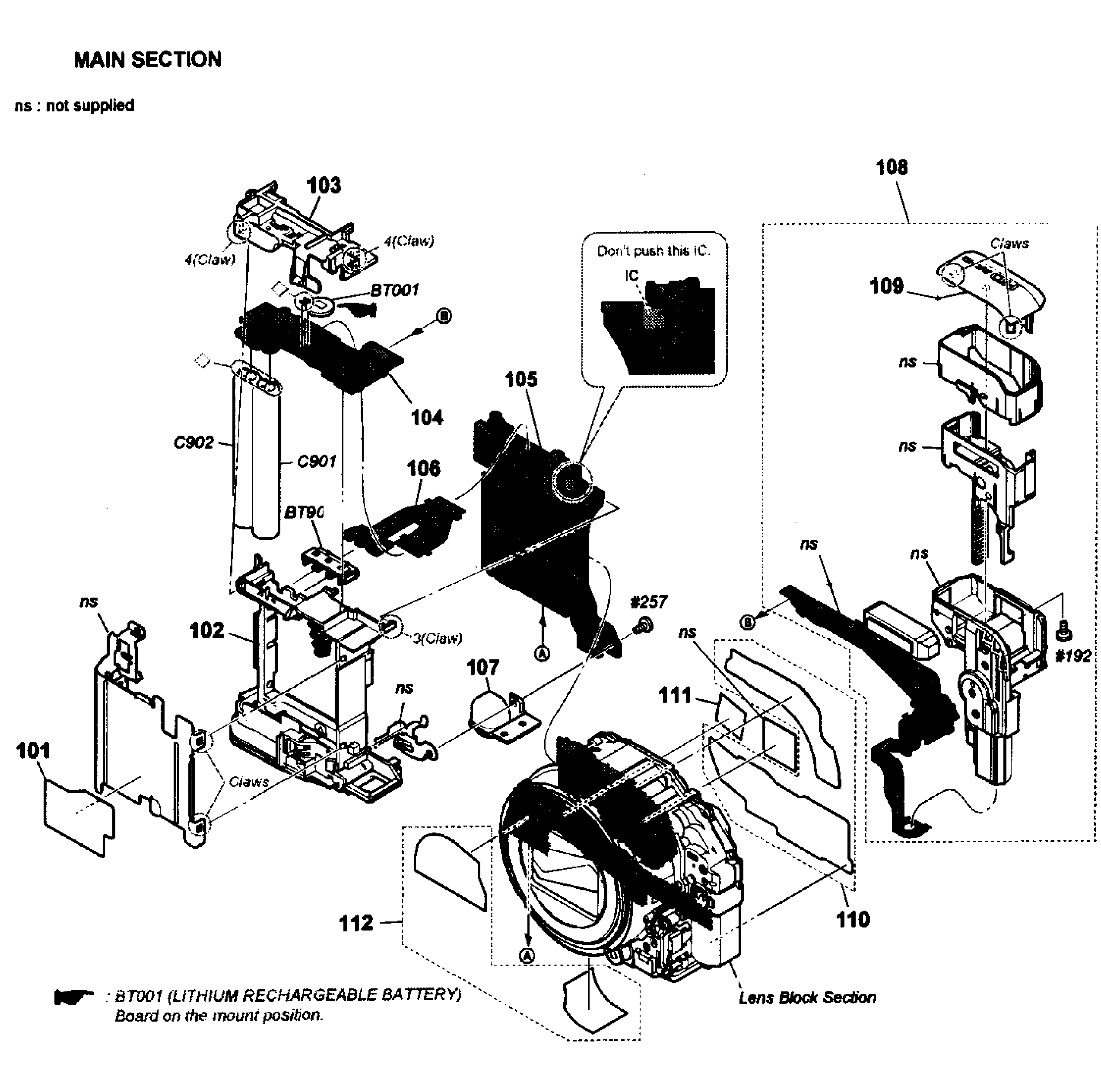

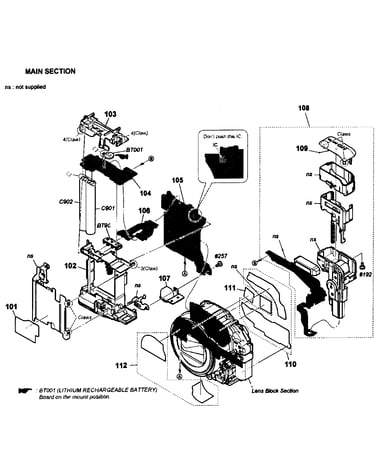

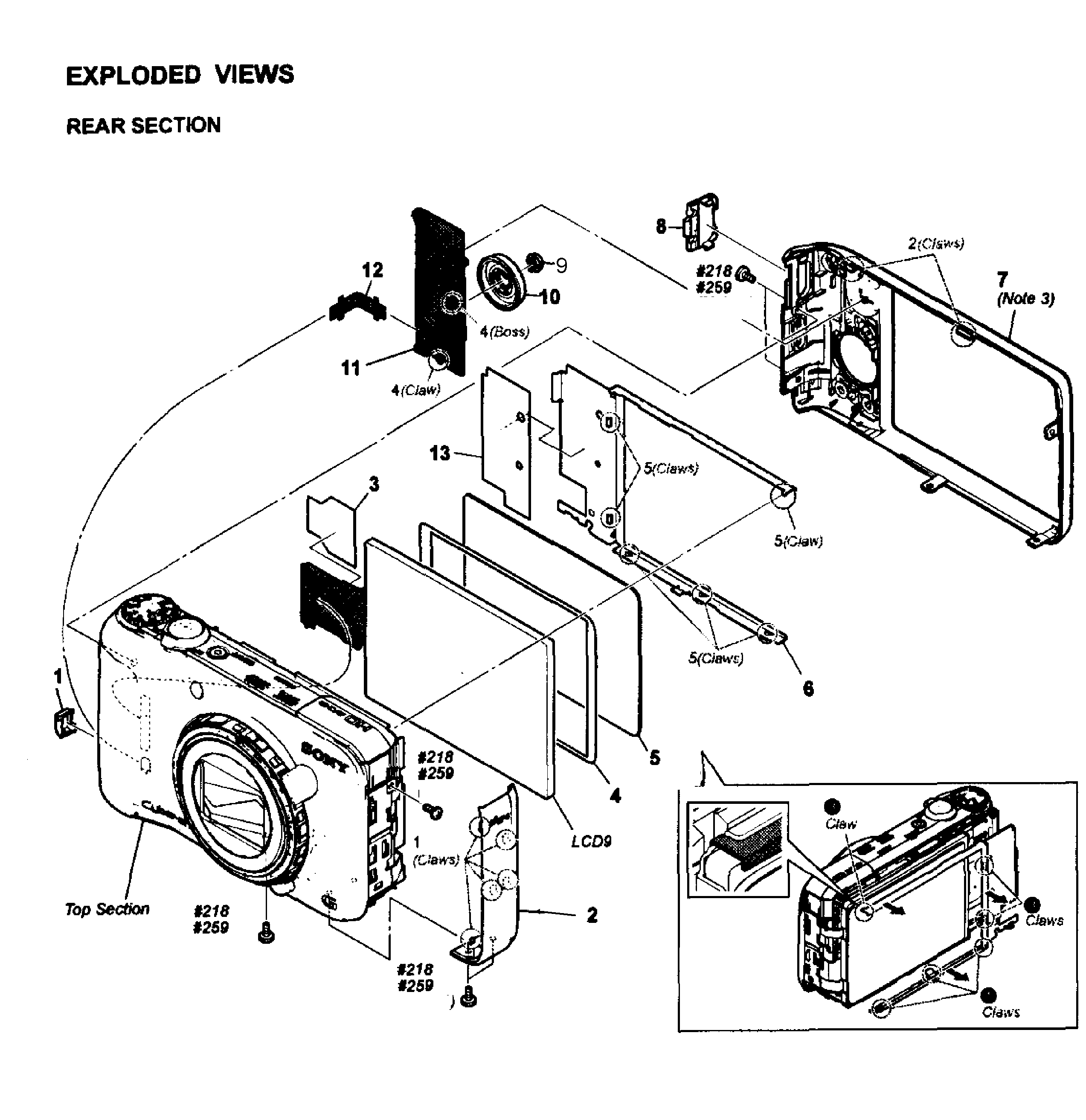

Main section diagram

Sony cabinet st (red)

Part #441660821

$13.60
In Stock
Cam Tube A1802357A
#155

Lens block diagram

Cam tube

Part #A1802357A

This item is not returnable
$5.65
In Stock
Sheet , Rl Gps 441938801
#67

Top section diagram

Sheet , rl gps

Part #441938801

This item is not returnable
$5.88
In Stock
Filter Blo 185618331
#160

Lens block diagram

Filter blo

Part #185618331

$25.27
In Stock
Speaker 185834351
#SP90

Top section diagram

Speaker

Part #185834351

$15.95
In Stock
Barrier A1802316A
#154

Lens block diagram

Barrier

Part #A1802316A

$22.86
In Stock
Sheet Lens 441663401
#63

Top section diagram

Sheet lens

Part #441663401

This item is not returnable
$5.80
In Stock
Insulation Sheet 441663101
#13

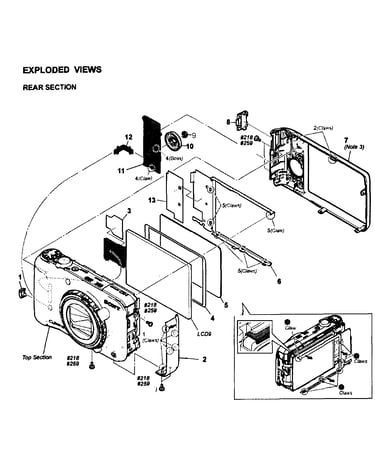

Rear section diagram

Insulation sheet

Part #441663101

This item is not returnable
$2.25
In Stock
