Porter Cable
Drill/Driver

Model # 7566 Official Porter Cable drill

Here are the diagrams and repair parts for Official Porter Cable 7566 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Armature 865654
#1

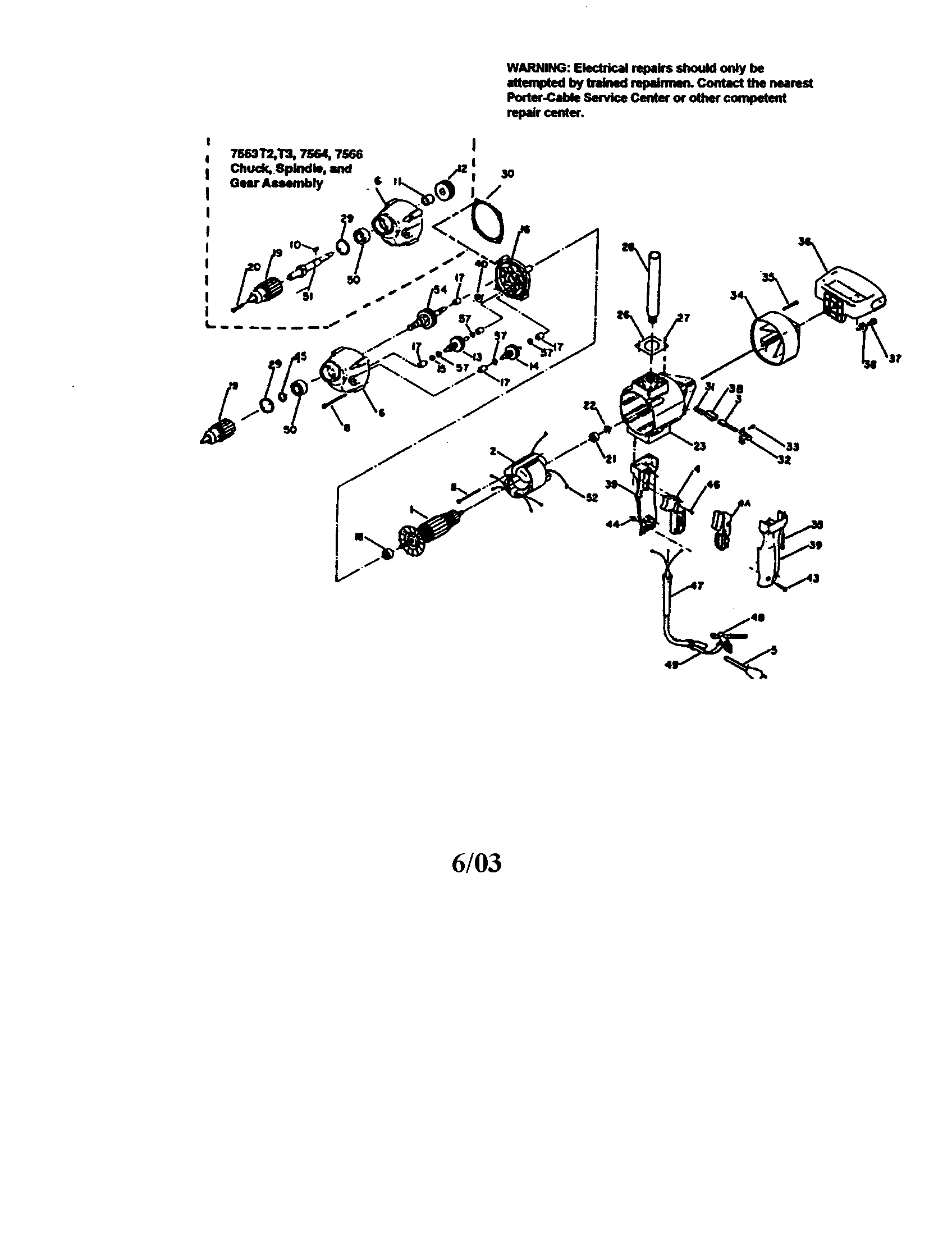

Drill diagram

Armature

Part #865654

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Power Tool Bearing 855284
#21

Drill diagram

Craftsman power tool bearing

Part #855284

The manufacturer no longer makes this part, and there's no substitute part

Lubricant 801945

#NI02

All parts diagram

Lubricant

Part #801945

The manufacturer no longer makes this part, and there's no substitute part

Washer 847769
#57

Drill diagram

Washer

Part #847769

The manufacturer no longer makes this part, and there's no substitute part

Auxiliary Handle 846874
#28

Drill diagram

Auxiliary handle

Part #846874

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Holder 865323
#3B

Drill diagram

Craftsman holder

Part #865323

The manufacturer no longer makes this part, and there's no substitute part

Washer 823735
#38

Drill diagram

Washer

Part #823735

The manufacturer no longer makes this part, and there's no substitute part

Bearing 838073
#17

Drill diagram

Bearing

Part #838073

The manufacturer no longer makes this part, and there's no substitute part

Sears Lever Screw, T1 802589
#43

Drill diagram

Sears lever screw, t1

Part #802589

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Insulator 865321
#31

Drill diagram

Craftsman insulator

Part #865321

The manufacturer no longer makes this part, and there's no substitute part
