Model # BT18NN-4Z Official Magic Chef rv range

Here are the diagrams and repair parts for Official Magic Chef BT18NN-4Z rv range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Door Hinge 3418A058-34
#6

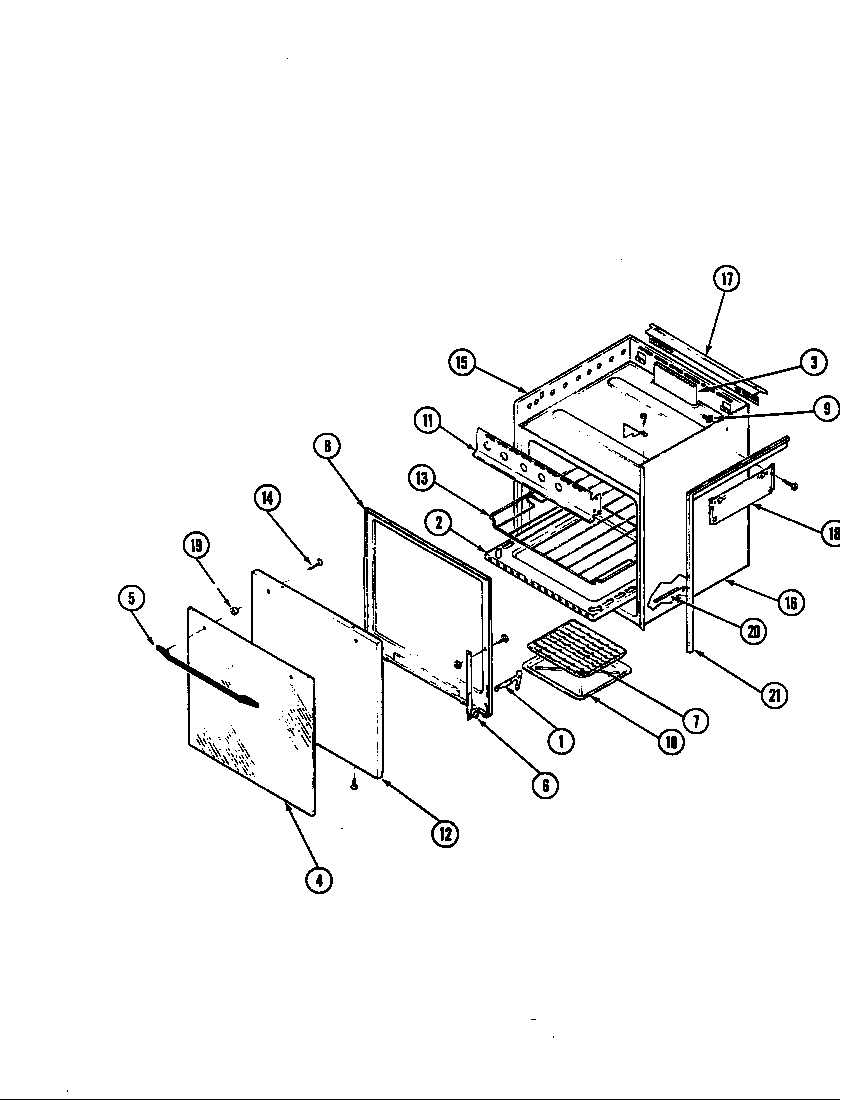

Cavity & door diagram

Door hinge

Part #3418A058-34

Replaced by #12400029

?
Manufacturer substitution
This part replaces 3418A058-34. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Tube, 3/16 O 7506P043-60
#21

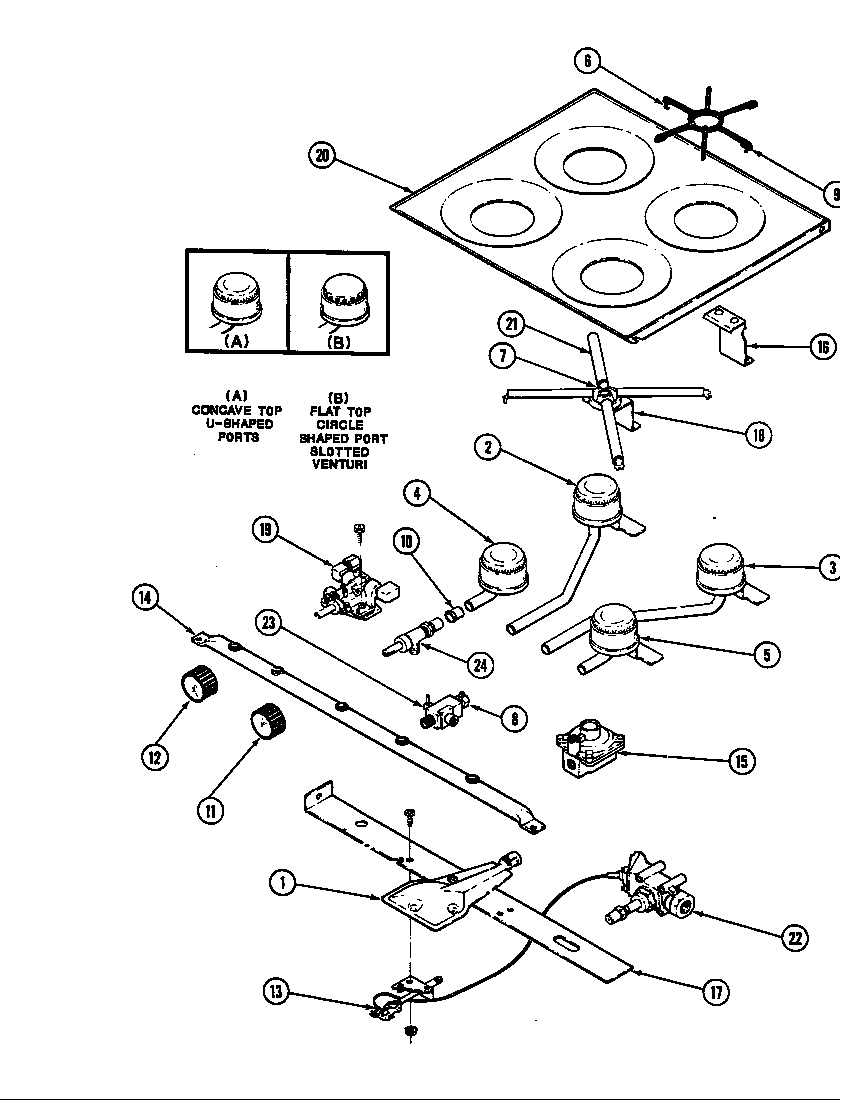

Main top & burner assembly diagram

Tube, 3/16 o

Part #7506P043-60

The manufacturer no longer makes this part, and there's no substitute part

Regulator Pr 7510P032-60
#15A

Main top & burner assembly diagram

Regulator pr

Part #7510P032-60

The manufacturer no longer makes this part, and there's no substitute part

Knob 50-26276
#11

Main top & burner assembly diagram

Knob

Part #50-26276

The manufacturer no longer makes this part, and there's no substitute part

Knob 50-20281
#12A

Main top & burner assembly diagram

Knob

Part #50-20281

The manufacturer no longer makes this part, and there's no substitute part

Grate 50-25439
#9

Main top & burner assembly diagram

Grate

Part #50-25439

The manufacturer no longer makes this part, and there's no substitute part

Pressure Regulator 7510P031-60
#15B

Main top & burner assembly diagram

Pressure regulator

Part #7510P031-60

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 7515P025-60
#19

Main top & burner assembly diagram

Thermostat

Part #7515P025-60

The manufacturer no longer makes this part, and there's no substitute part

Top, Main Bl 2001F057-70
#20

Main top & burner assembly diagram

Top, main bl

Part #2001F057-70

The manufacturer no longer makes this part, and there's no substitute part

Burner Assembly 7505P142-60
Burner assembly

Part #7505P142-60

The manufacturer no longer makes this part, and there's no substitute part
