Model # 695475770 Official Sears 26" lotus 3000m atb

Here are the diagrams and repair parts for Official Sears 695475770 26" lotus 3000m atb, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Hd Brng Set 019017
#7

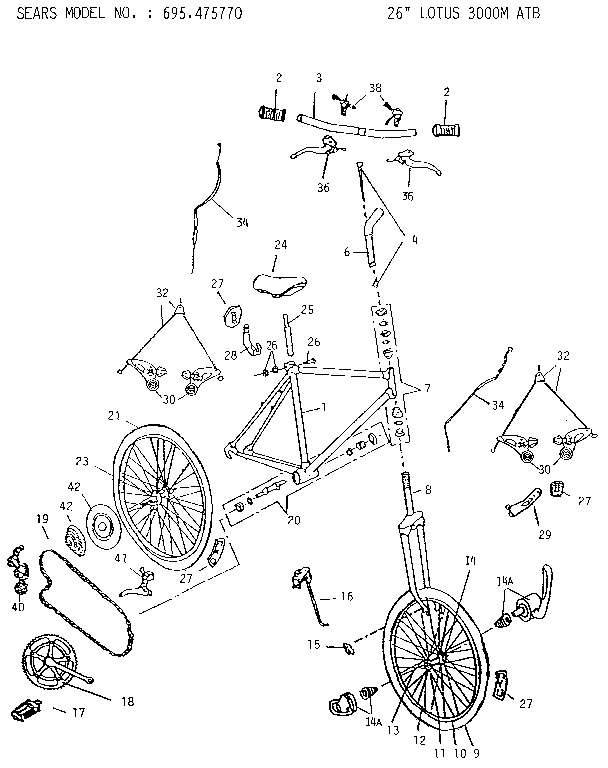

Unit parts diagram

Hd brng set

Part #019017

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Brake Tool 103015

#NI

All parts diagram

Lifestyler brake tool

Part #103015

The manufacturer no longer makes this part, and there's no substitute part

Crank Set 060038
#18

Unit parts diagram

Crank set

Part #060038

The manufacturer no longer makes this part, and there's no substitute part

Refl Brkt 082001
#28

Unit parts diagram

Refl brkt

Part #082001

The manufacturer no longer makes this part, and there's no substitute part

Bca Tool 103017

#NI

All parts diagram

Bca tool

Part #103017

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Quik Release 115001
#14A

Unit parts diagram

Ming ta quik release

Part #115001

The manufacturer no longer makes this part, and there's no substitute part

Crank Extrtr 103012

#NI

All parts diagram

Crank extrtr

Part #103012

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 009071
#3

Unit parts diagram

Handlebar

Part #009071

The manufacturer no longer makes this part, and there's no substitute part

Axle/brg Set 053007
#14

Unit parts diagram

Axle/brg set

Part #053007

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 076054
#16

Unit parts diagram

Kickstand

Part #076054

The manufacturer no longer makes this part, and there's no substitute part
