Amana
Upright Freezer

Model # AZF33X16DW00 Official Amana freezer

Here are the diagrams and repair parts for Official Amana AZF33X16DW00 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

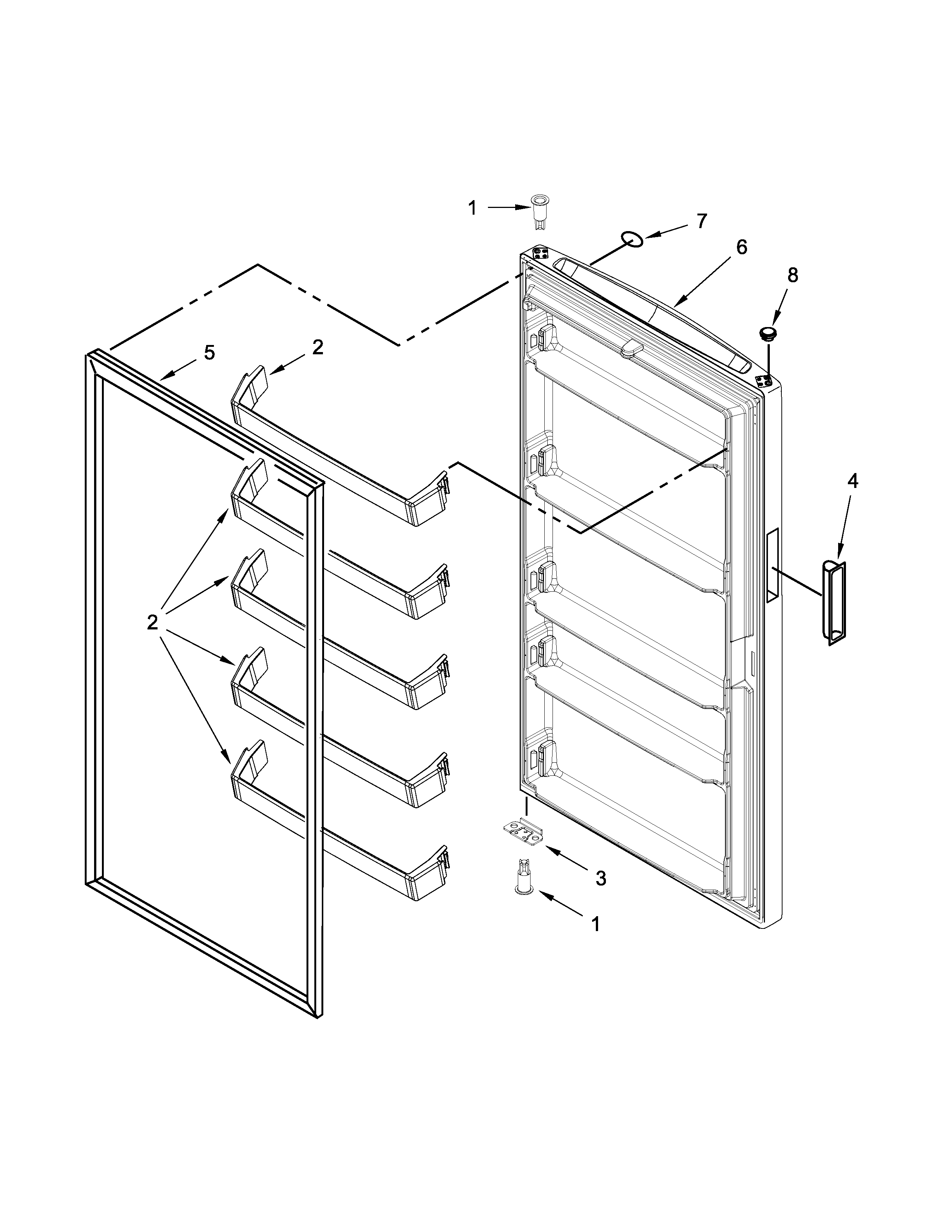

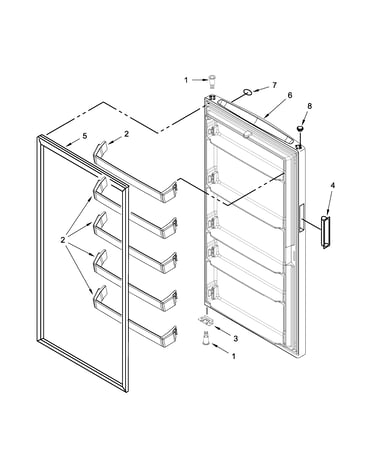

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Drier Assembly W10709968
#16

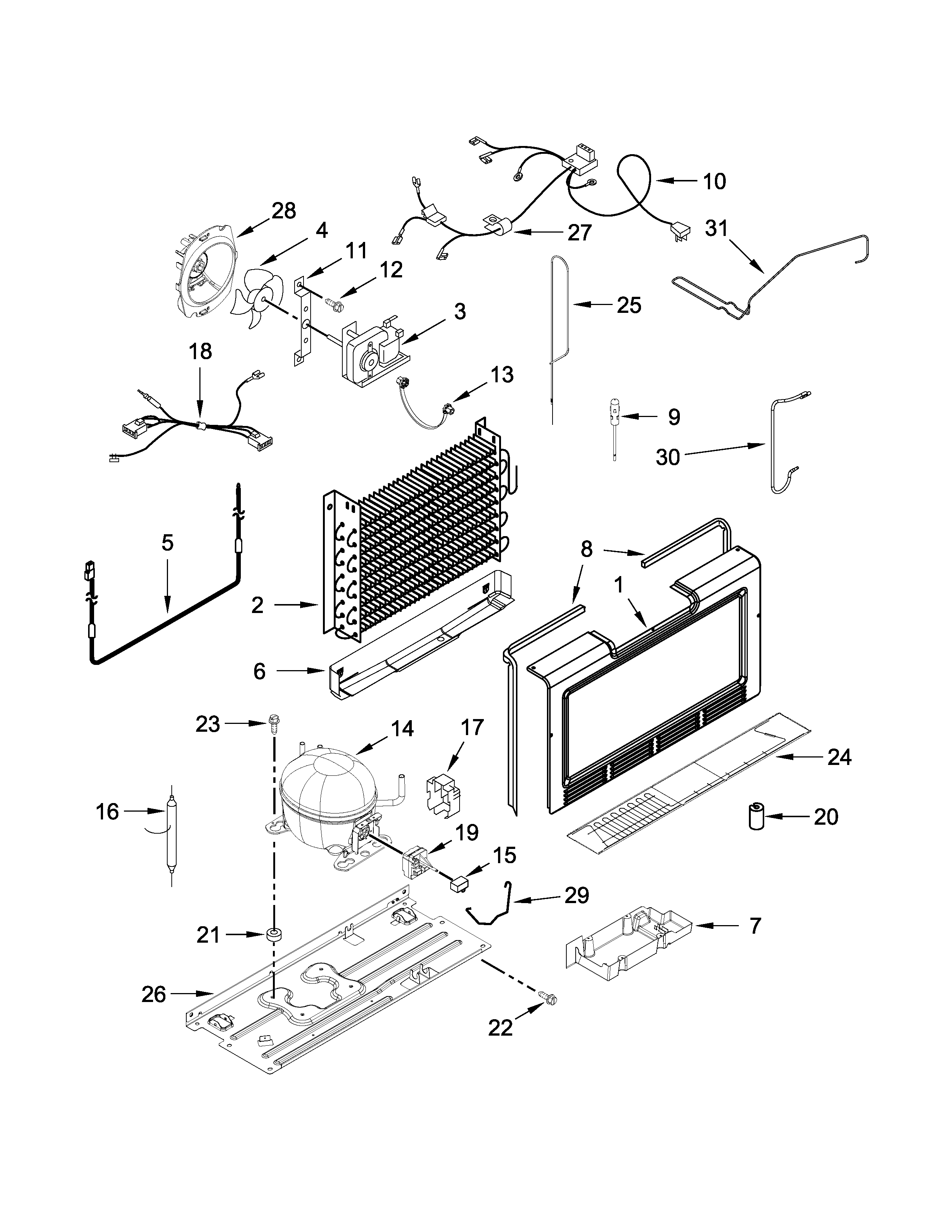

Unit parts diagram

Drier assembly

Part #W10709968

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10709968. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb W10311505
#7

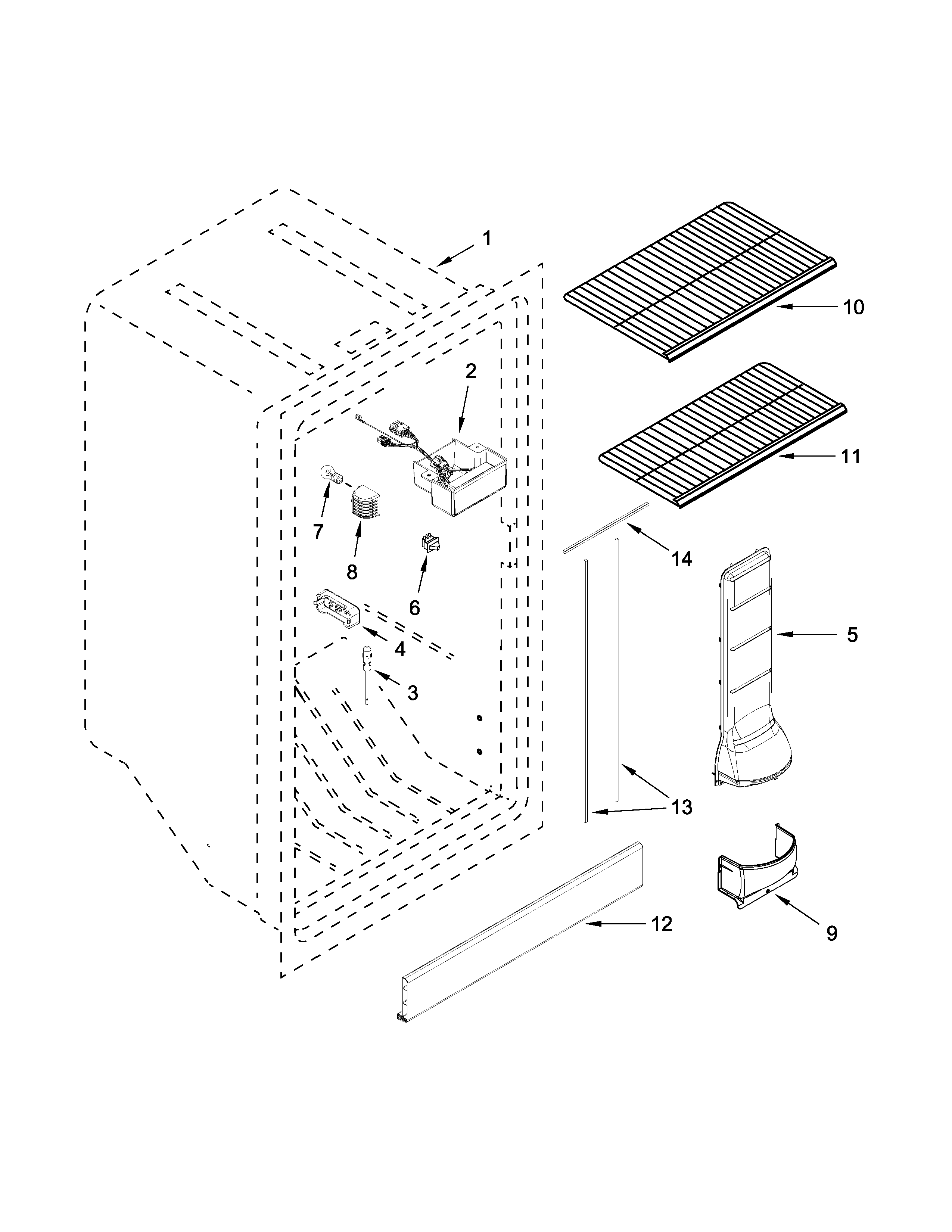

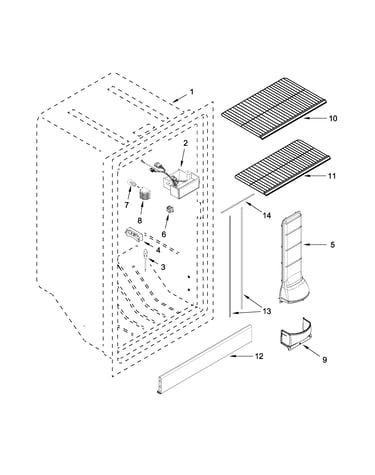

Liner parts diagram

Refrigerator light bulb

Part #W10311505

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Refrigerator Evaporator Fan Blade 2169142
#4

Unit parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Run Capacitor W10350564
#15

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$47.79 |
11% OFF Phone Price : $53.79
In Stock
Refrigerator Defrost Heater W10316428
#5

Unit parts diagram

Refrigerator defrost heater

Part #W10316428

Replaced by #WPW10316428

?
Manufacturer substitution
This part replaces W10316428. Substitute parts can look different from the original.
BEST SELLER
$106.51 |
10% OFF Phone Price : $118.51
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts (not included) diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#NI

Optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Screw 3400113
#9

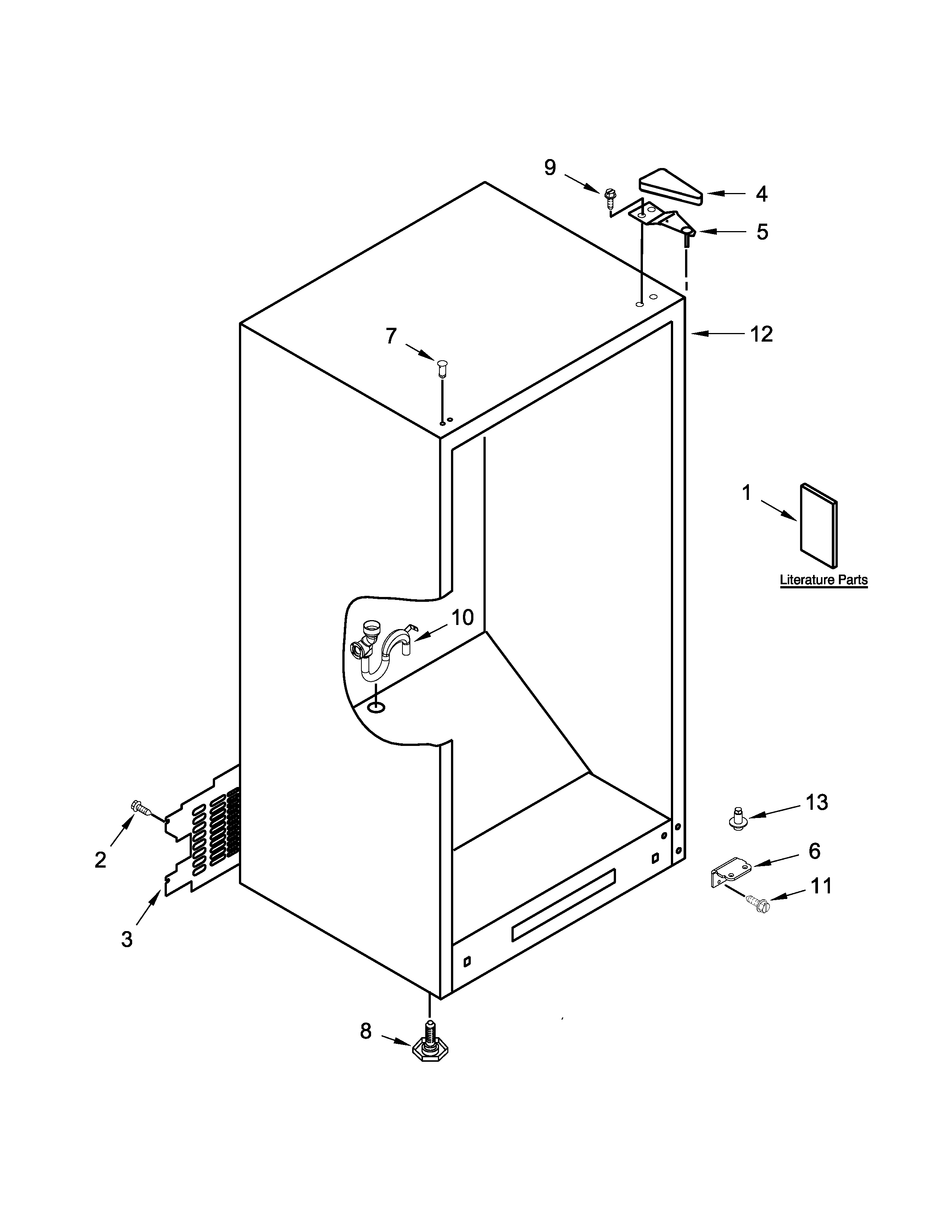

Cabinet parts diagram

Screw

Part #3400113

Replaced by #WP489497

?
Manufacturer substitution
This part replaces 3400113. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Evaporator Motor W10359880
#3

Unit parts diagram

Evaporator motor

Part #W10359880

Replaced by #WPW10359880

?
Manufacturer substitution
This part replaces W10359880. Substitute parts can look different from the original.
$41.17 |
13% OFF Phone Price : $47.17
In Stock
Screw 3-80732-014
Screw

Part #3-80732-014

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3-80732-014. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
