Model # DV5471AGW/XAA-01 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DV5471AGW/XAA-01 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDV5471AGW/XAA-01 Dryer

  • Roller DC97-07523B
    Roller

    Part #DC97-07523B

    Replaced by #DC97-16782A

    ?
    Manufacturer substitution
    This part replaces DC97-07523B. Substitute parts can look different from the original.
    4.9 (13)
    BEST SELLER
    $39.43 |
    13% OFF Phone Price : $45.43
    In Stock
  • Dryer Thermistor DC32-00007A
    #2-3

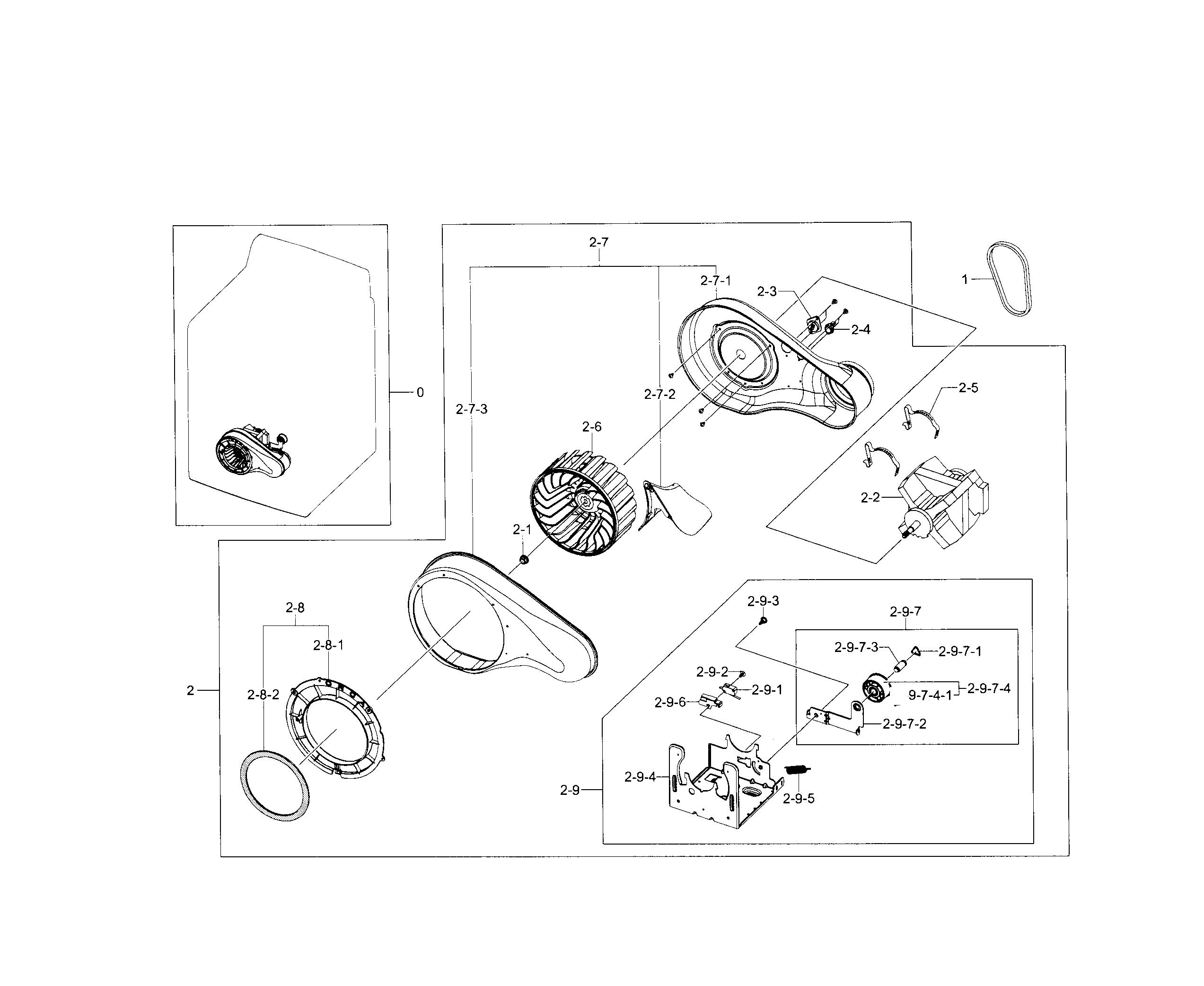

    Motor duct diagram

    Dryer thermistor

    Part #DC32-00007A

    4 (8)
    BEST SELLER
    $27.97 |
    18% OFF Phone Price : $33.97
    In Stock
  • Dryer Thermal Cut-off Thermostat DC47-00016A
    #2-4

    Motor duct diagram

    Dryer thermal cut-off thermostat

    Part #DC47-00016A

    3.9 (7)
    BEST SELLER
    $24.23 |
    20% OFF Phone Price : $30.23
    In Stock
  • Dryer Drive Motor DC31-00055H
    #2-2

    Motor duct diagram

    Dryer drive motor

    Part #DC31-00055H

    Replaced by #DC31-00055G

    ?
    Manufacturer substitution
    This part replaces DC31-00055H. Substitute parts can look different from the original.
    3.9 (7)
    BEST SELLER
    $272.11 |
    $12.00 OFF Phone Price : $284.11
    In Stock
  • Dryer Door Switch DC64-00828B
    #2-29

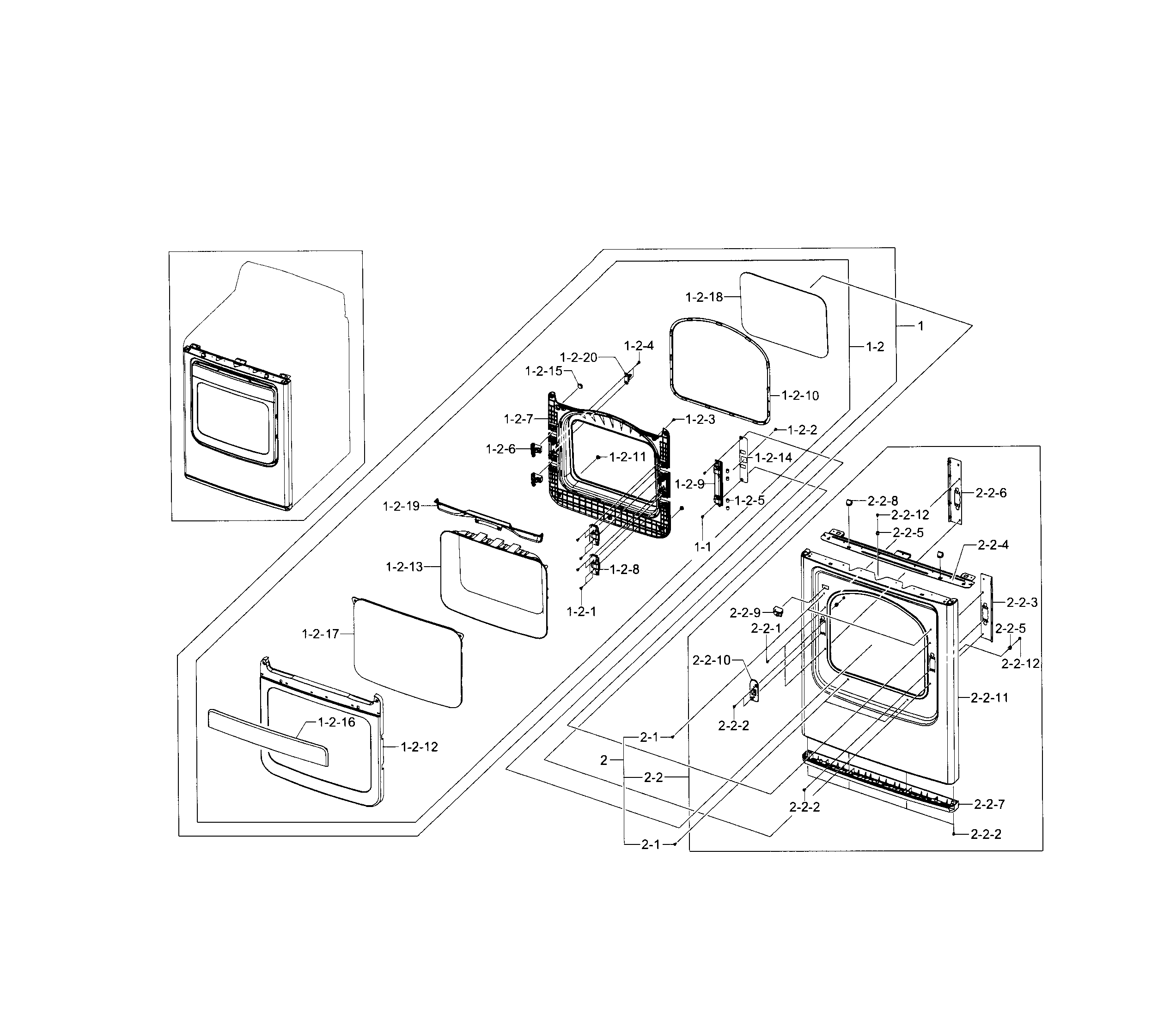

    Front & door diagram

    Dryer door switch

    Part #DC64-00828B

    5 (1)
    BEST SELLER
    $40.04 |
    13% OFF Phone Price : $46.04
    In Stock
  • Dryer High-limit Thermostat DC47-00017A
    #1-3

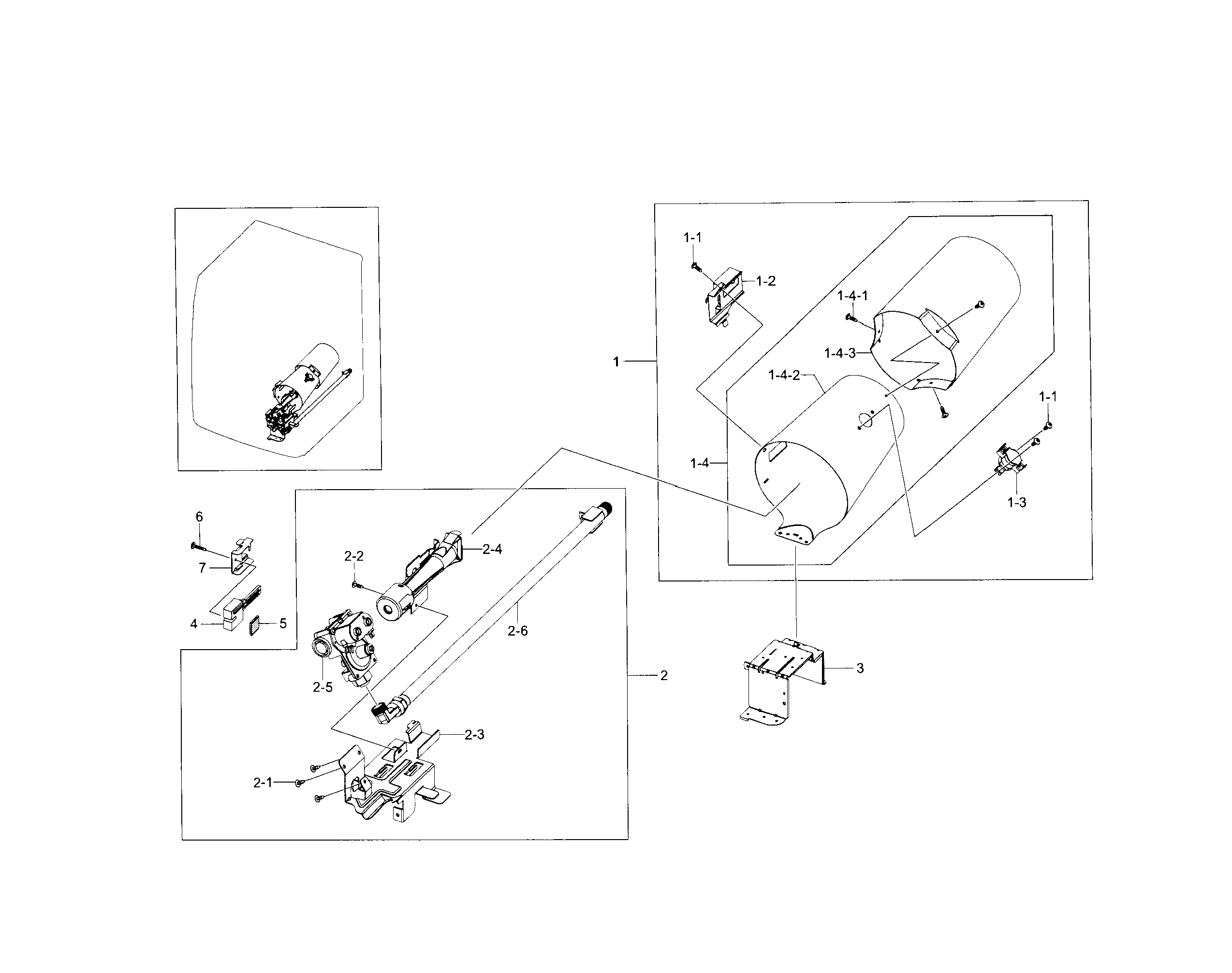

    Duct & burner diagram

    Dryer high-limit thermostat

    Part #DC47-00017A

    BEST SELLER
    $76.77 |
    7% OFF Phone Price : $82.77
    In Stock
  • Dryer Blower Wheel DC67-00180B
    #2-6

    Motor duct diagram

    Dryer blower wheel

    Part #DC67-00180B

    1 (1)
    BEST SELLER
    $116.40 |
    9% OFF Phone Price : $128.40
    In Stock
  • Dryer Wire Harness DC96-00766A
    #1274

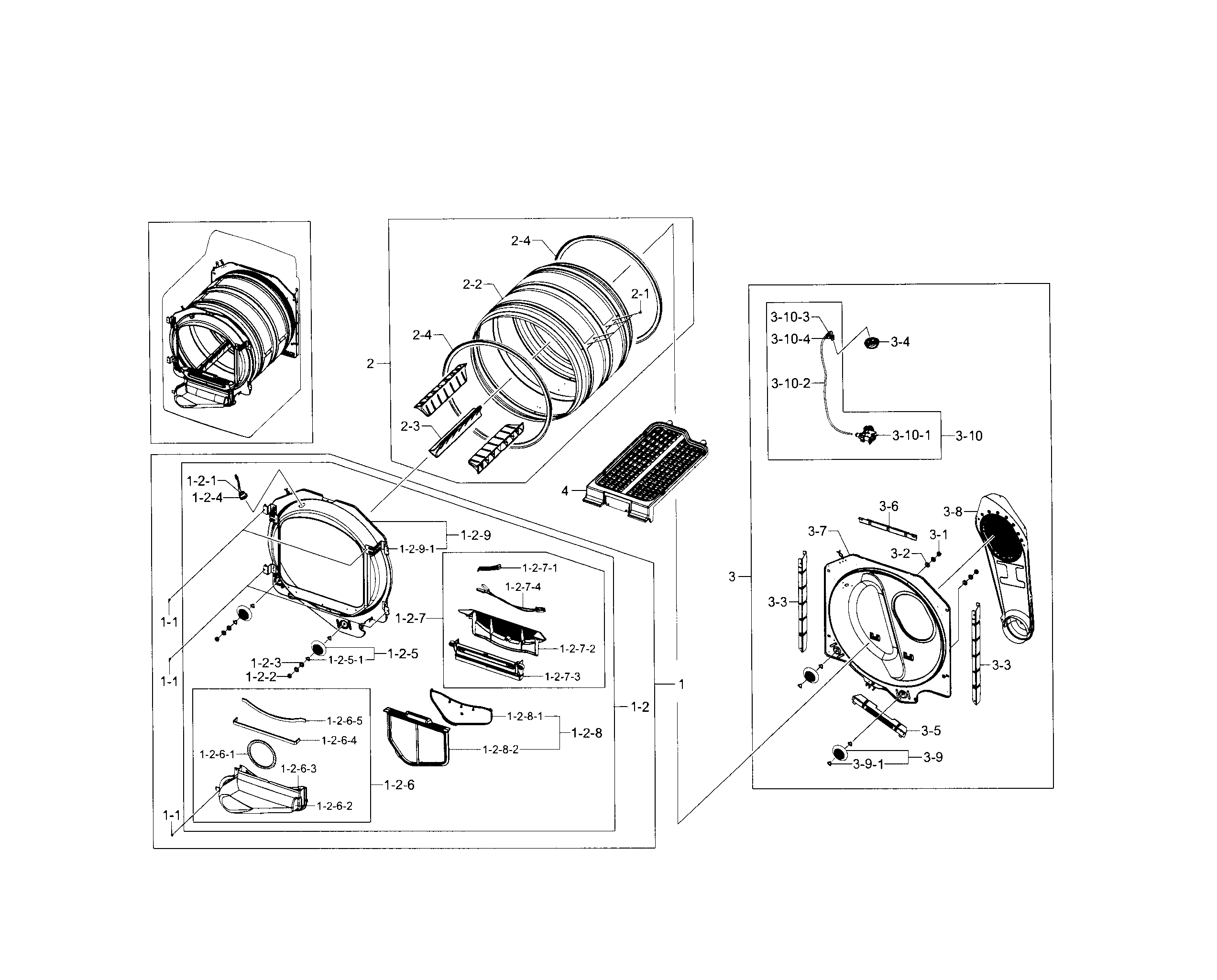

    Drum diagram

    Dryer wire harness

    Part #DC96-00766A

    BEST SELLER
    This item is not returnable
    $14.38 |
    12% OFF Phone Price : $16.38
    In Stock
  • Dryer Idler Spring DC61-01215B
    #2-95

    Motor duct diagram

    Dryer idler spring

    Part #DC61-01215B

    5 (1)
    BEST SELLER
    This item is not returnable
    $7.67 |
    12% OFF Phone Price : $8.67
    In Stock
  • Dryer Lint Filter DC61-03048A
    #1282

    Drum diagram

    Dryer lint filter

    Part #DC61-03048A

    $90.89 |
    6% OFF Phone Price : $96.89
    In Stock
