Model # F7410-900 Official Hoover steam cleaner

Here are the diagrams and repair parts for Official Hoover F7410-900 steam cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |

Float Retainer 38719043
#7

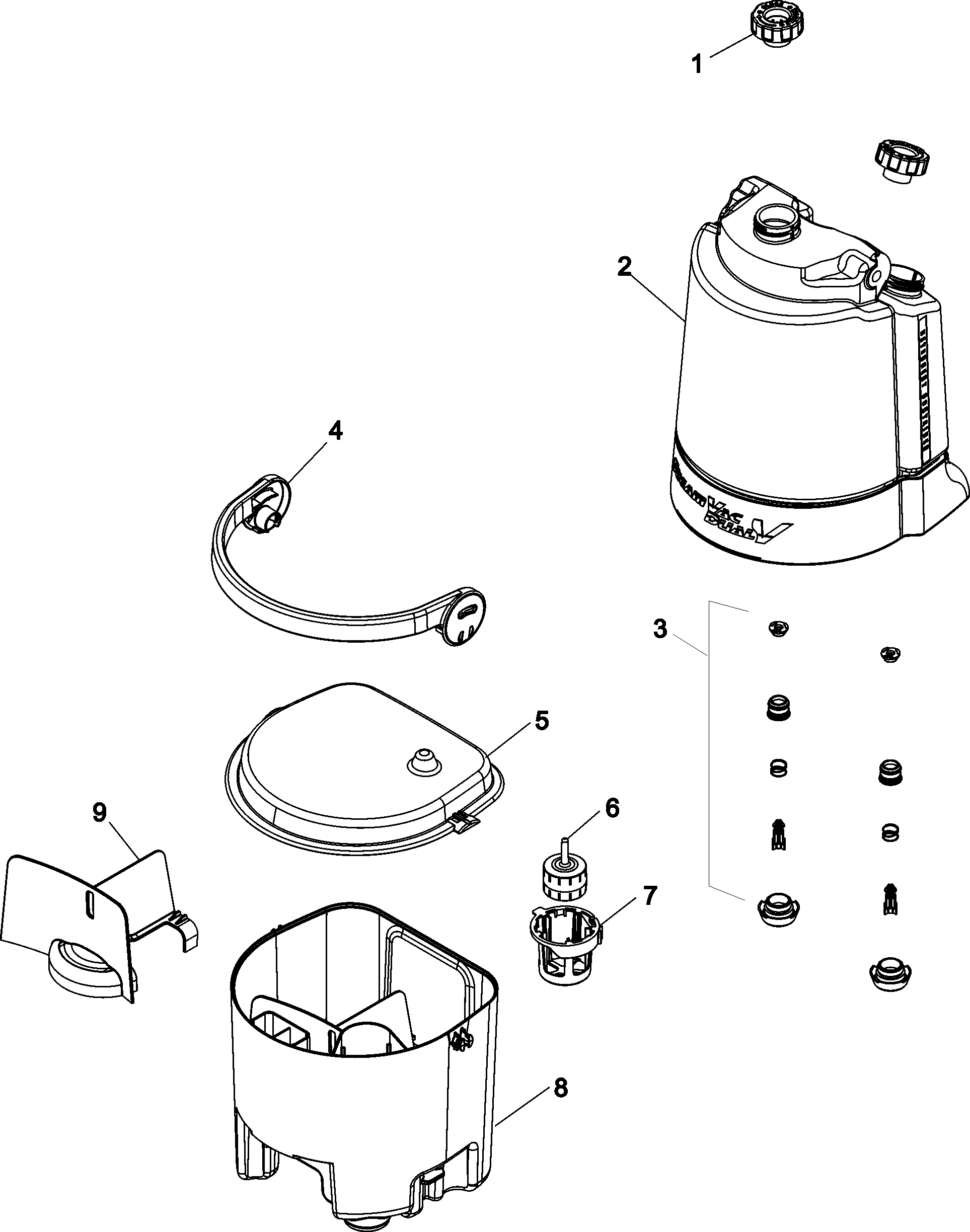

Tanks diagram

Float retainer

Part #38719043

The manufacturer no longer makes this part, and there's no substitute part

Support 46658005
#15

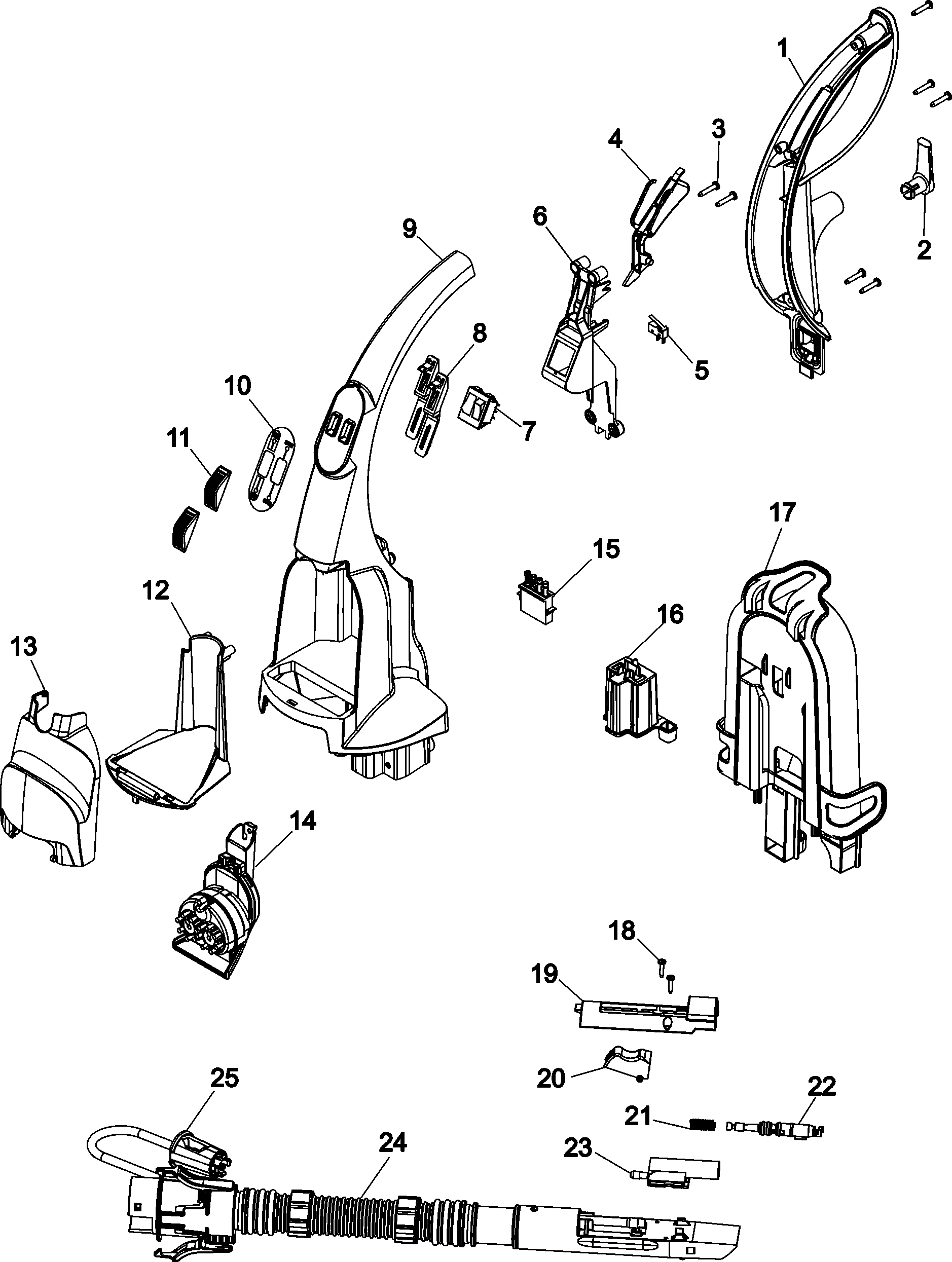

Upper handle diagram

Support

Part #46658005

The manufacturer no longer makes this part, and there's no substitute part

In Knob 38421105
#40

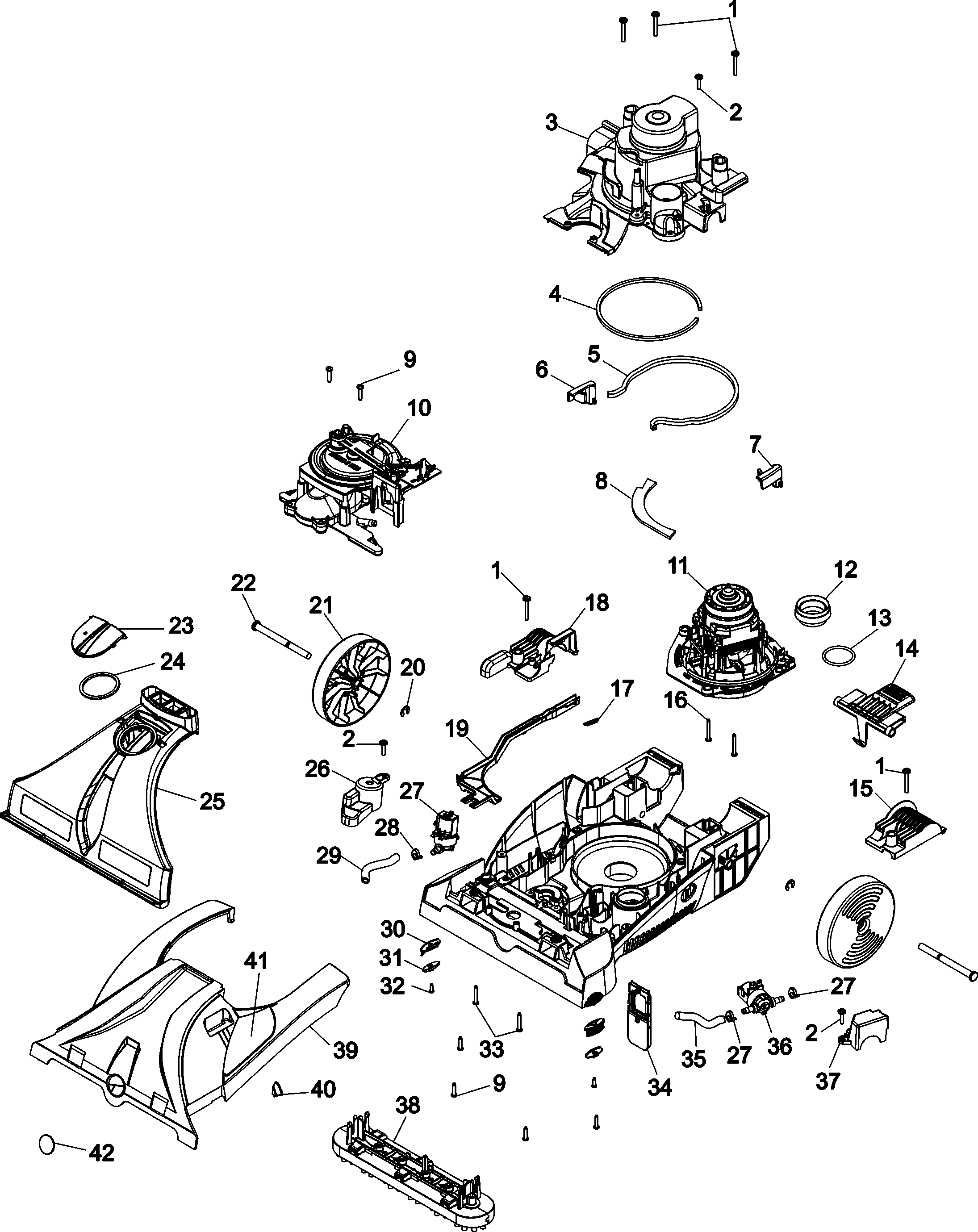

Foot diagram

In knob

Part #38421105

The manufacturer no longer makes this part, and there's no substitute part

Insulator 34264006
Insulator

Part #34264006

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#3

Upper handle diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Pump 43582011
#14

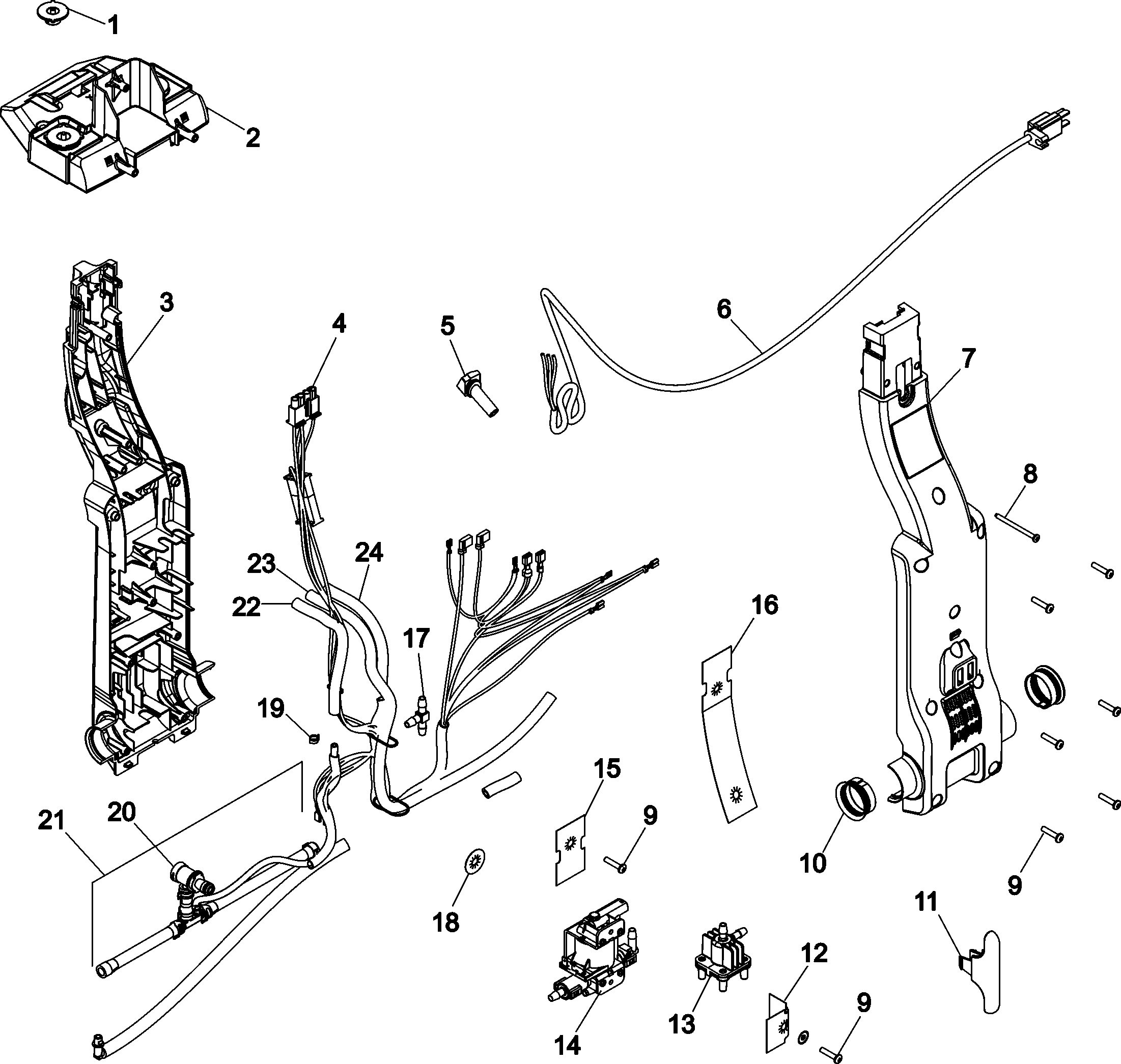

Lower handle diagram

Carpet cleaner pump

Part #43582011

The manufacturer no longer makes this part, and there's no substitute part

Insulator 34264007
#18

Lower handle diagram

Insulator

Part #34264007

The manufacturer no longer makes this part, and there's no substitute part

Wiring 46658003
#4

Lower handle diagram

Wiring

Part #46658003

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Standpipe Seal 38784063
#12

Foot diagram

Regina carpet cleaner standpipe seal

Part #38784063

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Wand Cover 37276006
#19

Upper handle diagram

Regina carpet cleaner wand cover

Part #37276006

The manufacturer no longer makes this part, and there's no substitute part
