Model # F7410-900 Official Hoover steam cleaner

Here are the diagrams and repair parts for Official Hoover F7410-900 steam cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |

Float 43538002
#6

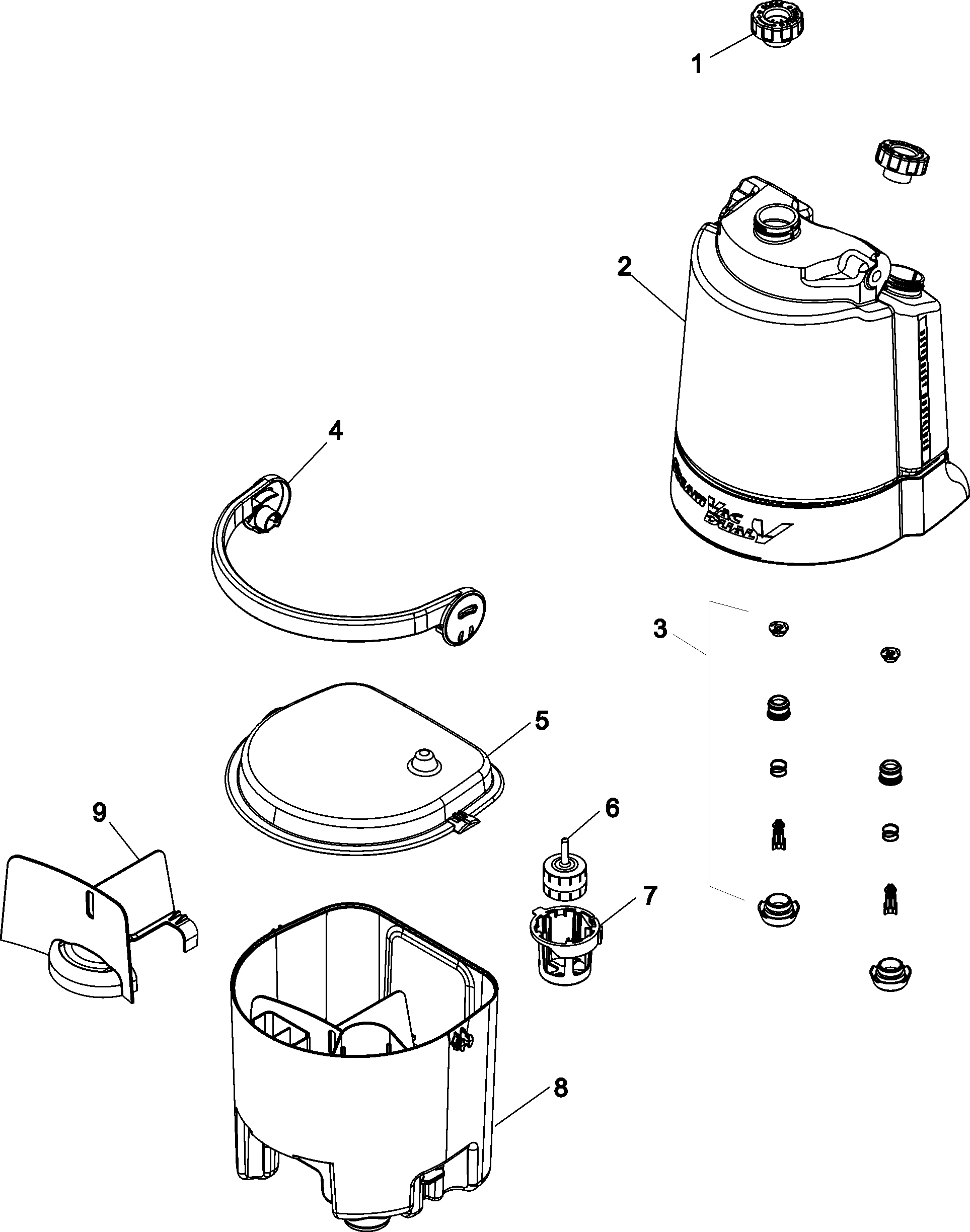

Tanks diagram

Float

Part #43538002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw And Washer 23149004
#1

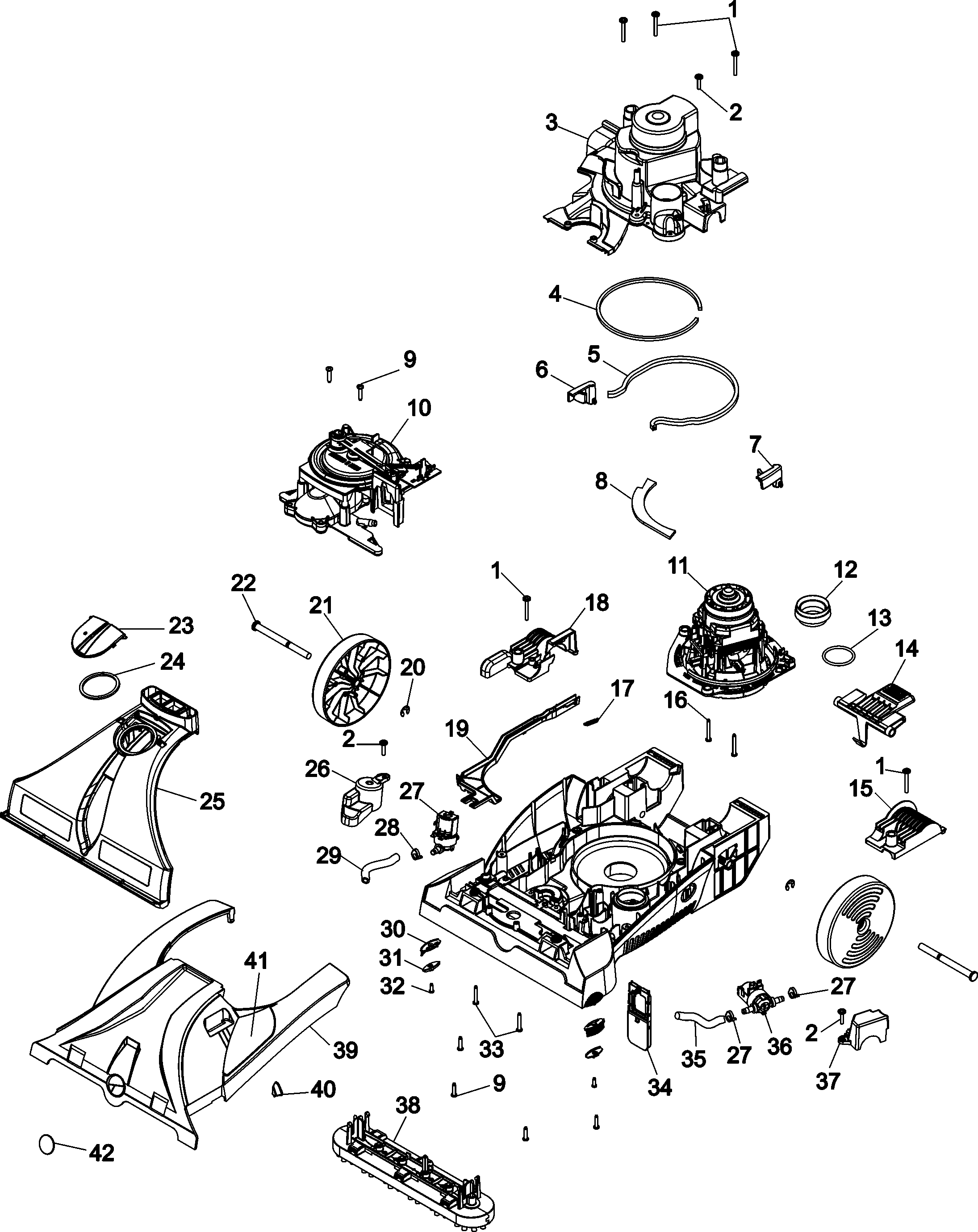

Foot diagram

Vacuum screw and washer

Part #23149004

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Recovery Tank Pressure Valve 43513013
#13

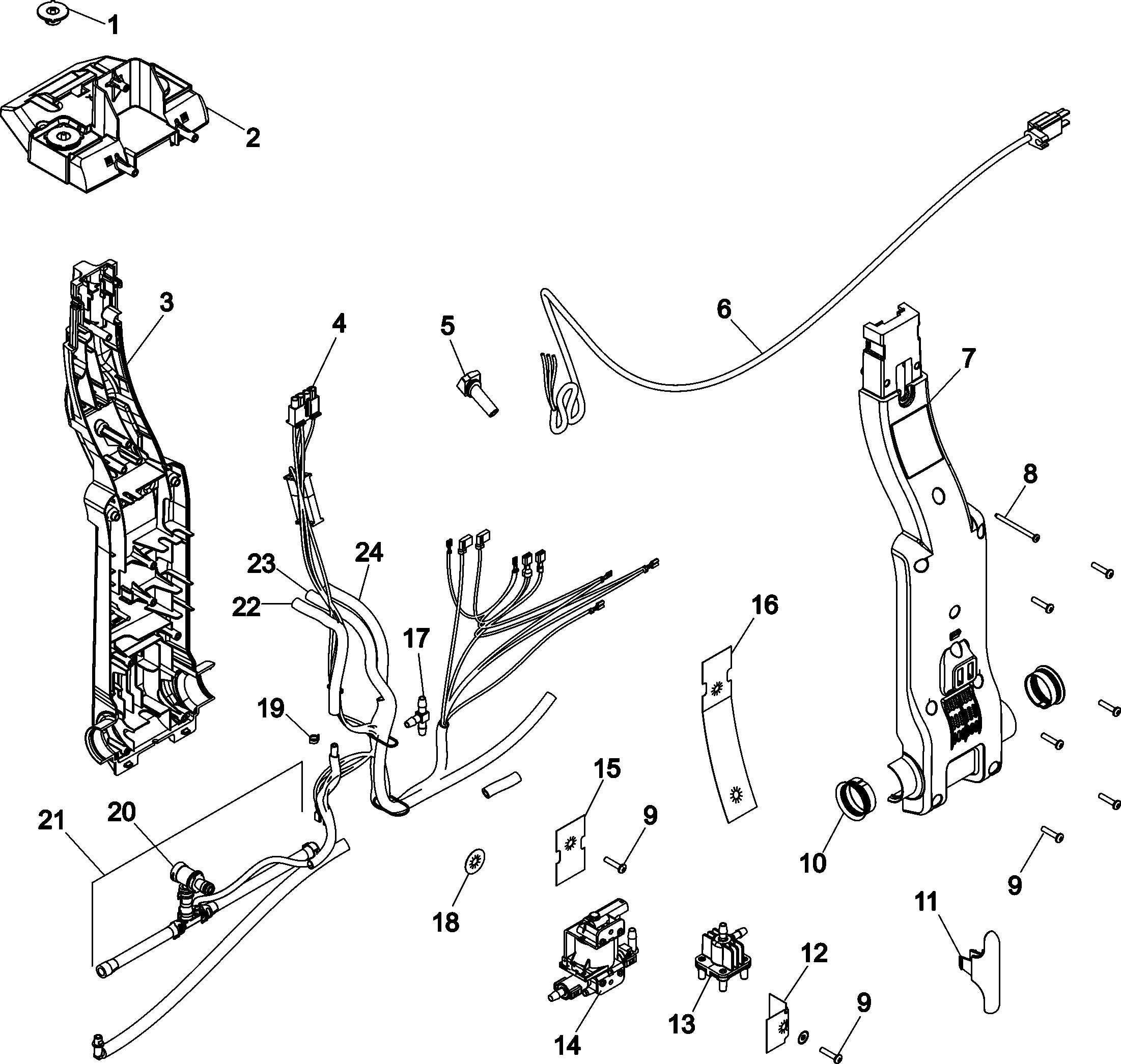

Lower handle diagram

Carpet cleaner recovery tank pressure valve

Part #43513013

The manufacturer no longer makes this part, and there's no substitute part

Wiring 46658003
#4

Lower handle diagram

Wiring

Part #46658003

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Control Lever 38434030
#4

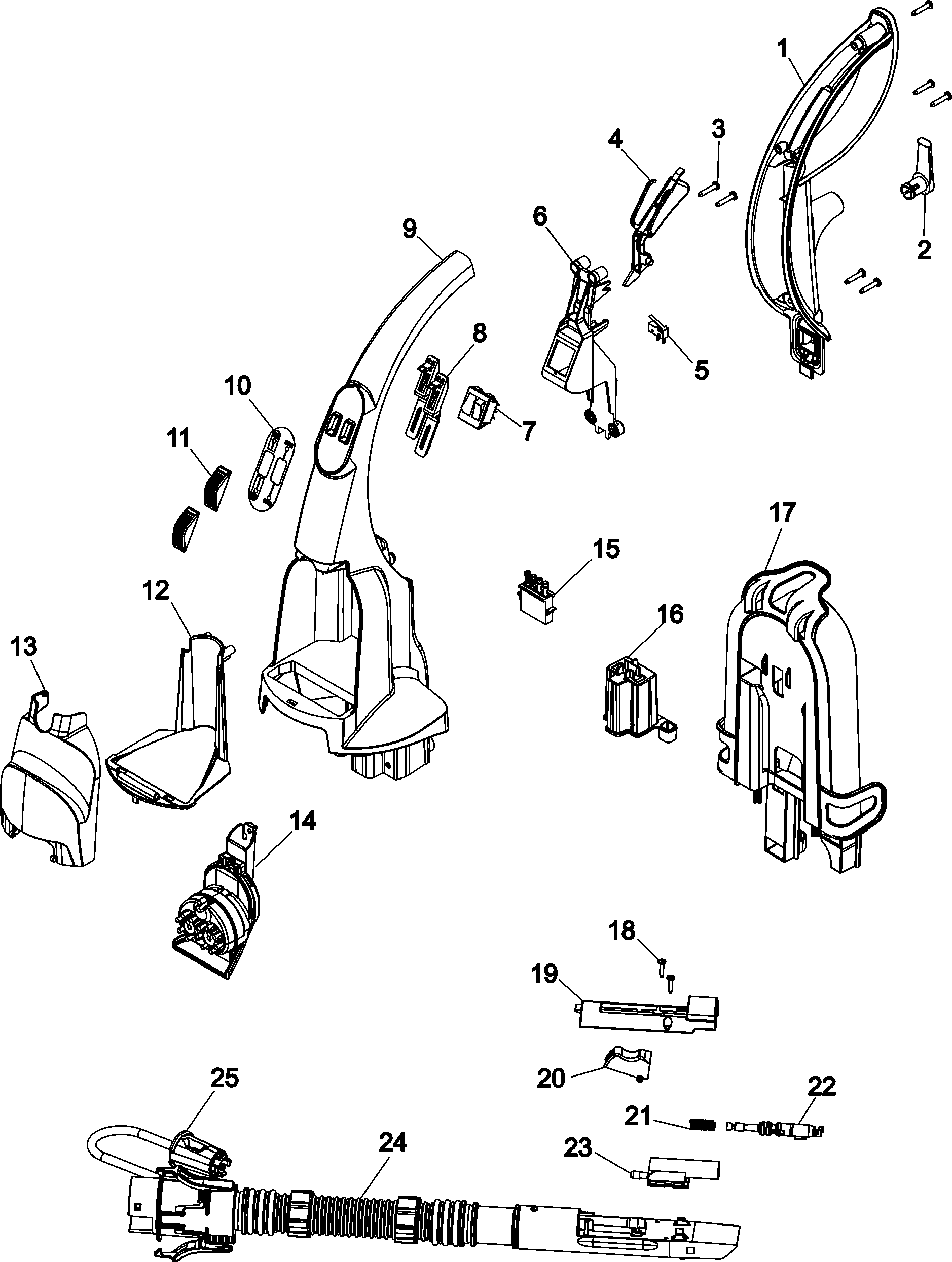

Upper handle diagram

Carpet cleaner control lever

Part #38434030

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Motor Seal 34113004
#4

Foot diagram

Regina carpet cleaner motor seal

Part #34113004

The manufacturer no longer makes this part, and there's no substitute part

Insulator 34264006
Insulator

Part #34264006

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve 25686057
#27

Foot diagram

Carpet cleaner solution valve

Part #25686057

The manufacturer no longer makes this part, and there's no substitute part

In Knob 38421105
#40

Foot diagram

In knob

Part #38421105

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Pump 43582011
#14

Lower handle diagram

Carpet cleaner pump

Part #43582011

The manufacturer no longer makes this part, and there's no substitute part
