Amana
Upright Freezer

Model # DFU18 Official Amana chest & upright home freezer

Here are the diagrams and repair parts for Official Amana DFU18 chest & upright home freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Hinge Bearing Sleeve A0376101
Hinge bearing sleeve

Part #A0376101

The manufacturer no longer makes this part, and there's no substitute part

Liner & Heat Exchanger Assembly (holes Must Be Drilled O A0039901

#NI

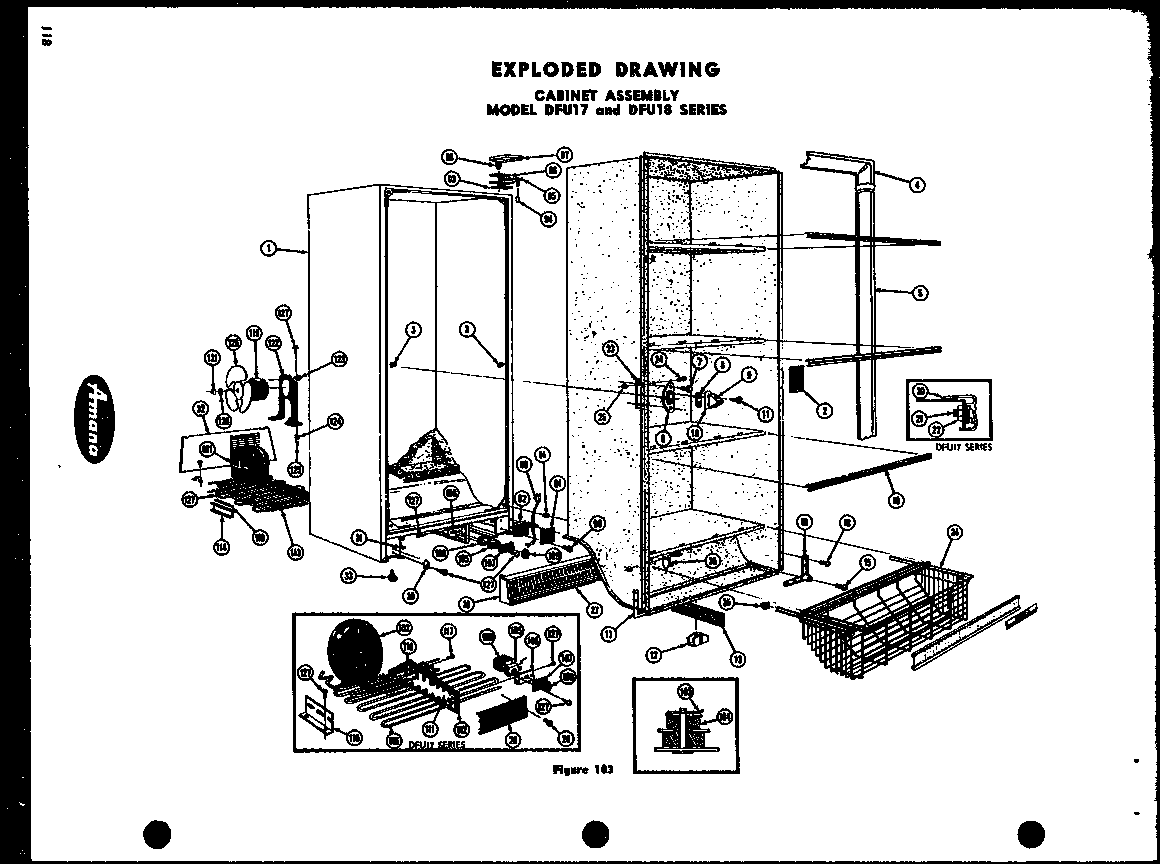

All parts diagram

Liner & heat exchanger assembly (holes must be drilled o

Part #A0039901

The manufacturer no longer makes this part, and there's no substitute part

Relay, Spencer #9660-013-991 B0514605

#NI

All parts diagram

Relay, spencer #9660-013-991

Part #B0514605

The manufacturer no longer makes this part, and there's no substitute part

Shelf Plug, Basket Rail Mounting A0382701
Shelf plug, basket rail mounting

Part #A0382701

The manufacturer no longer makes this part, and there's no substitute part

Cover, Top Hinge B0522001
Cover, top hinge

Part #B0522001

The manufacturer no longer makes this part, and there's no substitute part

Condenser Spacer R.h. B0487901
Condenser spacer r.h.

Part #B0487901

The manufacturer no longer makes this part, and there's no substitute part

Sems Fastener, 8a X 5/8" Special Door Panel Mounting A3004701
#49A

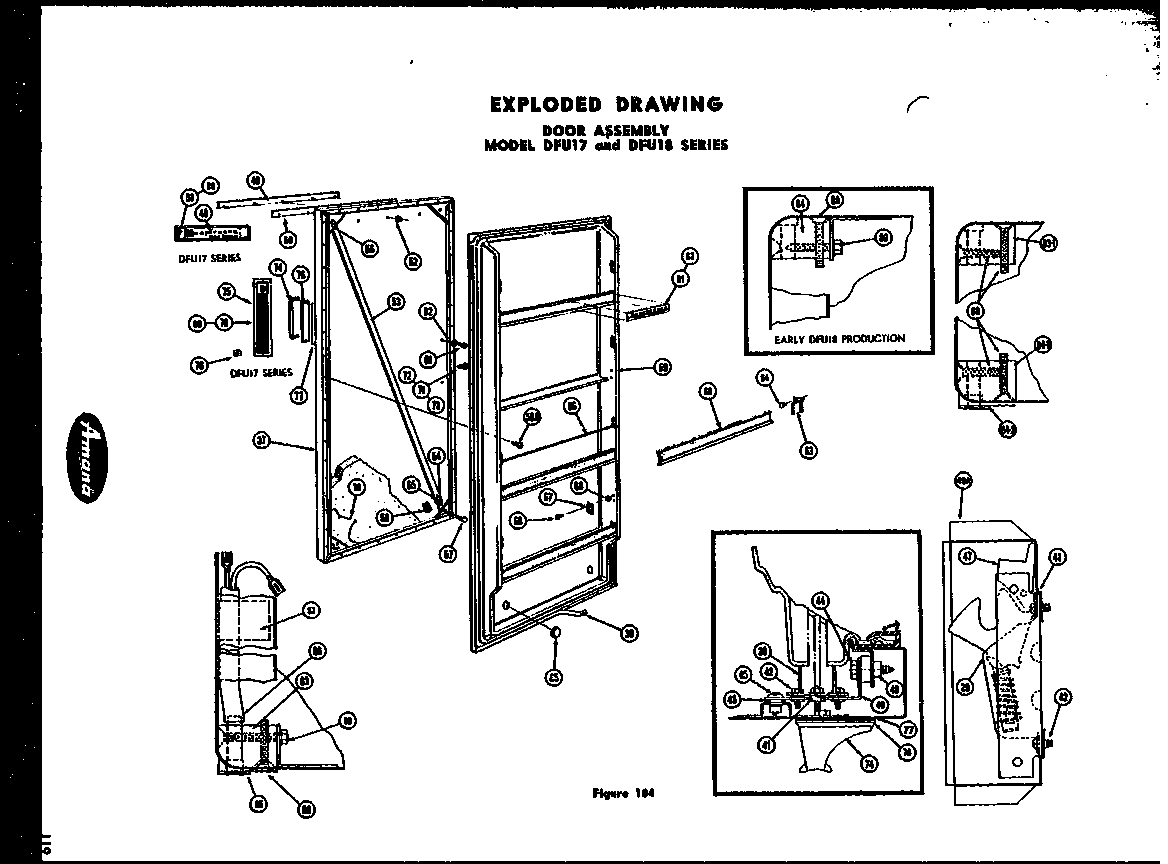

Door assembly diagram

Sems fastener, 8a x 5/8" special door panel mounting

Part #A3004701

The manufacturer no longer makes this part, and there's no substitute part

Inner Door Panel, Plastic, Buff D3717001
#49A

Door assembly diagram

Inner door panel, plastic, buff

Part #D3717001

The manufacturer no longer makes this part, and there's no substitute part

Key, Set Of 2 A0382001
#72

Door assembly diagram

Key, set of 2

Part #A0382001

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness, Door B0517801
#70B

Door assembly diagram

Wiring harness, door

Part #B0517801

The manufacturer no longer makes this part, and there's no substitute part
