Model # 08900B Official Dirt Devil wet/dry vacuum

Here are the diagrams and repair parts for Official Dirt Devil 08900B wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

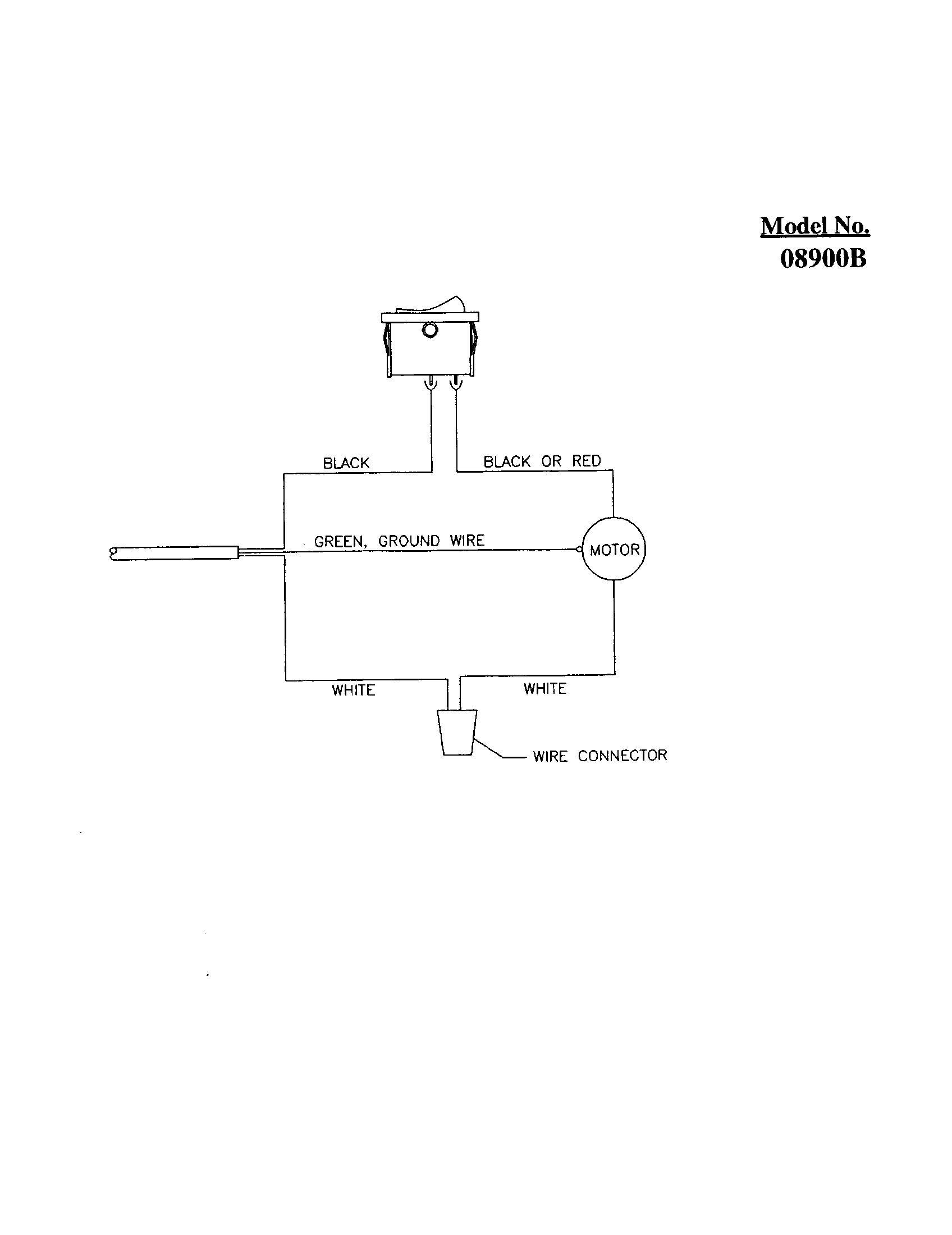

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |

Cord 1-120176-600
#9

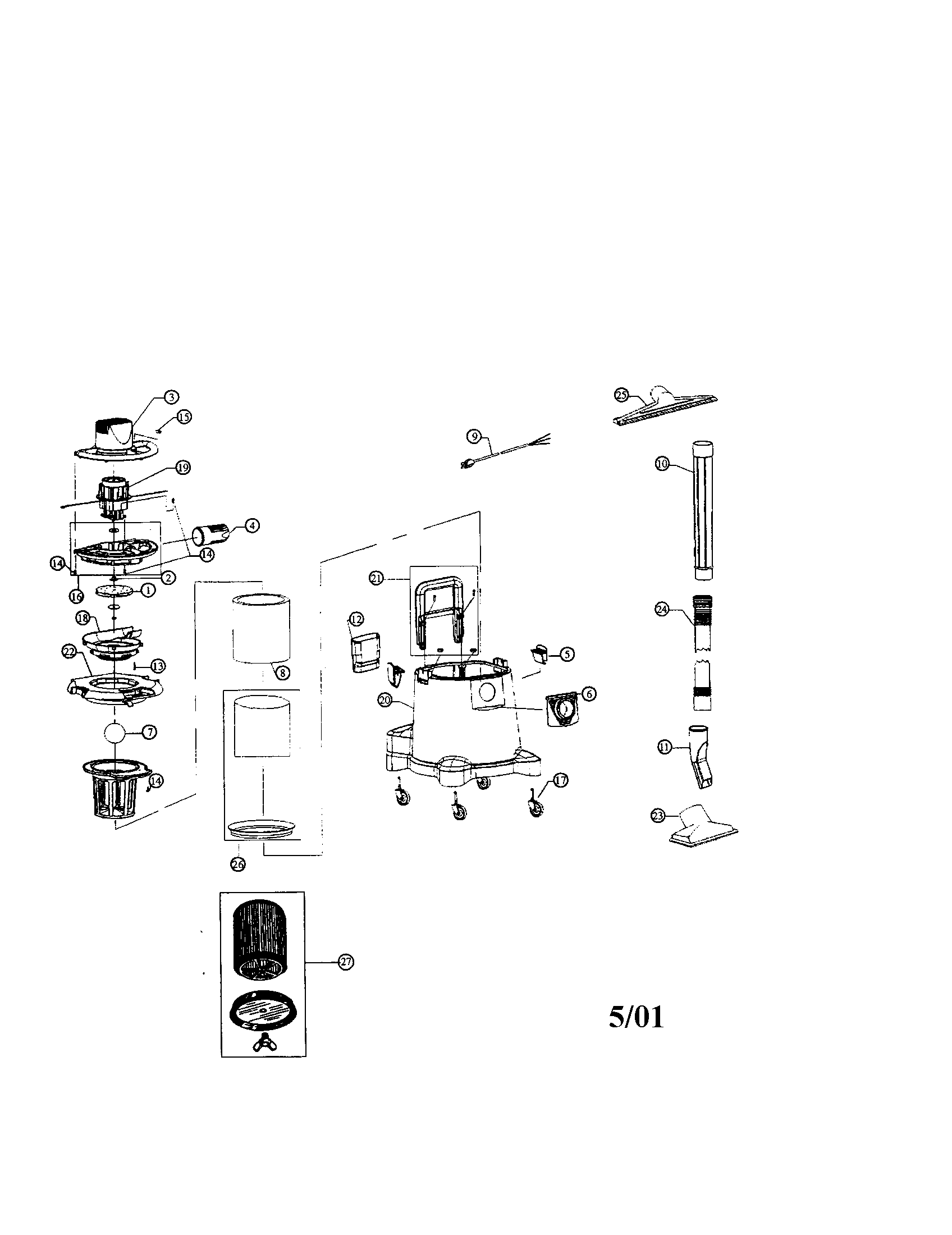

Wet/dry - 08900b diagram

Cord

Part #1-120176-600

The manufacturer no longer makes this part, and there's no substitute part

Dirt Devil Shop Vacuum Filter 3-120171-044
#27

Wet/dry - 08900b diagram

Dirt devil shop vacuum filter

Part #3-120171-044

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 1-720430-000
#14

Wet/dry - 08900b diagram

Vacuum screw

Part #1-720430-000

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Screw 1-250100-000
#13

Wet/dry - 08900b diagram

Upright vacuum screw

Part #1-250100-000

The manufacturer no longer makes this part, and there's no substitute part

Switch 1-720128-300
#15

Wet/dry - 08900b diagram

Switch

Part #1-720128-300

The manufacturer no longer makes this part, and there's no substitute part

Bucket 2-120075-600
#20

Wet/dry - 08900b diagram

Bucket

Part #2-120075-600

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 2-120009-000
#17

Wet/dry - 08900b diagram

Vacuum caster

Part #2-120009-000

The manufacturer no longer makes this part, and there's no substitute part

Latch 1-120090-600
#5

Wet/dry - 08900b diagram

Latch

Part #1-120090-600

The manufacturer no longer makes this part, and there's no substitute part

Inlet 1-120105-600
#6

Wet/dry - 08900b diagram

Inlet

Part #1-120105-600

The manufacturer no longer makes this part, and there's no substitute part

Filtr Foam 3-120165-001
#8

Wet/dry - 08900b diagram

Filtr foam

Part #3-120165-001

The manufacturer no longer makes this part, and there's no substitute part
