Gas Cooktop

Model # ZGU650ES3BG Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU650ES3BG gas cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forZGU650ES3BG Cooktops

  • Use And Care Guide 49-8714

    #NI

    All parts diagram

    Use and care guide

    Part #49-8714

    In Stock
  • Package Seal WB2X9830
    #2A

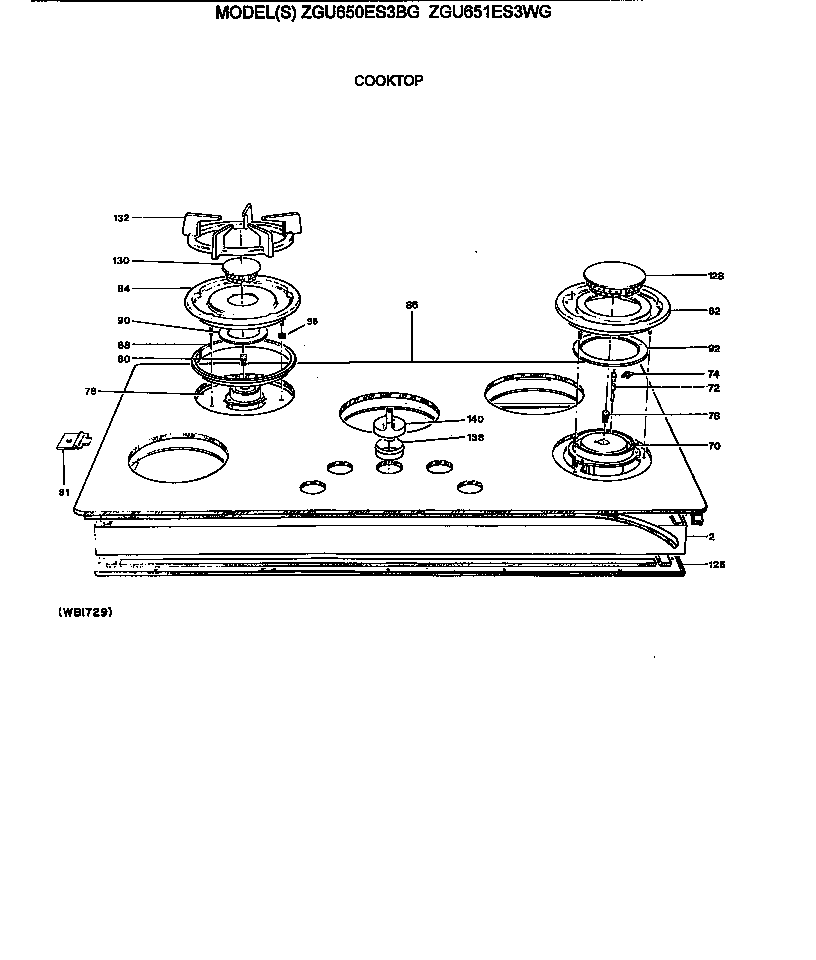

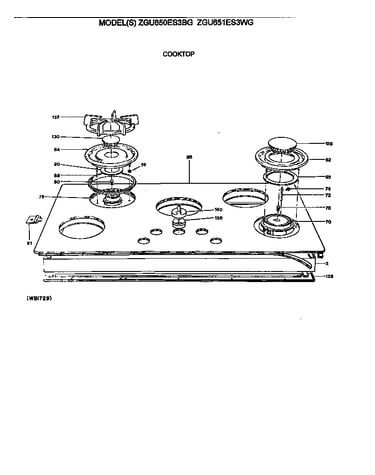

    Cooktop diagram

    Package seal

    Part #WB2X9830

    Replaced by #WB28K10257

    ?
    Manufacturer substitution
    This part replaces WB2X9830. Substitute parts can look different from the original.
    $78.31
    7% OFF Phone Price : $84.31
    In Stock
  • Package Seal WB2X9858
    #86

    Cooktop diagram

    Package seal

    Part #WB2X9858

    Replaced by #WB28K10257

    ?
    Manufacturer substitution
    This part replaces WB2X9858. Substitute parts can look different from the original.
    $78.31
    7% OFF Phone Price : $84.31
    In Stock
  • Range Drip Pan Seal WB2X9843
    #88

    Cooktop diagram

    Range drip pan seal

    Part #WB2X9843

    The manufacturer no longer makes this part, and there's no substitute part

  • Valve-reg WB21X514
    #8

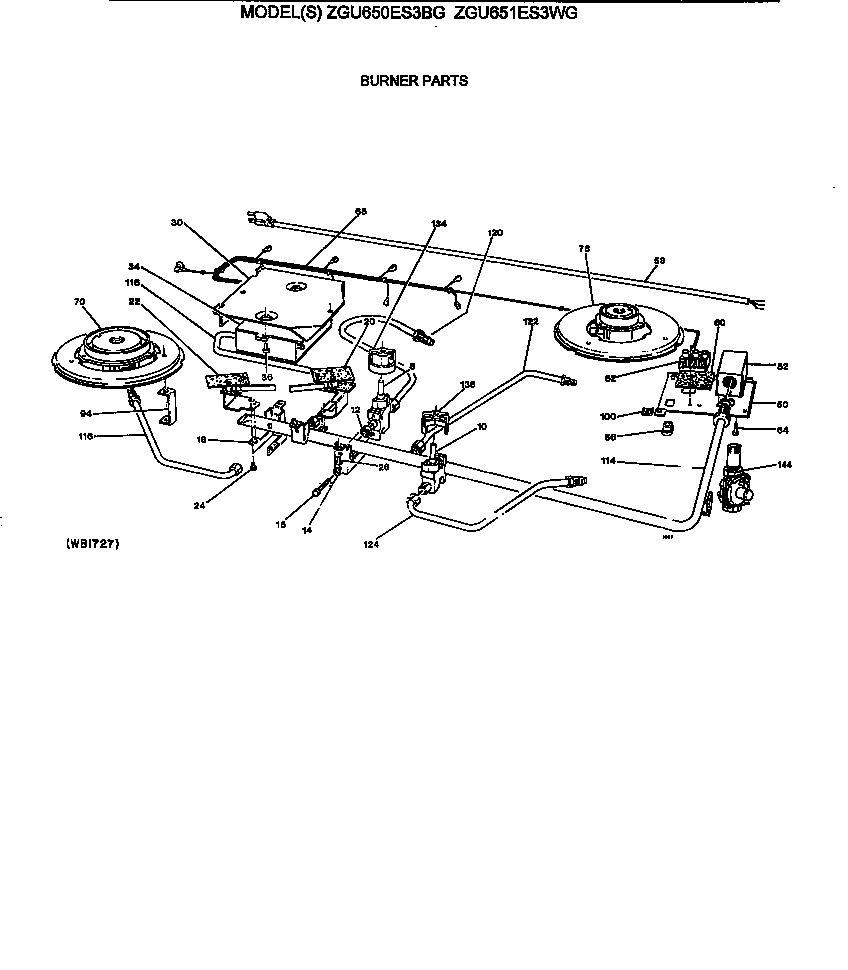

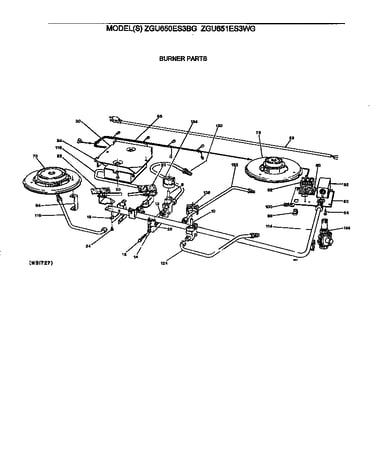

    Burner parts diagram

    Valve-reg

    Part #WB21X514

    The manufacturer no longer makes this part, and there's no substitute part

  • Large Burner WB28X119
    Large burner

    Part #WB28X119

    The manufacturer no longer makes this part, and there's no substitute part

  • Harness Ignition (prp) WB18K08
    #68A

    Burner parts diagram

    Harness ignition (prp)

    Part #WB18K08

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner Bo WB63X418
    #2B

    Cooktop diagram

    Burner bo

    Part #WB63X418

    The manufacturer no longer makes this part, and there's no substitute part

  • Seak-brnr WB2X9845
    #92

    Cooktop diagram

    Seak-brnr

    Part #WB2X9845

    The manufacturer no longer makes this part, and there's no substitute part

  • Saddle-ad WB2X9832
    #18

    Burner parts diagram

    Saddle-ad

    Part #WB2X9832

    The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your cooktops

Choose a symptom to see related cooktop repairs.

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
