Model # RM61000ES Official Broan range hood

Here are the diagrams and repair parts for Official Broan RM61000ES range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Range Hood Light Socket And Housing B02300789
#474

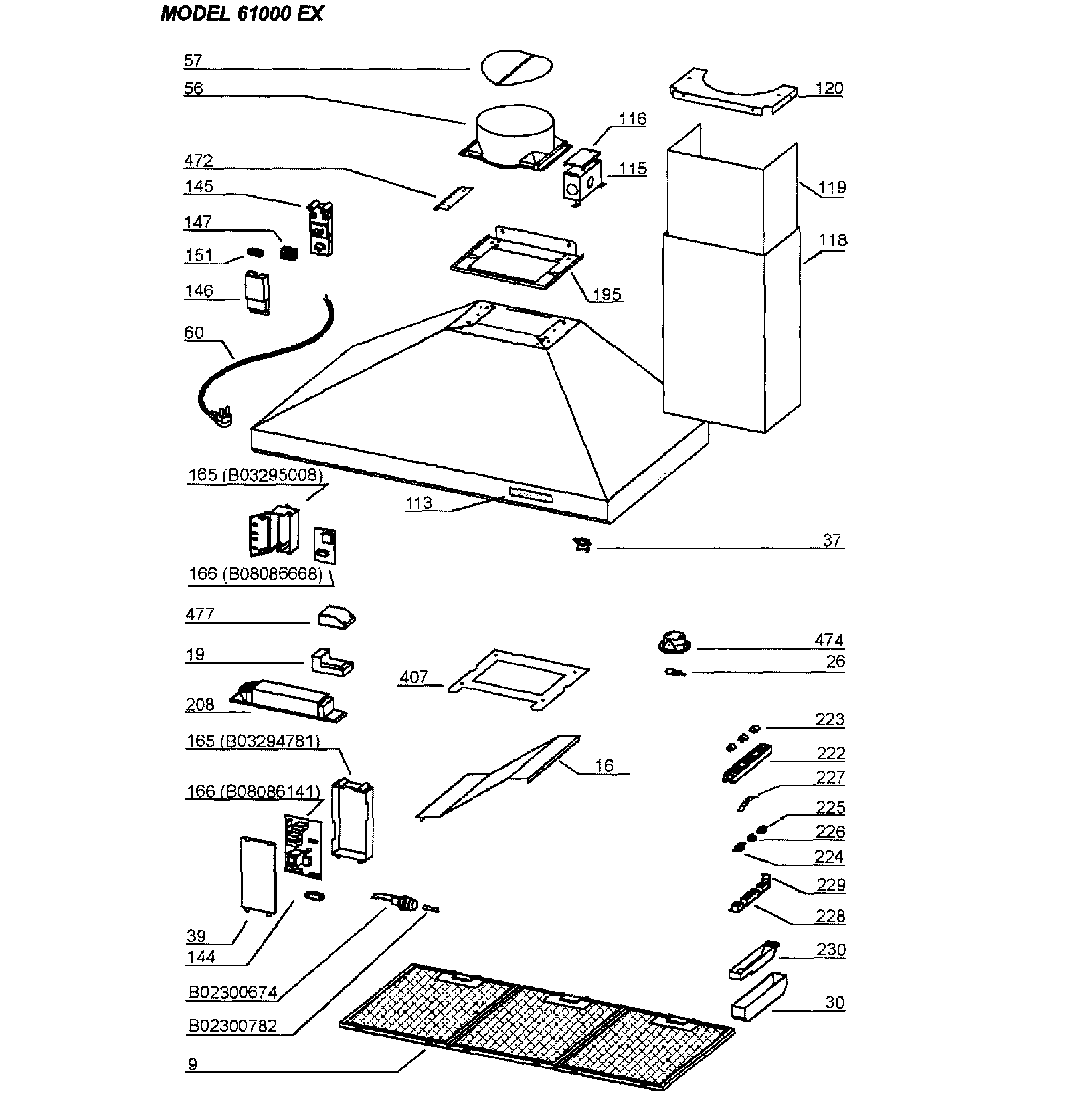

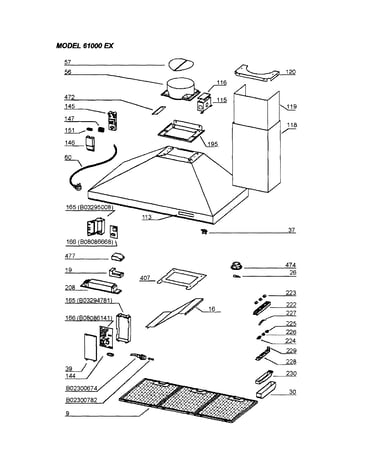

Range hood diagram

Range hood light socket and housing

Part #B02300789

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Electronic Control Board B08086668
#166A

Range hood diagram

Range hood electronic control board

Part #B08086668

Replaced by #SB08086668

?
Manufacturer substitution
This part replaces B08086668. Substitute parts can look different from the original.
This item is not returnable
$109.41 |
10% OFF Phone Price : $121.41
In Stock
Duct Connector B08085018
#NI

Range hood diagram

Duct connector

Part #B08085018

Replaced by #SB08085018

?
Manufacturer substitution
This part replaces B08085018. Substitute parts can look different from the original.
$57.35
In Stock
Ht Sentry B02300787
#37

Range hood diagram

Ht sentry

Part #B02300787

Replaced by #SB02300787

?
Manufacturer substitution
This part replaces B02300787. Substitute parts can look different from the original.
$51.40 |
10% OFF Phone Price : $57.40
In Stock
Kenmore Pro Range Hood Transformer B02300729
#208A

Range hood diagram

Kenmore pro range hood transformer

Part #B02300729

$107.69 |
10% OFF Phone Price : $119.69
In Stock
Range Hood Transformer B02300783
#208

Range hood diagram

Range hood transformer

Part #B02300783

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fuse B02300782
#NI

Range hood diagram

Range hood fuse

Part #B02300782

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Flue Cover, Top BE3341311
#119

Range hood diagram

Range hood flue cover, top

Part #BE3341311

Replaced by #SBE3341311

?
Manufacturer substitution
This part replaces BE3341311. Substitute parts can look different from the original.
$133.75
In Stock
Box B03295008
#165A

Range hood diagram

Box

Part #B03295008

Replaced by #SB03295008

?
Manufacturer substitution
This part replaces B03295008. Substitute parts can look different from the original.
$19.31
In Stock
Range Hood Flue Cover, Bottom BE3341301
#118

Range hood diagram

Range hood flue cover, bottom

Part #BE3341301

Replaced by #SBE3341301

?
Manufacturer substitution
This part replaces BE3341301. Substitute parts can look different from the original.
$114.63
In Stock
