Craftsman
Walk-Behind Mower

Model # 131978411 Official Craftsman 22" power-propelled lawn mower with solid state ignition

Here are the diagrams and repair parts for Official Craftsman 131978411 22" power-propelled lawn mower with solid state ignition, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Lock Nut 69180
#10

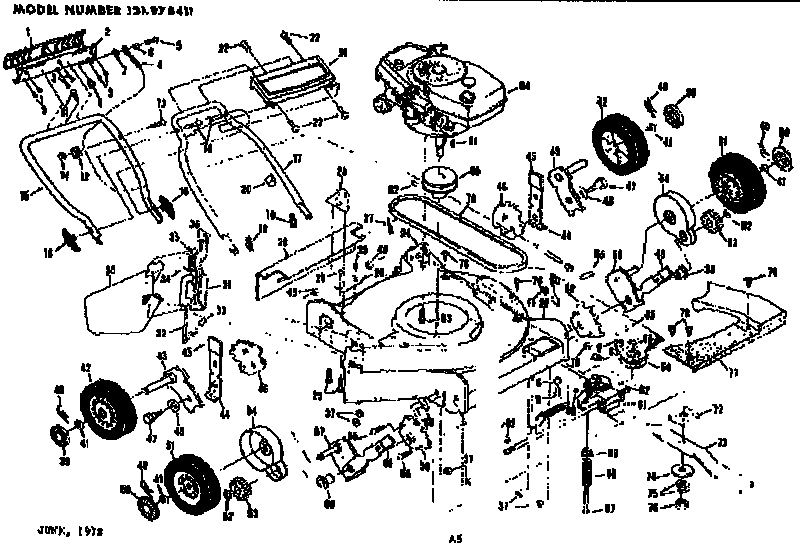

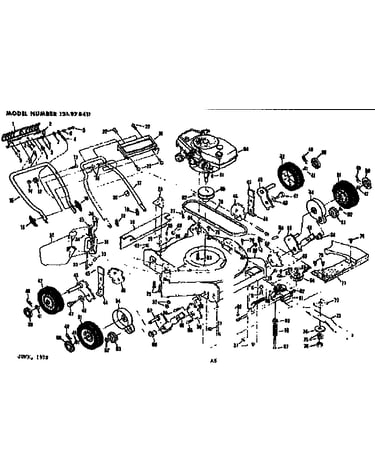

Mower deck diagram

Lock nut

Part #69180

Replaced by #532069180

?
Manufacturer substitution
This part replaces 69180. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Handle Knob 58715
#16

Mower deck diagram

Handle knob

Part #58715

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58715. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Bolt 58714
#18

Mower deck diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Bracket Assembly 62886
#23

Mower deck diagram

Bracket assembly

Part #62886

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62886. Substitute parts can look different from the original.
$37.31
In Stock
Lawn Mower Retainer Clip, 4-pack 55015
#40

Mower deck diagram

Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Screw 55187
#25

Mower deck diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock

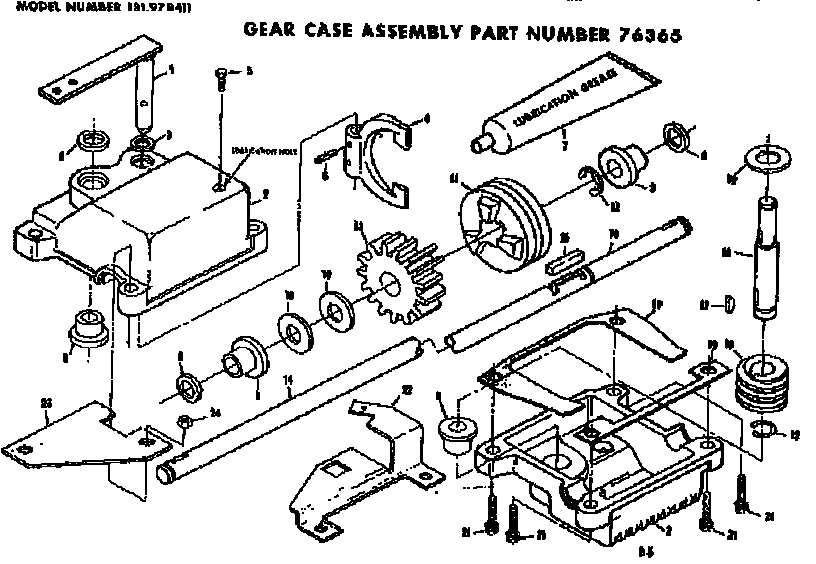

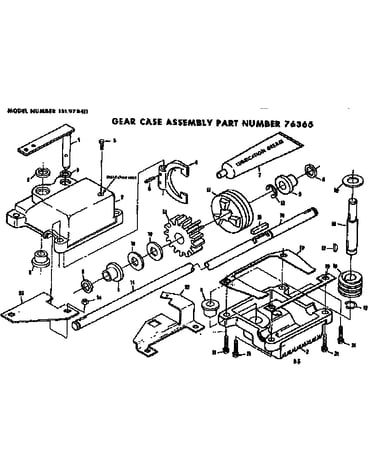

Lawn Tractor Transaxle Wheel Axle Oil Seal 57072
#8

Gear case assembly diagram

Lawn tractor transaxle wheel axle oil seal

Part #57072

Replaced by #532057072

?
Manufacturer substitution
This part replaces 57072. Substitute parts can look different from the original.
$8.54
In Stock
Bracket Support 62887
#24

Mower deck diagram

Bracket support

Part #62887

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62887. Substitute parts can look different from the original.
$37.31
In Stock
Washer 52160
#41

Mower deck diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Washer 62335
#48

Mower deck diagram

Washer

Part #62335

Replaced by #532062335

?
Manufacturer substitution
This part replaces 62335. Substitute parts can look different from the original.
$13.69
In Stock
