Brother
Electronic Sewing Machine

Model # PE-150 Official Brother embroidery machine

Here are the diagrams and repair parts for Official Brother PE-150 embroidery machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

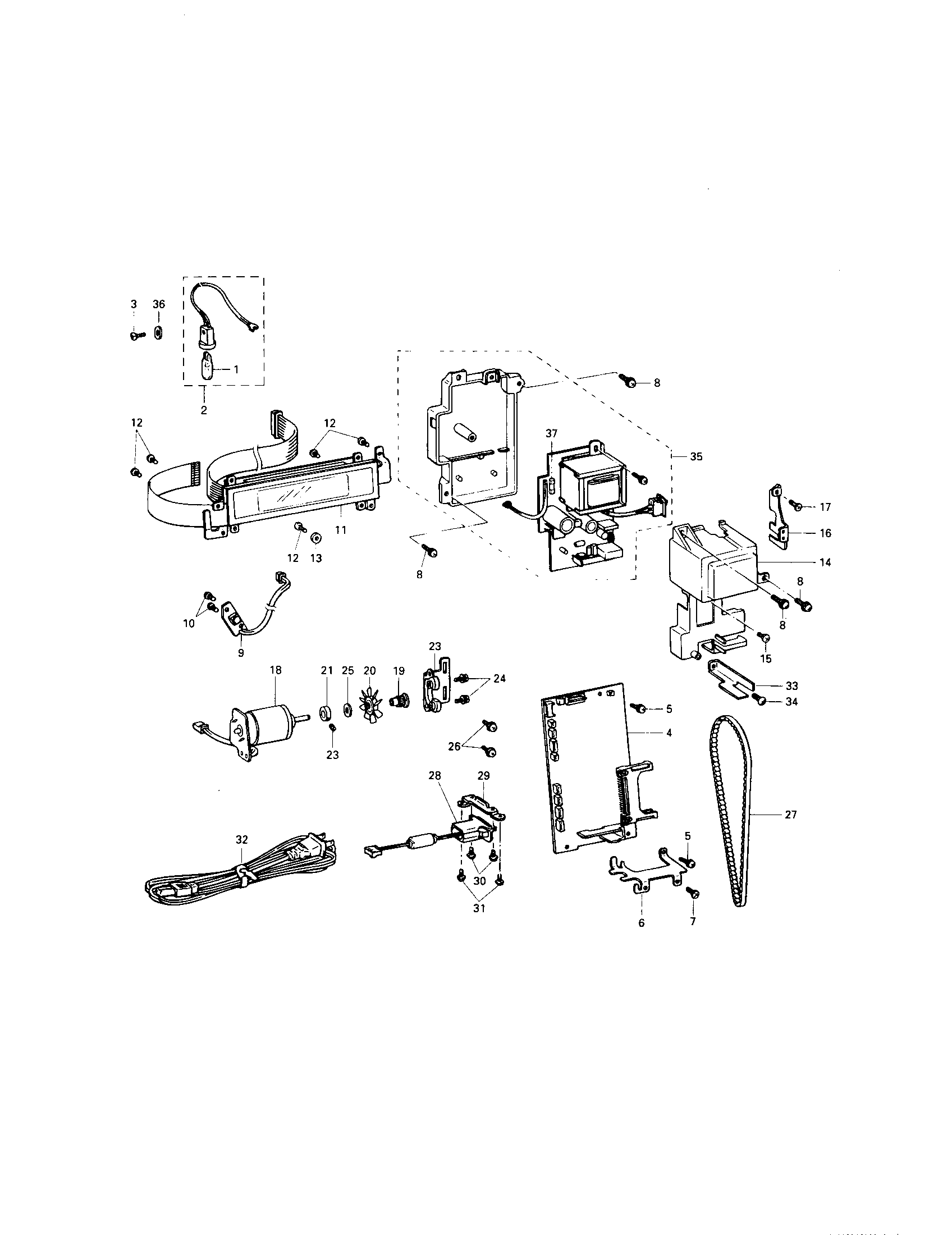

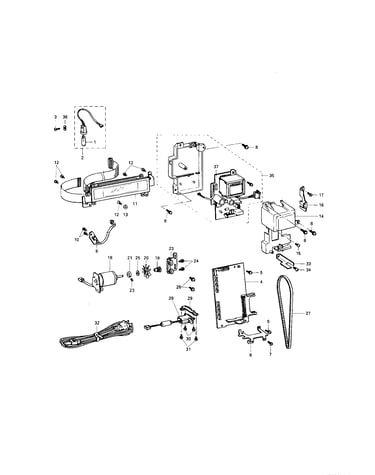

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 289 parts  |
Brother Botiq Card EDB27
#NI

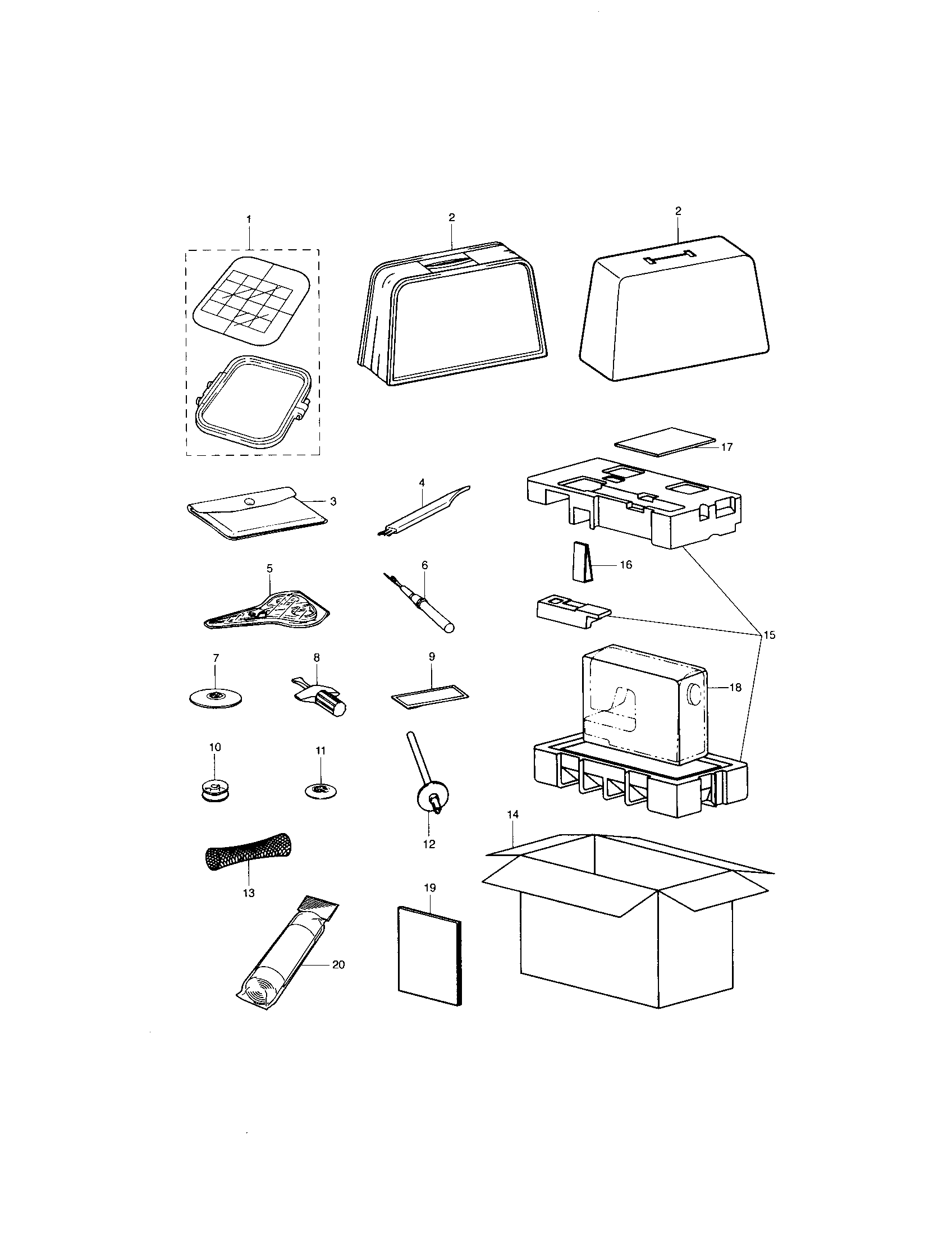

Accessories/packages diagram

Brother botiq card

Part #EDB27

The manufacturer no longer makes this part, and there's no substitute part

Thrd Disc 108263001
#9

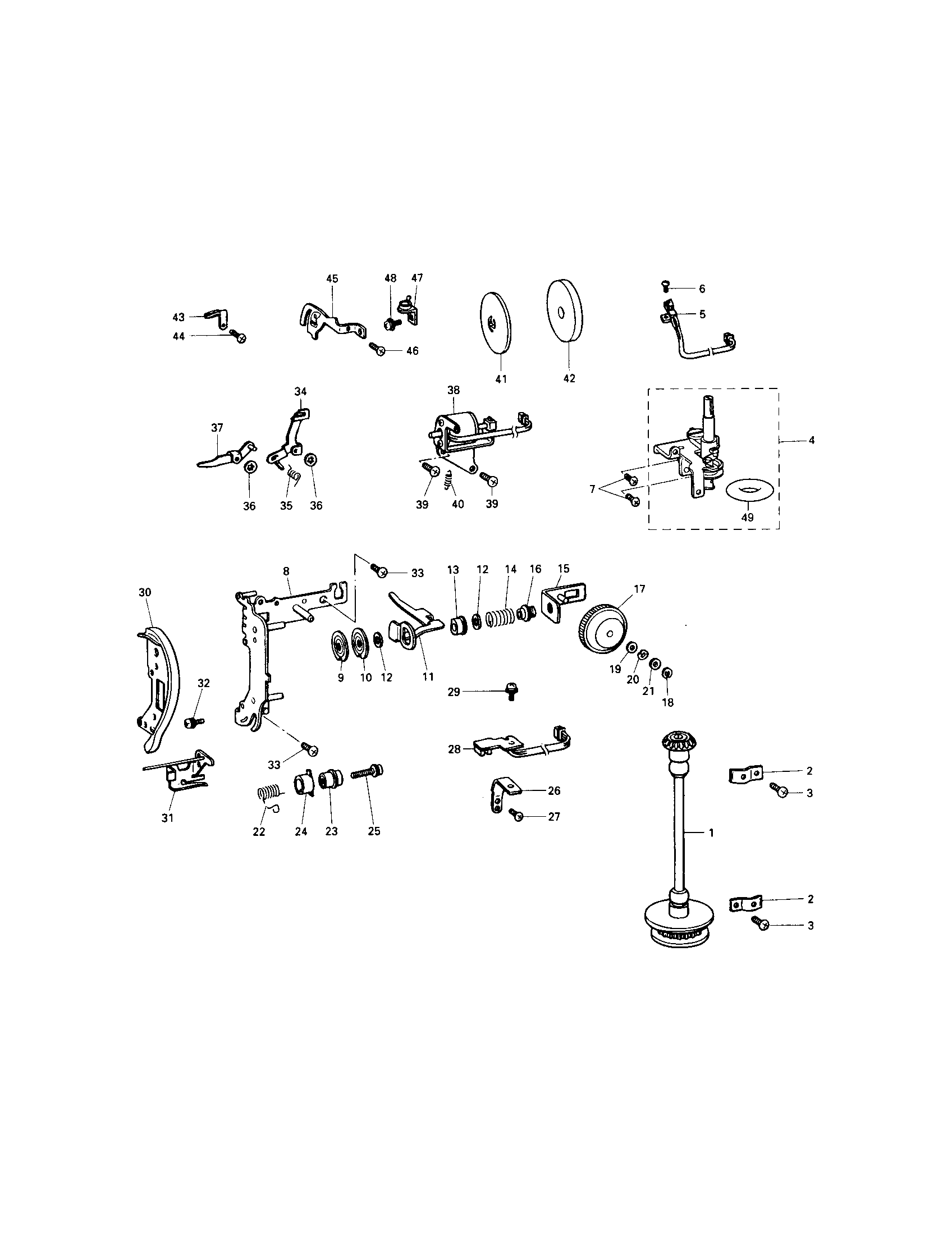

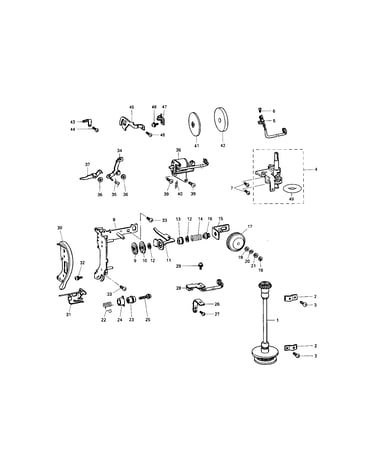

Vertical shaft, bobbin winder diagram

Thrd disc

Part #108263001

The manufacturer no longer makes this part, and there's no substitute part

Brother Botiq Card EDB15
#NI

Accessories/packages diagram

Brother botiq card

Part #EDB15

The manufacturer no longer makes this part, and there's no substitute part

Shaft X58644051
#5

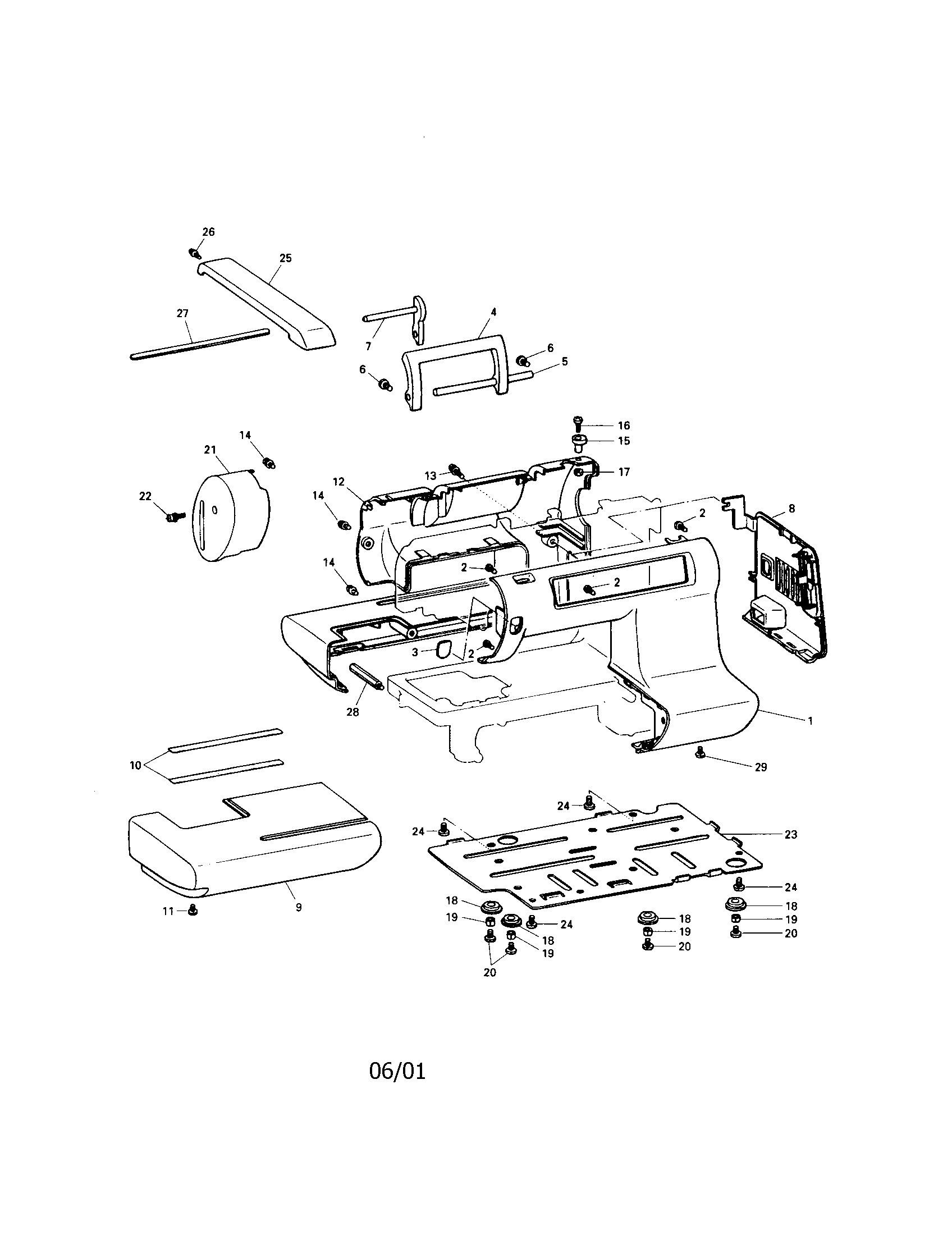

Front cover diagram

Shaft

Part #X58644051

The manufacturer no longer makes this part, and there's no substitute part

Hand Wheel X55147001
#2

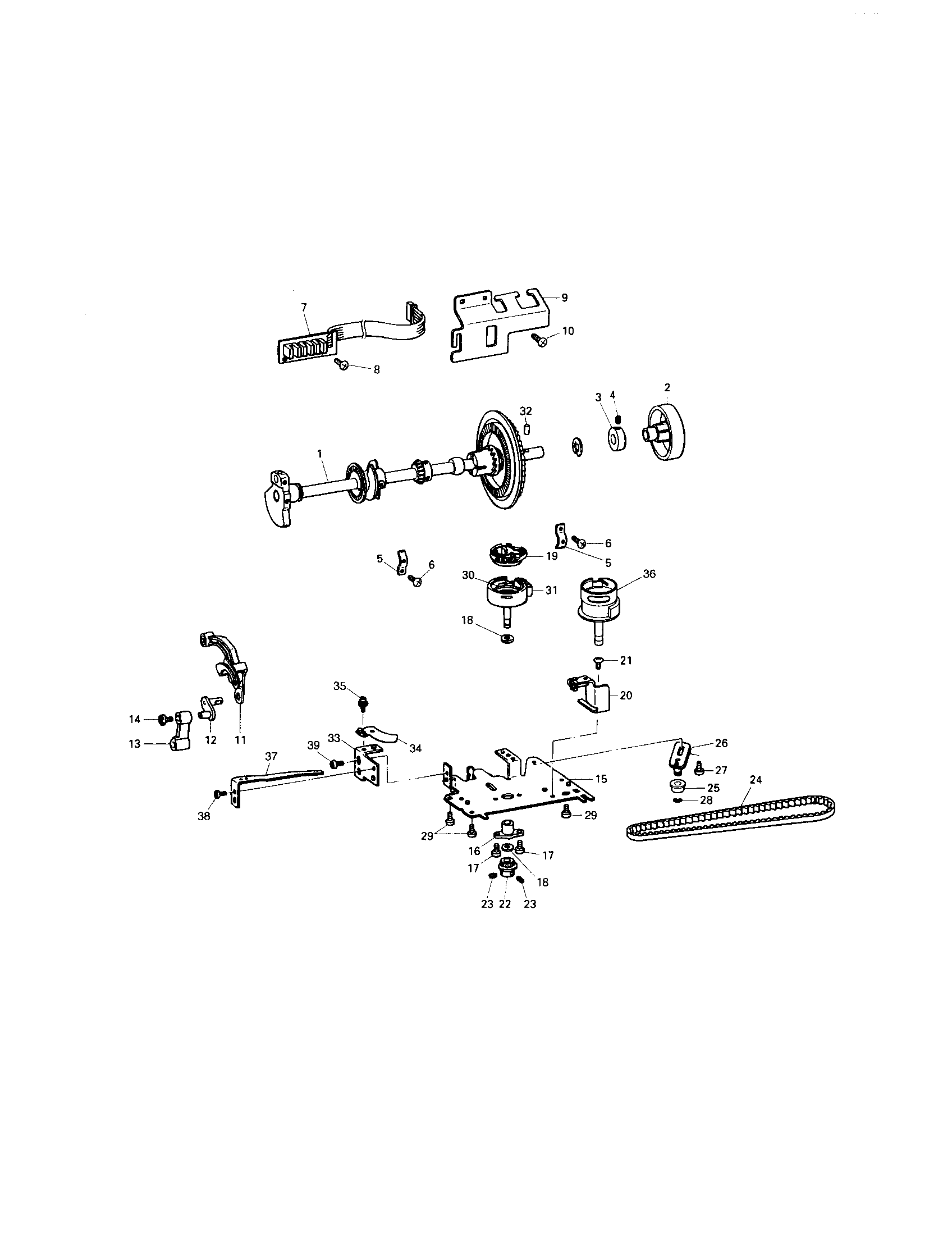

Upper shaft/balance, rotary hook diagram

Hand wheel

Part #X55147001

The manufacturer no longer makes this part, and there's no substitute part

Brother Botiq Card EDB28
#NI

Accessories/packages diagram

Brother botiq card

Part #EDB28

The manufacturer no longer makes this part, and there's no substitute part

Carriage X58719101
#17

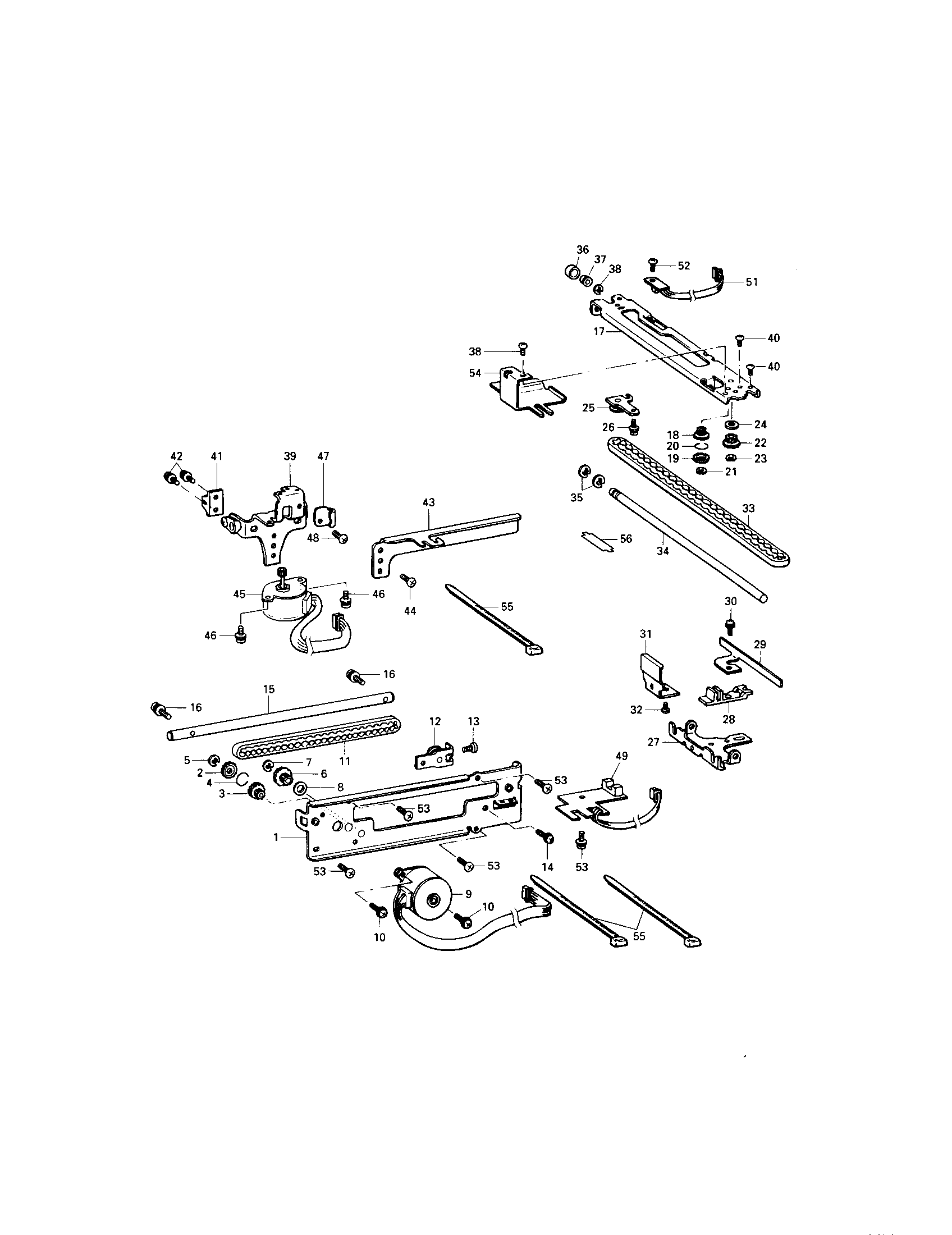

Embroidery mechanism diagram

Carriage

Part #X58719101

The manufacturer no longer makes this part, and there's no substitute part

Release Plate X58686051
#11

Vertical shaft, bobbin winder diagram

Release plate

Part #X58686051

The manufacturer no longer makes this part, and there's no substitute part

Cutter Assembly X80321001
#36

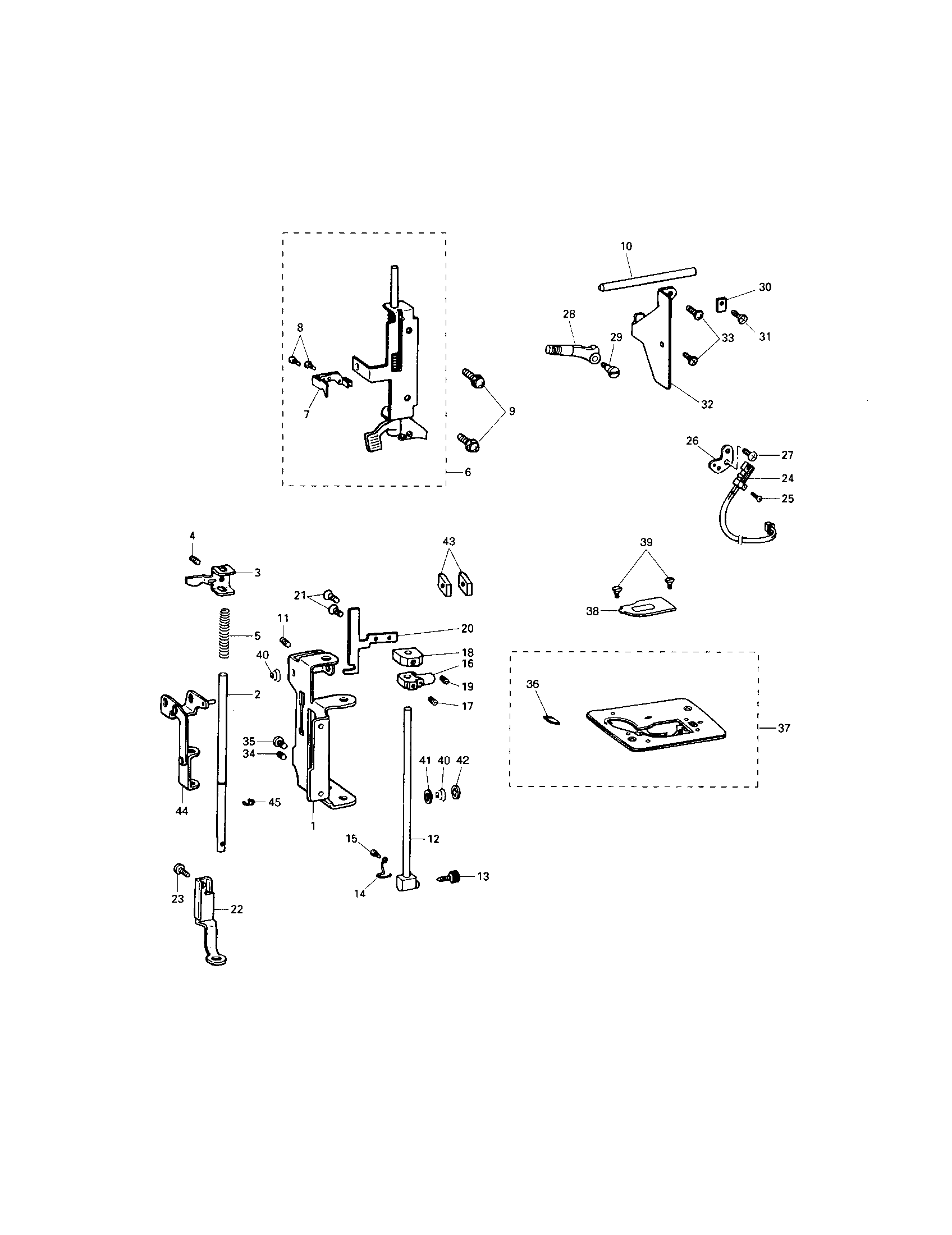

Needle bar and presser bar diagram

Cutter assembly

Part #X80321001

The manufacturer no longer makes this part, and there's no substitute part

Spring B X58697151
#35

Vertical shaft, bobbin winder diagram

Spring b

Part #X58697151

The manufacturer no longer makes this part, and there's no substitute part
