Model # 139663956 Official Craftsman electronic garage door opener with receiver & transmitter

Here are the diagrams and repair parts for Official Craftsman 139663956 electronic garage door opener with receiver & transmitter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 90 parts |

Chassis diagram

Cap screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Chassis diagram

Chassis assembly

Part #4A1258

The manufacturer no longer makes this part, and there's no substitute part

Chassis diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

#17

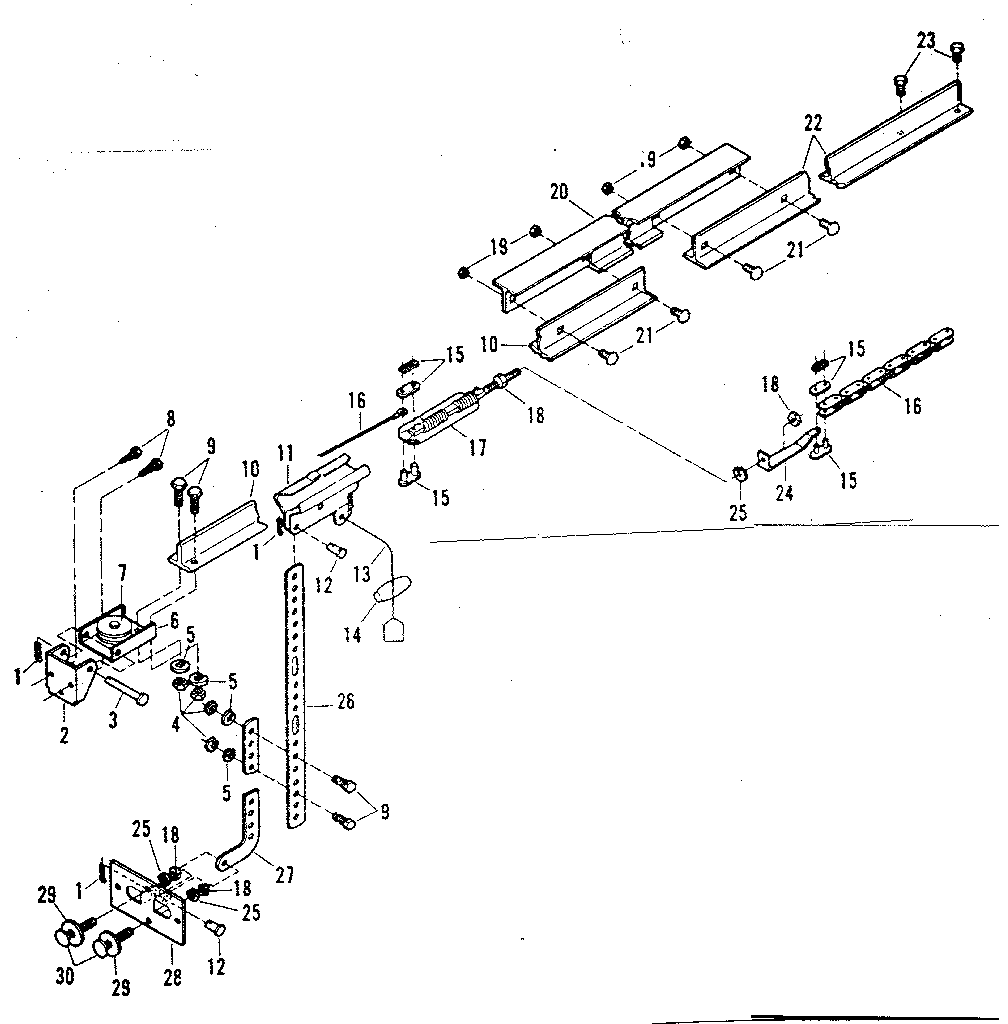

Rail diagram

Trolley assembly

Part #4A1020

The manufacturer no longer makes this part, and there's no substitute part

#24

Rail diagram

Bracket

Part #12A197

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

T-rail pkg

Part #2A184

The manufacturer no longer makes this part, and there's no substitute part

#28

Chassis diagram

Back panel

Part #1A2369

The manufacturer no longer makes this part, and there's no substitute part

Rail diagram

Clevis pin

Part #146A30

The manufacturer no longer makes this part, and there's no substitute part

Transmitter diagram

Trans ckt bd

Part #4A1200

The manufacturer no longer makes this part, and there's no substitute part

Receiver diagram

Antenna

Part #161A15

The manufacturer no longer makes this part, and there's no substitute part
