Model # 110362821 Official Kenmore gearcase & superstructure assembly
Here are the diagrams and repair parts for Official Kenmore 110362821 gearcase & superstructure assembly, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
110362821 Gearcase & Superstructure Assembly
#17

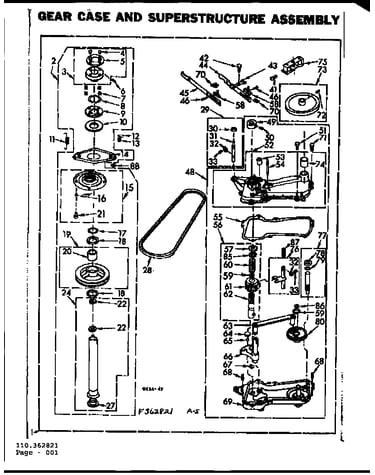

Gearcase/transmission diagram
Ring
Part #90368
Replaced by #W11033823
?
Manufacturer substitution
This part replaces 90368. Substitute parts can look different from the original.
This item is not returnable
$8.53 |
10% OFF Phone Price : $9.53
In Stock
#NI
All parts diagram
Oil
Part #89122
Replaced by #350572
?
Manufacturer substitution
This part replaces 89122. Substitute parts can look different from the original.
$38.26 |
14% OFF Phone Price : $44.26
In Stock
#64
Gearcase/transmission diagram
Bearing
Part #16018
Replaced by #285205
?
Manufacturer substitution
This part replaces 16018. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#65
Gearcase/transmission diagram
Ball
Part #85529
Replaced by #285205
?
Manufacturer substitution
This part replaces 85529. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#22
Gearcase/transmission diagram
Shaft seal
Part #91939
Replaced by #WP91939
?
Manufacturer substitution
This part replaces 91939. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#1
Gearcase/transmission diagram
Gr cse/sup
Part #362821
The manufacturer no longer makes this part, and there's no substitute part
#48
Gearcase/transmission diagram
Gear case
Part #84473
The manufacturer no longer makes this part, and there's no substitute part
#15
Gearcase/transmission diagram
Disc/linn
Part #361184
The manufacturer no longer makes this part, and there's no substitute part
#42
Gearcase/transmission diagram
Bolt
Part #98001
The manufacturer no longer makes this part, and there's no substitute part
#12
Gearcase/transmission diagram
Spring
Part #52097
The manufacturer no longer makes this part, and there's no substitute part
