Model # 247889700 Official Craftsman 26" snow thrower

Here are the diagrams and repair parts for Official Craftsman 247889700 26" snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

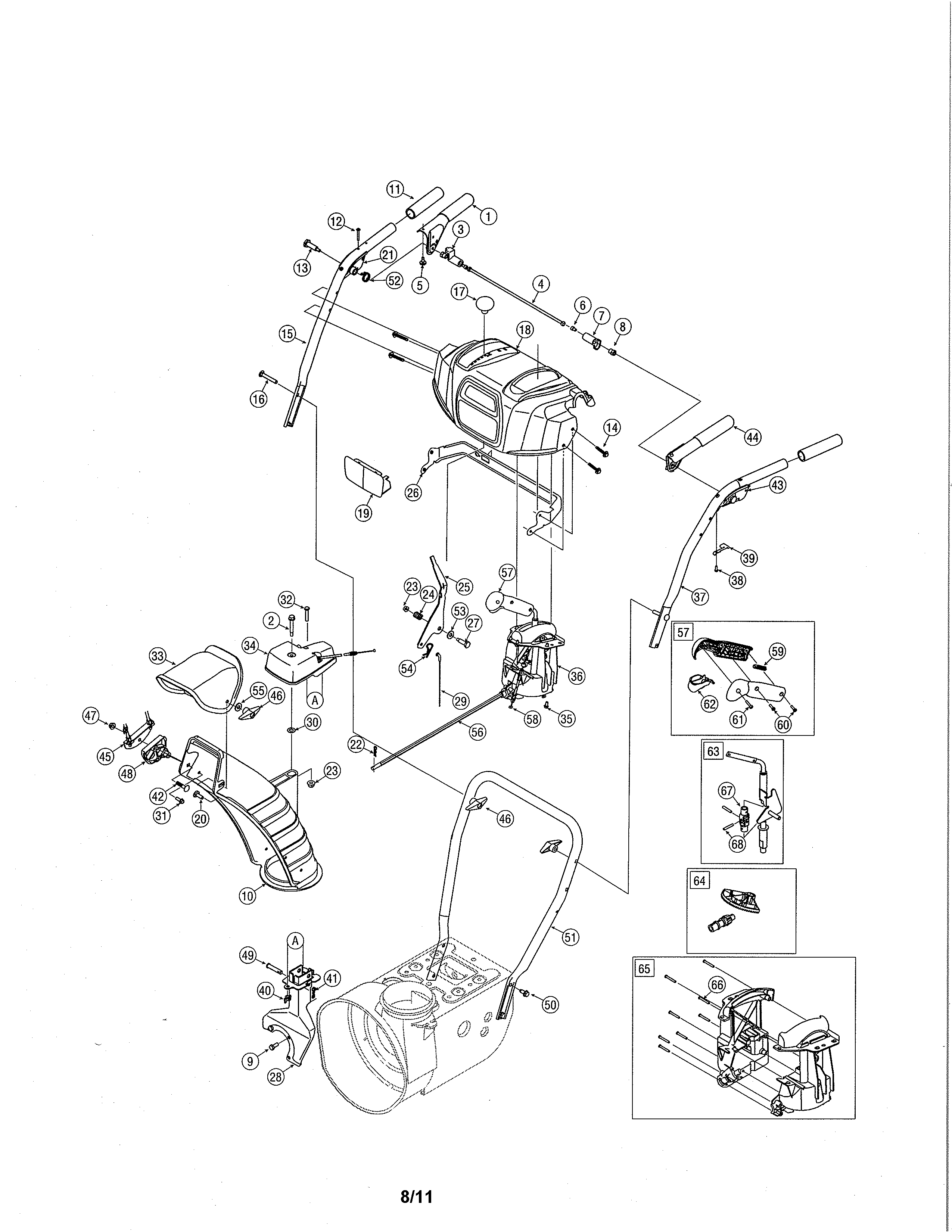

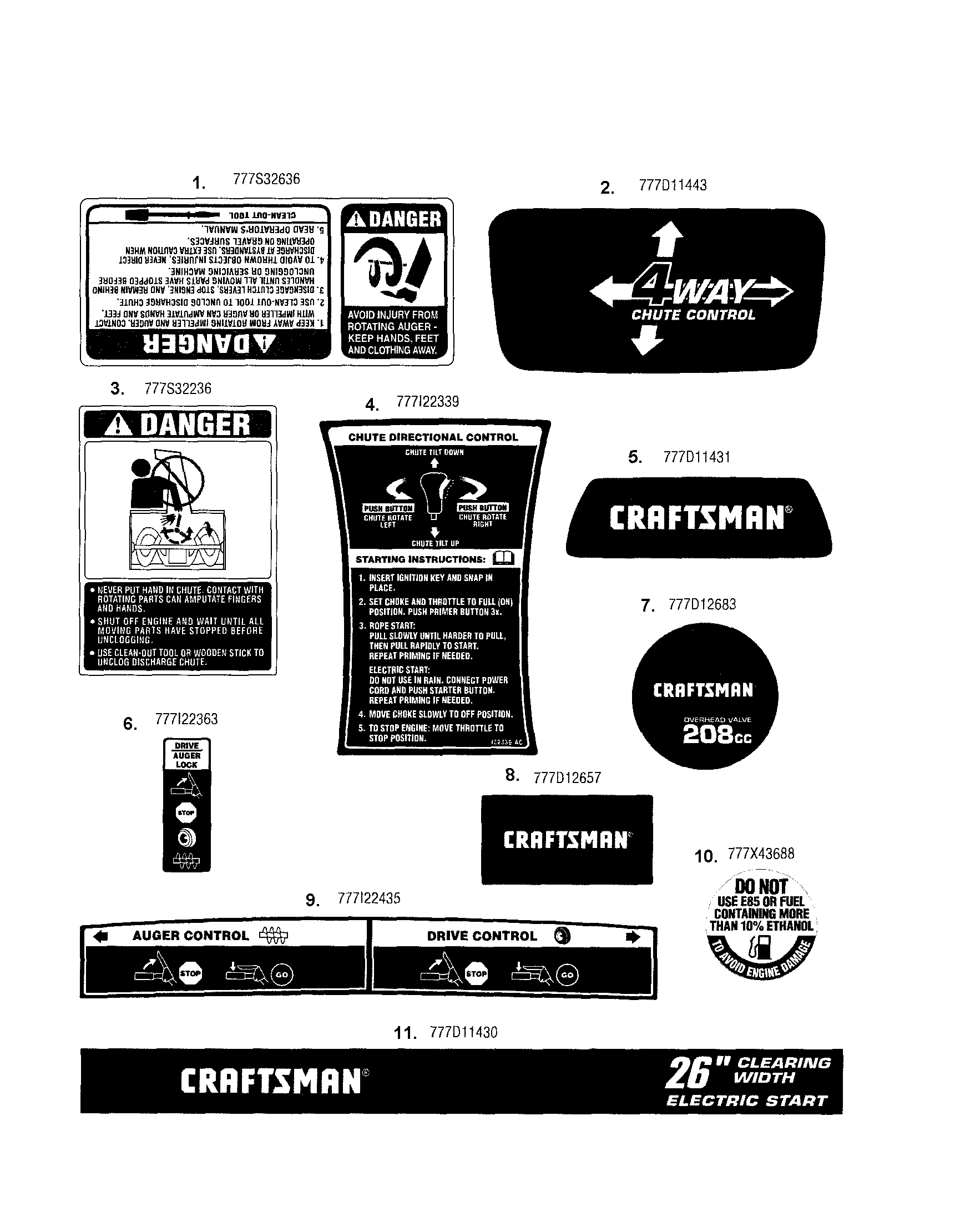

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 409 parts  |
Spark Plug 751-10292
#18

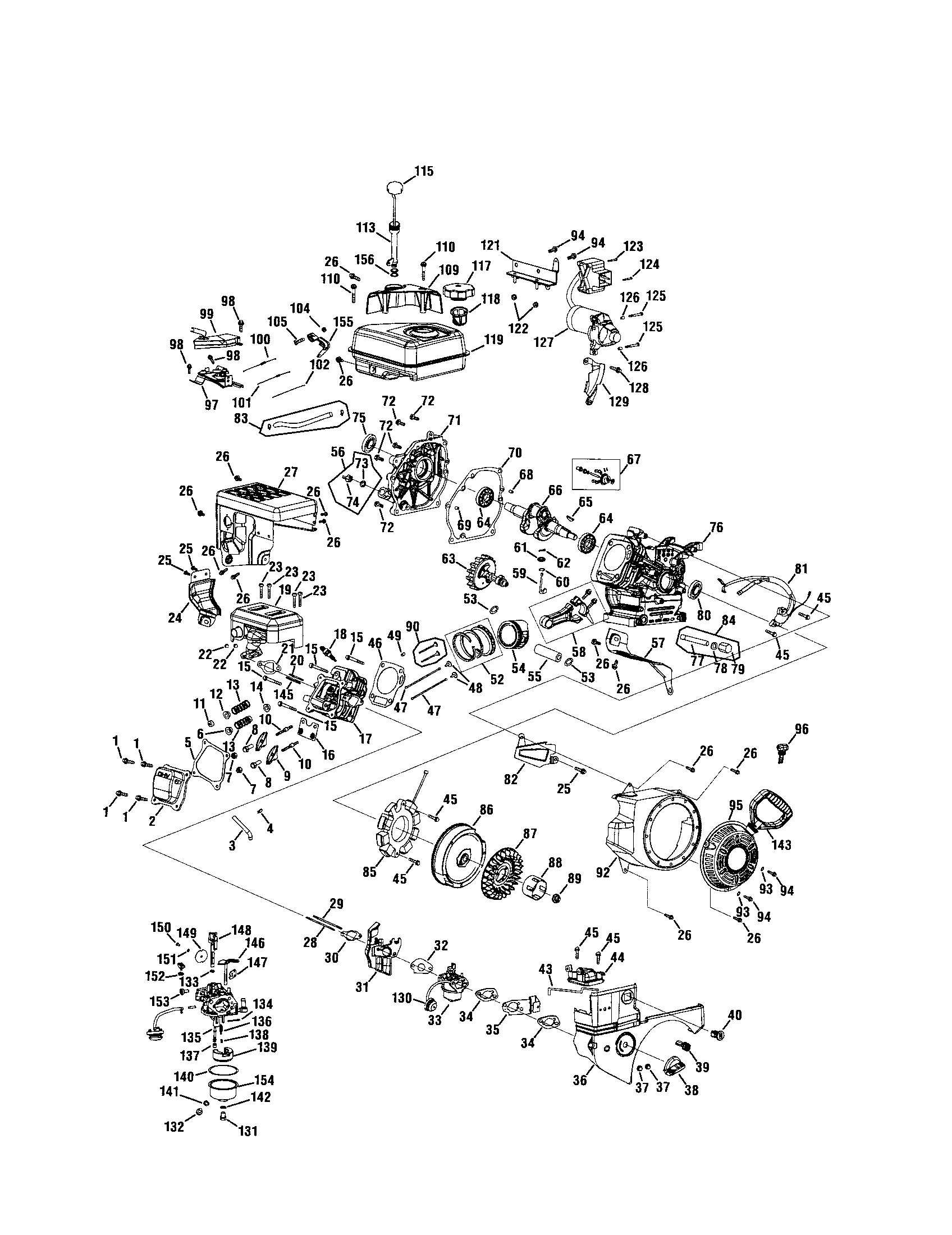

Engine diagram

Spark plug

Part #751-10292

Replaced by #951-10292A

?
Manufacturer substitution
This part replaces 751-10292. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.88 |
15% OFF Phone Price : $6.88
In Stock
Snowblower Auger Clutch Cable 746-04230
#54

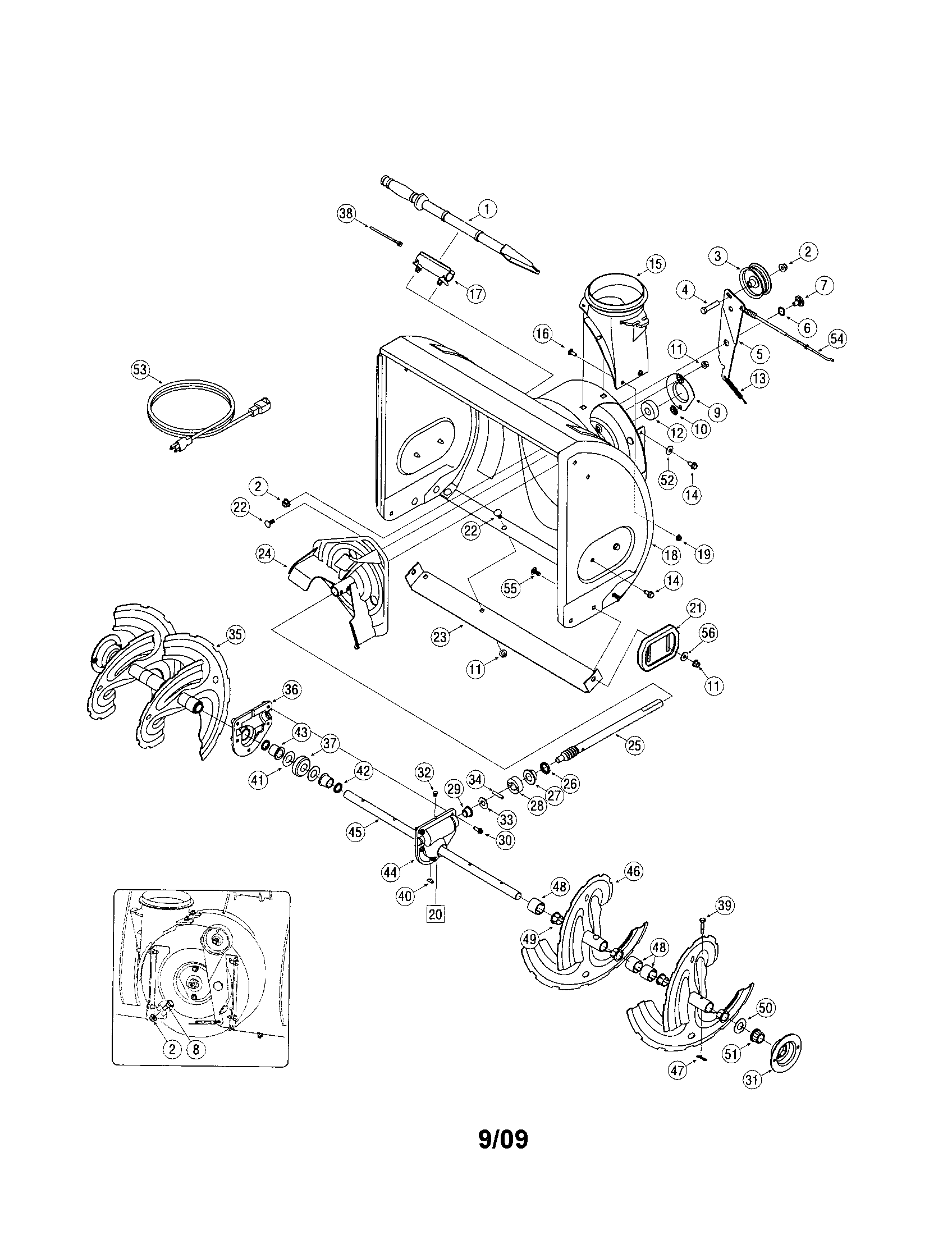

Auger/housing diagram

Snowblower auger clutch cable

Part #746-04230

Replaced by #946-04230B

?
Manufacturer substitution
This part replaces 746-04230. Substitute parts can look different from the original.
BEST SELLER
$26.49 |
18% OFF Phone Price : $32.49
Back Order
Lawn & Garden Equipment Cotter Pin, 1/4- To 5/16-in 714-04040
Lawn & garden equipment cotter pin, 1/4- to 5/16-in

Part #714-04040

BEST SELLER
This item is not returnable
$3.00 |
25% OFF Phone Price : $4.00
In Stock
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Lawn & Garden Equipment Hex Flange Nut (replaces 753-05549, 912-0417a) 712-0417A
#9

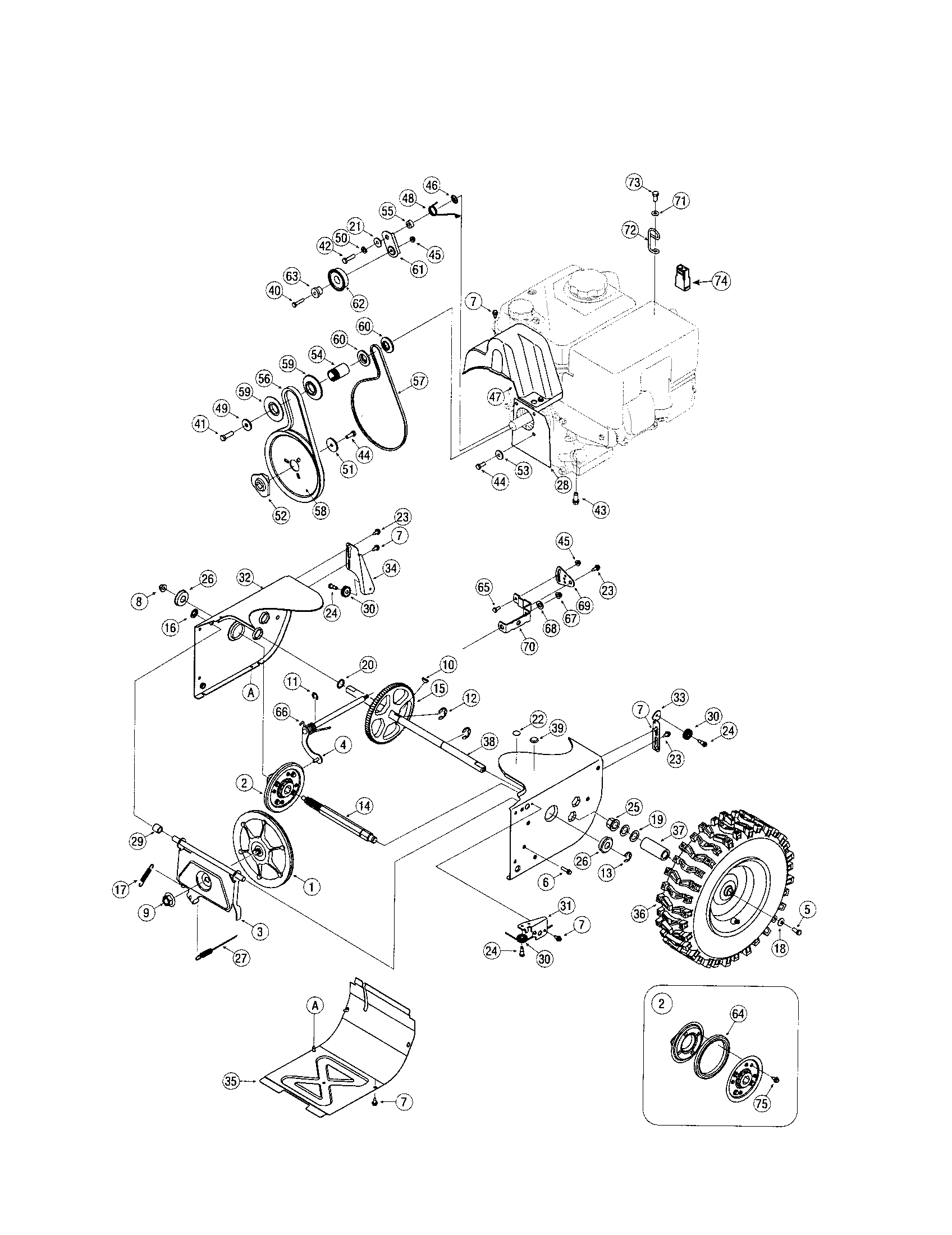

Axle/wheels diagram

Lawn & garden equipment hex flange nut (replaces 753-05549, 912-0417a)

Part #712-0417A

BEST SELLER
$8.24 |
11% OFF Phone Price : $9.24
In Stock
Snowblower Auger Drive Belt 954-04050
#56

Axle/wheels diagram

Snowblower auger drive belt

Part #954-04050

Replaced by #256963

?
Manufacturer substitution
This part replaces 954-04050. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.00 |
16% OFF Phone Price : $38.00
In Stock
Clutch Cable 746-04229
#27

Axle/wheels diagram

Clutch cable

Part #746-04229

Replaced by #946-04229B

?
Manufacturer substitution
This part replaces 746-04229. Substitute parts can look different from the original.
BEST SELLER
$29.37 |
17% OFF Phone Price : $35.37
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
Back Order
Toro Lawn & Garden Equipment Carriage Bolt (replaces 753-08024, 910-0451) 710-0451
#22

Auger/housing diagram

Toro lawn & garden equipment carriage bolt (replaces 753-08024, 910-0451)

Part #710-0451

BEST SELLER
This item is not returnable
$5.42 |
16% OFF Phone Price : $6.42
In Stock
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
