Model # PT9051BL3TS Official GE electric wall oven
Here are the diagrams and repair parts for Official GE PT9051BL3TS electric wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forPT9051BL3TS Wall Ovens
- #599

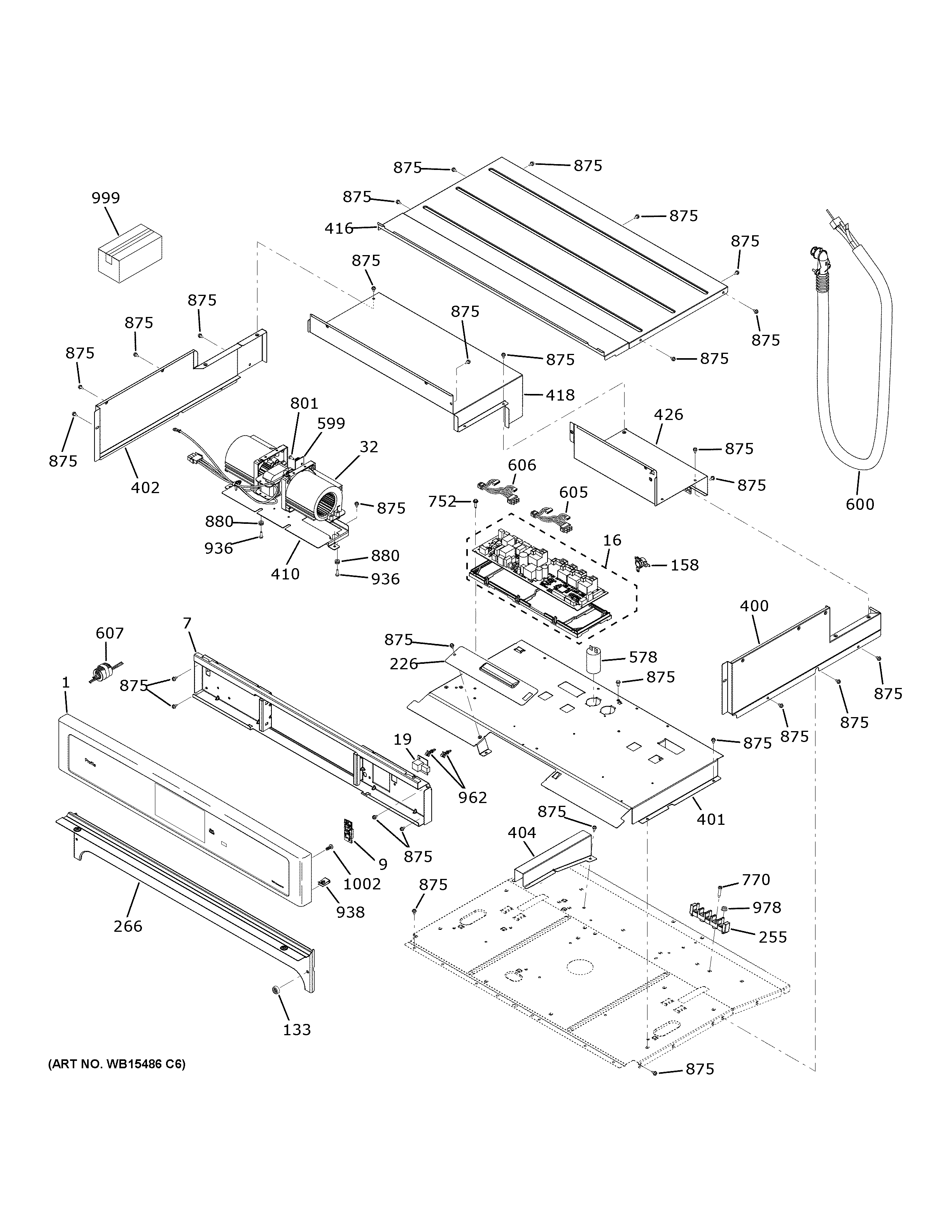

Control panel diagram
Wall oven cooling fan sensor boardPart #WB27T11463
This item is not returnable$52.15 |10% OFF Phone Price : $58.15In Stock - #253

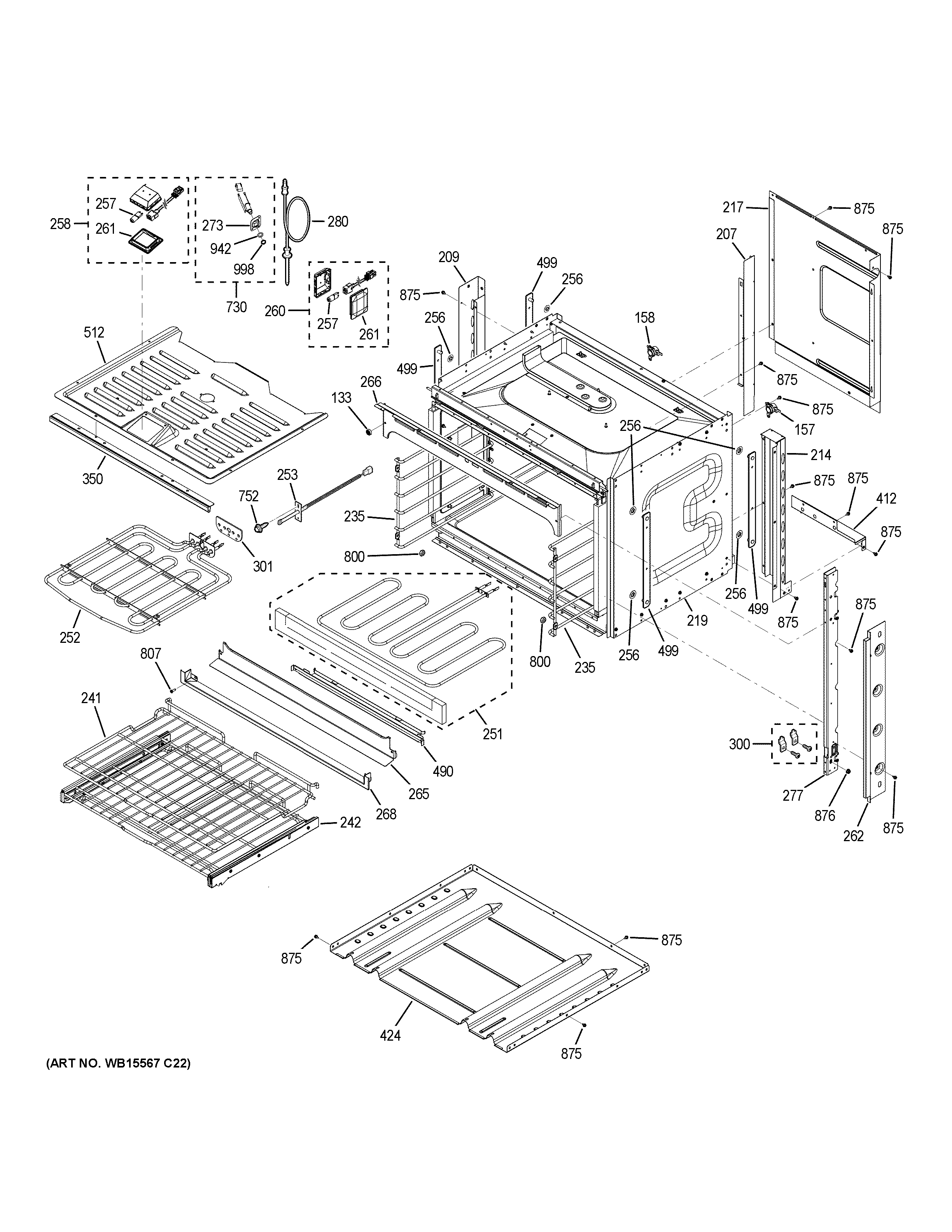

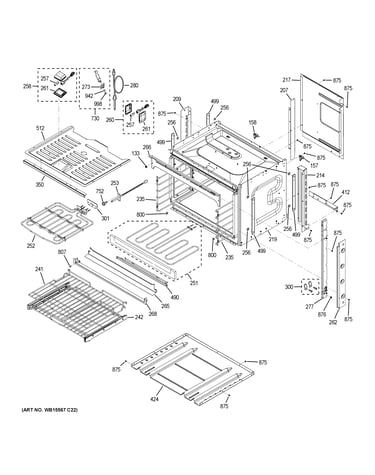

Body parts diagram
Wall oven temperature sensorPart #WB21X10165
$22.31 |21% OFF Phone Price : $28.31In Stock - #32
Control panel diagram
Wall oven cooling fan assemblyPart #WB26X31060
$67.98 |8% OFF Phone Price : $73.98In Stock - #150
Door lock diagram
Wall oven door lock assemblyPart #WB10X28391
$62.62 |9% OFF Phone Price : $68.62In Stock - #251
Body parts diagram
Wall oven bake elementPart #WB44X21667
$72.14 |8% OFF Phone Price : $78.14In Stock - #280
Body parts diagram
Range oven meat probe sensorPart #WB20T10025
The manufacturer no longer makes this part, and there's no substitute part
- #132

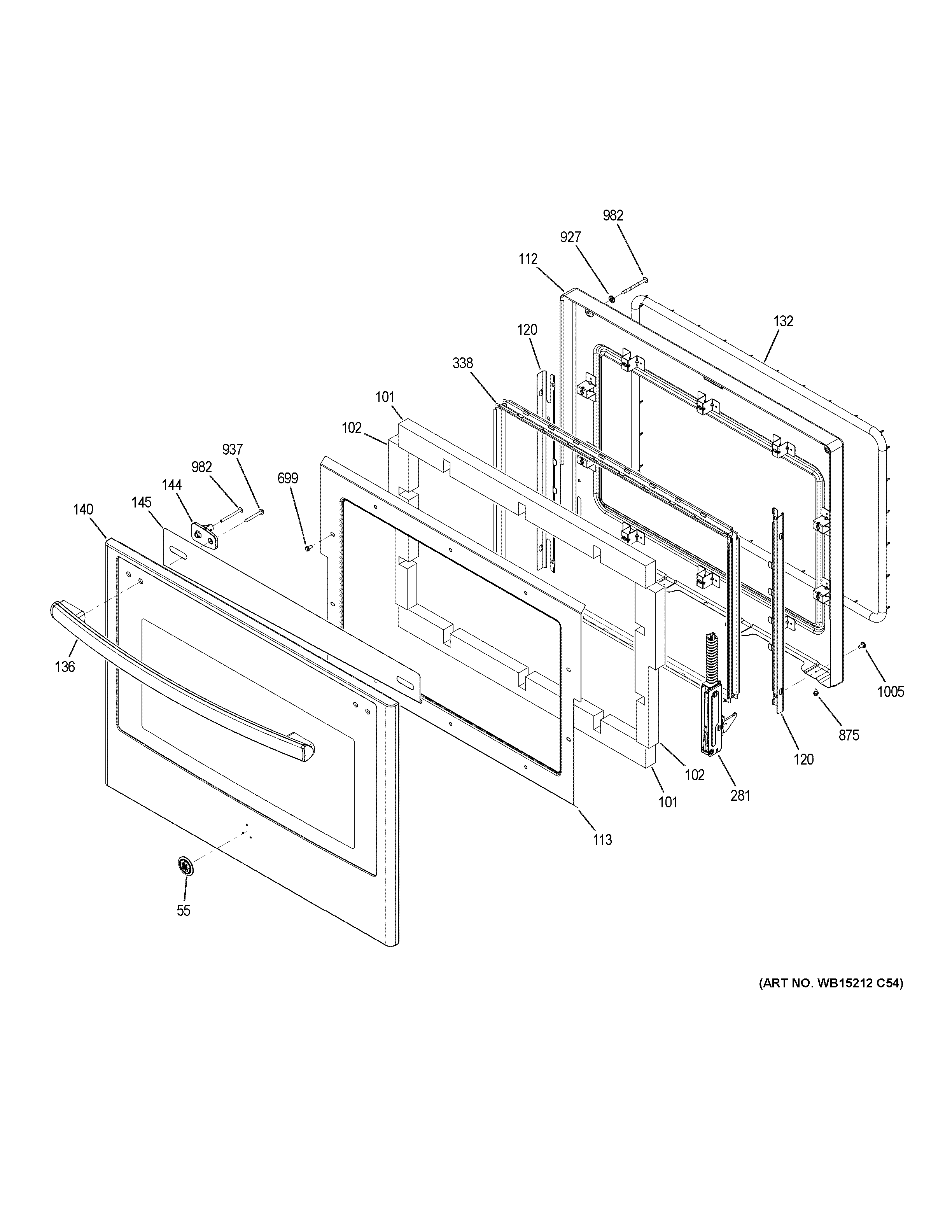

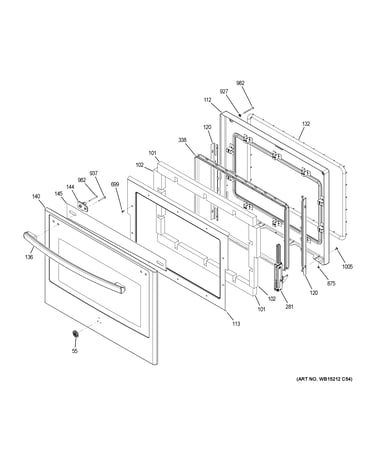

Door diagram
GasketPart #WB35X26196
Replaced by #WB35X32825
?Manufacturer substitutionThis part replaces WB35X26196. Substitute parts can look different from the original.$42.29 |12% OFF Phone Price : $48.29In Stock - #730
Body parts diagram
Meat probePart #WB18X23585
$51.33 |10% OFF Phone Price : $57.33In Stock - #511
Convection fan diagram
Wall oven convection fan motorPart #WB26X23476
Replaced by #WB26X44167
?Manufacturer substitutionThis part replaces WB26X23476. Substitute parts can look different from the original.$133.69In Stock - Screw
Part #WH02X0930
Replaced by #WH2X930
?Manufacturer substitutionThis part replaces WH02X0930. Substitute parts can look different from the original.This item is not returnable$7.95 |11% OFF Phone Price : $8.95In Stock
