Model # LRG3193BD/00 Official LG free standing gas range

Here are the diagrams and repair parts for Official LG LRG3193BD-00 free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

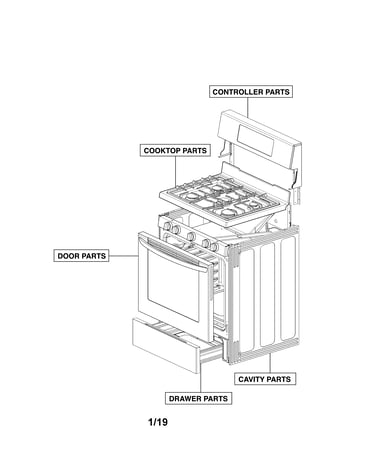

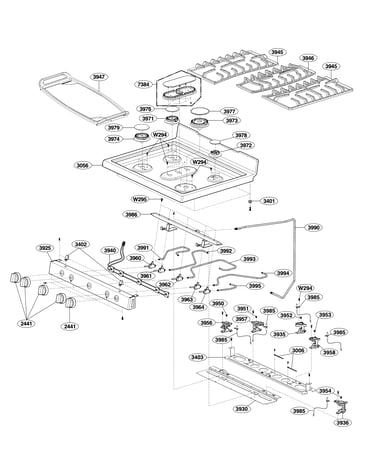

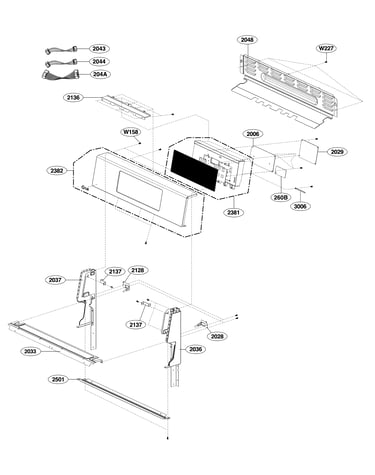

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

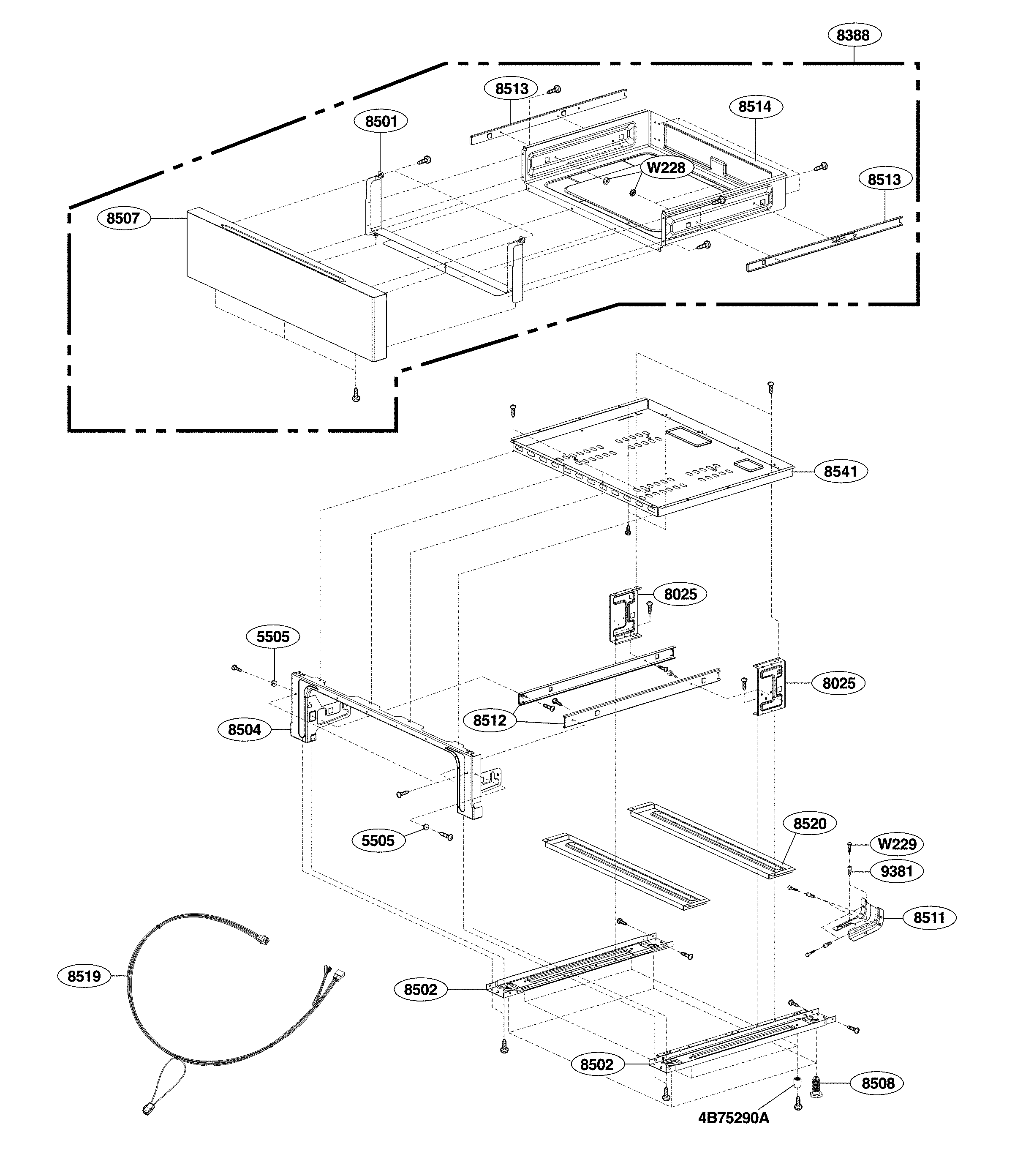

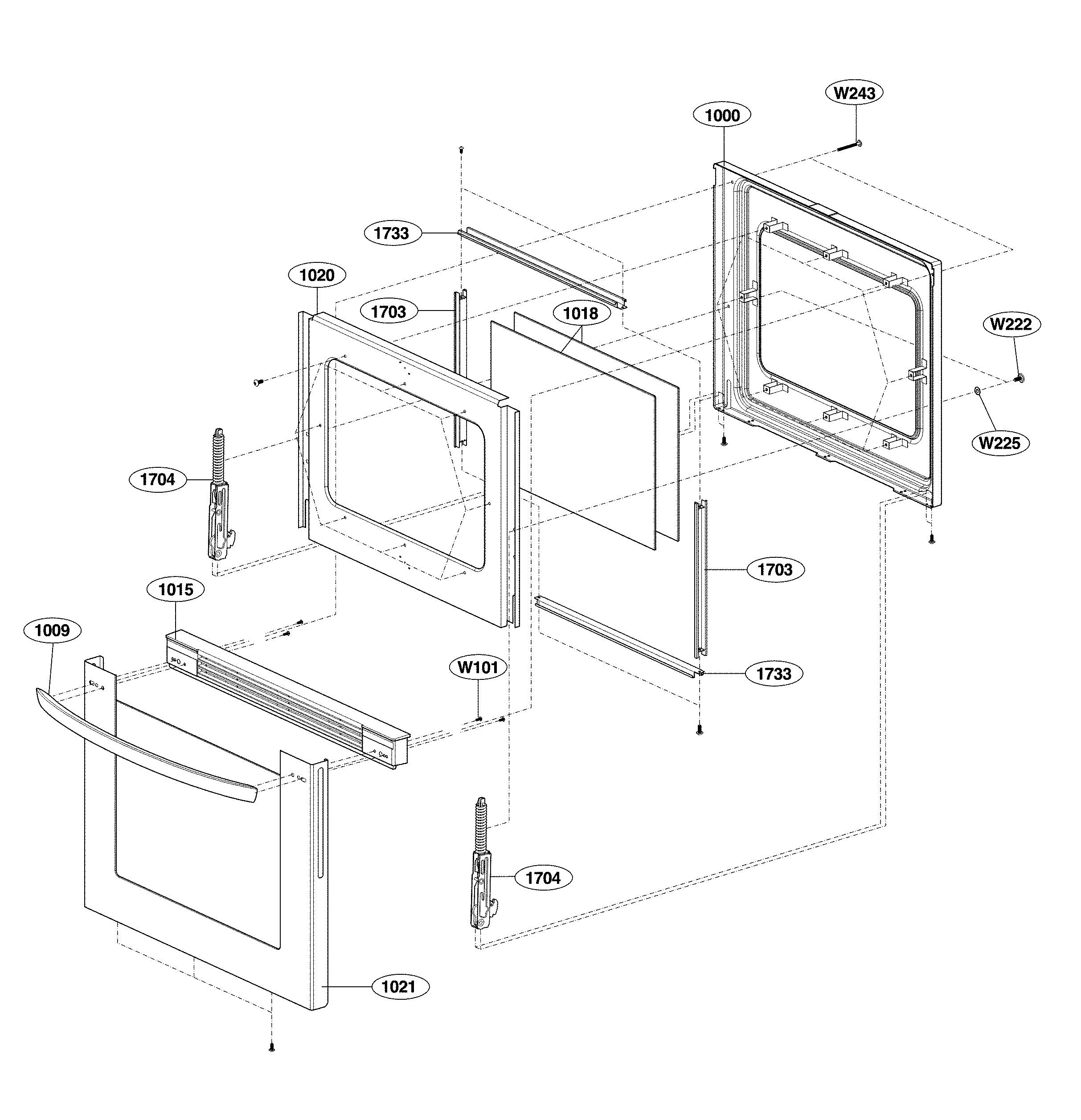

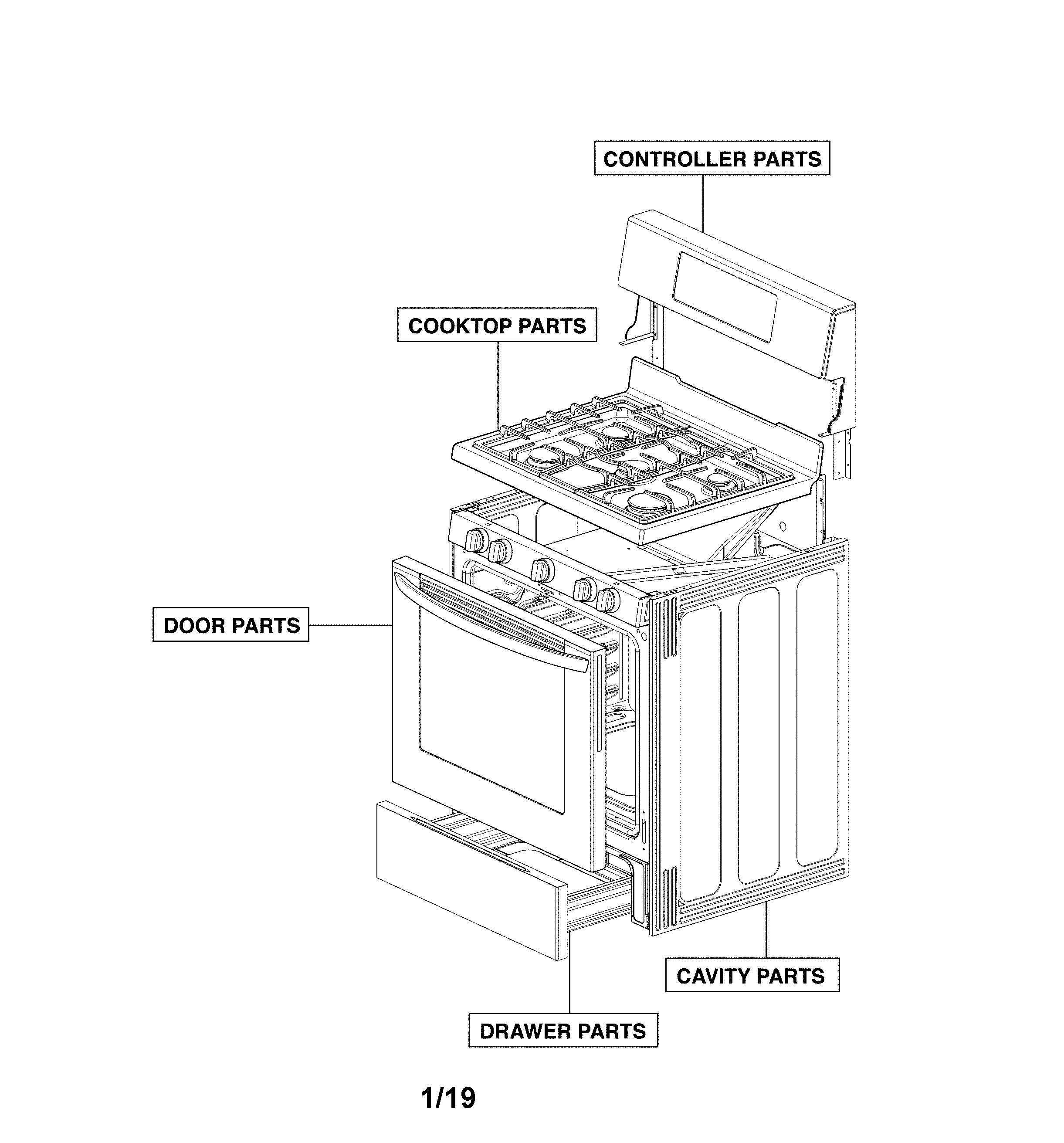

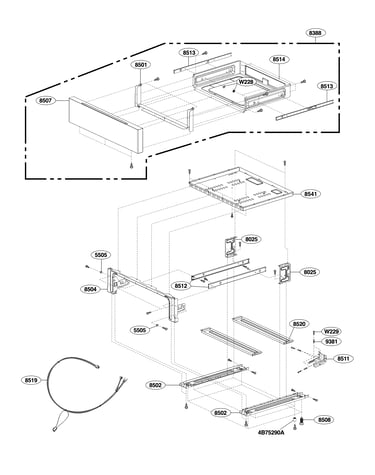

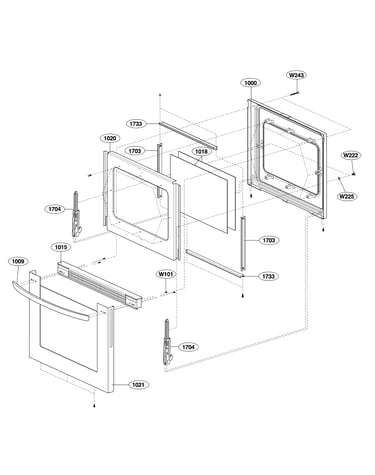

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |

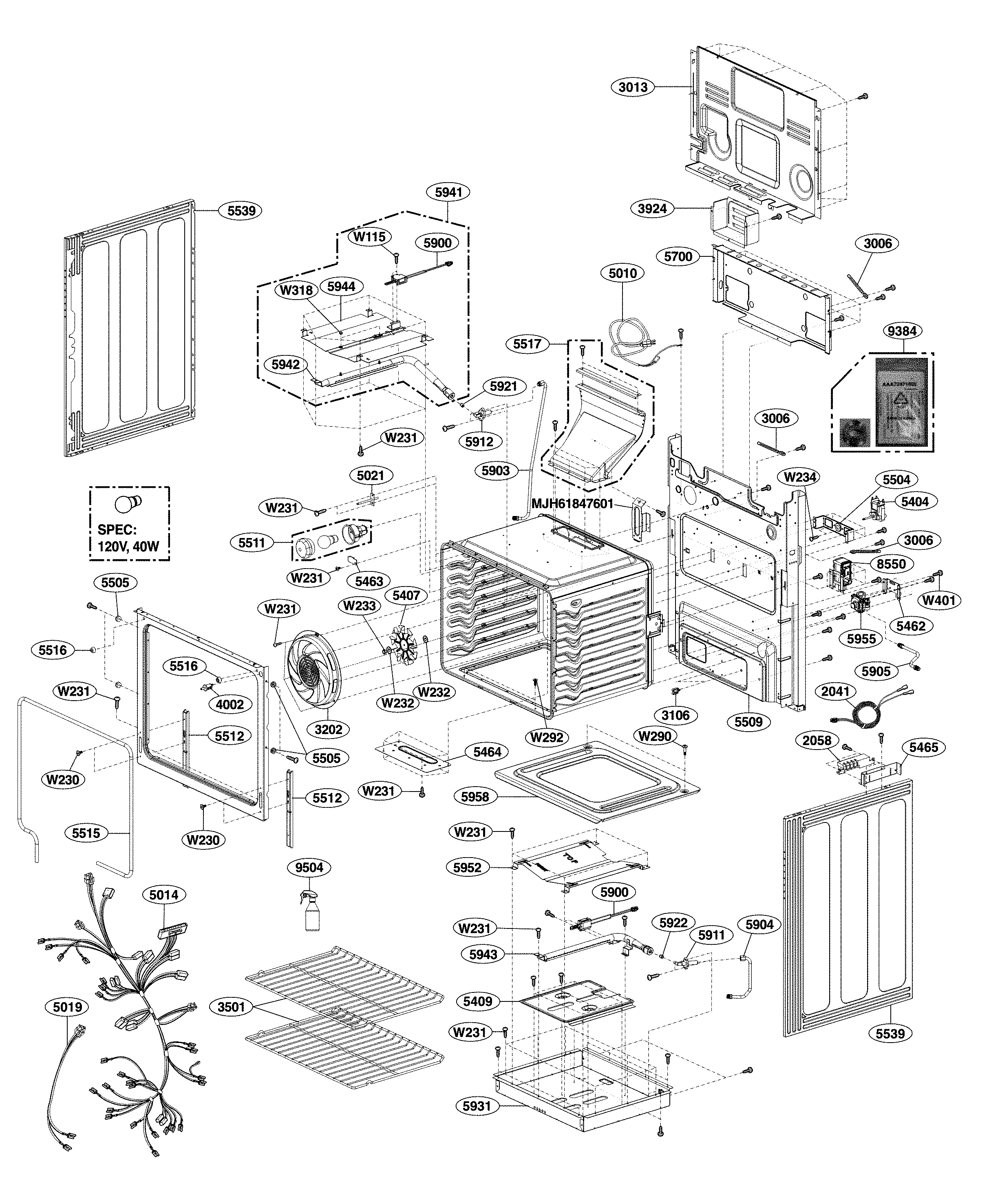

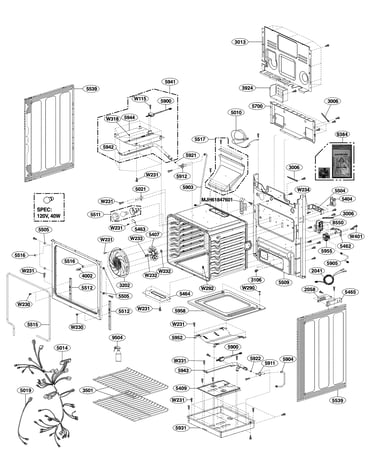

Range Oven Burner Igniter (replaces Mee63084901) MEE61841401

#5900

All parts diagram

Range oven burner igniter (replaces mee63084901)

Part #MEE61841401

BEST SELLER
$140.19 |
8% OFF Phone Price : $152.19
In Stock
Range Oven Temperature Sensor EBG61305801

#5021

All parts diagram

Range oven temperature sensor

Part #EBG61305801

Replaced by #EBG61305805

?
Manufacturer substitution
This part replaces EBG61305801. Substitute parts can look different from the original.
BEST SELLER
$55.60 |
10% OFF Phone Price : $61.60
In Stock
Range Pressure Regulator (replaces Mdw61841001) AMP30000002

#5955

All parts diagram

Range pressure regulator (replaces mdw61841001)

Part #AMP30000002

BEST SELLER
$73.18 |
8% OFF Phone Price : $79.18
In Stock
Range Nut 1NHB0500032

#W233

All parts diagram

Range nut

Part #1NHB0500032

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock

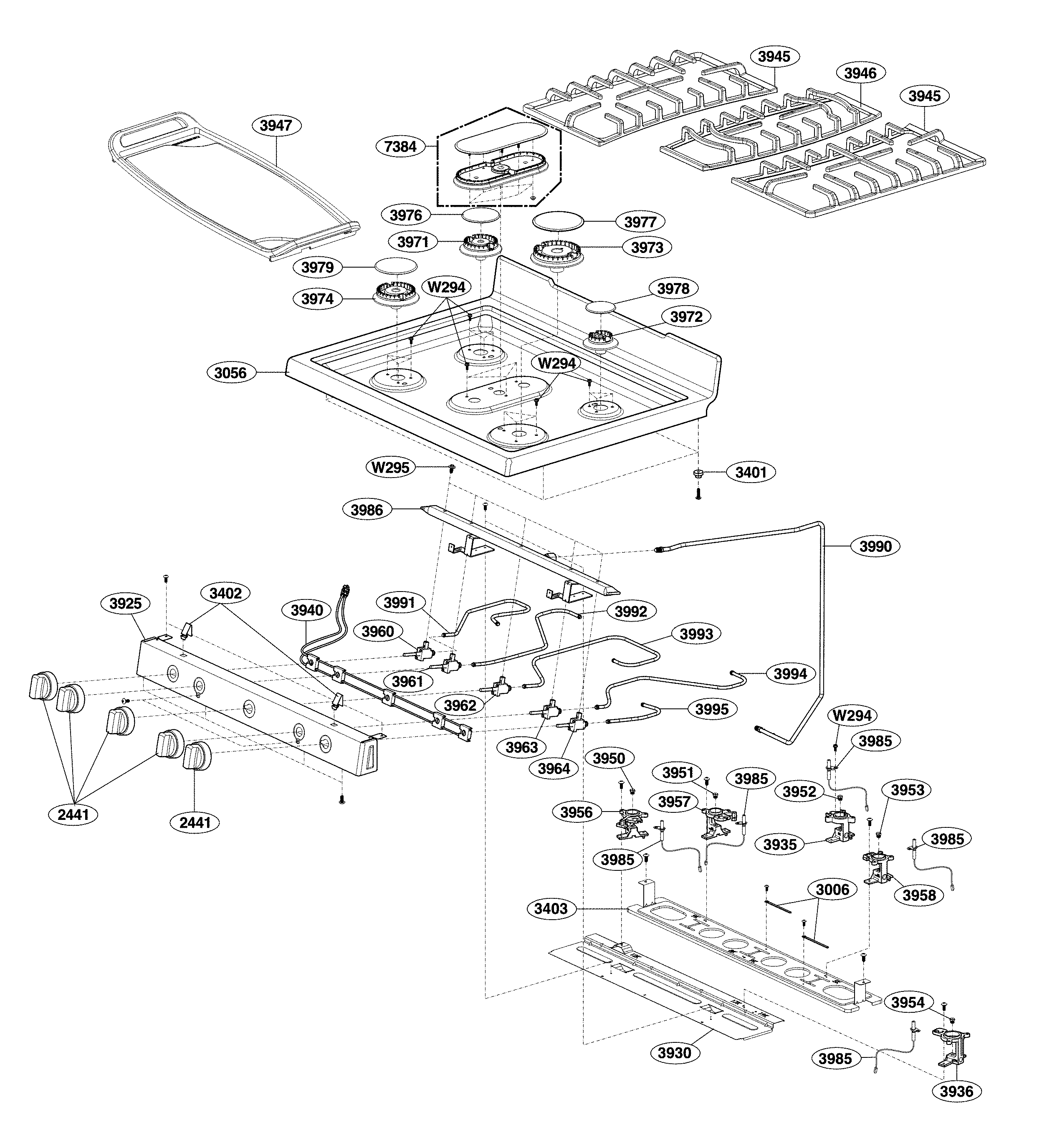

Range Surface Burner Valve, Right Rear MJX61842206

#3963

All parts diagram

Range surface burner valve, right rear

Part #MJX61842206

Replaced by #AJU74852813

?
Manufacturer substitution
This part replaces MJX61842206. Substitute parts can look different from the original.
BEST SELLER
$47.27
In Stock
Cooktop Spark Module (replaces Ebj60659901, Ebz60709801) EBJ62730001

#2058

All parts diagram

Cooktop spark module (replaces ebj60659901, ebz60709801)

Part #EBJ62730001

Replaced by #EBJ64465501

?
Manufacturer substitution
This part replaces EBJ62730001. Substitute parts can look different from the original.
$51.44
In Stock
Range Oven Rack (replaces Mhl39256101, Mhl39256102, Mhl39256104) MHL39256107

#3501

All parts diagram

Range oven rack (replaces mhl39256101, mhl39256102, mhl39256104)

Part #MHL39256107

$33.64 |
15% OFF Phone Price : $39.64
In Stock
Range Surface Burner Igniter (replaces Ead60700502, Ead60700504, Ead60700506, Ead60700521, Ead60700528, Ead60700530) EAD60700538

#3985

All parts diagram

Range surface burner igniter (replaces ead60700502, ead60700504, ead60700506, ead60700521, ead60700528, ead60700530)

Part #EAD60700538

This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Range Surface Burner Valve (replaces Mjx61842215) MJX61842207

#3960

All parts diagram

Range surface burner valve (replaces mjx61842215)

Part #MJX61842207

$38.38 |
14% OFF Phone Price : $44.38
In Stock
Range Surface Burner Cap MBL61908603

#3979

All parts diagram

Range surface burner cap

Part #MBL61908603

Replaced by #MBL61908604

?
Manufacturer substitution
This part replaces MBL61908603. Substitute parts can look different from the original.
$44.19 |
12% OFF Phone Price : $50.19
In Stock
