Model # FFU20F9CW3 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU20F9CW3 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Filter Drier 216099900
#4

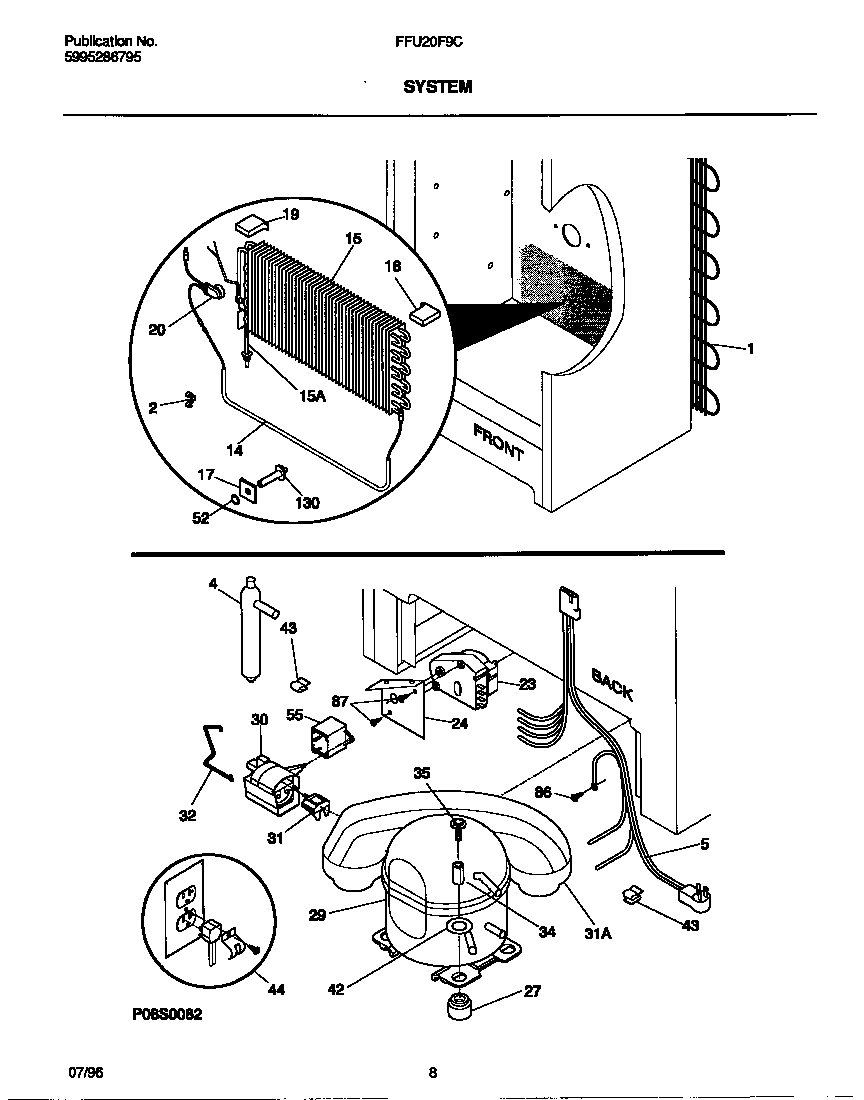

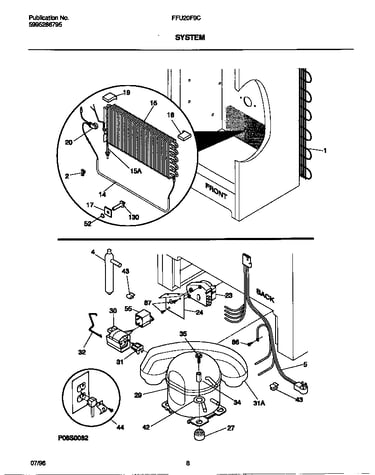

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Blade 216325600
#5

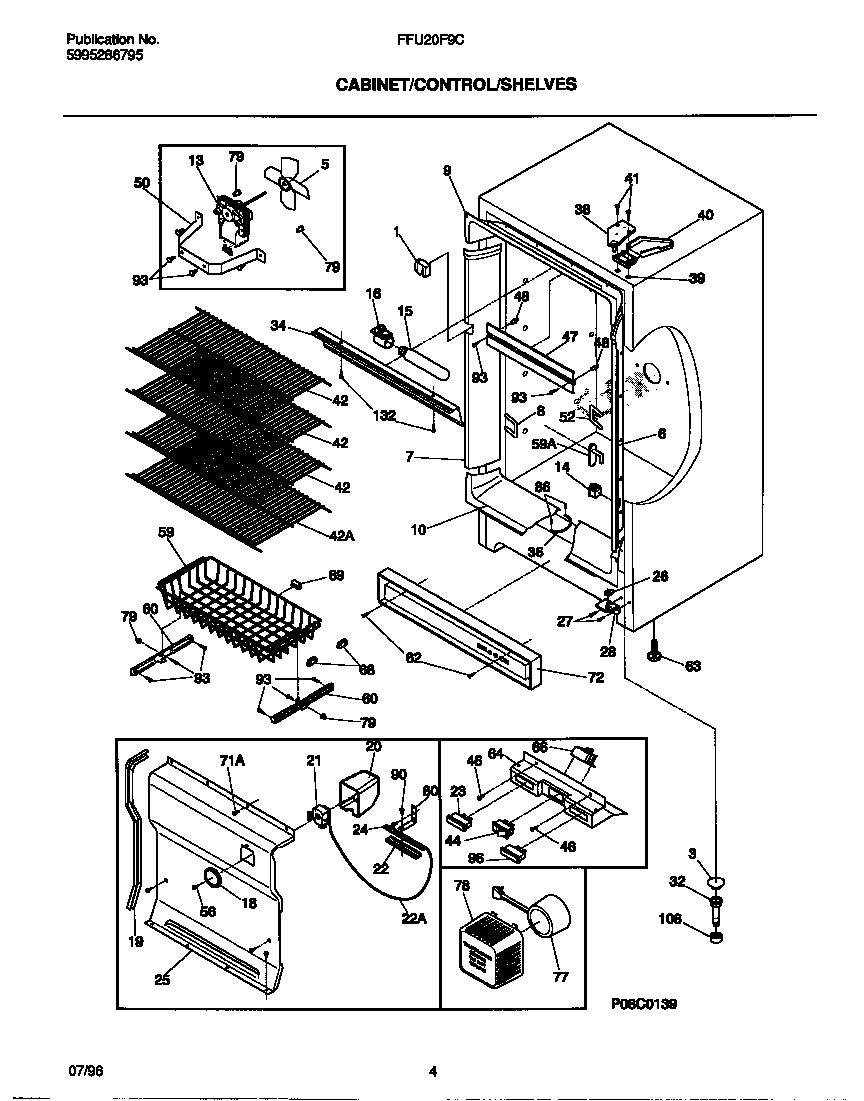

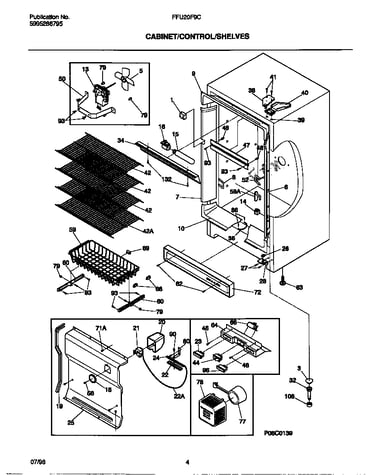

Cabinet/control/shelves diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Key 216388700
#5

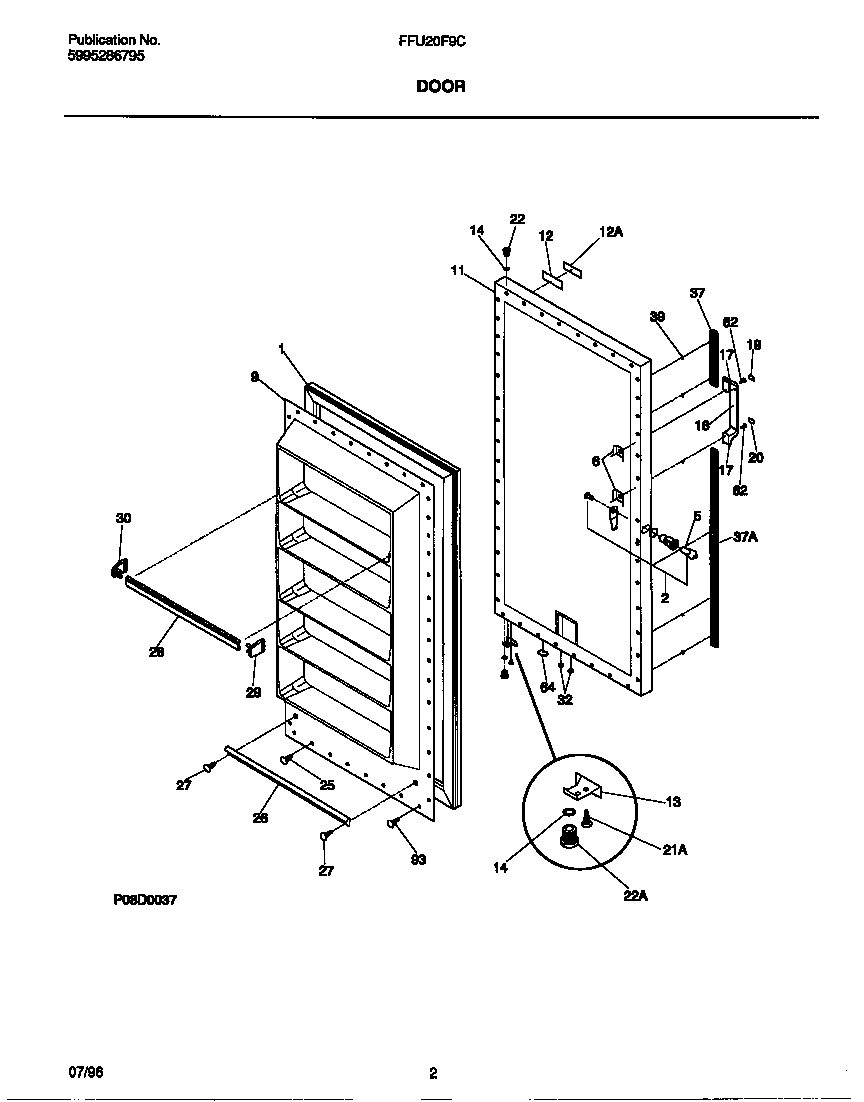

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Upright Freezer Defrost Timer 5308037967
#23

System diagram

Upright freezer defrost timer

Part #5308037967

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5303925356
#29

System diagram

Compressor

Part #5303925356

Replaced by #5304475102

?
Manufacturer substitution
This part replaces 5303925356. Substitute parts can look different from the original.
BEST SELLER
$321.83 |
$12.00 OFF Phone Price : $333.83
In Stock
Capacitor 218719201
#55

System diagram

Capacitor

Part #218719201

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218719201. Substitute parts can look different from the original.
BEST SELLER
$45.87 |
12% OFF Phone Price : $51.87
In Stock
Grille Screw 131168200
#71

Cabinet/control/shelves diagram

Grille screw

Part #131168200

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Clip 06599536
#2

System diagram

Clip

Part #06599536

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 06599536. Substitute parts can look different from the original.
BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Lamp Bulb 216222700
#15

Cabinet/control/shelves diagram

Lamp bulb

Part #216222700

Replaced by #216846400

?
Manufacturer substitution
This part replaces 216222700. Substitute parts can look different from the original.
$40.15 |
13% OFF Phone Price : $46.15
In Stock
Freezer Drain Hose Adapter 5308005500
#32

Cabinet/control/shelves diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
