Model # 358795630 Official Craftsman brushwacker hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 358795630 brushwacker hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Fuel Assembly 530-014362
#60

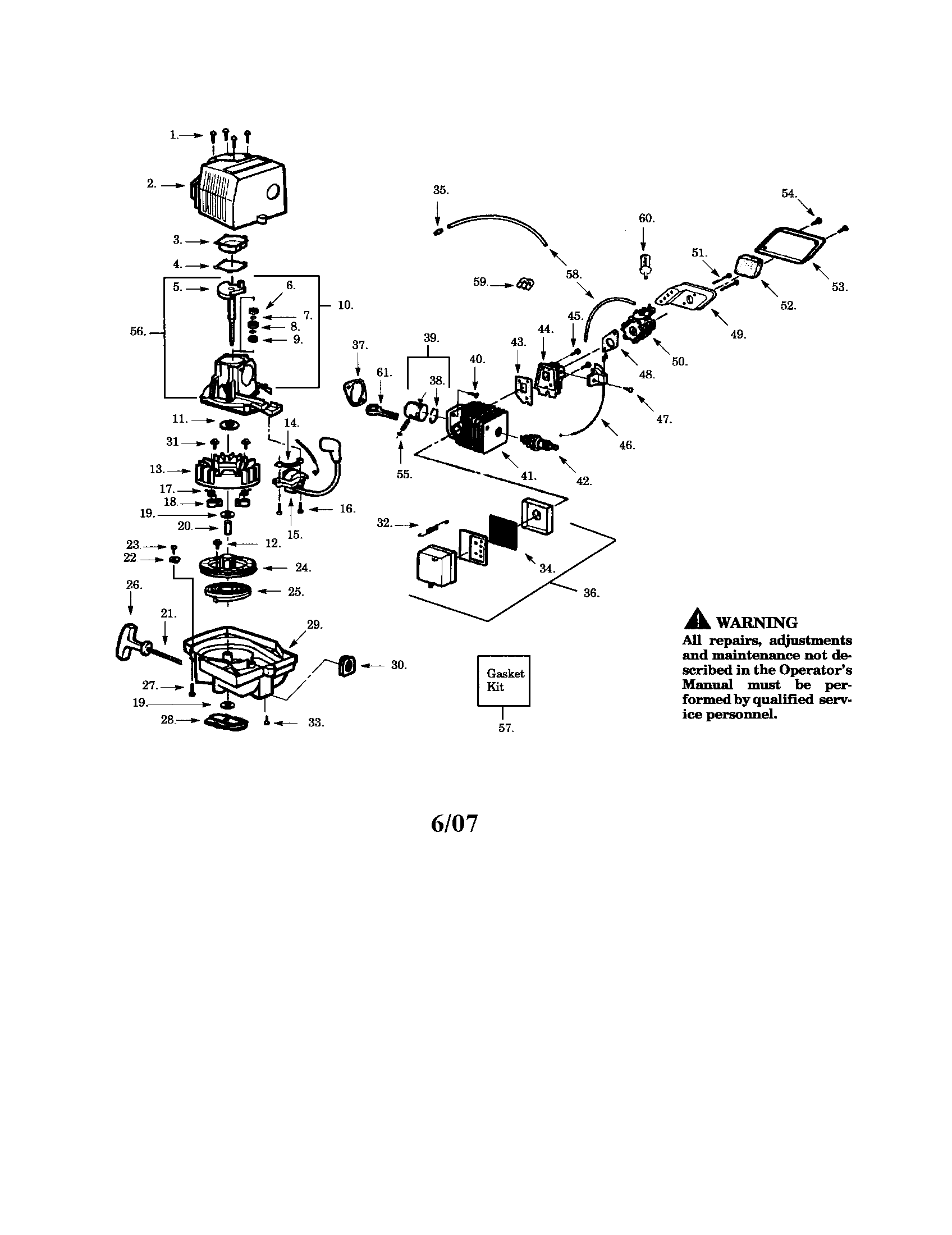

Cylinder/crankcase/crankshaft diagram

Fuel assembly

Part #530-014362

Replaced by #530095646

?
Manufacturer substitution
This part replaces 530-014362. Substitute parts can look different from the original.
BEST SELLER
$9.20 |
10% OFF Phone Price : $10.20
In Stock
Fitting 530-023877
#35

Cylinder/crankcase/crankshaft diagram

Fitting

Part #530-023877

Replaced by #530023877

?
Manufacturer substitution
This part replaces 530-023877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Return Line 530-069599
#58

Cylinder/crankcase/crankshaft diagram

Return line

Part #530-069599

Replaced by #530069599

?
Manufacturer substitution
This part replaces 530-069599. Substitute parts can look different from the original.
BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Screw 530-016080
#12

Cylinder/crankcase/crankshaft diagram

Screw

Part #530-016080

Replaced by #530016080

?
Manufacturer substitution
This part replaces 530-016080. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Screw 530-015940
#5

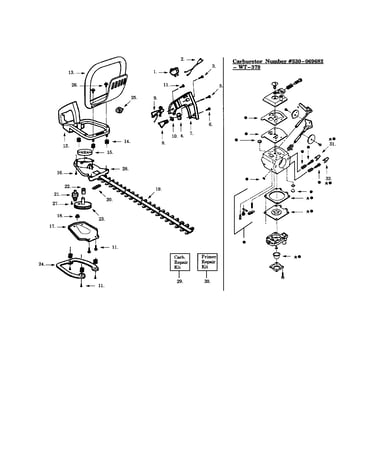

Handle/blade/carburetor diagram

Screw

Part #530-015940

Replaced by #530015940

?
Manufacturer substitution
This part replaces 530-015940. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Screw 530-015934
Screw

Part #530-015934

Replaced by #530015934

?
Manufacturer substitution
This part replaces 530-015934. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Screw 530-015886
#27

Cylinder/crankcase/crankshaft diagram

Screw

Part #530-015886

Replaced by #530015886

?
Manufacturer substitution
This part replaces 530-015886. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
C'case Seal 530-019179
#8

Cylinder/crankcase/crankshaft diagram

C'case seal

Part #530-019179

Replaced by #530019179

?
Manufacturer substitution
This part replaces 530-019179. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Handle 530-027569
#26

Cylinder/crankcase/crankshaft diagram

Handle

Part #530-027569

Replaced by #530027569

?
Manufacturer substitution
This part replaces 530-027569. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
Gasket 530-019223
#37

Cylinder/crankcase/crankshaft diagram

Gasket

Part #530-019223

Replaced by #530019223

?
Manufacturer substitution
This part replaces 530-019223. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
