KitchenAid
Wall Oven/Microwave Combo

Model # KEMS376TBL3 Official KitchenAid built-in oven with microwave

Here are the diagrams and repair parts for Official KitchenAid KEMS376TBL3 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

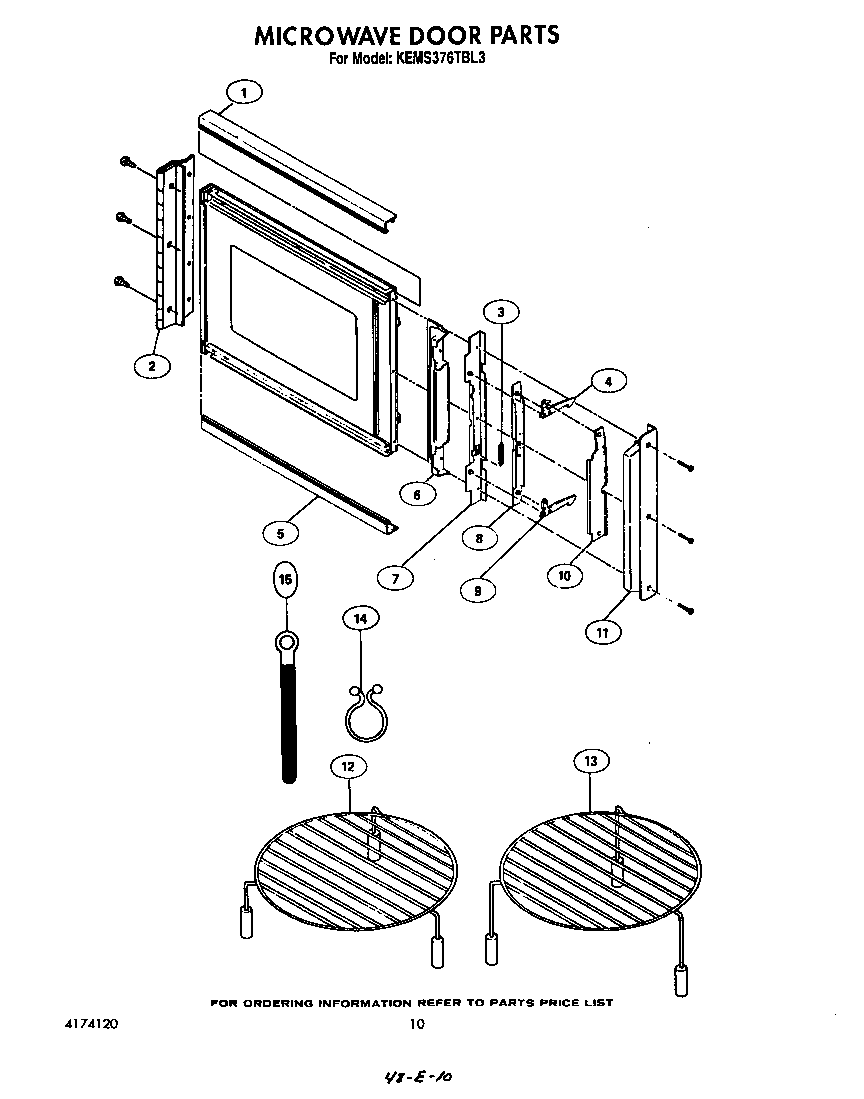

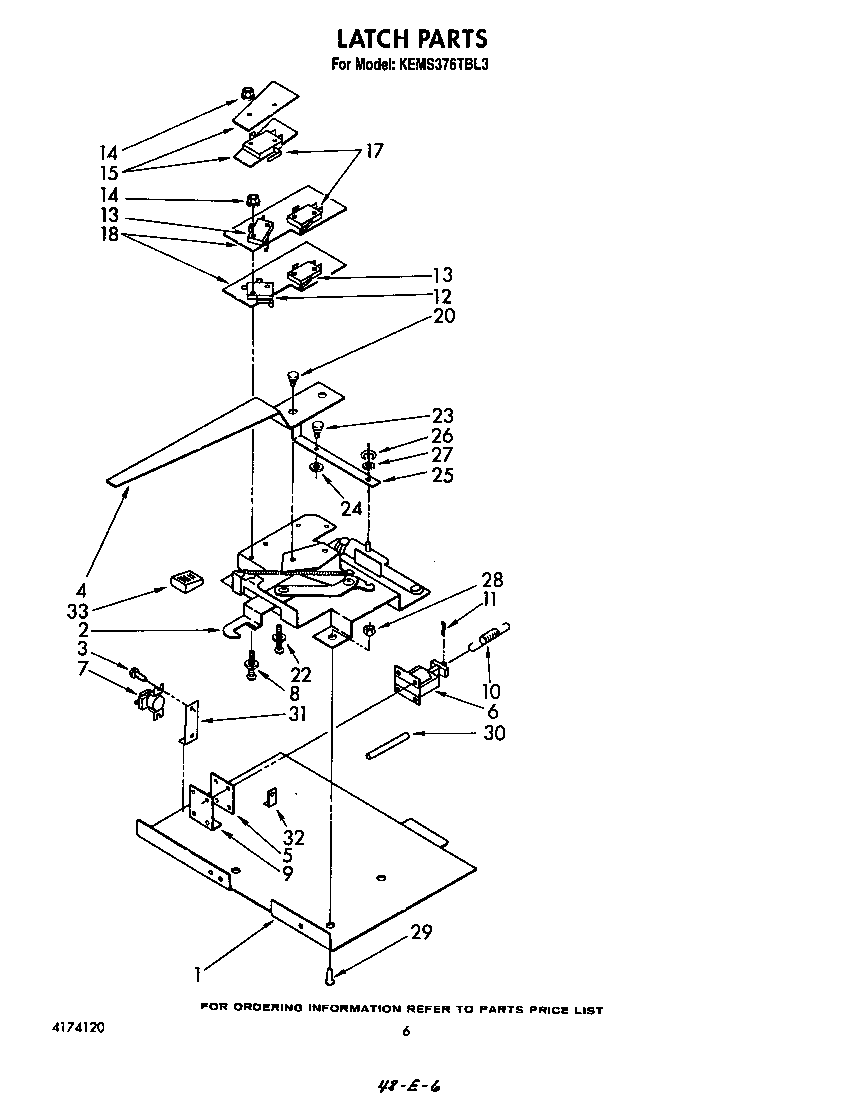

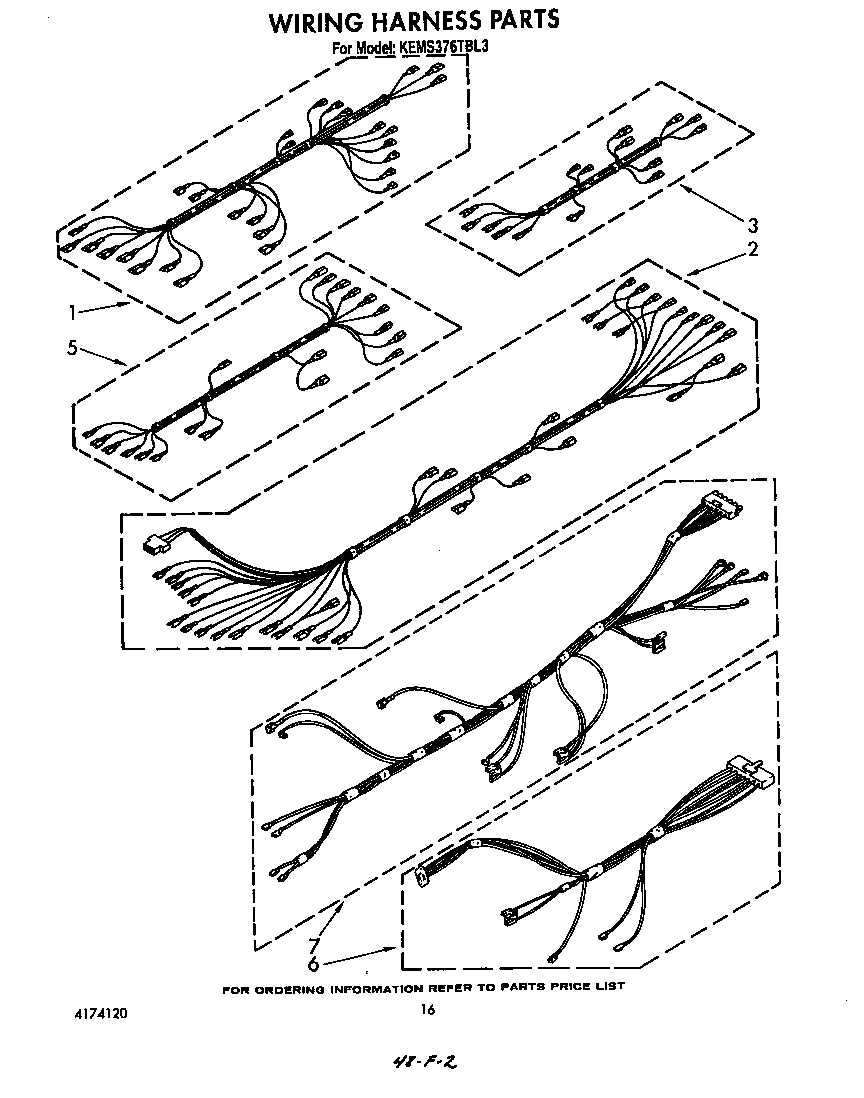

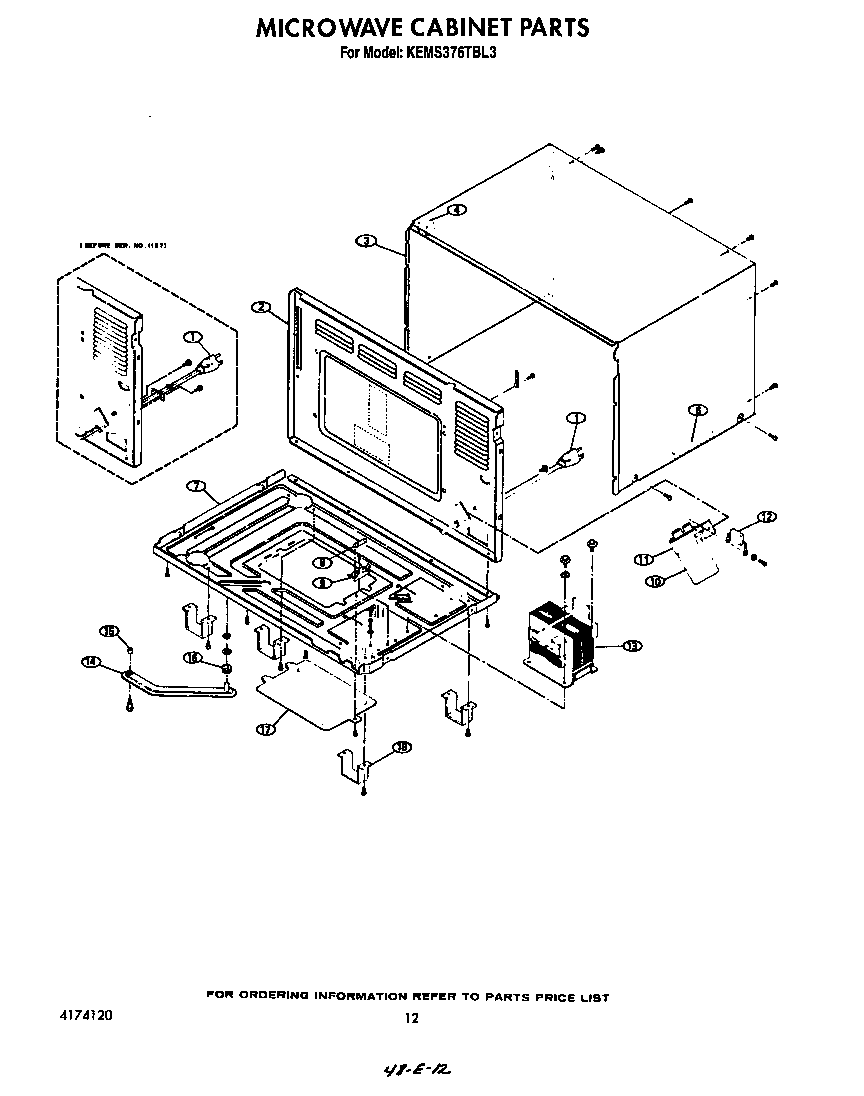

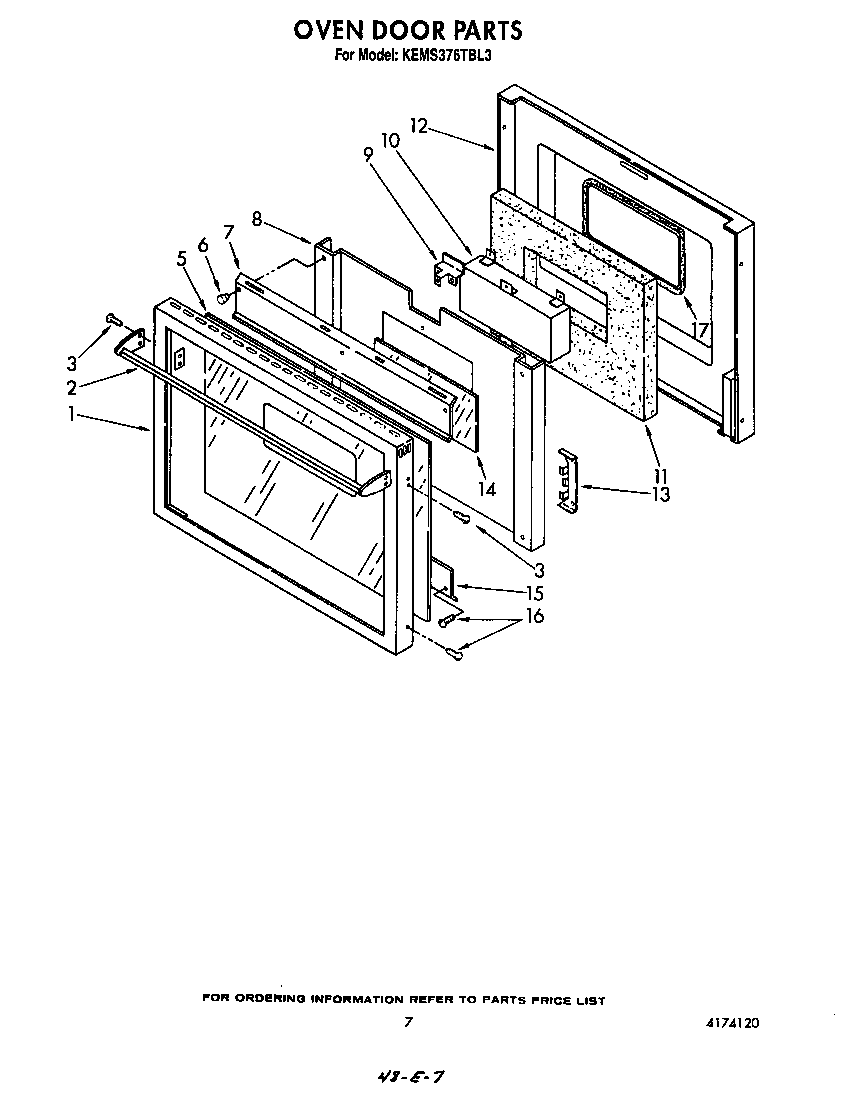

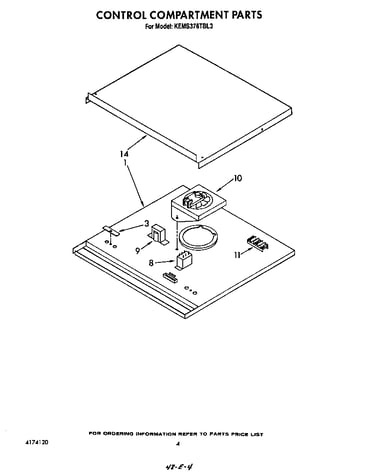

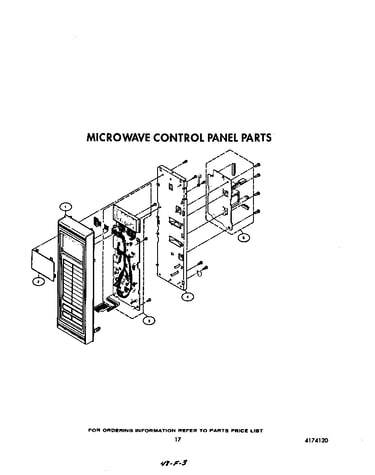

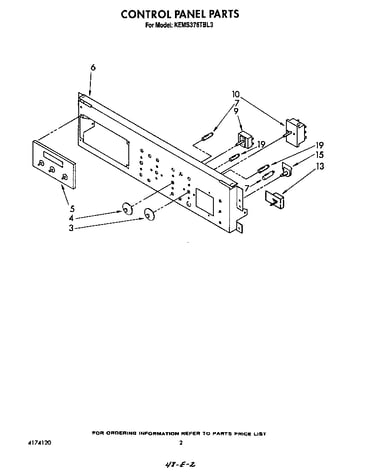

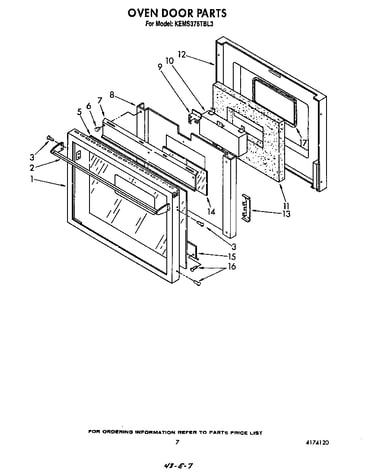

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 352 parts  |
Light Bulb 311255
#47

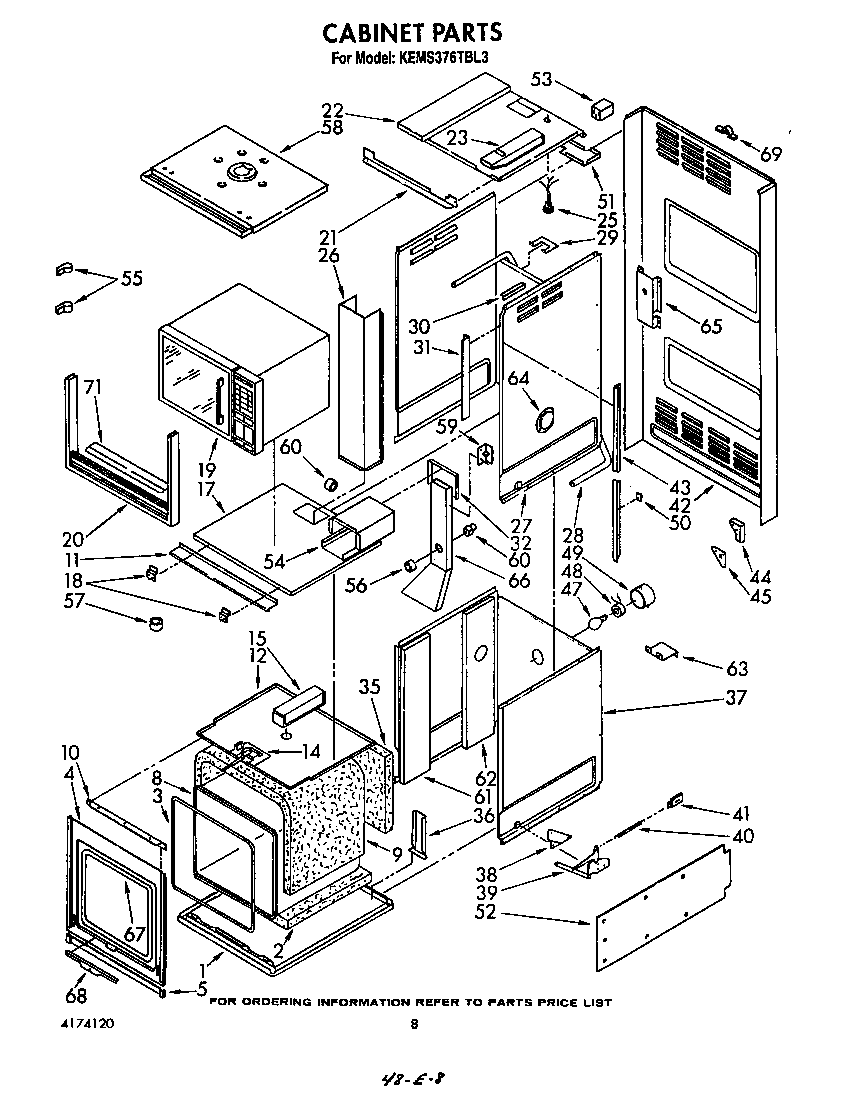

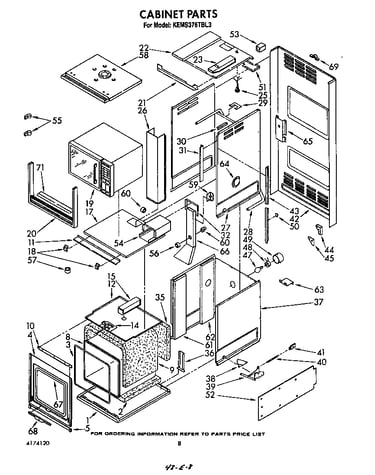

Cabinet diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Magnetron 4164509
#39

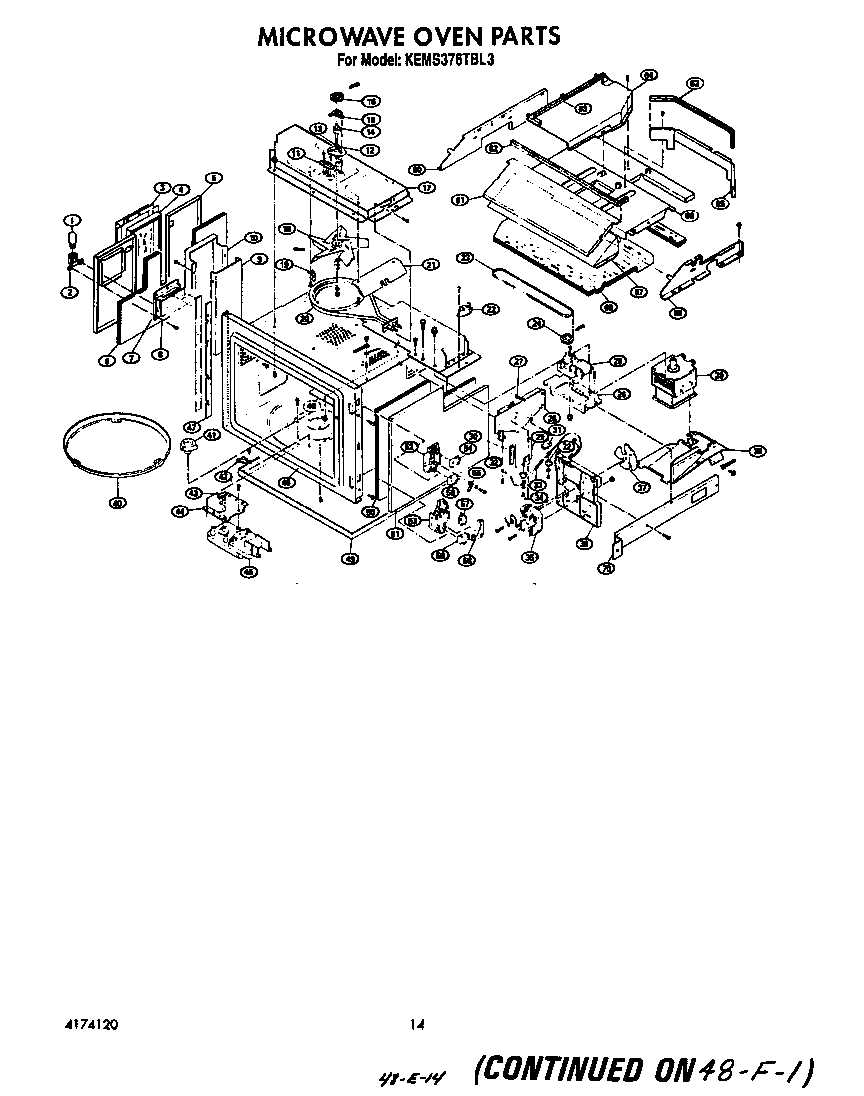

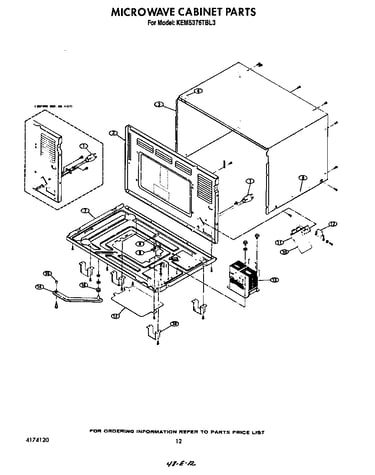

Microwave oven diagram

Magnetron

Part #4164509

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 4164470
#1

Microwave oven diagram

Light bulb

Part #4164470

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 4164470. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Screw 4159450
#43D

Cabinet diagram

Screw

Part #4159450

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4159450. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Bake Element 3177423
#2

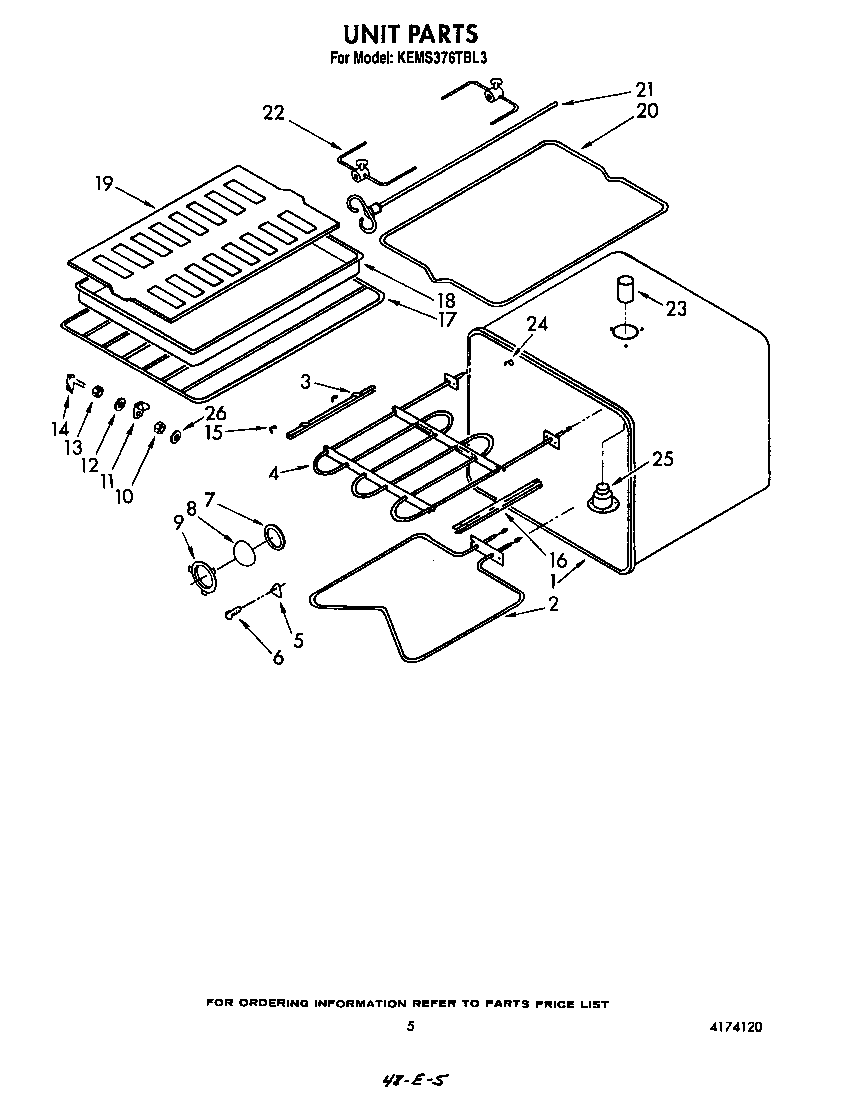

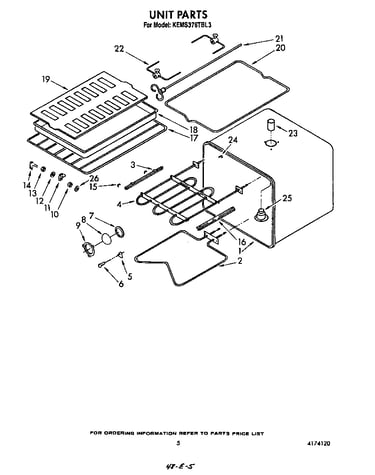

Unit diagram

Bake element

Part #3177423

Replaced by #WP3177420

?
Manufacturer substitution
This part replaces 3177423. Substitute parts can look different from the original.
$81.55 |
7% OFF Phone Price : $87.55
In Stock
Receptacle 4164293
#14

Unit diagram

Receptacle

Part #4164293

$48.24
In Stock
Switch 4164500
#56

Microwave oven diagram

Switch

Part #4164500

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4164500. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Switch 4164502
#59

Microwave oven diagram

Switch

Part #4164502

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4164502. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Grid Broil 4164251
#19

Unit diagram

Grid broil

Part #4164251

Replaced by #4396923

?
Manufacturer substitution
This part replaces 4164251. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Range Oven Selector Switch 4168403
#6

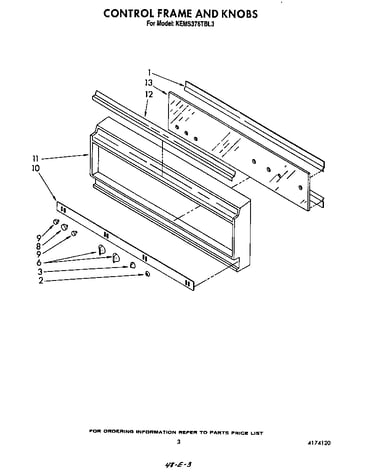

Control frame and knobs diagram

Range oven selector switch

Part #4168403

Replaced by #WP4168403

?
Manufacturer substitution
This part replaces 4168403. Substitute parts can look different from the original.
This item is not returnable
$21.02 |
22% OFF Phone Price : $27.02
In Stock
